How Does Temperature Rating Differ Between G11 and FR4?
Maximum Operating Temperature Comparison

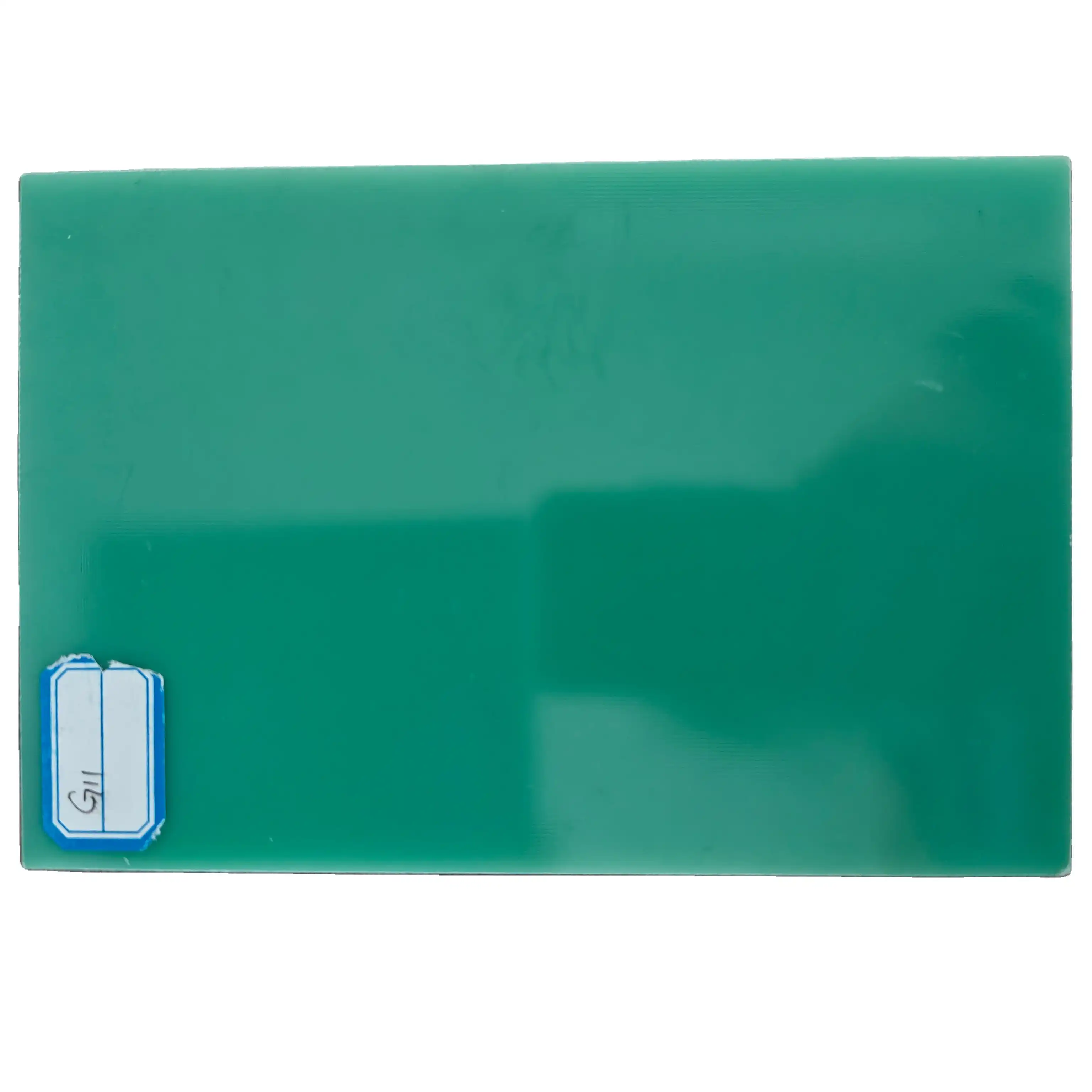

The temperature rating of G11 and FR4 materials is a critical factor in their application suitability. G11 sheets boast an impressive maximum operating temperature of approximately 180°C, with some variants pushing even higher. This elevated temperature resistance is achieved through a carefully formulated epoxy resin system that maintains its structural and electrical properties under intense heat. FR4 sheets, while robust in their own right, typically have a lower maximum operating temperature range of 130°C to 140°C. This difference of about 40°C to 50°C can be crucial in applications where every degree matters.
Thermal Index and Long-term Performance
The thermal index of a material provides insight into its long-term performance under elevated temperatures. G11 sheets generally have a higher thermal index compared to FR4, indicating better retention of properties over extended periods at high temperatures. This characteristic makes G11 an excellent choice for applications requiring prolonged exposure to heat, such as in industrial machinery or automotive components near heat sources. FR4, while suitable for many standard applications, may experience more rapid degradation when subjected to temperatures approaching its upper limits for extended durations.
Heat Deflection Temperature (HDT)
Heat Deflection Temperature is another crucial metric in comparing G11 and FR4 sheets. G11 typically exhibits a higher HDT, meaning it can maintain its shape and structural integrity under load at higher temperatures compared to FR4. This property is particularly valuable in applications where the material must resist deformation under both heat and mechanical stress. FR4, while adequate for many standard temperature ranges, may begin to soften or deform at temperatures that G11 can easily withstand, potentially compromising the integrity of the component or system.
Thermal Deformation and Stability in Extreme Conditions
Dimensional Stability Under Heat
G11 sheets demonstrate superior dimensional stability when exposed to high temperatures. This material maintains its shape and size with minimal warping or expansion, even in extreme heat conditions. Such stability is crucial in precision applications where maintaining exact dimensions is paramount. FR4, while stable in moderate temperature ranges, may exhibit more noticeable dimensional changes as it approaches its upper temperature limits. This could lead to issues in applications where tight tolerances are required, potentially causing misalignments or stress on connected components.
Resistance to Thermal Cycling
Thermal cycling, the repeated heating and cooling of materials, can be particularly challenging for many insulating materials. G11 sheets excel in this aspect, showing remarkable resistance to the stresses induced by thermal cycling. This resilience is due to its advanced resin system, which allows for better absorption and distribution of thermal stresses. FR4, while capable of withstanding some thermal cycling, may show signs of fatigue or degradation more quickly when subjected to frequent temperature fluctuations, especially if these cycles approach its upper temperature limits.
Thermal Conductivity and Heat Dissipation
While both G11 and FR4 sheets are primarily used for their insulating properties, their thermal conductivity plays a role in heat management. G11 typically has a slightly higher thermal conductivity compared to FR4, which can be advantageous in certain high-temperature applications. This property allows G11 to dissipate heat more effectively, potentially reducing hot spots and improving overall thermal management in a system. FR4, with its lower thermal conductivity, may require additional consideration for heat dissipation in designs where temperature control is critical.
Selecting G11 or FR4 for High-Heat Applications
Application-Specific Considerations
Choosing between G11 and FR4 sheets for high-heat applications requires careful consideration of the specific requirements of each project. G11 is the preferred choice for environments where temperatures consistently exceed 140°C or where there are frequent thermal cycles approaching this temperature. Industries such as aerospace, automotive, and high-power electronics often lean towards G11 for its superior heat resistance. FR4, while not suitable for extreme temperatures, remains an excellent and cost-effective choice for applications where temperatures stay below 130°C. It's widely used in consumer electronics, telecommunications equipment, and general-purpose PCBs where extreme heat is not a concern.
Cost-Benefit Analysis
When weighing G11 against FR4, cost considerations play a significant role. G11 sheets, due to their advanced formulation and superior heat resistance, typically come at a higher price point compared to FR4. This price difference must be balanced against the potential costs of failure or reduced lifespan in high-temperature applications. In scenarios where the operating temperature falls within FR4's capabilities, it often presents a more economical choice without compromising performance. However, for applications pushing the thermal limits, the investment in G11 can lead to long-term savings through increased reliability and reduced need for replacements or maintenance.
Performance Trade-offs and Material Properties
While temperature resistance is a key differentiator, other material properties must also be considered when choosing between G11 and FR4 sheets. G11 generally offers better mechanical strength and chemical resistance, which can be advantageous in harsh environments beyond just high temperatures. FR4, on the other hand, might have the edge in terms of machinability and ease of fabrication. Electrical properties such as dielectric strength and loss tangent can also vary between the two materials, potentially influencing their suitability for specific electronic applications. A comprehensive analysis of these properties in relation to the intended application is crucial for making the optimal material selection.
Conclusion
In the comparison of G11 vs FR4 for temperature resistance, G11 clearly emerges as the superior choice for high-heat applications. Its ability to withstand temperatures up to 180°C or higher, coupled with excellent dimensional stability and resistance to thermal cycling, makes it invaluable in extreme environments. FR4, while limited to temperatures around 130°C to 140°C, remains a versatile and cost-effective option for a wide range of standard applications. The selection between these materials should be based on a thorough assessment of the specific application requirements, balancing factors such as operating temperature, cost, and overall performance needs.
