What Are the Challenges of CNC Machining G10 Material?
Abrasive Nature and Tool Wear

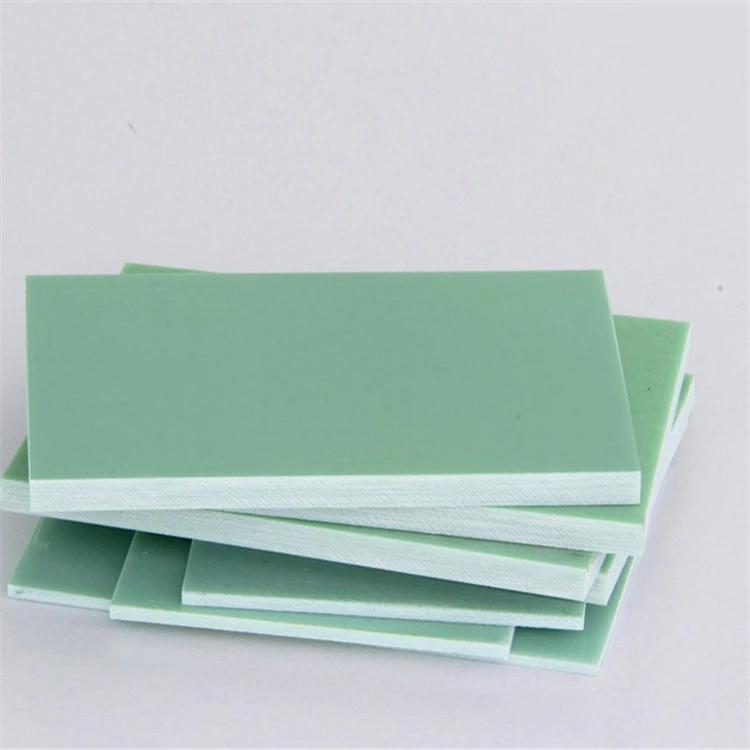

G10 fiberglass plate, while known for its strength and durability, poses machining challenges due to its abrasive glass fiber composition. This abrasiveness significantly accelerates tool wear, requiring operators to replace cutting tools more frequently, which increases downtime and production expenses. If not properly controlled, it may also compromise surface finish quality, making it essential to use diamond-coated or carbide tools and optimized machining speeds to maintain precision and extend tool life throughout the CNC process.
Heat Generation and Material Behavior
During CNC machining, G10 generates considerable heat because of its low thermal conductivity. This heat can soften the epoxy resin, potentially leading to smearing, delamination, or even tool clogging. The laminated structure of G10, composed of alternating glass cloth and resin layers, can also result in unpredictable behavior under thermal and mechanical stress. These factors can complicate achieving tight tolerances, making careful temperature control and adjusted feed rates critical for consistent, high-quality output.
Dust and Health Concerns
CNC machining of G10 produces fine fiberglass dust, which poses both operational and health hazards. This dust is highly abrasive and can accumulate in machine components, leading to wear or malfunction. More importantly, inhaling airborne fiberglass particles is dangerous for operators, potentially causing respiratory issues. To mitigate these risks, manufacturers must use high-efficiency dust extraction systems and ensure that workers wear proper PPE, including respirators and protective clothing, to maintain a safe and efficient working environment.
Tools and Techniques for Precision G10 Milling
Optimal Cutting Tool Selection
Selecting the right cutting tools is paramount for successful G10 fiberglass plate milling. Carbide-tipped or diamond-coated tools are often preferred due to their hardness and wear resistance. End mills with fewer flutes, typically two or three, are recommended as they provide better chip evacuation. For drilling operations, specialized composite drill bits with unique geometries can help prevent delamination and ensure clean holes.
Cutting Parameters and Strategies
Optimizing cutting parameters is crucial for achieving precision in G10 milling. Generally, high spindle speeds combined with moderate feed rates yield the best results. Climb milling is often preferred over conventional milling as it tends to produce a better surface finish and reduce the risk of delamination. Implementing appropriate step-over and depth-of-cut values can help manage heat generation and ensure consistent material removal.
Cooling and Lubrication Techniques
Effective cooling and lubrication are essential for precision G10 milling. While flood coolant can be used, many operators prefer compressed air cooling or mist cooling systems. These methods help manage heat buildup without introducing moisture that could potentially affect the material's properties. Some specialized cutting fluids designed for composite materials can also be beneficial, helping to reduce friction and extend tool life.
Safety Tips and Best Practices for CNC G10 Fabrication
Dust Management and Ventilation
Proper dust management is crucial when CNC machining G10 fiberglass plate. Implementing a robust dust collection system with high-efficiency particulate air (HEPA) filters can significantly reduce airborne particles. Enclosing the CNC machine and using point-of-source extraction can further enhance dust control. Adequate ventilation in the workspace is also essential to maintain air quality and protect operator health.
Personal Protective Equipment (PPE)
Operators should always wear appropriate PPE when working with G10. This includes safety glasses or face shields to protect against flying particles, respiratory protection such as N95 masks or powered air-purifying respirators (PAPRs) to prevent inhalation of fine dust, and gloves to protect against sharp edges and potential skin irritation from glass fibers. Hearing protection may also be necessary depending on the noise levels generated during machining.
Machine Maintenance and Workspace Hygiene
Regular maintenance of CNC machines used for G10 fabrication is crucial for both safety and performance. This includes frequent cleaning of the machine to prevent dust accumulation, which can interfere with moving parts and sensors. Implementing a clean workspace policy, including regular vacuuming with HEPA-filtered systems and wet-wiping of surfaces, can help minimize the spread of potentially harmful dust. Proper disposal of G10 waste and used cutting tools is also important for maintaining a safe work environment.
Conclusion
CNC machining G10 fiberglass plate is indeed possible and can yield excellent results when approached with the right knowledge and techniques. While challenges exist due to the material's abrasive nature and unique properties, these can be overcome through proper tool selection, optimized machining parameters, and adherence to safety protocols. By leveraging the strengths of CNC technology and understanding the nuances of working with G10, manufacturers can produce high-precision, complex components that capitalize on G10's exceptional mechanical and electrical properties.
