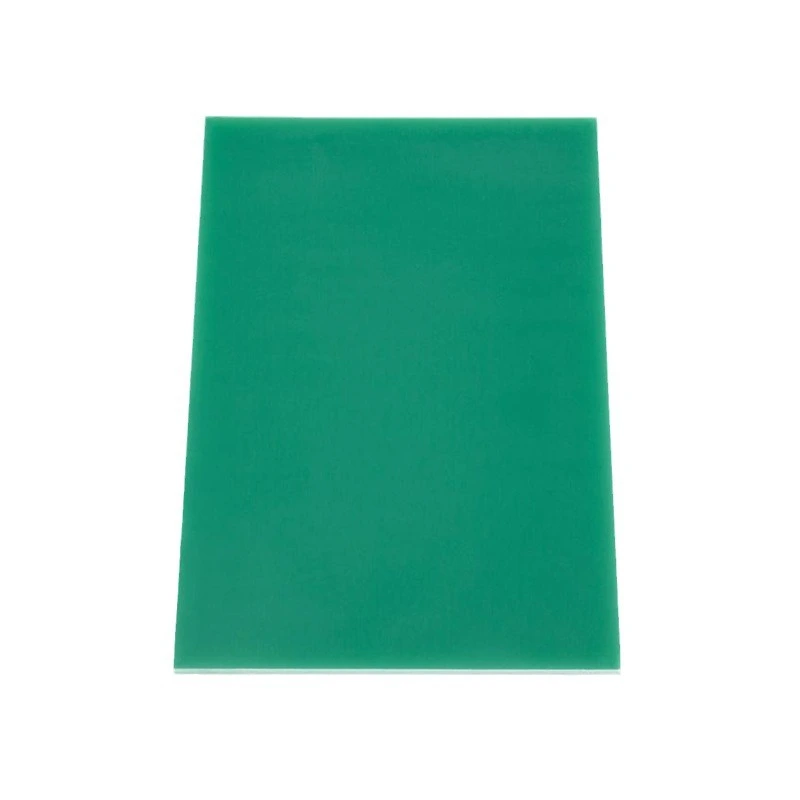

G11 Sheet Manufacturing Process and Quality Control

To make high-performance electrical shielding materials, G11 sheet production is a complex process that blends cutting-edge material science with precise engineering. During production, these epoxy glass laminates are subject to strict quality control checks to make sure they meet the high standards needed in electrical and industrial settings. The process of making it starts with carefully choosing the epoxy resin systems and glass cloth reinforcements. Next, the lamination is carefully controlled under certain temperature and pressure conditions to get the best mechanical strength and electrical qualities.

Understanding G11 Sheet Materials and Properties

G11 electrical shielding materials are special in the business market because of how well they work and how they are put together. Knowing these basic facts helps buying managers make smart choices that have a direct effect on how reliable and cost-effective their processes are.

Core Material Composition

G11 sheets are made up of weaved glass cloth and high-quality epoxy glue that have been carefully designed to work together. Putting these two things together makes a thermoset material that is very stable in a wide range of weather situations. The glass cloth keeps the shape and gives mechanical support, while the epoxy resin core provides better chemical and electrical protection.

The first step in making something is choosing high-quality E-glass materials that meet strict requirements for fiber thickness and weave uniformity. These materials are cleaned very well to get rid of any impurities that might affect how well the end product works. Most of the time, the epoxy resin system is made up of bisphenol-A resins and stiffening agents that bond under controlled heat and pressure.

Key Performance Characteristics

G11 insulation boards have a dielectric strength of over 15 kV/mm perpendicular to the laminations, which is very high. Because of this, they are very useful in electrical uses where voltage breakdown resistance is important. In temperatures ranging from -60°C to +130°C, the material keeps its insulating qualities. This means it can be used reliably in a wide range of settings.

Its mechanical qualities include a bending strength of up to 380 MPa and a compression strength of more than 415 MPa. Because of these features, G11 materials can be used in difficult situations as both electrical insulation and structure parts. The low water absorption rate, usually less than 0.15%, keeps the dimensions stable and the electrical properties stable even when it's wet outside.

Industrial Applications and Use Cases

G11 sheets are used a lot by companies that make electrical tools for motor slot wedges, switchgear insulation, and transformer parts. Because the material is so easy to work with, complicated shapes needed in current electrical designs can be made with great accuracy. In high-voltage situations, these laminates are used as spark shields and insulation supports in power plants.

G11's mechanical qualities are used in industrial machinery for load-bearing capacity, electrical isolation, and structural insulation in places where bearing supports, gear components, and structural insulation are needed. More and more, these materials are being used in the car industry for battery pack insulation and electrical control unit housings. This is especially true for electric vehicles, where flame resistance and temperature stability are very important.

Detailed G11 Sheet Manufacturing Process

To make high-quality G11 electrical laminates, you need to use complex manufacturing methods that keep a close eye on the features of the materials and the limits for their sizes. Knowing about these steps helps buyers judge the skills of suppliers and make sure that the quality of the products they receive stays uniform.

Raw Material Preparation and Selection

For manufacturing to be at its best, materials must be carefully inspected before they are used. Tensile strength, weave consistency, and surface preparation quality are all tested on glass textiles. To make sure that each batch of resin is the same, its density, gel time, and hardening properties are all looked at. Temperature-controlled holding areas keep the qualities of materials stable until production starts.

Quality sellers use full traceability systems that keep track of raw materials from the time they are received until they are delivered as finished goods. This method makes it easy to find and fix any quality problems quickly, and it also helps with efforts to keep getting better. Advanced testing labs make sure that all materials that come in meet or beat the performance standards that have been set.

Lamination and Pressing Operations

Precision lamination methods, in which pre-impregnated glass fabrics are put together and sealed under controlled conditions, are at the heart of making G11 sheets. Modern factories use hot platens with complex systems for controlling temperature and pressure that keep conditions the same across large panel areas.

In normal hardening processes, pressures ranging from 1.4 to 3.5 MPa are used to heat laminates that have been put together to temperatures between 140°C and 170°C. These factors are carefully tweaked to make sure that the glue cures completely, there is no internal stress, and the thickness of each sheet is the same. Advanced process tracking systems keep an eye on important factors in real time and change conditions automatically to keep quality at its best.

Finishing and Quality Verification

After sealing, operations like precise cutting of a G11 sheet, surface cleaning, and checking the dimensions with coordinate measuring tools are done. CNC cutting lets providers make things to order that are exactly what the customer wants and stay within very tight limits. Techniques for preparing the surface ensure the best gluing properties for the next steps in the building process.

Detailed testing plans check the end goods' electrical, mechanical, and heat qualities. Automated testing tools check the dielectric strength, bending qualities, and correctness of dimensions at several sample places. Statistical process control methods find patterns and differences that could impact the quality of the result. This lets changes be made to the factory factors before they happen.

Comprehensive Quality Control Measures for G11 Sheets

Leading makers can be told apart from common providers by their quality control systems, which have a direct effect on the dependability and performance of final goods. Instead of depending only on final review, modern methods to quality management include testing throughout the whole production process.

Incoming Material Inspection

Incoming checking is a very important control point because the quality of the raw materials has a big effect on how well the finished product works. Advanced testing labs look at the features of glass cloth, such as its tensile strength, weave count, and the quality of its surface preparation. To make sure that working properties stay the same, resin systems are tested for stickiness, reactivity, and storing stability.

Frequency of inspections and acceptance criteria are set by statistical sampling plans that are based on international standards. Documentation systems keep full records of all the materials that come in. This makes it possible to track everything, which helps with quality reviews and efforts to keep getting better. Supplier qualifying programs make sure that only approved sellers who meet strict quality standards provide essential raw materials.

In-Process Monitoring and Control

During the laminating and sealing processes, real-time tracking tools keep an eye on important process factors. Temperature sensors placed on hot platens make sure that all panel areas are heated evenly, and pressure detectors make sure that pressing forces are always the same. Data logging systems keep track of all the factors of a process, making lasting records that can be used for quality reviews and improving processes.

Before hardening starts, automated vision systems check the laid-ups to make sure the cloth is aligned correctly and the resin is spread out evenly. These systems find possible flaws early on in the process, when they can be fixed to avoid problems with the quality of the end product. Operator training programs make sure that important steps in the process are always carried out the same way, and they also give workers the tools they need to spot and fix quality problems.

Final Product Testing and Certification

Before they are sent to customers, finished G11 sheets are checked against a long list of requirements in a thorough testing procedure. Electrical testing includes measuring the dielectric strength, the volume resistance, and the dielectric constant under controlled conditions. Measurements of bending strength, compressive strength, and impact resistance are all part of mechanical property tests.

Precision measuring tools are used for dimension checking to make sure that the width, flatness, and edge quality meet customer requirements. By looking at test results statistically, you can find patterns and differences that could mean that the process needs to be changed and needs your attention. Customers can get objective proof of product quality and regulatory compliance from certificate of compliance paperwork.

Best Practices and Trends in G11 Sheet Quality and Manufacturing

Because of new technologies and changing government rules, the electrical shielding products business is always changing. Keeping up with these changes helps procurement workers make smart choices that will help their companies succeed in the long run.

International Standards and Compliance Framework

ASTM D229 lays out all the rules for G11 industrial laminates, including the basic properties that they must have and the usual ways to test them. International standards for electrical shielding materials are set by IEC 60893. These standards make sure that all products can work with each other and act the same way. Suppliers can serve a wide range of customers while keeping quality levels uniform if they follow these guidelines.

Environmental laws are having a bigger effect on choosing materials and making things. REACH compliance makes sure that materials meet the safety standards for chemicals in Europe. Similar rules set similar safety standards in other areas as well. Suppliers who are proactive engage in regulatory compliance infrastructure that looks ahead to future needs instead of just following the rules that are in place now.

Technological Advancements in Manufacturing

Automation technology is still changing the way G11 sheets are made by making it easier to control the process and make sure the standard is always the same. In real time, advanced sensors track the flow of glue, the spread of temperature, and the development of the fix. This lets changes be made right away that improve the quality of the product. Applications that use artificial intelligence look at process data from the past to figure out the best way to run things and avoid quality problems.

Digital manufacturing platforms combine data on design, production, and quality so that they can quickly meet customer needs while still enforcing strict quality standards. These systems allow mass customization, which lets you get solutions that fit your needs without the usual price hikes that come with custom production. Predictive repair technologies cut down on unplanned breaks and make sure that the quality of the production stays the same.

Environmental Sustainability Initiatives

Sustainable manufacturing practices meet the needs of customers and regulators who want businesses to be more environmentally friendly. Waste reduction programs cut down on the amount of materials used while also making the process more efficient. Recycling programs for both industrial trash and goods that have reached the end of their useful life are better for the earth and might even lower the cost of raw materials.

Making industrial methods more energy efficient has a positive effect on the environment and lowers the cost of production. When compared to older equipment, modern lamination equipment uses a lot less energy because it has better shielding and heat return systems. Life cycle assessment methods help people figure out how the materials they choose will affect the world in the long term, not just how much they cost at first.

Conclusion

When buying workers know how G11 sheets are made and how to make sure they are of high quality, they can make smart choices about where to buy them that improve both performance and cost-effectiveness. Today's G11 electrical laminates are made with advanced materials science, precise production methods, and thorough quality systems that make sure they meet the strict needs of modern industrial uses. To have good relationships with suppliers, you need to carefully look at their technical skills, quality systems, and business factors that help you reach your long-term business goals while keeping products reliable and consistent in how they work.

FAQs

What are the main benefits of G11 sheets over other types of electrical insulation?

The mechanical strength of G11 electrical laminates is very high, and their electrical insulation qualities are also very good. This makes them perfect for uses that need both structural support and electrical separation. G11 doesn't change its qualities when the temperature changes like phenolic materials do. It also resists wetness better than many other materials.

How can I tell if a seller of G11 sheets is good?

Checking the quality of a product means looking at the supplier's ISO 9001 and UL licenses, asking for test results that show the product meets the necessary standards, and checking the manufacturing skills and quality control systems at the factory. Sample tests and sample sales are useful ways to get a feel for the real quality of a product and how quick a provider is.

What kinds of changes can you usually make to G11 sheets?

Precision cutting to exact measurements, CNC making of complicated forms, surface treatments for better bonding, and custom thickness needs are some of the standard ways that products can be customized. A lot of sellers also offer technical advice services to help customers choose the best materials and set them up for their needs.

What should I look for in the detailed information for the G11 sheet?

Material safety data sheets, proof of agreement with relevant standards, test records confirming electrical and mechanical qualities, and material property data sheets should all be part of complete technical paperwork. Good providers also give application instructions and design suggestions that help with the successful adoption of materials.

Partner with J&Q for Premium G11 Sheet Solutions

J&Q has been making insulating materials for over 20 years and has been dealing internationally for 10 years. This allows them to make great G11 sheet goods that meet the strictest industry standards. Our advanced manufacturing and thorough quality control systems make sure that our products always work well, and our in-house transportation operations make sure that the supply chain runs smoothly. Our expert team works closely with clients to make sure that the materials they choose are the best ones and that they arrive on time, so that your business goals can be met. This is true whether you need standard configurations or custom-engineered solutions. Email us at info@jhd-material.com to talk about your G11 sheet needs and find out how our experience as a G11 sheet maker can help your project succeed.
