Understanding FR4 and Rogers Materials
Composition and Properties of FR4

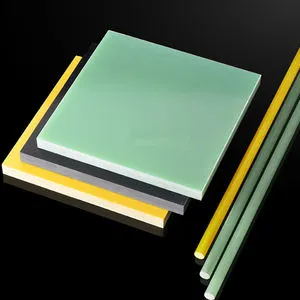

FR4, short for Flame Retardant 4, is a composite material composed of woven fiberglass cloth impregnated with an epoxy resin binder. This versatile substrate boasts a unique combination of mechanical strength, electrical insulation, and flame-resistant properties. The glass fibers provide structural integrity, while the epoxy resin ensures excellent adhesion and insulation. FR4 sheets typically have a dielectric constant ranging from 4.2 to 4.8, making them suitable for a wide array of electronic applications. Their thermal expansion coefficient and moisture absorption characteristics contribute to their widespread use in the electronics industry.
Composition and Properties of Rogers Materials
Rogers materials encompass a family of high-performance laminates specifically engineered for demanding RF and microwave applications. These materials often incorporate advanced polymers, ceramics, or PTFE (polytetrafluoroethylene) as their base. Unlike standard FR4 sheet used in general PCB manufacturing, Rogers substrates are renowned for their low dielectric constants, typically ranging from 2.2 to 10.2, depending on the specific formulation. This attribute allows for reduced signal loss and improved signal integrity in high-frequency circuits. Additionally, Rogers materials exhibit exceptional thermal stability, low moisture absorption, and consistent electrical properties across a broad frequency spectrum, making them indispensable in cutting-edge telecommunications and aerospace applications.
Key Differences in Electrical Performance
The electrical performance disparities between FR4 and Rogers materials are significant, particularly in high-frequency applications. FR4, while adequate for many general-purpose designs, begins to show limitations as frequencies increase. Its relatively high dielectric constant and loss tangent can lead to signal attenuation and distortion in multi-gigahertz ranges. Conversely, Rogers materials excel in minimizing signal loss and maintaining signal integrity at high frequencies. Their low dielectric constants and loss tangents result in reduced parasitic capacitance and improved impedance control. This superior performance in the RF and microwave domains makes Rogers materials the preferred choice for applications requiring precise signal transmission and minimal electromagnetic interference.
Factors Influencing Material Selection
Frequency Range Considerations
The operating frequency range of a PCB is a paramount factor in selecting between FR4 and Rogers materials. FR4 sheets perform admirably in low to medium frequency applications, typically up to 1-2 GHz. Beyond this threshold, signal integrity begins to degrade due to increasing dielectric losses. Rogers materials, with their specialized formulations, maintain consistent performance well into the microwave and millimeter-wave frequencies. For applications operating above 2 GHz, such as 5G infrastructure, satellite communications, or radar systems, Rogers substrates become increasingly advantageous. The choice between FR4 and Rogers must be carefully evaluated based on the specific frequency requirements of the intended application to ensure optimal signal transmission and minimal losses.
Thermal Management and Stability
Thermal considerations play a crucial role in PCB material selection, particularly for high-power or high-density designs. FR4 sheet, while offering good thermal resistance, may experience dimensional instability and increased losses at elevated temperatures. This can lead to potential warping or delamination in extreme conditions. Rogers materials, on the other hand, exhibit superior thermal stability and lower thermal expansion coefficients. This enhanced thermal performance allows for more reliable operation in high-temperature environments and improved heat dissipation capabilities. When designing PCBs for applications with significant thermal challenges, such as power amplifiers or high-speed data processing units, the thermal advantages of Rogers materials often outweigh their higher cost.
Cost and Manufacturing Considerations
The economic aspects of PCB material selection cannot be overlooked. FR4 sheets remain the most cost-effective option for a wide range of applications due to their widespread availability and established manufacturing processes. The lower material cost of FR4, coupled with its ease of fabrication, makes it an attractive choice for high-volume production runs. Rogers materials, while offering superior electrical and thermal properties, come at a premium price point. The specialized nature of Rogers substrates often requires more sophisticated manufacturing techniques, potentially increasing production costs. However, for high-frequency applications where performance is paramount, the additional expense of Rogers materials can be justified by the enhanced functionality and reliability they provide. A thorough cost-benefit analysis, taking into account both material costs and long-term performance requirements, is essential for making an informed decision between FR4 and Rogers substrates.
Application-Specific Material Selection
FR4 in General-Purpose Electronics
FR4 sheets continue to dominate the landscape of general-purpose electronics due to their versatility and cost-effectiveness. In applications such as consumer electronics, automotive components, and industrial control systems, FR4 provides an optimal balance of electrical, mechanical, and thermal properties. The material's wide availability and established manufacturing processes make it ideal for high-volume production. FR4's dielectric properties are well-suited for circuits operating at frequencies up to 1 GHz, encompassing a vast array of everyday electronic devices. Its flame-retardant characteristics also contribute to safety compliance in various industries. For multilayer PCB designs with moderate complexity, FR4 offers excellent layer-to-layer adhesion and consistent performance across different board thicknesses.
Rogers Materials in High-Frequency Applications
Rogers materials find their niche in high-frequency and high-performance applications where signal integrity is paramount. Unlike standard FR4 sheet used in general-purpose PCB manufacturing, these specialized substrates excel in fields such as aerospace, defense, and telecommunications, where operating frequencies often exceed 10 GHz. The low dielectric constants and loss tangents of Rogers materials enable the design of compact, efficient RF and microwave circuits. In 5G infrastructure, for instance, Rogers substrates facilitate the development of high-frequency antennas and filters crucial for next-generation wireless communications. Satellite communication systems benefit from the materials' stability across wide temperature ranges and their resistance to outgassing in space environments. For radar applications, Rogers materials' consistent electrical properties across broad frequency bands contribute to improved detection accuracy and range.
Hybrid Solutions and Material Combinations
In many advanced PCB designs, a hybrid approach combining FR4 and Rogers materials can offer the best of both worlds. This strategy involves using Rogers materials for critical high-frequency sections of the board while employing FR4 for less demanding areas. Such an approach allows designers to optimize performance where it matters most while managing overall costs. For example, in a complex RF system, the antenna and front-end circuitry might utilize Rogers substrates, while power supply and digital control sections are implemented on FR4. Careful consideration must be given to the transition between different materials to maintain impedance matching and signal integrity. Advanced PCB manufacturing techniques, such as selective bonding and multi-material lamination, have made these hybrid designs increasingly feasible, opening new possibilities for cost-effective, high-performance electronic systems.
Conclusion
The choice between FR4 and Rogers materials for high-frequency PCB applications is not a one-size-fits-all decision. It requires a nuanced understanding of the specific requirements of each project, balancing performance needs against economic constraints. FR4 sheet remains an excellent choice for a wide range of general-purpose electronics, offering reliability and cost-effectiveness. However, as frequencies climb and performance demands increase, Rogers materials become indispensable, providing the superior electrical properties necessary for cutting-edge RF and microwave applications. The future of PCB design likely lies in innovative hybrid solutions, combining the strengths of both materials to create optimized, high-performance electronic systems.
