The Composition and Manufacturing of FR4 Epoxy Sheet
Raw Materials and Their Roles

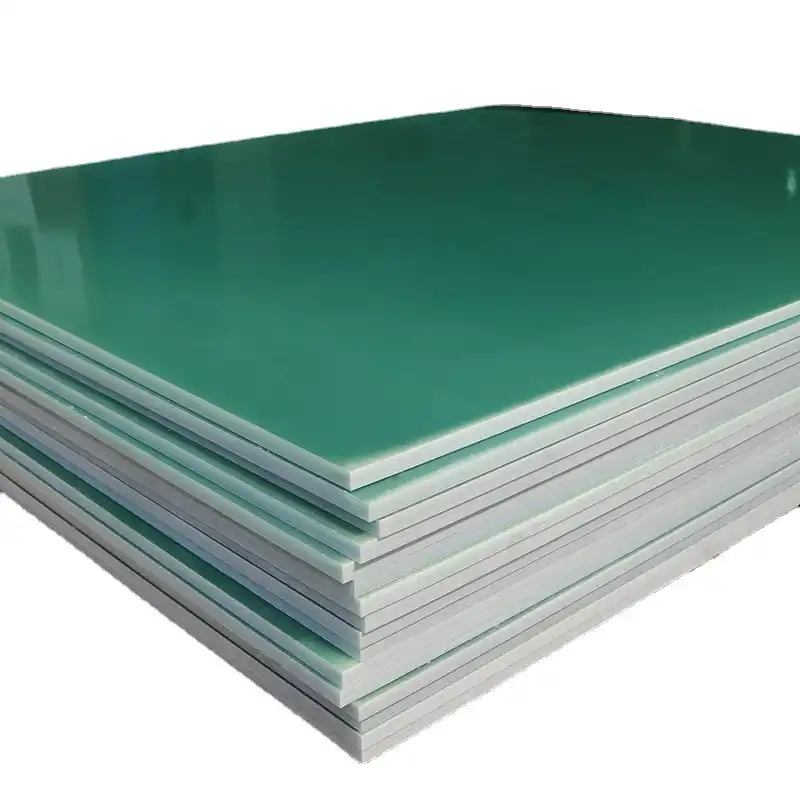

FR4 epoxy sheet is a composite material crafted from a precise blend of components. At its core lies a woven fiberglass cloth, providing structural integrity and dimensional stability. This fiberglass substrate is impregnated with an epoxy resin system, which acts as the binding agent and contributes to the material's electrical and thermal properties. The epoxy resin is typically fortified with flame-retardant additives, most commonly bromine compounds, which imbue the sheet with its characteristic fire-resistant qualities.
Manufacturing Process
The production of FR4 epoxy sheet involves a meticulous multi-stage process. Initially, the fiberglass cloth is treated with a coupling agent to enhance resin adhesion. Subsequently, the cloth is impregnated with the epoxy resin mixture through a controlled dipping process. The impregnated sheets then undergo a carefully monitored curing cycle, involving precise temperature and pressure conditions. This curing process initiates chemical reactions within the epoxy matrix, resulting in a highly cross-linked polymer structure that imparts the material with its exceptional properties.
Quality Control Measures
Rigorous quality control measures are implemented throughout the manufacturing process to ensure consistency and reliability. These include monitoring resin content, controlling laminate thickness, and verifying the degree of cure. Advanced testing methods, such as differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA), are employed to assess the material's thermal and flame-retardant properties. The final product undergoes extensive testing to confirm compliance with industry standards, including UL94 flammability ratings and IPC specifications for electrical and mechanical properties.
Electrical and Mechanical Properties of FR4 Epoxy Sheet
Dielectric Strength and Insulation Resistance
FR4 epoxy sheet boasts remarkable dielectric properties, making it an ideal choice for electrical insulation applications. Its high dielectric strength, typically ranging from 20 to 80 kV/mm, enables it to withstand substantial voltage gradients without breakdown. The material's exceptional insulation resistance, often exceeding 10^6 megohms, ensures minimal current leakage even under demanding conditions. These properties are crucial in maintaining signal integrity and preventing short circuits in complex electronic assemblies.
Mechanical Robustness and Dimensional Stability
Beyond its electrical prowess, FR4 epoxy sheet exhibits impressive mechanical characteristics. Its tensile strength, usually between 280 and 320 MPa, coupled with a flexural strength of approximately 400 MPa, provides the durability required for structural applications. The material's low coefficient of thermal expansion (CTE) in the X-Y plane, typically around 14-17 ppm/°C, ensures dimensional stability across a wide temperature range. This stability is paramount in maintaining the integrity of circuit traces and preventing warpage in multi-layer PCBs.
Thermal Performance and Heat Resistance
FR4 epoxy sheet demonstrates admirable thermal properties, contributing to its versatility in various operating environments. With a glass transition temperature (Tg) ranging from 130°C to 180°C, depending on the specific formulation, it maintains its structural integrity and electrical properties at elevated temperatures. The material's low thermal conductivity, approximately 0.25 W/m·K, aids in thermal management by providing insulation against heat transfer. These thermal characteristics make FR4 epoxy sheet suitable for applications involving thermal cycling and exposure to high-temperature environments.
Applications and Future Trends in FR4 Epoxy Sheet Technology
Diverse Industrial Applications
The versatility of FR4 epoxy sheet extends its utility across numerous industries. In the electronics sector, it serves as the primary substrate for multilayer PCBs in consumer electronics, telecommunications equipment, and aerospace systems. The automotive industry leverages FR4 epoxy boards in vehicle control modules and dashboard displays. In the renewable energy sector, FR4 finds application in solar inverters and wind turbine control systems. Its flame-retardant properties make it invaluable in safety-critical applications, such as fire detection and suppression systems in buildings and transportation.
Advancements in FR4 Formulations
Ongoing research and development efforts are focused on enhancing the properties of FR4 epoxy sheet. Recent advancements include the development of halogen-free flame retardant systems to address environmental concerns associated with traditional brominated compounds. High-frequency and high-speed digital applications have driven the creation of low-loss FR4 variants with improved signal integrity at higher frequencies. Researchers are also exploring nanocomposite additives to boost thermal conductivity and mechanical strength without compromising the material's core electrical properties.
Emerging Technologies and Future Prospects
The future of FR4 epoxy sheet technology is closely tied to emerging trends in electronics and sustainable manufacturing. The push towards miniaturization and higher-density circuits is driving the development of thinner FR4 laminates with enhanced thermal management capabilities. In response to the growing demand for flexible electronics, researchers are exploring hybrid FR4 materials that combine the rigidity of traditional FR4 with flexible substrate properties. Additionally, the integration of smart materials, such as self-healing polymers and embedded sensors, into FR4 composites holds promise for creating more resilient and adaptive electronic systems.
Conclusion
FR4 epoxy sheet remains a cornerstone in electrical insulation and flame-retardant materials, continually evolving to meet the demands of modern technology. Its unique combination of electrical, mechanical, and thermal properties, coupled with its flame-retardant capabilities, ensures its relevance across diverse industries. As we look to the future, ongoing advancements in FR4 technology promise to unlock new possibilities in electronic design, sustainability, and performance. The enduring legacy of FR4 epoxy sheet serves as a testament to its adaptability and indispensable role in shaping the landscape of electronic manufacturing and beyond.
