Understanding G10 Sheet Material Properties
Composition and Manufacturing Process

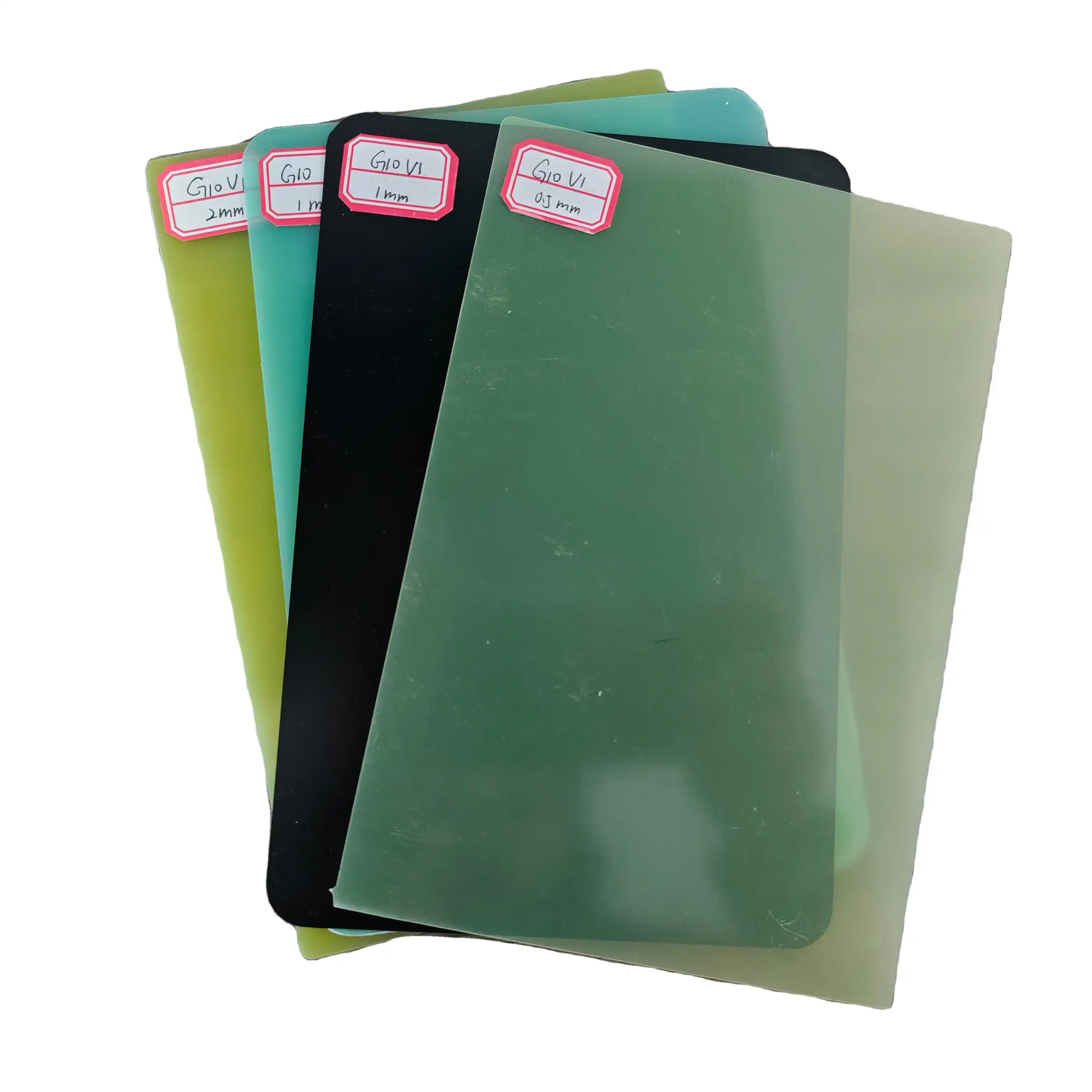

G10 sheet is a high-performance composite material composed of fiberglass cloth impregnated with epoxy resin. The manufacturing process involves layering multiple sheets of fiberglass fabric and saturating them with epoxy resin under high pressure and heat. This process results in a dense, homogeneous material with exceptional mechanical and electrical properties. The fiberglass provides strength and dimensional stability, while the epoxy resin contributes to the material's excellent insulation characteristics and chemical resistance.
Mechanical Properties
G10 sheets boast impressive mechanical properties, making them suitable for various applications. They exhibit high tensile strength, compressive strength, and flexural strength, allowing them to withstand significant loads and stresses. The material's low creep and high dimensional stability ensure that it maintains its shape and integrity even under prolonged stress or in challenging environments. These mechanical properties make G10 sheets an excellent choice for structural components, precision parts, and applications requiring high reliability.
Electrical and Thermal Characteristics
One of the primary reasons for G10 sheet's popularity is its exceptional electrical insulation properties. It has a high dielectric strength, low dielectric constant, and excellent arc resistance, making it ideal for electrical and electronic applications. G10 sheets also demonstrate good thermal insulation properties and can withstand elevated temperatures without significant degradation. These characteristics make them suitable for use in high-voltage equipment, circuit boards, and other electrical components where reliable insulation is crucial.
Factors Influencing G10 Sheet Thickness Selection
Application Requirements
The intended application is the primary factor in determining the appropriate G10 sheet thickness. For electrical insulation in circuit boards or small components, thinner sheets (0.005 to 0.125 inches) are often sufficient. Structural applications or heavy-duty insulation may require thicker sheets (0.25 to 4 inches) to provide the necessary strength and durability. Consider the specific requirements of your project, such as load-bearing capacity, insulation needs, and dimensional constraints, when selecting the sheet thickness.
Environmental Conditions
The environment in which the G10 sheet will be used plays a significant role in thickness selection. Harsh environments with extreme temperatures, high humidity, or exposure to chemicals may necessitate thicker sheets to ensure longevity and maintain performance. Thicker sheets generally offer better resistance to environmental factors and can provide a longer service life in challenging conditions. Evaluate the specific environmental stresses your application will face and choose a thickness that offers adequate protection.
Cost Considerations
While G10 sheets offer excellent performance, cost is an important consideration in thickness selection. Thicker sheets are generally more expensive due to increased material usage and manufacturing complexity. Balance the performance requirements of your application with budget constraints to find the optimal thickness. In some cases, using a thinner sheet with appropriate design modifications may provide a cost-effective solution without compromising performance. Consider the long-term benefits of durability and reliability when evaluating the cost-effectiveness of different thicknesses.
Impact of Thickness on G10 Sheet Performance
Mechanical Strength and Rigidity
The thickness of G10 sheets directly influences their mechanical strength and rigidity. Thicker sheets offer higher flexural strength, impact resistance, and overall structural integrity. As thickness increases, the material's ability to withstand bending, compression, and shear forces improves. This relationship is particularly important in load-bearing applications or situations where the G10 sheet must maintain its shape under stress. However, it's essential to note that excessive thickness may lead to unnecessary weight and cost without proportional performance gains, so careful consideration of the specific mechanical requirements is crucial.
Electrical Insulation Effectiveness
G10 sheet thickness plays a vital role in its electrical insulation properties. Thicker sheets generally provide better insulation, with higher dielectric strength and improved resistance to electrical breakdown. This enhanced insulation is particularly beneficial in high-voltage applications or environments with significant electrical stress. However, the relationship between thickness and insulation effectiveness is not always linear, and other factors such as surface contamination and environmental conditions can also influence insulation performance. For critical electrical applications, it's advisable to consult with experts or conduct tests to determine the optimal thickness for your specific insulation requirements.
Thermal Management and Heat Dissipation
The thickness of G10 sheets affects their thermal management capabilities. Thicker sheets provide better thermal insulation, which can be advantageous in applications where heat retention or isolation is desired. However, in scenarios where heat dissipation is crucial, such as in certain electronic components, thinner sheets may be preferable as they allow for more efficient heat transfer. The balance between thermal insulation and heat dissipation depends on the specific thermal management goals of your application. In some cases, a combination of G10 sheets with different thicknesses or the integration of heat management features may be necessary to achieve optimal thermal performance.
Conclusion
Understanding G10 sheet thickness is essential for optimizing the performance and cost-effectiveness of your projects. By considering factors such as application requirements, environmental conditions, and budget constraints, you can select the ideal thickness for your specific needs. Remember that the impact of thickness on mechanical strength, electrical insulation, and thermal management varies, and finding the right balance is crucial. With its exceptional properties and versatility, G10 sheet continues to be a preferred material in various industries, offering reliable performance across a wide range of thicknesses.
