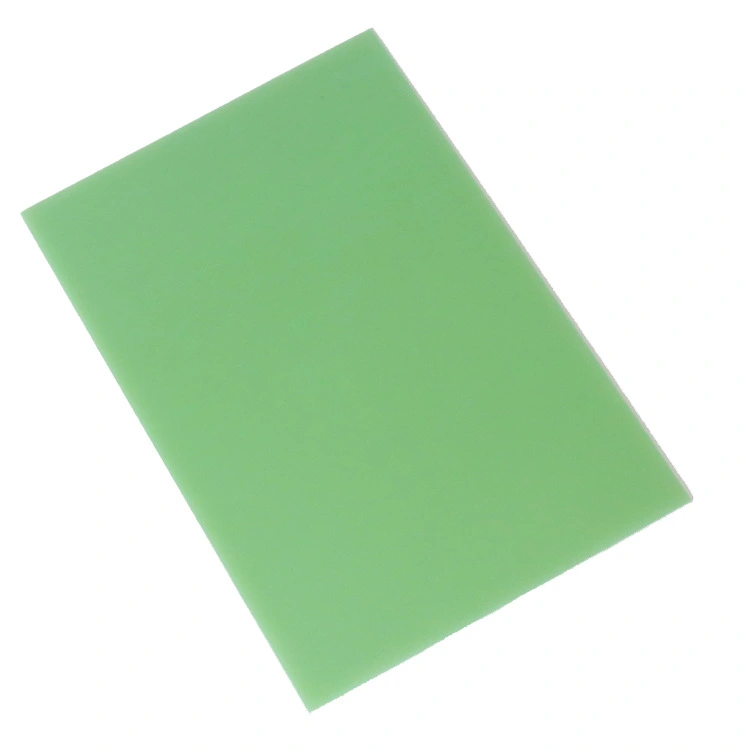

FR4 Sheet Thickness Tolerance for CNC Machining

For CNC machining, the FR4 sheet thickness tolerance is a very important standard that has a direct effect on the accuracy and dependability of electronic parts. The FR4 sheet material, which is made up of knitted fiberglass cloth and epoxy resin, needs to be carefully measured to make sure it works best in CNC operations. Tolerance ranges in electronic manufacturing can be anywhere from ±0.1mm for normal uses to ±0.05mm for high-precision needs. These ranges depend on the machining process and the final use.

Understanding FR4 Sheet Thickness Tolerance

Fundamentals of FR4 Material Properties

When made under controlled conditions, FR4 fiberglass composite material has very stable dimensions. The unique mix of woven glass cloth and epoxy resin in the material makes a rigid base that keeps its thickness properties even across large panel sizes. This stability comes from the cross-linked polymer structure that doesn't allow for heat expansion or moisture absorption, which are two main things that can change the size of parts during production.

When thickness tolerances are kept within certain ranges, FR4's electrical insulation qualities stay the same. The dielectric constant stays the same at about 4.5 at 1MHz frequency, and the dielectric strength is usually between 15 and 20 kV/mm. In high-frequency uses, differences in these properties can lead to impedance mismatches, so thickness uniformity is very important.

Industry Standards and Measurement Protocols

International standards groups set clear rules for measuring the thickness of FR4 and deciding what levels of acceptance are acceptable. The IPC-4101 standard lists Class numbers that match to different levels of tolerance. For example, Class 1 allows wider tolerances that are good for general uses, while Class 3 requires tighter control for medical and aerospace devices. These categories help people who are in charge of buying things choose the right types of materials for the job.

To make sure that the thickness of each sheet is the same at multiple points, measurement procedures need calibrated micrometers or coordinate measuring machines (CMMs). It is standard practice to take measurements at nine set places in a grid pattern. This makes sure that the whole panel surface is covered. This methodical approach finds possible differences in thickness that could affect the quality of CNC machining.

Impact on CNC Machining Performance

Changes in thickness have a direct effect on the quality of drilling during the PCB fabrication process. When FR4 panels have different thicknesses, drill bits may have different cutting loads, which can cause hole diameters to change or even drill damage. Tolerances kept within ±0.05mm ensure uniform drilling performance and cut down on tool wear, which increases production efficiency and lowers costs.

Tight control over thickness is also very helpful for routing tasks. CNC routers need accurate depth estimates to make clean cuts along edges that don't damage layers below or leave rough surfaces. Deviations in thickness can lead to missed cuts or too much material being removed, which can lead to errors in measurements that lower the quality of the end product.

Comparing FR4 Thickness Tolerance with Other PCB Materials

Performance Benchmarking Against Alternative Substrates

The CEM-1 phenolic cotton paper substrate is a cheaper option, but it doesn't stay the same thickness as long as FR4 products do. When mechanical stress is put on the paper-based core structure, it tends to compress. This can cause thickness differences of more than ±0.2mm, even in controlled manufacturing settings. Because of this, the CEM-1 can only be used in situations where accuracy in measurements is not very important.

Because they are naturally flexible, polyimide flexible substrates pose special problems when it comes to thickness tolerance. These materials are very good at withstanding heat and being able to be bent, but it gets harder to keep their thickness the same when they are being handled and processed. Tolerances for standard polyimide films are usually ±0.01mm, but the cost of the materials is a lot higher than for hard FR4 substrates because of this.

High-frequency ceramic surfaces have better electrical performance, but they are fragile and need to be handled in a certain way. Ceramic materials often have thickness limits that are the same as or better than FR4 standards. However, because ceramics are harder than FR4 sheet, they need to be machined with different parameters and tools. When choosing a material, it is important to think carefully about the trade-off between electrical function and the difficulty of the machine.

Cost-Effectiveness Analysis for B2B Procurement

Rogers high-frequency laminates are very expensive, but they have great electrical qualities and thickness stability. The high cost of these special materials is worth it in situations where signal accuracy is very important, like radar systems or high-speed digital communications. However, the price difference between this and standard FR4 is often more than 300–50%. This makes cost-benefit analysis very important for purchasing choices.

For most electronic uses, standard FR4 materials offer the best balance of performance and cost-effectiveness. The stable manufacturing infrastructure and wide availability keep prices low while still allowing for enough thickness tolerance for precise CNC machining. Because of these factors, FR4 is the best material for mass production where both quality consistency and low prices are important.

Approaches to Achieve Optimal Thickness Tolerance in FR4 Sheets

Industry-Recognized Standards and Specifications

A lot of rules are set out in the IPC-4101C standard for FR4 base materials. These rules include specific thickness tolerances for various application classes. For materials less than 1.6 mm thick, Class 2 applications, which include most commercial electronics, usually need thickness tolerances of within ±10% of the nominal measurement. Tighter tolerances, like ±0.05mm, may be needed for more demanding uses, no matter what the nominal thickness is.

The ISO 9001 quality management systems make it possible to keep thickness control consistent throughout the whole production process. These guidelines put a lot of emphasis on statistical process control methods that can track changes in thickness in real time and make changes right away when measurements go beyond what is considered acceptable. Putting these processes into place helps suppliers show that they can consistently meet strict tolerance requirements.

CNC Machining Best Practices

Before any cutting starts, pre-machining inspection procedures set the standard measurements. Coordinate measuring tools (CMMs) or precision micrometers check that each panel has the same thickness. This finds any problems that might affect the quality of the machining. This proactive method stops expensive rework and makes sure that results are the same throughout production runs.

Equipment calibration schedules keep CNC machines accurate over long amounts of time of use. Spindle runout, table flatness, and tool length readings are checked every day to make sure that differences in thickness don't get worse when machine errors are added on top of them. Regular tuning also increases the life of tools by keeping them in the best cutting conditions, which prevents damage and wear that isn't necessary.

Real-World Implementation Success Stories

A major company that makes electronics for cars recently increased the yield rates of their PCBs by putting in place tighter FR4 thickness tolerance requirements. They cut the acceptable tolerance from ±0.1mm to ±0.05mm, which led to a 15% drop in drilling errors and a 20% rise in reliability tests. Investing in better products paid off because they cut down on the cost of rework and made customers happier.

Manufacturing data from this application showed that better control over thickness also led to better automated assembly processes further down the line. Less trouble with calibration happened with pick-and-place tools, and the quality of the solder joints became more consistent across production batches. These extra benefits usually make up for the higher cost of premium thickness tolerance standards.

Procurement Considerations for FR4 Sheets with Tight Thickness Tolerance

Supplier Qualification and Certification Requirements

UL certification makes sure that FR4 materials meet the flame resistance standards needed for electrical uses. The UL 94 V-0 rating shows that the product can put out fires on its own within certain time frames. The thermal performance ratings show that the product is stable at temperatures up to 130°C when it is used continuously. With these certificates, you can be sure that the thickness tolerances you achieve won't hurt important safety features.

Documentation that shows compliance with RoHS is becoming more and more important for technology markets around the world. Suppliers need to show that the ways they control thickness margin don't add any banned materials while still keeping the measurements correct. This two-part requirement often affects the choice of seller, giving more weight to companies with strong quality systems and environmental compliance programs.

Pricing Structures and Lead Time Considerations

A study of the market shows that premium thickness tolerance usually raises the price of standard FR4 sheet by 10 to 25 percent, based on the level of tolerance and the number of orders. The higher price is because of stricter controls during production, more inspections, and the possibility of waste from panels that are not accepted. However, this extra cost is often worth it when you consider that it cuts down on machining time and increases output rates.

Lead times for high-tolerance FR4 materials are usually two to four weeks longer than for normal products. This is because of extra quality control steps and the possibility of remaking panels that don't meet specifications. When making purchases, these longer lead times need to be taken into account, especially during times of high demand when limited capacity may make delivery times even longer.

Volume Requirements and Customization Capabilities

For special thickness tolerances, the minimum order quantity is usually between 500 and 1000 square meters. This is because of the setup costs that come with better quality control processes. Smaller amounts may be available at higher prices, but economies of scale favor bigger orders when tolerance requirements are set to be the same for multiple projects.

For custom thickness requirements that go beyond what is normally available, you need to allow more time and talk to an expert to figure out what the acceptable tolerance ranges are. Advanced production suppliers can often work with non-standard thicknesses while keeping tight tolerances. However, these services come at a higher cost and take longer to deliver.

J&Q's FR4 Sheet Solutions with Guaranteed Thickness Tolerance

Our company brings over two decades of experience in manufacturing and supplying high-quality insulation materials, with more than ten years specifically focused on international markets. This extensive background has enabled us to develop comprehensive quality control systems that consistently deliver FR4 sheets meeting the most demanding thickness tolerance requirements for CNC machining applications.

J&Q maintains strict adherence to international standards while offering competitive pricing for bulk orders. Our manufacturing facilities utilize advanced measurement systems and statistical process controls to ensure thickness variations remain within specified limits throughout production runs. The combination of experienced technical staff and modern equipment allows us to accommodate custom thickness requirements while maintaining rapid turnaround times.

Our integrated logistics capabilities set us apart from conventional suppliers by providing one-stop service from manufacturing through delivery. The in-house logistics company ensures proper handling and packaging of precision materials, maintaining thickness integrity during transportation. This comprehensive service approach reduces supply chain complexity while ensuring consistent material quality upon arrival at customer facilities.

Value-added services include custom cutting and packaging options tailored to specific CNC machining requirements. Pre-cut panels can be supplied to exact dimensions, reducing material waste and setup time in customer facilities. Technical support services assist with material specification and application guidance, helping optimize performance in demanding CNC applications.

Conclusion

FR4 sheet thickness tolerance plays a fundamental role in achieving precision CNC machining results for electronic manufacturing applications. Understanding the relationship between material properties, tolerance specifications, and machining performance enables informed procurement decisions that balance quality requirements with cost considerations. The implementation of appropriate tolerance controls not only improves immediate machining accuracy but also enhances downstream assembly processes and long-term product reliability. Successful procurement strategies emphasize supplier qualification, comprehensive certification verification, and clear specification of tolerance requirements aligned with application demands. With proper material selection and supplier partnerships, manufacturers can achieve consistent CNC machining results while maintaining competitive production costs.

FAQs

What thickness tolerance ranges are typical for CNC machining applications?

Standard CNC machining applications typically work with FR4 thickness tolerances ranging from ±0.1mm for general purposes to ±0.05mm for precision applications. High-precision electronics manufacturing may require even tighter tolerances of ±0.025mm, though this significantly impacts material costs and availability. The specific tolerance requirement depends on the final application and the precision capabilities of the CNC equipment being used.

How do thickness variations affect PCB performance and reliability?

Thickness variations can create impedance mismatches in high-frequency circuits, leading to signal integrity issues and potential electromagnetic interference problems. Inconsistent thickness also affects via formation during drilling operations, potentially creating reliability issues in multilayer PCB constructions. Additionally, thickness variations can impact solder mask adhesion and component mounting accuracy during assembly processes.

Can custom thickness specifications be accommodated for specialized applications?

Yes, custom thickness specifications can be manufactured to meet specialized application requirements. However, custom thicknesses typically require minimum order quantities and extended lead times to establish proper manufacturing parameters. The feasibility of specific tolerance ranges depends on the base thickness, with thinner materials generally offering better tolerance control than thicker sections.

What certifications should be verified when sourcing high-tolerance FR4 materials?

Essential certifications include UL recognition for flame retardancy, RoHS compliance for environmental requirements, and ISO quality system certifications. IPC-4101 compliance ensures the material meets industry-standard specifications for electrical and mechanical properties. Additional certifications may be required for aerospace, medical, or military applications depending on end-use requirements.

Contact J&Q for Premium FR4 Sheet Solutions

J&Q stands ready to support your precision CNC machining requirements with high-quality FR4 sheet materials that meet the most demanding thickness tolerance specifications. Our experienced engineering team provides technical consultation to optimize material selection for your specific applications, while our efficient manufacturing processes ensure consistent quality and competitive pricing for volume orders.

Ready to enhance your CNC machining precision with reliable FR4 sheet supplier partnerships? Contact our technical sales team at info@jhd-material.com to discuss your specific thickness tolerance requirements and receive detailed quotations for your projects. We invite you to request material samples and certification documentation to evaluate our quality standards before making procurement decisions.
