Complete Guide to Choosing the Best Bakelite Sheet for ‌Electrical Equipment‌

Selecting the right Bakelite sheet for electrical equipment is crucial for ensuring safety, durability, and optimal performance. This comprehensive guide will walk you through the essential factors to consider when choosing Bakelite sheets, including their unique properties, various grades, and specific applications in the electrical industry. We'll explore the advantages of Bakelite boards over other materials, discuss key performance indicators, and provide expert tips on how to evaluate and select the most suitable Bakelite sheet for your electrical equipment needs. By the end of this guide, you'll be equipped with the knowledge to make informed decisions, ensuring your electrical systems are protected by high-quality, reliable insulation materials.

Understanding Bakelite Sheets and Their Properties

The Composition and Manufacturing Process of Bakelite Sheets

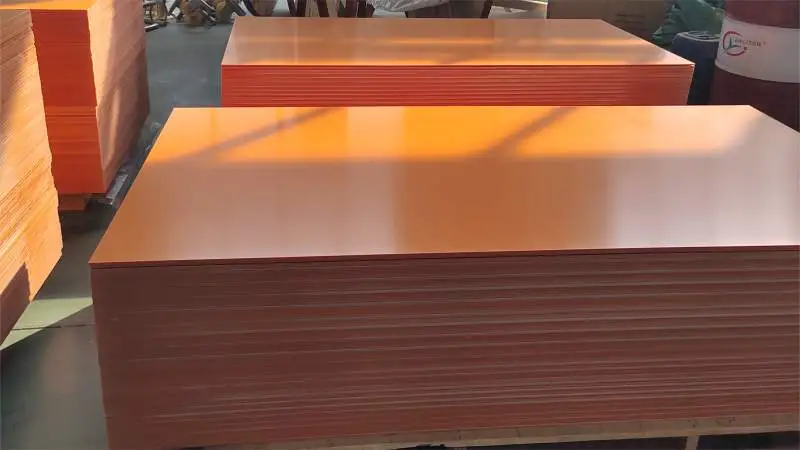

Bakelite sheets are made from phenol-formaldehyde resins, a type of thermosetting plastic known for its rigidity and heat resistance. During manufacturing, phenol and formaldehyde are chemically combined under controlled heat and pressure, producing a dense, durable material. This process creates a hard, non-conductive sheet with excellent electrical insulation properties. As a result, Bakelite sheets are widely used in electrical equipment where reliable insulation and heat resistance are essential for safe and efficient operation.

Key Physical and Chemical Properties of Bakelite Sheets

Bakelite sheets offer a combination of properties that make them ideal for electrical use. Their high electrical resistance ensures effective insulation, while excellent thermal stability allows them to perform well under heat. Low moisture absorption helps prevent degradation in humid conditions, and strong mechanical strength provides durability against physical stress. Furthermore, Bakelite boards resist many chemicals and solvents, making them reliable in harsh environments and extending the lifespan of electrical components made from this material.

Comparative Analysis: Bakelite vs. Other Insulating Materials

Compared to other insulating materials like fiberglass, epoxy, or polyethylene, Bakelite sheets typically offer better heat resistance, maintaining stability at higher temperatures without deforming. They also provide superior dimensional stability, ensuring parts keep their shape over time and under stress. Additionally, Bakelite's overall durability makes it well-suited for harsh environments. These advantages make Bakelite a favored material in electrical applications, especially where high heat and challenging conditions require reliable and long-lasting insulation solutions.

Grades and Types of Bakelite Sheets for Electrical Applications

Common Grades of Bakelite Sheets and Their Specifications

Bakelite sheets are available in various grades, each tailored to specific applications. Some common grades include NEMA X, XX, XXX, and C. These grades differ in their composition, reinforcement materials, and performance characteristics. For instance, NEMA XX grade offers enhanced mechanical properties, while NEMA C grade provides superior electrical insulation. Understanding these grades is essential for selecting the appropriate Bakelite sheet for your specific electrical equipment needs.

Specialized Bakelite Sheets for High-Performance Applications

For applications requiring exceptional performance, specialized Bakelite sheets have been developed. These may include sheets with enhanced flame retardancy, improved arc resistance, or superior heat dissipation properties. Such specialized sheets are often used in high-voltage switchgear, aerospace applications, or industrial machinery where standard grades may not suffice.

Customization Options for Bakelite Sheets

Many manufacturers offer customization options for Bakelite boards to meet specific requirements. This may include custom dimensions, thicknesses, surface finishes, or even the incorporation of special additives to enhance particular properties. Customization allows for the optimization of Bakelite sheets for unique electrical applications, ensuring the best possible performance and longevity of the equipment.

Factors to Consider When Selecting Bakelite Sheets for Electrical Equipment

Electrical Properties and Insulation Requirements

When selecting Bakelite sheets for electrical equipment, it's important to match the material's electrical properties with the specific demands of your application. Key factors include dielectric strength, volume resistivity, and tracking resistance, which affect the sheet's ability to insulate and withstand electrical stress. Additionally, consider your equipment's operating voltage, frequency, and environmental conditions. These elements help determine the ideal Bakelite grade and thickness, ensuring both performance and safety. Proper selection minimizes the risk of failure and extends equipment lifespan.

Thermal and Mechanical Considerations

Bakelite boards used in electrical equipment must endure both heat and mechanical loads without compromising performance. When choosing a suitable board, assess the maximum operating temperature, thermal conductivity, and heat deflection temperature to ensure it performs well under continuous heat exposure. Equally important are the mechanical properties - tensile strength, flexural strength, and impact resistance - all of which determine the sheet's ability to handle stress, pressure, and vibration during operation. A well-matched sheet will improve both safety and equipment reliability over time.

Environmental Factors and Chemical Resistance

The operating environment greatly influences the selection of the right Bakelite sheet for electrical equipment. Factors like humidity levels, exposure to chemicals or solvents, and whether the equipment will be used outdoors must be carefully considered. Certain Bakelite grades are specially formulated to resist moisture, chemical corrosion, and UV exposure, which helps maintain their integrity and performance over time. Choosing the appropriate grade ensures your equipment remains durable and reliable, even in harsh or demanding environments.

Conclusion

Selecting the best Bakelite sheet for electrical equipment requires a thorough understanding of the material's properties, available grades, and your specific application requirements. By considering factors such as electrical insulation needs, thermal and mechanical demands, and environmental conditions, you can make an informed decision that ensures optimal performance and longevity of your electrical systems. Remember that the right Bakelite sheet not only provides superior insulation but also contributes to the overall safety and efficiency of your electrical equipment. Investing time in choosing the appropriate Bakelite board will ultimately lead to more reliable and durable electrical installations.
