G10 Sheet Guide: Specs, Applications & Buying Tips

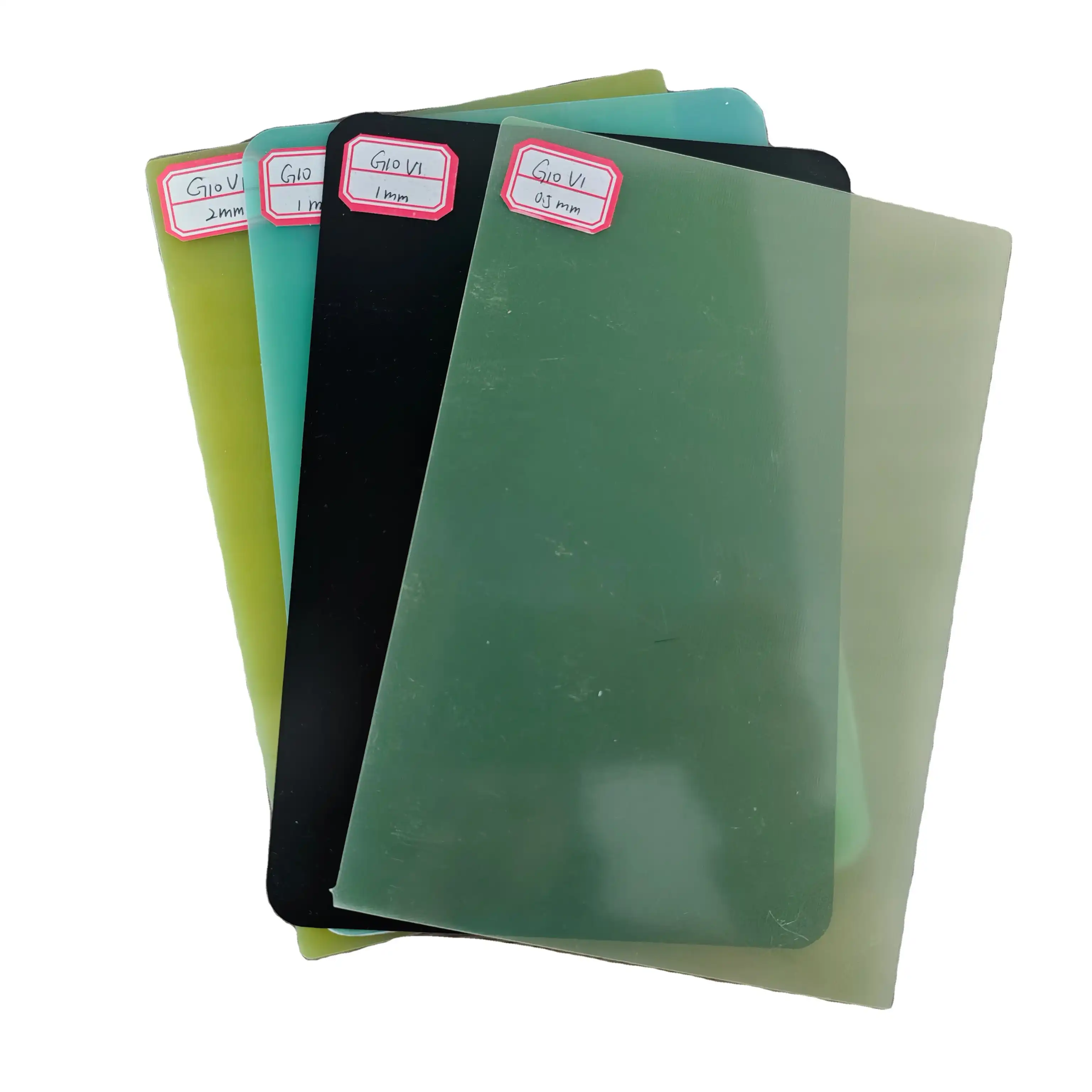

G10 sheet, also known as G10 epoxy sheet, is a high-performance laminate material widely used in various industries for its exceptional mechanical, electrical, and thermal properties. This guide provides comprehensive information on G10 sheet specifications, applications, and practical buying tips. Whether you're an engineer, manufacturer, or procurement specialist, understanding the nuances of G10 sheet will help you make informed decisions for your projects. We'll explore the material's composition, key characteristics, common uses, and factors to consider when purchasing G10 sheet, ensuring you have the knowledge to select the right product for your specific needs.

Understanding G10 Sheet Specifications

Composition and Manufacturing Process

G10 sheet is a composite material made from a combination of epoxy resin and glass fiber reinforcement. The manufacturing process involves layering multiple sheets of woven glass fabric, impregnating them with epoxy resin, and subjecting the assembly to high pressure and heat. This process results in a dense, uniform laminate with excellent mechanical and electrical properties.

Physical Properties

G10 sheet boasts impressive physical characteristics that make it suitable for a wide range of applications. Some key properties include:

- High tensile strength: Withstands significant pulling forces without breaking, ideal for structural support.

- Low moisture absorption: Maintains integrity in humid or wet conditions, preventing warping or degradation.

- Excellent dimensional stability: Holds shape under stress and temperature changes, ensuring consistent performance.

- Good machinability: Easily cut, drilled, or milled without cracking, allowing for precise custom fabrication.

- High impact resistance: Absorbs shocks and mechanical stress, reducing risk of failure in demanding uses.

These properties contribute to the material's durability and reliability in various environments.

Electrical and Thermal Properties

G10 sheet is renowned for its exceptional electrical insulation properties, making it a popular choice in the electronics industry. It also exhibits good thermal resistance, maintaining its properties across a wide temperature range. Some notable electrical and thermal characteristics include:

- High dielectric strength: Withstands high voltages without breakdown, ideal for circuit insulation.

- Low dielectric constant: Minimizes signal loss in high-frequency applications for stable performance.

- Excellent arc resistance: Resists electrical arcing damage, ensuring long-term safety and durability.

- Good thermal insulation: Slows heat transfer, protecting components from thermal stress or overload.

- Flame retardant properties: Limits fire spread, adding safety in high-temperature or high-voltage settings.

Applications of G10 Sheet

Electrical and Electronics

G10 sheet finds extensive use in the electrical and electronics industry due to its superior insulation properties. Common applications include:

- Printed circuit board substrates: Provides a stable, non-conductive base for electronic circuits.

- Transformer and motor insulation: Insulates windings and cores, preventing electrical faults and overheating.

- Switchgear components: Ensures safe operation by separating live parts and containing arc energy.

- Terminal boards: Offers a secure, insulated mounting point for electrical connections.

- Busbar supports: Holds conductors in place while preventing short circuits and electrical leakage.

The material's ability to maintain its electrical properties under varying environmental conditions makes it ideal for these applications.

Mechanical and Structural Applications

The high strength-to-weight ratio and dimensional stability of G10 epoxy sheet make it suitable for various mechanical and structural uses, such as:

- Gears and bushings: Durable under friction, ideal for moving parts needing low maintenance.

- Jigs and fixtures: Maintains accuracy and rigidity in repeated machining or assembly tasks.

- Structural components in aerospace: Lightweight yet strong, perfect for high-performance aircraft assemblies.

- Load-bearing parts in machinery: Handles stress and vibration without cracking or warping over time.

- Precision components in scientific instruments: Holds tight tolerances critical for lab and testing accuracy.

G10 sheet's resistance to wear and deformation contributes to its longevity in these applications.

Specialty and Niche Applications

The versatility of G10 sheet extends to several specialty and niche areas, including:

- Cryogenic applications: Performs reliably at extremely low temperatures without becoming brittle or cracking.

- High-performance sports equipment: Adds strength and lightness to gear like knives, paddles, and grips.

- Medical device components: Non-corrosive and stable, safe for precision parts in sterile environments.

- Chemical processing equipment: Resists aggressive chemicals and solvents, ensuring long-term material integrity.

- Underwater acoustics: Maintains structure and damping in submerged conditions, aiding sonar and sound equipment.

In these specialized fields, G10 sheet's unique combination of properties offers solutions to challenging design requirements.

​​​​​​​Buying Tips for G10 Sheet

Quality Considerations

When purchasing G10 epoxy sheet, it's crucial to consider the following quality factors:

- Adherence to industry standards (e.g., NEMA, MIL-I-24768): Confirms the sheet meets recognized performance and safety benchmarks.

- Consistency in material properties: Ensures uniform strength, insulation, and durability across every batch.

- Surface finish and flatness: Critical for bonding, machining, or layering in precision applications.

- Absence of voids or delamination: Prevents weak points that could lead to failure under stress or heat.

- Traceability and certification: Allows verification of origin and compliance with quality assurance protocols.

Ensure that the supplier can provide relevant documentation and test reports to verify the material's quality.

Sizing and Customization Options

G10 sheet is available in various standard sizes and thicknesses, but consider the following when making your purchase:

- Availability of custom sizes and thicknesses: Allows better material fit and reduces unnecessary trimming.

- Minimum order quantities for custom options: Helps plan budgets and avoid excess inventory for special sizes.

- Lead times for non-standard sizes: Impacts project scheduling, especially for urgent or large-volume needs.

- Capability for value-added services (e.g., cutting, machining): Saves time by receiving material ready for use.

- Tolerance requirements for your specific application: Ensures the sheet fits precise mechanical or electrical needs.

Discussing these aspects with your supplier can help you optimize your procurement process and reduce waste.

Supplier Evaluation and Selection

Choosing the right supplier is crucial for ensuring a consistent supply of high-quality G10 sheet. Consider the following factors when evaluating potential suppliers:

- Industry experience and reputation: Reflects proven reliability and understanding of market demands.

- Manufacturing capabilities and capacity: Ensures they can handle your volume and meet technical specs.

- Quality control processes: Verifies product consistency through inspections and standardized procedures.

- Technical support and expertise: Offers guidance on material selection, usage, and troubleshooting.

- Delivery reliability and flexibility: Helps maintain production schedules with on-time and adaptable logistics.

Establishing a strong relationship with a reputable supplier can lead to long-term benefits in terms of quality, cost, and service.

Conclusion

G10 sheet is a versatile and high-performance material that offers a unique combination of mechanical, electrical, and thermal properties. Its wide range of applications across various industries underscores its importance in modern engineering and manufacturing. By understanding the specifications, applications, and key considerations when purchasing G10 sheet, you can make informed decisions that optimize your projects and products. Remember to prioritize quality, consider customization options, and carefully evaluate suppliers to ensure you get the best value and performance from your G10 sheet investment.
