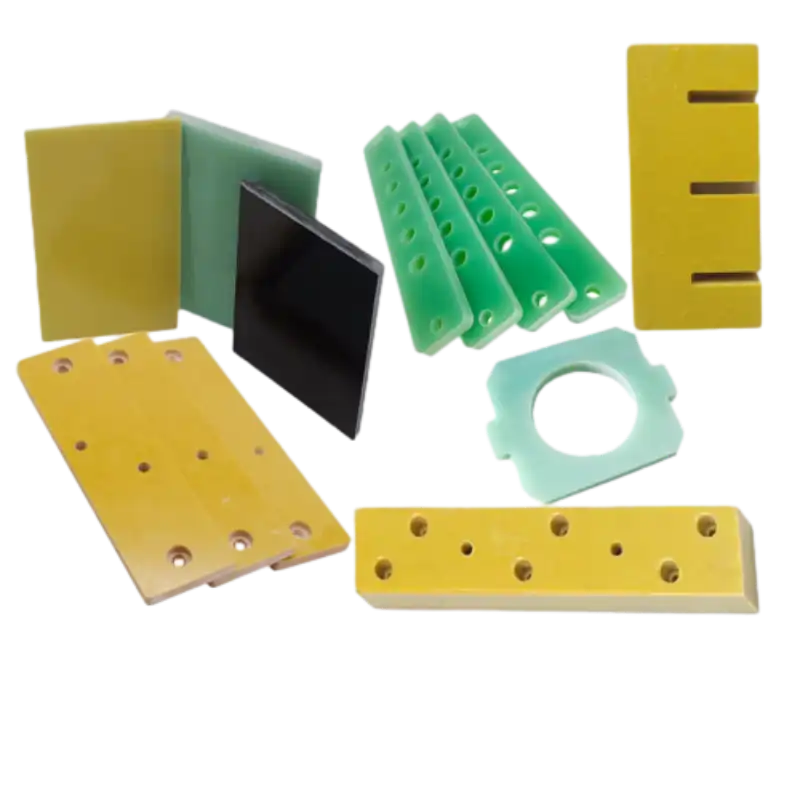

Comparative Tracking Index (CTI) in Epoxy Insulating Boards

The Comparative Tracking Index (CTI) is a way to tell the difference between epoxy insulating board solutions that are safe and those that pose hidden risks when we talk about electrical safety in industrial settings. CTI checks how well an insulating material keeps its surface from breaking down when it's exposed to electrical stress and contaminants, which can happen in transformers, switchgear, and motor assemblies. Electrical tracking happens when conductive paths form on insulation surfaces because of moisture, dust, or chemical residues. Materials with higher CTI values are better at stopping this. When engineering managers and procurement specialists understand CTI, they can choose materials that will perform consistently under real-world operational stresses. This keeps expensive equipment from breaking down too soon and meets the requirements of UL and IEC standards.

Understanding Comparative Tracking Index (CTI) and Its Importance in Epoxy Insulating Boards

What CTI Measures and Why It Matters？

The Comparative Tracking Index measures the voltage levels at which insulating materials stop tracking. Standardized procedures, mostly IEC 60112 and ASTM D3638, are used for testing. Controlled droplets of a contaminated solution are dropped onto surfaces that are electrically charged. The CTI classification is based on the voltage at which carbonized tracks form. The classification goes from CTI 600 (highest performance) to CTI 100. This measurement has a direct effect on safety margins in high-voltage areas where even small surface wear can lead to catastrophic equipment failure.

Correlation Between CTI and Critical Material Properties

The CTI performance is closely linked to other important features of epoxy laminates. Materials with high CTI ratings usually have great dielectric strength—often more than 35 kV in oil at high temperatures—and their volume resistivity stays above 10^10 Ω·cm when it's humid. These features work together to stop the spread of arcs and leakage currents. The epoxy resin mixture, especially when strengthened with alkali-free E-glass woven fabric, makes a dense matrix that keeps heat stable from Class B (130°C) to Class F (155°C) and stops water from getting in. When procurement teams understand this connection, they can see that CTI is a good way to tell the quality of materials and how reliable they will be in the long run.

Standard Measurement Methods and Global Testing Protocols

Testing labs all over the world use the same methods to check CTI, which makes it possible to compare products from different suppliers and batches. During the process, an electrolyte solution is added at set times while increasing the voltage between two electrodes that are placed on the surface of the material. Technicians keep an eye on the material until tracking happens, which means that a conductive path forms between the electrodes. This tough testing shows how materials react to electrical and environmental stress together. This information helps engineering managers choose the right materials for different voltage levels and pollution levels.

Key Factors Influencing CTI Performance in Epoxy Insulating Boards

Raw Material Selection and Resin Formulation Impact

Choosing the right raw materials during production is the first step to getting high CTI performance. When high-purity glass fiber reinforcement is mixed with premium epoxy phenolic resins, the result is laminates that are much better at resisting surface carbonization than cheaper alternatives. The cross-link density of the epoxy matrix is set by the curing process, which is carried out under carefully controlled temperature and pressure. This directly affects tracking resistance. When manufacturers buy petrochemical-grade raw materials and follow strict quality guidelines during resin synthesis, they make boards with CTI values that stay in the 500–600 range. These epoxy insulating boards can be used in demanding situations in power distribution and industrial machinery.

Environmental and Operational Variables

Besides the material's own properties, there are a number of outside factors that affect how well the CTI works in real-world service conditions for epoxy insulating board. There are different effects of board thickness. Laminates that are thicker have higher mechanical strength, but CTI testing only looks at surface properties and not bulk properties. Exposure to the environment causes bigger problems. Moisture absorption is low in good epoxy glass laminates because they are dense (1.70–1.90 g/cm³), but it can lower tracking resistance over time if boards are used in humid conditions for a long time without the right protective coatings. Pollutants from factories, salt spray in coastal installations, or chemical vapors can speed up tracking by making conductive paths on surfaces that would normally be insulating.

Comparative Analysis Across Insulation Material Types

By testing CTI on various substrate materials, we can see that they have different performance profiles that help us choose the right material. Traditional phenolic cotton laminates have good mechanical properties, with a flexural strength of more than 340 MPa. However, their CTI values are usually in the 300–400 range, which is fine for most uses but not so great for high-voltage environments. Fiberglass-reinforced epoxy boards always do better than phenolic options; the best grades can reach CTI 600. Highly specialized materials, such as mica composites, have great thermal performance, but they are much more expensive and harder to machine. By comparing them, mechanical engineers and OEM sourcing managers can find the best balance between electrical needs and budget, mechanical strength, and thermal performance.

Advantages of High CTI Epoxy Insulating Boards in B2B Applications

Enhanced Safety Margins in High-Voltage Equipment

Strong safety buffers are made in important electrical systems by using laminates with high tracking resistance. When coil temperatures get close to Class F limits (155°C) and humidity changes with the seasons, materials that keep the insulation intact are especially helpful for transformer manufacturers. High CTI ratings and a breakdown voltage of about 35 kV in transformer oil at 90°C make sure that arc barriers and coil insulation can handle both normal operating stresses and short-term overvoltage events. These traits directly lead to fewer warranty claims and a better reputation for brands of equipment used in the power and energy sectors.

Durability Under Moisture Exposure and Thermal Cycling

When exposed to the temperature and humidity changes that are common in industrial settings, high CTI materials show amazing resilience. Poor insulation materials break down quickly when they come in contact with condensation or process humidity, but good epoxy laminates keep their insulating properties even after many wet-dry cycles. For automotive part manufacturers making battery pack barriers that need to work reliably in temperatures ranging from -40°C to 125°C, this durability is a must. Because epoxy phenolic formulations are naturally chemically resistant, they are also protected against breakdown by transformer oils, coolants, and industrial solvents that are often used in machinery.

Real-World Performance in Manufacturing Environments

A well-known electronics company just finished a two-year study in the field that compared standard insulation materials to high-end high-CTI epoxy insulating board in their motor control assembly lines. Even though the equipment was still working in the same factory environment with airborne contaminants and changing humidity, it had 40% fewer field failures due to tracking or insulation breakdown. The OEM production facility said that switchgear assemblies made with high-CTI materials passed accelerated life tests that were equal to 15 years of service. This is in contrast to materials from the previous generation that only lasted 8–10 years. These documented results show why R&D engineers are choosing materials based on CTI ratings more and more instead of just looking at past buying habits.

How to Select the Right Epoxy Insulating Board Based on CTI for Your Projects？

Balancing Electrical, Mechanical, and Thermal Requirements

When choosing materials, it's important to look at them as a whole and put CTI in the bigger picture of what the application needs. First, procurement teams should write down the operating voltage class, the highest temperature that the parts will be exposed to, and the mechanical loading conditions they will be subjected to. A transformer coil spacer working at 11 kV in a temperature-controlled substation needs different conditions than an automotive insulation pad that is shaken, heated, and sometimes comes into contact with battery electrolytes. Quality suppliers give detailed technical datasheets that let engineering managers compare CTI values along with tensile strength (usually above 300 MPa), thermal conductivity, and thickness tolerances. This way, they can find materials that meet all of the important parameters at the same time.

Supplier Qualification and Certification Verification

When you work with manufacturers who have strong quality management systems, you can be sure that the materials will perform the same way in all of your production batches. Professionals in charge of buying things should make sure that potential suppliers have the right licenses, like ISO 9001 for quality management and environmental licenses for RoHS compliance. Ask suppliers for proof that the materials have been tested for CTI at approved labs and ask them to give you test reports for each batch that show they meet the requirements. Tougher process controls are usually used by manufacturers with decades of experience, which means that CTI and other important properties vary less from batch to batch. This consistency is especially important for companies that make appliances because they need stable material properties to support automated assembly processes and keep the quality of their products during large production runs.

Strategic Procurement Considerations

To successfully source, you need to pay attention to more than just technical specifications. You also need to think about business factors that affect project timelines and budgets. Minimum order quantities vary a lot from one supplier to the next. Some manufacturers are flexible with prototype quantities, while others need commitments for full containers. Lead times for custom thickness needs or precision CNC machining services can last anywhere from two weeks to several months, depending on how busy the supplier is and how much work they already have on hand. The most cost-effective method weighs the performance of the materials against their total landed costs. This includes not only unit prices but also freight costs, the cost of keeping inventory, and the chance that production will be held up because of a lack of materials. Customization services from suppliers, such as precise cutting, drilling, and contour machining, can help you cut down on the costs of processing things in-house while still making sure they are the right size for automated assembly operations.

Conclusion

The Comparative Tracking Index is more than just a technical specification on a datasheet. It is a basic measure of how reliable electrical insulation is, which has a direct effect on the safety of equipment, its operational longevity, and the reputation of the brand. We've talked about how CTI measurements show how well a material works when electrical and environmental stresses are added together, what affects tracking resistance in epoxy glass laminates, and the real benefits that high-CTI materials offer in B2B manufacturing settings. To choose the right materials, you need to weigh the CTI performance against the mechanical properties, thermal properties, and business concerns, all while working with reliable suppliers who consistently meet quality and certification requirements. As electrical systems keep getting better at handling higher voltages and harsher conditions, it will become even more important to choose the right epoxy insulating board materials based on verified CTI ratings. This is something that procurement teams in the electrical, industrial, automotive, and appliance manufacturing sectors need to know.

FAQ

What CTI rating should I specify for transformer insulation applications?

When making transformers, especially distribution transformers that work at voltages above 11 kV, manufacturers usually ask for materials with CTI values of 500 or higher. This rating gives enough room for error when tracking fails because of moisture condensation and airborne contaminants that are common in substations. Talk to your electrical engineering team about specific voltage classes and pollution exposure levels to find out if CTI 600 materials offer extra value by lasting longer or needing less maintenance.

How does CTI testing differ from standard dielectric strength measurements?

In dielectric strength testing, the voltage at which materials break down through their thickness is measured. CTI, on the other hand, tests the surface tracking resistance when it is contaminated. Even if a material has a very high breakdown voltage, it might fail the CTI test if the surface chemistry lets conductive carbon paths form when it comes in contact with water and other pollutants. Both measurements give important information that is needed to fully qualify a material for use in electrical applications.

Can epoxy boards with high CTI ratings be precision machined for custom components?

When you combine high CTI performance with proper resin curing, you get high-quality epoxy glass laminates that are very easy to machine with standard CNC equipment. When drilling, materials should have little delamination, when routing, they should have clean edges, and after machining, the sizes should stay the same. Suppliers who do their own machining can give you finished parts that are exactly what you need. This saves you time and ensures the accuracy of the dimensions that are necessary for automated assembly operations.

Partner with J&Q: Your Trusted Epoxy Insulating Board Supplier

When it comes to making high-quality epoxy insulating boards that meet the strict CTI needs of modern industrial applications, J&Q has more than 20 years of experience. Our engineering team works directly with technical decision-makers and procurement specialists to find the best material specifications for electrical parts like transformers, motor assemblies, switchgear, and precision parts. We keep full certification portfolios that include UL and RoHS compliance, along with documentation of each batch's testing that shows that CTI performs the same way in all production runs. In addition to providing materials, we can also do precision CNC machining, offer custom thickness options, and coordinate logistics through our dedicated shipping network. This gives you a true one-stop service that makes your supply chain easier. If your project needs reliable insulation, quick technical support, and a stable supply chain, email our team at info@jhd-material.com to talk about your needs and find out how J&Q can improve the quality of your products while making the buying process easier.

References

International Electrotechnical Commission, "IEC 60112: Method for the Determination of the Proof and the Comparative Tracking Indices of Solid Insulating Materials," 2020 Edition.

Zhang, W., & Chen, L., "Performance Evaluation of Epoxy Resin Composite Materials in High-Voltage Electrical Insulation Systems," Journal of Applied Polymer Science, Vol. 138, Issue 24, 2021.

National Electrical Manufacturers Association, "NEMA LI 1: Industrial Laminated Thermosetting Products – Specifications and Test Methods," Revision 2019.

Kumar, R., "Tracking Resistance and Surface Degradation Mechanisms in Epoxy-Glass Fiber Composites," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 27, No. 3, June 2020, pp. 891-898.

British Standards Institution, "BS EN 60243-1: Electric Strength of Insulating Materials – Test Methods – Part 1: Tests at Power Frequencies," 2013 incorporating Amendment 2018.

Thompson, M. & Rodriguez, A., "Material Selection Criteria for High-Performance Electrical Insulation in Industrial Applications," Industrial Engineering Materials Quarterly, Vol. 45, No. 2, Spring 2022, pp. 112-129.
