CNC Routing NEMA CE Sheets for Electrical Panel Components

To get the best results from CNC cutting NEMA CE sheets for electrical panel parts, you need to know how to use specific methods and materials. Because NEMA CE sheet materials are so good at insulating against electricity and being easy to work with, they need precise cutting parameters and advanced routing strategies. When made correctly with carbide tools and controlled feed rates, these phenolic cotton-based laminates offer better electrical performance and stability in terms of size. Knowing what makes NEMA CE grades special helps makers make sure they can deliver high-quality electrical panel parts that meet strict industry standards while still being cost-effective in production settings.

Understanding NEMA CE Sheets: Material Properties and Electrical Panel Applications

Knowing a lot about the material is the first step to using a CNC router successfully. By being both strong and able to keep electricity from flowing through them, NEMA CE sheets are a complex type of thermoset laminates that have changed the way electrical panels are made.

What is NEMA CE Sheet Material and Its Composition？

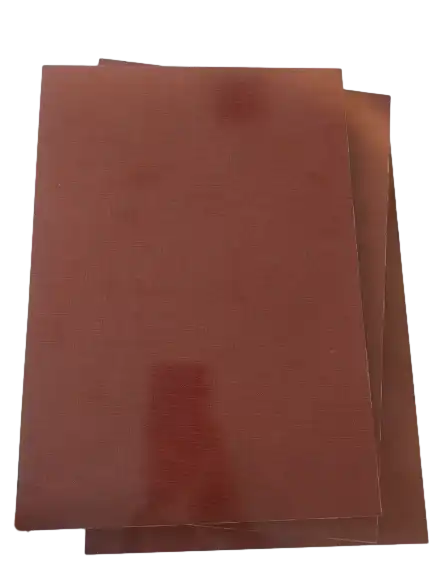

The NEMA CE sheet material is made up of several layers of cotton canvas cloth that has been saturated with phenolic resin under extreme heat and pressure. This way of making things makes a dense, even plastic structure that is very consistent across a range of sizes. The cotton support is very good at resisting impacts and dampening vibrations, and the phenolic resin binder is very good at keeping electricity from flowing and resisting chemicals.

The specific gravity of the material stays between 1.35 and 1.38, which makes these sheets much lighter than metal options while keeping the same level of strength. The direction of the cotton cloth within the laminate structure has a big effect on how easy it is to work with and how strong it is, so CNC setting needs to be done with great care.

Key Electrical and Mechanical Properties for Panel Components

Because they work so well with electricity, NEMA CE materials are required for many panel component uses. These sheets have great insulating strength - usually more than 400 volts per mil - so they can reliably separate electrical currents in high-voltage areas. The material's resistance to wetness has been improved compared to normal engineering grades. This keeps it from changing size and losing its electrical integrity when it's wet.

Its mechanical qualities include a bending strength of more than 15,000 psi along its length and an amazing impact resistance of 1.6 to 2.0 ft-lb per inch notch. On the M scale, the Rockwell hardness runs from 100 to 105, which is the best mix between being easy to machine and not wearing down quickly. Because of these traits, producers can make long-lasting panel parts that can handle both mechanical stress and electrical demands.

Why NEMA CE Sheets Are Essential for Electrical Panel Manufacturing？

Modern electrical panels need materials that can support the structure and keep the electricity from flowing while staying the same size even when the environment changes. NEMA CE sheets meet all of these standards because they are made with carefully chosen materials and have a past of performing well. The material's ability to resist temperature expansion and contraction keeps electrical spacing constant over long service periods and keeps parts from becoming misaligned.

Noise-dampening properties of cotton-reinforced phenolic laminates stop vibrations from spreading in switching applications. This makes nearby components last longer. This sound performance is especially useful in homes and businesses where lowering noise is important for people to be able to use the space.

NEMA CE Sheet Standards and Compliance Requirements

NEMA CE products meet strict industry standards, such as the NEMA LI-1 specs and the ASTM D709 testing procedures. These guidelines set basic performance requirements for environmental, mechanical, and electrical features. This makes sure that the quality is the same from one maker to the next and from batch to batch. Testing for dielectric breakdown, measuring moisture absorption, and checking for physical stability are all parts of compliance verification.

The MIL-I-24768 military standards for NEMA CE sheet give more performance requirements for uses that need higher stability and resistance to harsh environments. These guidelines require specific testing methods for measuring mechanical stress, temperature cycles, and humidity exposure. This gives trust for important electrical panel uses.

Assessing Current CNC Routing Challenges for NEMA CE Materials

When manufacturers use standard route methods to cut phenolic cotton laminates, they often run into certain problems. By understanding these problems, tailored solutions can be made that boost both speed and the quality of the parts.

Common Performance Issues in NEMA CE Sheet Machining

The main thing to worry about when cutting NEMA CE materials is the heat that is made during turning operations. Too high of a cutting temperature can turn the phenolic resin into carbon, which makes the edges rough and weakens the material's electrical qualities. This heat damage shows up as darker cut areas and less accurate measurements, which is a big problem for precise electrical parts.

When the wrong cutting tools or settings are used, fiber pullout and delamination happen. If you use too much cutting force, the cotton support can split from the resin core. This can leave the surface with a poor finish and even cause failure points in service. Process large amounts of phenolic materials, and you'll notice that tool wear speeds up. This raises running costs and lowers production.

Identifying Key Bottlenecks in Traditional Routing Methods

Most of the time, standard route methods use general-purpose cutting factors that don't take into account how phenolic cotton laminates are different. Feed rate tuning is important because too fast of speeds creates heat and not enough progress causes tools to rub against each other and wear out faster than they should. When choosing a spindle speed, it's important to keep both cutting efficiency and heat control in mind.

Dust extraction inadequacies create additional complications during NEMA CE machining. Because cotton reinforcement is flexible, it creates large particles that can make cutting less accurate and raise health issues for machine workers. It's possible that traditional cleaning systems won't be able to handle the amount of trash that is made during high-speed route operations.

Quality Control Problems and Their Root Causes

Changes in dimensions are common when holding pressure isn't uniform and material isn't supported properly during cutting processes. When cutting NEMA CE sheets, they can bend, which can lead to curved edges and conditions that are out of spec that make it hard for the unit to fit and work properly electrically. Changes in temperature during long grinding processes cause thermal expansion effects that make controlling dimensions even harder.

Inconsistent surface finishes are usually caused by choosing the wrong tools and cutting settings. Carbide equipment works a lot better than high-speed steel options, especially when it comes to keeping cutting edges sharp over long production runs. To get the professional-grade edge finishes needed for exposed panel parts, it's important to make sure the tool shape is correct.

Cost Implications of Inefficient Processing Techniques

When route factors don't take NEMA CE traits into account, a lot more material waste happens. Parts that are thrown away because they are damaged by heat, delamination, or mistakes in their measurements have a direct effect on production costs and delivery times. Rework rules raise the cost of labor while slowing down production overall.

When wrong cutting techniques are used, the number of times tools need to be replaced goes up. High-speed steel tools may need to be replaced more than once during a single production run. Carbide options, on the other hand, keep cutting performance across many parts when they are chosen correctly. When route settings are not adjusted for phenolic materials, energy use also goes up, which adds to higher running costs.

CNC Routing Optimization Principles for NEMA CE Sheets

To successfully machine phenolic cotton laminates, you need to use specific methods that take into account the properties and performance needs of the material. These streamlining techniques help makers make better parts while keeping production as efficient as possible.

Material-Specific Cutting Parameters and Feed Rates

For NEMA CE sheet materials, the best cutting speeds are usually between 18,000 and 24,000 RPM. This range gives the surface enough speed for clean cutting without making too much heat. Depending on the width of the material and the size of the tool, feed rates should stay between 100 and 200 inches per minute. These settings keep the chip load per tooth just right and stop the tool from rubbing, which can hurt both the cutting edge and the surface of the object.

Depth of cut considerations become particularly important when routing thick NEMA CE sections. Multiple pass techniques often work better than full-depth cutting because they let heat escape better and lower the cutting forces. Progressive cutting methods also give you better control over the quality of the surface finish and the accuracy of the dimensions throughout the whole machine process.

Tool Selection Strategies for Different NEMA CE Thicknesses

Because it is more resistant to wear and better at letting heat escape, carbide tools is the best choice for NEMA CE cutting tasks. Single-flute end mills are best for most winding tasks because they remove chips well while reducing cutting forces. To cut down on cutting resistance and heat production, the shape of the tool should have positive rake angles and sharp cutting edges.

For NEMA CE sheets that are less than 0.125 inches thick, smaller diameter tools can better resolve details while still being stiff enough. Larger diameter cutters are better for cutting thicker materials than 0.5 inches because they make the material more rigid and able to handle heat. When the top and bottom surfaces need to be very smooth, compression-style cutter bits can be very useful.

Temperature Management During High-Speed Routing

For long grinding processes, it's important to have good cooling methods to keep the quality of the parts. Air blast cooling is a good way to control the temperature for most uses, and it doesn't have the pollution problems that come with flood coolant systems. Mist cooling systems are better at getting rid of heat for tough jobs without making cleanup harder.

The material temperatures can stay stable during programmed rest times between cutting passes. This keeps heat from building up and damaging the phenolic resin matrix. Feed rate variation in complicated shapes helps keep cutting conditions stable while preventing heat damage in areas with small radiuses or intricate features.

Chip Evacuation and Dust Control Best Practices

High-velocity dust collection systems need to be placed in a way that captures particles where they come from without getting in the way of cutting. Collection hood designs should make enough wind speed to get rid of cotton fibers and phenolic dust without changing the position or size of the object.

Compressed air aid helps clear cutting areas of waste that has built up and also cools the area. CNC methods can include programmable blow-off steps to keep the cutting area clean during the whole process of grinding. Maintenance on the filters on a regular basis keeps the flow working well and keeps the system from getting too busy during high-volume production runs.

Advanced CNC Routing Techniques for Electrical Panel Components

A lot of the time, complex electrical panel parts need special cutting techniques that go beyond simple turning operations. With these cutting-edge methods, makers can make shapes with complicated shapes while still keeping the accuracy needed for electrical uses.

Precision Drilling for Mounting Holes and Hardware Installation

Accuracy of mounting holes has a direct effect on how well a system works and how reliable an electrical panel is. When the right drilling methods are used, NEMA CE materials can be machined smoothly, but they need to be handled in a certain way to keep them from delaminating and get the holes placed precisely. Carbide drill bits with split-point shapes have the best cutting properties and cause the least amount of material warping.

For holes deeper than three times the width, peck drilling processes are helpful because they let chips escape and heat escape during the drilling process. Backing plates stop fibers from pulling out on the exit side and make sure that holes are finished cleanly across the whole length of the material. You can add chamfering steps to the drilling process to get professional-looking holes that make it easier to place hardware.

Edge Finishing Methods for Professional Component Appearance

The quality of the edges has a big effect on how well and how well-liked the parts of an electrical panel are. When the machine is stiff enough, NEMA CE materials work well with climb milling techniques, which produce better surface finishes than traditional milling methods. A lot of the time, multiple finish passes with lighter loads work better than one big cut.

For NEMA CE sheet, obvious uses for sanding and polishing can improve the look of the edges, but if you use the right cutting methods, you probably won't need to do any secondary finishing at all. Because the resin could carbonize and lose its properties, flame cleaning phenolic materials is not a good idea. Deburring tools made for composite materials are good at getting rid of small edge flaws.

Complex Geometry Machining for Custom Panel Designs

Custom designs for electrical panels often have complicated forms and features that make it hard to use standard machining methods. Adaptive toolpaths help keep cutting loads constant during processes with varying shape. This lowers the risk of heat damage and improves the regularity of the surface finish. Strategies for high-efficiency roughing get rid of large amounts of material quickly while leaving enough for finishing operations.

Trochoidal milling methods make it possible to remove material quickly and efficiently in small spaces, while reducing the amount of cutting force and heat that is produced. These methods work especially well when making internal features or taking out a lot of material from thick NEMA CE sections. Progressive cutting depth strategies make sure that the tool is properly engaged in all of the complex geometric shapes.

Multi-Axis Routing for Three-Dimensional Panel Features

Advanced electrical screens might need three-dimensional parts that are too complicated for standard 2.5-axis cutting. Five-axis CNC cutters can make curved surfaces and complicated shapes while keeping the tools in the best position during the cutting cycle. This feature comes in handy for uses that need draft angles or curved changes.

With multi-axis skills, it's much easier to get to tools, and features can be machined that couldn't be done with traditional methods. By keeping the right contact angles across complicated geometric features, continuous tool alignment optimization lowers cutting forces and improves the quality of the surface finish.

Selecting the Right CNC Routing Service for NEMA CE Projects

When working with special materials like NEMA CE sheets, picking the right cutting partner has a big effect on the success of the project. For the best results, this decision process should be based on a number of important factors.

Core Evaluation Metrics for CNC Service Providers

When looking for a machining partner, the most important thing is that they have technical knowledge with phenolic materials. Offerers must show that they have a lot of experience with NEMA-grade laminates and know how to deal with the unique problems that come up when working with cotton-reinforced phenolic. Portfolios of past projects and customer references are great ways to find out about real performance skills.

Controls for measuring accuracy, surface finish, and how to handle materials must be part of quality management systems. ISO 9001 approval shows that quality controls are carried out in a planned way, while AS9100 or similar aerospace standards show that quality control has been improved to a level that is fit for use in critical electrical applications.

Equipment Capabilities and Technology Requirements

The specs for a CNC cutter should include the right tool power and speed ranges for working with phenolic materials. High-frequency wheels that run at speeds above 24,000 RPM are best for cutting NEMA CE materials and still have enough power for tools with bigger diameters. Rigid machine design makes sure that measurements are correct when cutting at high speeds.

Systems for collecting dust and controlling the air must be able to handle the large amounts of particles that are made during phenolic cutting. Enough air flow keeps the workplace clean, which is important for accurate manufacturing processes and saves both the equipment and the people who work on it.

Quality Certifications and Industry Compliance Standards

UL recognition and RoHS compliance testing make sure that made parts meet safety and environmental standards in the electronics business. These licenses show that you follow industry standards and give you peace of mind for controlled uses. Full traceability should be supported by documentation systems, from the approval of raw materials to the delivery of the end component.

Third-party quality tests are an independent way to check that a company can make things and that its quality systems are working well. Recent audit results and reactions to corrective actions show how well quality performance is really going and how committed people are to always getting better.

Lead Time and Volume Capacity Considerations

Production ability must match the needs of the project while quality standards are kept at all levels of volume. Scalable manufacturing methods make it easy to handle both small batches of prototypes and large batches of production without affecting the quality of the parts or the speed of delivery. Making sure that backup equipment is available protects against unexpected repair needs.

Supply chain management skills are needed to make sure that materials are always available and of good quality. Having established connections with approved NEMA CE sheet providers helps make sure that the materials are consistent and gives you access to technical support resources when you need them.

Conclusion

To get the accuracy and quality needed for electrical panel uses, CNC cutting of NEMA CE sheets needs specialized knowledge and the best methods. Understanding the properties of the material, using the right cutting settings, and keeping a close eye on quality throughout the whole production process are all important for successful machining. NEMA CE materials are essential for high-strength electrical uses that need to be reliable and safe because they have a special mix of electrical insulation qualities and mechanical performance. If manufacturers put money into the right tools, equipment, and process development, they can make parts of the highest quality while keeping production costs low in this niche market.

FAQ

In order to CNC route NEMA CE sheets, what cutting speeds work best?

For NEMA CE materials, the best cutting speeds are between 18,000 and 24,000 RPM, and the best feed rates are between 100 and 200 inches per minute. These settings allow for clean cutting without making too much heat, which could damage the phenolic resin core. When it comes to keeping their cutting performance over long production runs, carbide tools work much better than high-speed steel options.

Can NEMA CE sheets be cut to very precise sizes for electrical parts?

Yes, limits of ±0.003 inches can be reached with NEMA CE materials if the right cutting methods and quality control steps are used. Key factors include making sure the item is supported properly, using the right cutting settings, and keeping the temperature under control while the machine is working. Coordinate measuring machine checking makes sure that the quality of the measurements meets the needs of the electrical panel.

What effects does the thickness of a NEMA CE sheet have on CNC cutting settings and tool choice?

For better stiffness and heat dissipation, thicker NEMA CE parts need larger diameter cuts. On the other hand, thinner materials (less than 0.125 inches) work better with smaller diameter tools for finer details. For thick parts, multiple-pass techniques often work better than full-depth cutting because they let you control the temperature better and get a better surface finish.

Partner with J&Q for Superior NEMA CE Sheet CNC Routing Solutions

J&Q has been making insulation sheets for more than 20 years and has advanced CNC shaping skills that are specially designed to work best with NEMA CE materials. The technical team at our company knows how hard it can be to machine phenolic cotton laminates and has come up with special methods that produce high-quality parts with short lead times. We offer full solutions, from figuring out what materials to use to delivering finished parts, thanks to our own transportation network that makes delivery planning easy.

Our cutting-edge CNC routers and carbide tooling methods make sure that the dimensions are accurate to within ±0.003 inches, and the surface finishes are excellent for use in professional electrical panels. As a reliable NEMA CE sheet maker, we keep up-to-date quality approvals and material tracking systems that meet the strictest needs of the electrical industry. Get in touch with our engineering team at info@jhd-material.com to talk about your unique project needs and find out how our improved CNC cutting methods can improve the quality of your electrical panel components while lowering the overall cost of the project.

References

National Electrical Manufacturers Association, "NEMA Standards Publication LI 1-2018: Industrial Laminated Thermosetting Products," National Electrical Manufacturers Association, 2018.

American Society for Testing and Materials, "ASTM D709-19: Standard Specification for Laminated Thermosetting Materials," ASTM International, 2019.

Institute of Electrical and Electronics Engineers, "IEEE 259-1999: Test Procedures for Evaluation of Systems of Insulating Materials for Random-Wound AC Electric Machinery," IEEE Standards Association, 1999.

Underwriters Laboratories, "UL 94: Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances," Underwriters Laboratories, 2013.

International Electrotechnical Commission, "IEC 60893-3-4: Insulating materials - Industrial rigid laminated sheets based on thermosetting resins for electrical purposes," International Electrotechnical Commission, 2017.

SAE International, "AMS 4977: Laminated Plastic Sheet, Phenolic Cotton Fabric Base, General Purpose Grade," SAE International, 2014.
