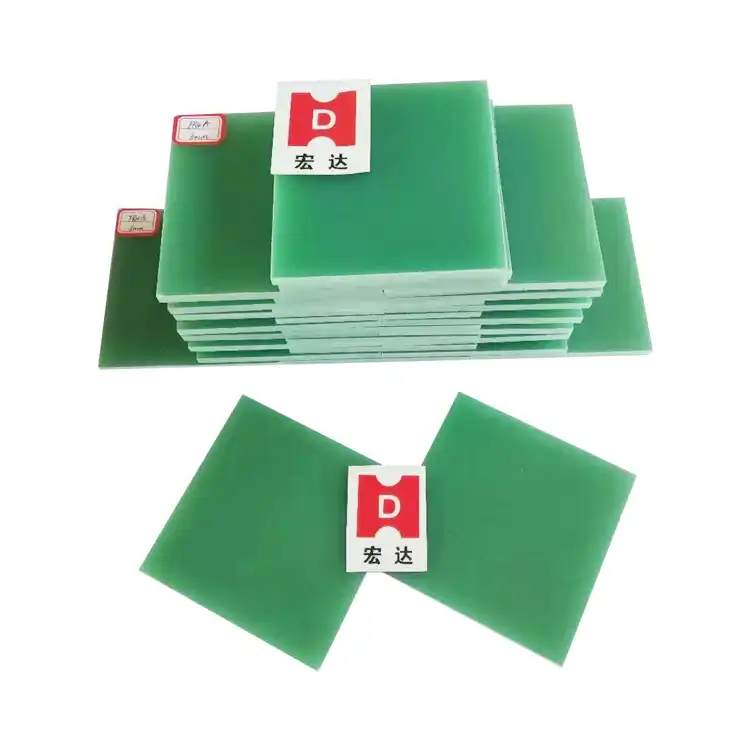

Custom FR4 insulation parts are a main option for companies that need solid electrical insulation for a wide range of industry uses. FR4 sheet is made of knitted fiberglass cloth that has been mixed with a flame-retardant epoxy glue. It has the high dielectric strength, thermal stability, and mechanical longevity that modern electronics and machinery need. Knowing the best ways to find and use these special parts helps buying teams get the most out of their budgets while still improving performance. This detailed guide talks about tried-and-true methods that engineering managers, technical procurement specialists, and OEM buying teams can use to pick the right custom FR4 parts for their uses and make sure they work as reliably and efficiently as possible.
Understanding FR4 Sheets and Their Properties
FR4 sheets are made using a complex process that involves mixing weave fiberglass cloth with epoxy resin, then carefully laminating the layers and letting them cure at controlled temperatures and pressures. This process makes a hybrid material with a very high electrical insulation resistance (usually over 10^6 megohms), which makes it perfect for PCB boards and isolating electrical components.
Key Material Characteristics
When ordering unique parts, it's important to pay close attention to the heating qualities of FR4 materials. The glass transition temperature (TG) of standard FR4 is around 130°C. High-performance versions of FR4 have TG rates of 170°C or higher. This thermal stability makes sure that the system works the same way in harsh conditions where changes in temperature could damage parts.
Mechanical strength represents another critical advantage of FR4 laminate materials. The composite construction has a high tensile strength, usually between 310 and 380 MPa, and a high bending strength that keeps it from cracking when it's under stress. Because of these qualities, FR4 part is especially useful for insulating the structure of industrial tools and equipment used to distribute power.
Manufacturing Process Impact on Customization
Custom FR4 parts can be better specified when you know how differences in the manufacturing process affect the qualities of the finished product. Electrical, heat, and mechanical properties of the material are affected by the amount of resin used, the temperature at which it cures, and the pressure at which it is pressed. These manufacturing factors have a big impact on custom thickness limits, surface finish standards, and physical accuracy. This is why source knowledge is so important for getting the performance results that are wanted.
Comparison of FR4 with Alternative Insulation Materials
In order to choose the best soundproofing material, it is important to carefully compare how well FR4 works with other options. There are pros and cons to each type of material that make them less or more suitable for certain uses.
FR4 Versus Phenolic and CEM-1 Materials
When compared to phenolic cotton laminates, an FR4 sheet is better at keeping its shape and not getting wet. Phenolic materials might be cheaper, but they don't have the electrical or heat qualities that are needed for high-reliability uses. Even though CEM-1 materials are cheaper than FR4, they are not good for demanding industry settings because they are not as strong mechanically or thermally.
Advanced Material Alternatives
When working at temperatures above 200°C, polyimide and ceramic surfaces perform better than normal FR4 at high temps. But these materials are much more expensive and are harder to machine, which can slow down the production process. FR4 still has clear benefits for uses that need modest heat performance and great cost-effectiveness.
Metal core laminates work great in high-power situations where heat transfer is important, but because they are so specialized, they can't be used in as many situations as FR4. Knowing about these trade-offs helps buying teams make smart choices that meet technology needs and stay within budget.
Best Practices for Procuring Custom FR4 Insulation Parts
To successfully buy custom FR4 insulation parts, you must first create detailed specifications that cover all the important performance factors. When you tell providers exactly what you need, they can make sure you get parts that work well with your application and don't need to be redesigned, which can be expensive.
Specification Development Strategies
Specifications that work must include electrical needs like dielectric strength, volume resistance, and dielectric constant numbers. Operating temperature ranges, TG standards, and thermal expansion factors should all be included in thermal specs. It's important to think carefully about mechanical qualities like tensile strength, bending strength, and impact resistance based on the stress conditions of the application.
When you look at dimensional specs, you need to pay close attention to the tolerances, surface finish standards, and any special needs for cutting or manufacturing. Custom hole designs, cutouts, and surface treatments can have a big effect on wait times and costs, so it's important to specify early on in the job to make sure it goes well.
Supplier Evaluation Criteria
There are many things to think about besides price when choosing the right source for an FR4 sheet. Manufacturing skills, quality certifications, expert help resources, and shipping efficiency are some of the most important things that are looked at when judging a product. Suppliers who are ISO certified and UL recognized show that they are dedicated to quality systems that guarantee consistent performance.
Here are the most important things that buying teams should look at when evaluating suppliers:
- Manufacturing capacity and equipment for making custom parts, such as CNC precision machines and quality control systems that make sure that the required level of accuracy in measurements and surface finish is met regularly across production batches
- Technical knowledge in FR4 material science and application engineering, shown by a history of successful projects and the ability to offer design improvement suggestions that improve performance while lowering costs
- Quality badges, such as ISO and UL recognition, come with written quality management systems and tracking processes that make sure they meet customer needs and industry standards
- Stability in the supply chain and the ability to handle stockpiles so that deliveries can be made on time and disruptions are kept to a minimum through strategic planning for materials and output
These review factors help find providers who can provide regular quality and dependable service over the course of a long-term relationship. Building ties with qualified sellers lowers the risks of buying things and gives you access to technical knowledge that can help you make better products and run your business more efficiently.
Integrating Custom FR4 Parts into Your Production Workflow
Custom FR4 insulation parts must be carefully planned and coordinated between the design, sourcing, and manufacturing teams in order to be successfully integrated. Integrating workflows correctly ensures peak performance while reducing problems with quality and output.
Quality Control and Testing Protocols
Strong quality control methods keep parts from failing to perform as expected and protect against performance breakdowns. Standardized testing methods should be used in incoming inspection processes to check the accuracy of the dimensions, the quality of the surface finish, and the material's properties. Electrical testing makes sure that the dielectric strength and insulation resistance are correct, and thermal testing makes sure that the TG values and thermal expansion qualities are correct.
Setting clear acceptance criteria and review methods helps keep quality standards high and makes the receiving process run more smoothly. Material certificates, test records, and information on how to track products should all be required as documentation to support quality checks and customer needs.
Storage and Handling Best Practices
The qualities of an FR4 sheet material are kept intact and don't break down in ways that could affect its performance when stored properly. Controlled humidity conditions stop wetness from absorbing, which can change the way electricity works and the quality of cutting. Keeping storage areas clean lowers the chance of pollution that could damage surface finishes or sealing jobs.
Material handling processes should include rules for how to pack things, how to lift them, and how to keep them safe so they don't get damaged while they're being moved or stored. Teaching workers the right way to handle things cuts down on waste and makes sure that materials stay together throughout the supply chain.
Why Choose J&Q for Custom FR4 Solutions？
J&Q has been making high-quality insulation materials for more than 20 years and has also been trading internationally for over 10 years, which makes it easy for customers all over the world to buy things. We have a lot of relationships with trade companies in the United States and other countries, which lets us offer a wide range of services that meet the needs of many industries.
Comprehensive Manufacturing Capabilities
Our factories are experts at making unique FR4 sheets, and they can precisely control the thickness, size, and surface properties of the sheets. Advanced CNC cutting lets you make parts with complicated shapes while still keeping the tight standards that are needed for important uses. Quality management systems make sure that foreign standards, like UL and RoHS rules, are met.
During the planning and production process, our expert team provides engineering help and makes suggestions for improvements that improve performance while keeping costs low. This way of working together makes sure that unique parts are made to exact specs while also improving the efficiency of production.
Integrated Service Advantages
With J&Q's combined services, the whole buying process is streamlined, from placing the order to delivering it. Our transportation company offers a one-stop service that makes planning easier and cuts down on delivery wait times. This connection helps us handle our goods better and give our customers more accurate information about how the supply chain will work.
Technical advice services help customers choose the best materials and build parts that work best for their needs. Sample programs let you carefully look at the products before committing to large amounts. This lowers the risk of making a mistake and makes sure that you are happy with the end products.
Conclusion
To use best practices for buying custom FR4 insulation parts like the FR4 sheet, you need to know a lot about the qualities of the material, the skills of the provider, and the needs for integration. To be successful, you need to make clear specifications, choose suppliers carefully, and keep an eye on quality throughout the whole buying process. Custom FR4 options are very helpful for uses that need reliable electrical protection, temperature stability, and mechanical strength. Engineering teams can get the best performance at the lowest cost by using tried-and-true buying strategies and working with sources with a lot of experience. Putting money into good planning and ties with suppliers pays off in the long run by making products more reliable, lowering the risks of buying them, and making operations more efficient.
FAQs
What should I think about when picking out FR4 types for unique insulation parts?
Some important things to think about when making a choice are the working temperature, the electrical performance, the mechanical stress conditions, and the exposure to the surroundings. Standard FR4 works well in most situations, while high-TG versions are better for places with a lot of heat. Think about the dielectric constant needs for RF applications and the flame retardancy values for uses that need to be safe.
How do minimum order amounts change the cost and wait time of special FR4 parts?
For tools and setup costs to be worth it, custom part production usually needs a minimum order quantity. Costs per part usually go down as the quantity goes up because making is more efficient. For first orders that need new tools or special handling, lead times may be longer. On the other hand, repeat orders gain from production methods that are already in place and faster delivery times.
Can FR4 materials be changed to meet special needs for electrical or heat performance?
Yes, FR4 formulas can be changed to improve certain qualities, like flame protection, heat conductivity, or the dielectric constant. Custom glue systems and support materials make it possible to get the best results for certain uses. To make sure performance stability, though, big changes might need material proof and longer development timelines.
Partner with J&Q for Superior Custom FR4 Solutions
J&Q is ready to help you with your custom FR4 insulation part needs with their unmatched knowledge and wide range of service options. As a reliable FR4 sheet maker with decades of experience, we know how important quality, dependability, and on-time delivery are to your buying choices. Our expert team can help you find the best specs and performance for your projects by giving you personalized advice. Email us at info@jhd-material.com to talk about your needs and get samples that show how committed we are to doing a great job.
