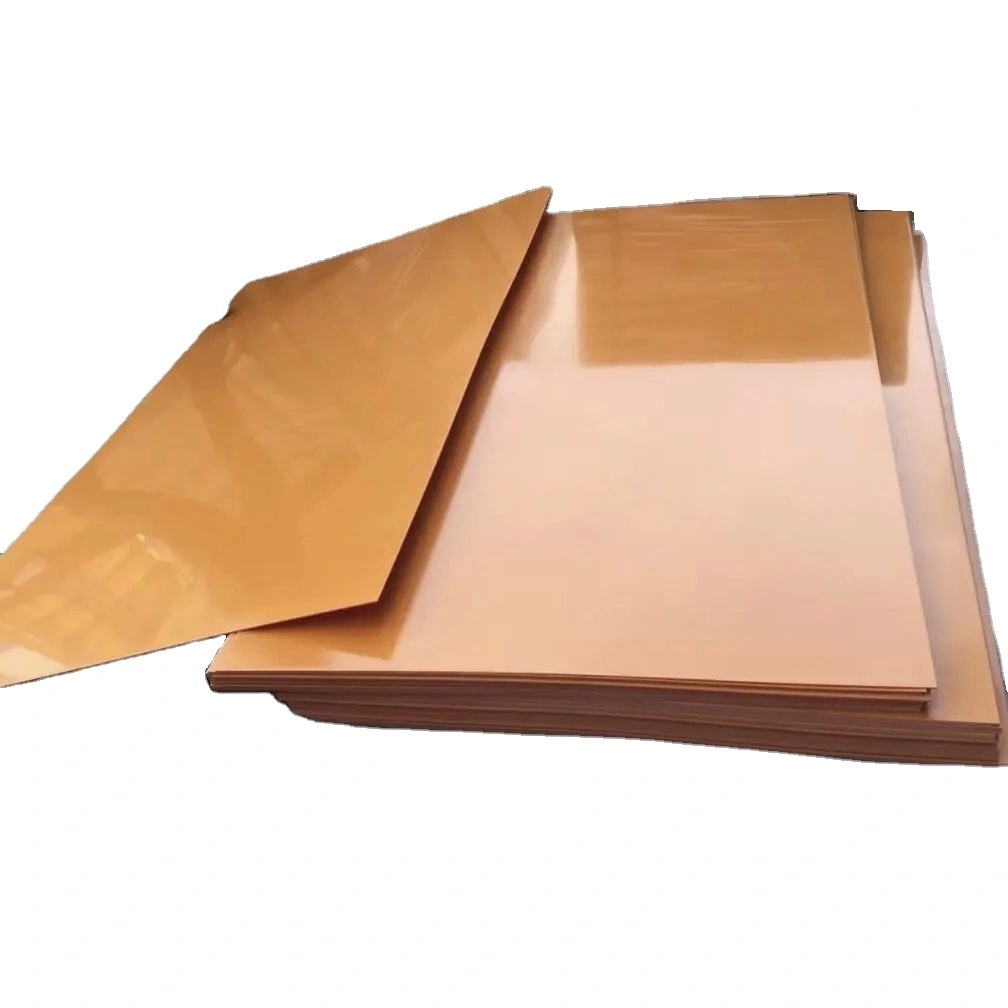

Bakelite Sheet Applications in Vintage Electronics and Audio Gear

Due to its superior electrical insulation, heat resistance, and authentic aesthetic appeal, Bakelite sheet is still the go-to material for restoring vintage electronics and audio equipment. This phenolic resin laminate was created in 1907 as the world's first synthetic plastic. It is still used by manufacturers, restoration experts, and audio fans who want materials that are historically accurate and work well. From radio chassis insulation to vacuum tube sockets, Bakelite sheet delivers the dimensional stability and dielectric strength necessary for high-voltage applications while preserving the character of classic electronic equipment.

Understanding Bakelite Sheets and Their Core Properties

To be successful in procurement, you must first understand what makes phenolic laminate sheets perfect for use in electronics.

Manufacturing Process and Chemical Composition

In a very controlled process, layers of cellulose paper are saturated with phenol-formaldehyde resin, resulting in the formation of Bakelite sheet, also known as phenolic paper laminate. When heated and pressed above 300°F, these layers change into a rigid, thermoset material that doesn't soften after it's cured. This cross-linking that can't be undone makes a molecular structure that can't be broken down by electricity or heat. Manufacturers list grades with thicknesses ranging from 0.5 mm to 50 mm, depending on the need for mechanical load and voltage isolation.

Key Physical and Electrical Characteristics

The dielectric strength of the material is more than 12 kV/mm, which makes it very reliable for isolating high-voltage parts in tube amplifiers and broadcast equipment. Heat deflection temperatures can reach 149°C, which lets them work continuously in places where regular thermoplastics would melt or warp. Moisture absorption stays below 1.5% even after being exposed to humidity for a long time, which keeps the dimensions accurate for mounting circuit boards. The material's compressive strength of about 35,000 psi is important to mechanical engineers because it keeps the parts from breaking when they are being clamped together.

Available Grades and Surface Finishes

Different grades meet different functional needs in old electronics. Paper-based grades are easy to punch, so washers and spacers can be made quickly. Fabric-reinforced grades are better at withstanding impacts, which is good for chassis panels. The surface finishes range from natural brown to precisely machined matte, which lets procurement teams balance the need for good looks with the need to save money. We make sheets that are compatible with military-grade restoration projects and aerospace heritage equipment by following the MIL-I-24768 standards.

Why Bakelite Sheets Are Preferred in Vintage Electronics and Audio Gear？

Phenolic laminates are still useful in some situations because they have technical benefits and are historically accurate.

Superior Electrical Insulation Performance

Plate voltages in old tube amplifiers can reach 450 volts, which can cause arc-overs when weak materials break down under electrical stress. Unlike newer polymer alternatives, Bakelite sheet keeps its insulation integrity even when the temperature changes and the material wears down over time. The material's arc resistance, which was tested for 120 seconds using ASTM D495 standards, stops carbonization paths that cause high-impedance circuits to fail catastrophically. Restoration shops always use this material for socket insulation boards when old equipment needs to meet modern safety standards without changing the way it was designed in the first place.

Exceptional Machinability and Fabrication Flexibility

When the right tooling is used for the job and the material density is right, CNC routing, laser cutting, and regular milling all produce clean edges on Bakelite sheet that don't delaminate. From our experience making things, we know that carbide-tipped tools running at moderate speeds can achieve tight tolerances of just ±0.1mm, which is very important for mounting old potentiometers and switch assemblies. Tapped threads can be used with confidence in this material, so heat-set inserts are not needed in many mounting situations. When backing plates stop exit-side splintering, drilling operations go smoothly. This makes it possible to reproduce vintage faceplates with precise hole patterns.

Mechanical Stability Under Thermal Stress

Audio output transformers produce localized heat that over time causes acrylic and polycarbonate insulators to lose their shape. Over decades of thermal cycling, Bakelite sheet keeps the positional accuracy of coil bobbin flanges and lamination spacers. This stability is very important for keeping the air gap consistent in magnetic circuits, which has a direct effect on frequency response in high-fidelity settings. People who collect old radios know that the original phenolic parts usually last longer than the plastic parts that were used to fix them up in the past.

Authentic Aesthetic for Heritage Restoration

People can still easily spot real mid-century electronics by their unique brown color and rough surface texture of phenolic laminate. For museum-quality restorations, the materials must not only work, but also look like they did when they were first made. Even though radio chassis panels made from modern FR4 epoxy boards have better electrical properties, they are less accurate in terms of history, which is something that collectors and preservation groups value. Matching the original material's composition keeps both the collectible value and the educational value of collections in institutions.

Procuring High-Quality Bakelite Sheets for Industrial Use

The performance of a material meets long-term reliability expectations based on strategic sourcing decisions.

Evaluating Supplier Credentials and Capabilities

When choosing a vendor, you need to do more than just compare prices. Order fulfillment times are affected by production capacity, especially when custom thickness needs require special lamination runs. We keep enough inventory to fill orders ranging from prototypes to production volumes of more than 1,000 sheets per month, which helps us deal with the unpredictable demand cycles that are common in the restoration market. It's important to have domestic stocking locations in the United States because they cut lead times from weeks to days, which is very important when project deadlines include exhibition schedules or customer commitments.

Certification Standards and Quality Documentation

In quality management systems, compliance documentation helps with the justification of purchases. ISO-certified manufacturers need material test reports that show the dielectric strength, flexural modulus, and flame resistance of the material. These reports provide the traceability that is needed. RoHS compliance certificates meet regulatory needs even if the old equipment was made before these standards were made, because replacement parts may make you meet new compliance requirements. We include full material certifications with every shipment, which speeds up the inspection process and helps meet supplier audit requirements.

Custom Manufacturing and Technical Support

Standard sheet sizes for Bakelite sheet don't always match up perfectly with production cutting patterns. This wastes materials and raises the cost of production. Custom width slitting and length cutting make the best use of materials and cut down on waste by 15 to 30 percent compared to field cutting operations. When the original equipment specifications use old material names, technical consultation services help engineering teams choose the right grades. Our 20 years of experience as an applications engineer helps us make quick decisions about what materials to use when making an exact copy means adapting modern manufacturing standards to the original design intent.

Pricing Structures and Procurement Strategies

When you make a volume commitment, you can use tiered pricing, which lowers the cost per unit as the order quantity goes up. Blanket purchase orders with scheduled releases are a good way for businesses that do a lot of restoration work to balance the costs of keeping inventory with the chances to save money by buying in bulk. The price of phenolic resin feedstock affects the cost of materials, so long-term supply agreements are helpful when the price of raw materials changes. We work with procurement teams to make sure that agreements are set up in a way that fits with budget cycles and keeps supplies steady for restoration programs that last more than one year.

Practical Guide to Using Bakelite Sheets in Electronics Manufacturing

To get the most out of a material, you need to know how to use fabrication techniques that are compatible with its properties as a phenolic laminate.

Cutting and Machining Best Practices

Carbide-tipped blades with 60 to 80 teeth are needed for circular saw work to keep the edges from chipping along the cut lines. Feed rates of 10 to 15 feet per minute keep the resin from getting too hot and spreading across the cutting surfaces. The choice of router bit affects the quality of the edges. When making complex panel contours, straight flute cutters work better than spiral designs. Phosphoric particulate that builds up on machine paths and makes positioning less accurate during precision operations can be removed by dust extraction systems. Applying coolant is still pointless and counterproductive because absorbing water makes things less stable in terms of their shape.

Drilling Techniques for Clean Holes

Brad-point drill bits can center themselves perfectly on marked spots without having to walk on smooth phenolic surfaces. Backing boards stop breakthrough splintering, which makes hole edges rough and needs extra deburring work. Around 1,200 RPM is the right speed for a drill press because that's how fast the material is hard. Speeds that are too fast create frictional heat, which causes delamination around the edges of holes. Stepped drilling sequences that begin with pilot holes improve accuracy when large holes need to stay in the exact same place in relation to the edges of the panel.

Common Application Examples in Vintage Equipment

For vacuum tube sockets to work, they need insulation boards that keep pin connections cool and stop heat from electron tube envelopes from escaping. Potentiometer mounting plates provide rigid support that stops the shaft from wobbling, which causes noise to appear intermittently in audio signal paths. Transformer terminal strips keep high-voltage connections safe by leaving enough space between them to stop flashover across insulating surfaces. The backings for the dial scale go behind the clear indicators and support the structure while keeping the electrical connections away from the grounded chassis metalwork. It is hard to find single-property alternatives to phenolic laminates because each application needs a different set of material properties, such as thermal tolerance, dielectric strength, or mechanical rigidity.

Quality Control and Performance Monitoring

Precision micrometers are used to check the consistency of the thickness of incoming materials, since differences in dimensions affect the stack-up tolerances in multi-layer assemblies. A visual inspection can find surface flaws like holes, areas with a lot of resin, or delamination that weaken the structure. Electrical testing with megohm meters makes sure that the insulation resistance meets the requirements before the material is used in production. Checking the dimensions of a finished component and looking for machining flaws that might affect how well it fits together or how reliable it is in the long term are both parts of the inspection process. When field failures happen, we suggest that inspection procedures be written down and used to help with root cause analysis.

Conclusion

Bakelite sheet keeps showing its technical worth in historical audio and video equipment where it is used for electrical insulation, heat resistance, and keeping things looking like they did in the past. The material has been used for a hundred years, which shows that it is reliable in a way that newer alternatives have not yet been able to match in the restoration and reproduction markets. Professionals in procurement can save money and time by learning about different grades, what suppliers can do, and the best ways to make things out of materials while keeping costs low. As interest in restoring old machines grows along with appreciation for mid-century industrial design, phenolic laminates remain essential materials that connect the best engineering from the past with today's manufacturing skills.

FAQ

What thickness ranges are available for Bakelite sheet?

Standard phenolic laminate sheets come in thicknesses ranging from 0.5 mm to 50 mm, so they can be used for a wide range of electronic insulation tasks. Thinner gauges are good for things like gaskets and insulating washers, while heavier sections are used to support the structure of transformer assemblies and chassis panels. When order quantities are high enough, special lamination runs can be used to make thicknesses that aren't available in stock. We keep stock of a wide range of commonly requested thicknesses so that we can fulfill orders quickly.

How does Bakelite sheet compare to FR4 for vintage radio restoration?

Bakelite sheet has a real look that matches the original equipment, which is why it is best for historically accurate restorations. Although FR4 epoxy glass laminate is better at resisting moisture and being strong, it has a unique green color and a see-through look that makes it unsuitable for use in vintage equipment. Electrical performance stays the same for radio receiver voltages below 500 volts, so choosing a material is mostly based on how it looks and how it will be exposed to the environment.

Can Bakelite sheet be laser cut effectively?

It is possible for CO2 laser systems to cut phenolic laminates, but the quality of the edges depends on the thickness of the material and the laser power density. When the right focal settings and cutting speeds are used, thin sheets less than 3 mm can be cut cleanly with little charring. Thicker materials may need more than one pass, and edges that are discolored more noticeably will need extra finishing. When cutting thick materials, mechanical methods usually give better edge quality, while laser processing is best for making intricate patterns in thinner gauges.
