What Are the Key Benefits of FR4 in Circuit Applications?
Excellent Electrical Insulation Properties

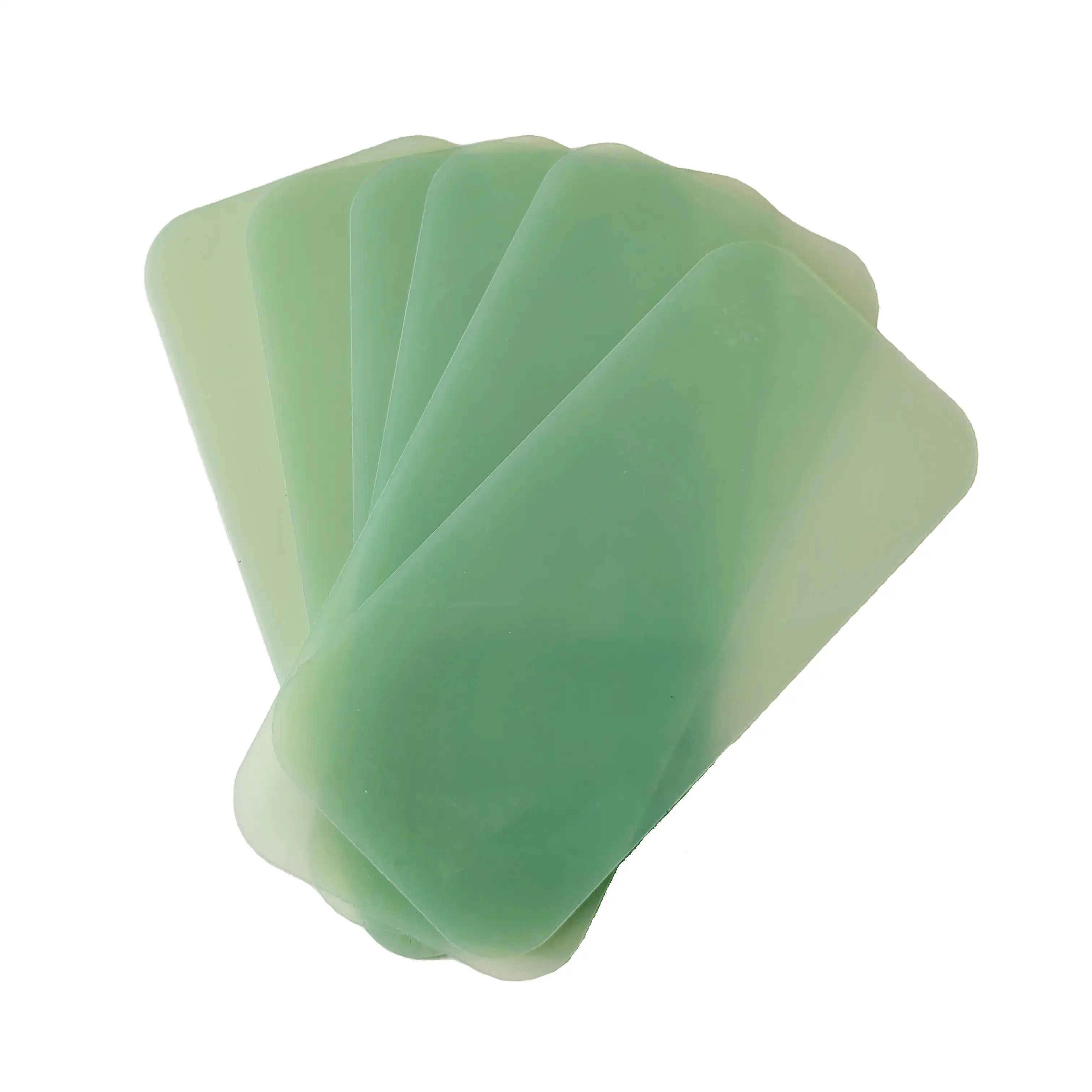

FR4 sheets provide outstanding electrical insulation, making them a cornerstone material in printed circuit board (PCB) design. With high dielectric strength, FR4 prevents unintended current flow between conductors, significantly reducing the risk of short circuits, electrical leakage, and component damage. This insulation reliability ensures the stable transmission of electrical signals across complex circuits. Consequently, FR4 contributes to overall system performance, protecting sensitive electronic components while enhancing the durability and safety of both consumer and industrial electronic applications.
Mechanical Durability and Stability
The mechanical robustness of FR4 sheet makes it ideal for applications demanding long-term durability and structural integrity. Its high strength-to-weight ratio allows for lightweight yet resilient PCB designs capable of withstanding bending, flexing, and other mechanical stresses. Additionally, FR4 maintains excellent dimensional stability under varying environmental conditions, including temperature fluctuations and humidity. This stability ensures that boards retain their shape and structural precision over time, making FR4 a reliable choice for high-performance electronics where consistent mechanical performance is critical.
Flame Retardant Characteristics
FR4 material inherently possesses flame-resistant properties, as indicated by the "FR" designation. This characteristic significantly improves the safety of electronic devices by slowing or preventing the spread of fire during electrical faults or overheating. Its self-extinguishing behavior adds an extra layer of protection, minimizing potential damage to equipment and surrounding components. From consumer electronics to industrial machinery, FR4's flame retardancy ensures compliance with safety standards while providing peace of mind in environments where fire risk management is a critical concern.
Mechanical, Thermal, and Electrical Limitations
High-Frequency Performance Constraints
Although FR4 offers numerous benefits, it exhibits limitations in high-frequency electronic applications. As operating frequencies increase, the dielectric constant of FR4 can become unstable, leading to variations in signal propagation speed and potential integrity issues. This instability can result in signal distortion, timing errors, or interference in precision circuits. Consequently, FR4 may not be ideal for advanced telecommunications, radar systems, or other high-speed electronic applications where maintaining consistent electrical performance and low signal degradation is critical.
Thermal Management Challenges
FR4 sheet provides adequate thermal stability for many standard applications, but its performance can be compromised in high-temperature environments. The material's glass transition temperature (Tg) sets a threshold beyond which FR4 may soften or experience physical and electrical property changes. Prolonged exposure above Tg can lead to warping, reduced dielectric strength, and potential failure in circuits. Engineers must carefully consider thermal loads in design, and in extreme heat scenarios, alternative materials with higher thermal tolerance may be required to ensure reliable operation.
Signal Loss at Higher Frequencies
At elevated frequencies, FR4's dissipation factor becomes increasingly significant, contributing to greater signal attenuation and energy loss. This characteristic can negatively affect high-speed or high-frequency circuit designs where minimal signal loss is essential. Increased attenuation can degrade signal integrity, leading to timing errors or reduced performance in critical electronic applications. As a result, designers often opt for materials with lower dielectric loss for high-frequency circuits, reserving FR4 for lower-frequency or general-purpose PCB designs where signal attenuation is less of a concern.
Design Considerations for Optimal FR4 Use
Thickness Selection for Impedance Control
The thickness of FR4 sheets plays a crucial role in impedance control, particularly in multi-layer PCBs. Designers must carefully consider the FR4 thickness in relation to the copper layer thickness to achieve the desired impedance characteristics. This consideration is vital for maintaining signal integrity and minimizing reflections in high-speed digital circuits.
Material Grade Selection Based on Application
FR4 is available in various grades, each offering different performance characteristics. Selecting the appropriate grade depends on the specific requirements of the application. For instance, high-Tg FR4 variants are better suited for applications involving higher operating temperatures or those requiring enhanced reliability under thermal stress.
Balancing Cost and Performance
While FR4 is generally cost-effective, designers must balance performance requirements with budget constraints. In some cases, the limitations of FR4 may necessitate the use of more expensive alternative materials. However, for many applications, careful design considerations can optimize FR4 usage, leveraging its benefits while mitigating its limitations.
Conclusion
FR4 sheets remain a cornerstone in PCB manufacturing, offering a balanced mix of electrical, mechanical, and thermal properties suitable for a wide range of applications. While its limitations in high-frequency and high-temperature scenarios are noteworthy, proper design considerations can maximize its effectiveness in many circuit designs. As technology advances, the role of FR4 continues to evolve, with innovations in material science potentially addressing some of its current limitations. For engineers and designers, understanding the nuances of FR4 is key to creating efficient, reliable, and cost-effective circuit boards.
FAQs
What makes FR4 sheets popular in PCB manufacturing?
FR4 sheets are widely used due to their excellent balance of electrical insulation, mechanical strength, and flame-retardant properties. They offer good performance at a reasonable cost, making them suitable for various applications.
Can FR4 be used in high-frequency applications?
While FR4 is suitable for many applications, it has limitations in high-frequency scenarios due to its changing dielectric constant and higher signal loss at higher frequencies.
How does FR4 compare to other PCB materials in terms of cost?
FR4 is generally more cost-effective compared to specialized high-performance materials, making it a popular choice for a wide range of PCB applications.
Your Trusted FR4 Sheet Supplier: J&Q
At J&Q, we are a trusted FR4 sheet manufacturer and supplier, specializing in producing high-quality laminates tailored to your specific circuit design needs. With over 20 years of insulating sheet production experience and a decade as a reliable exporter in international markets, we offer unparalleled expertise and service for industrial and electronic applications. As a professional FR4 sheet factory, our in-house logistics company ensures seamless worldwide delivery. For top-tier FR4 sheets and expert guidance, contact us at info@jhd-material.com.
