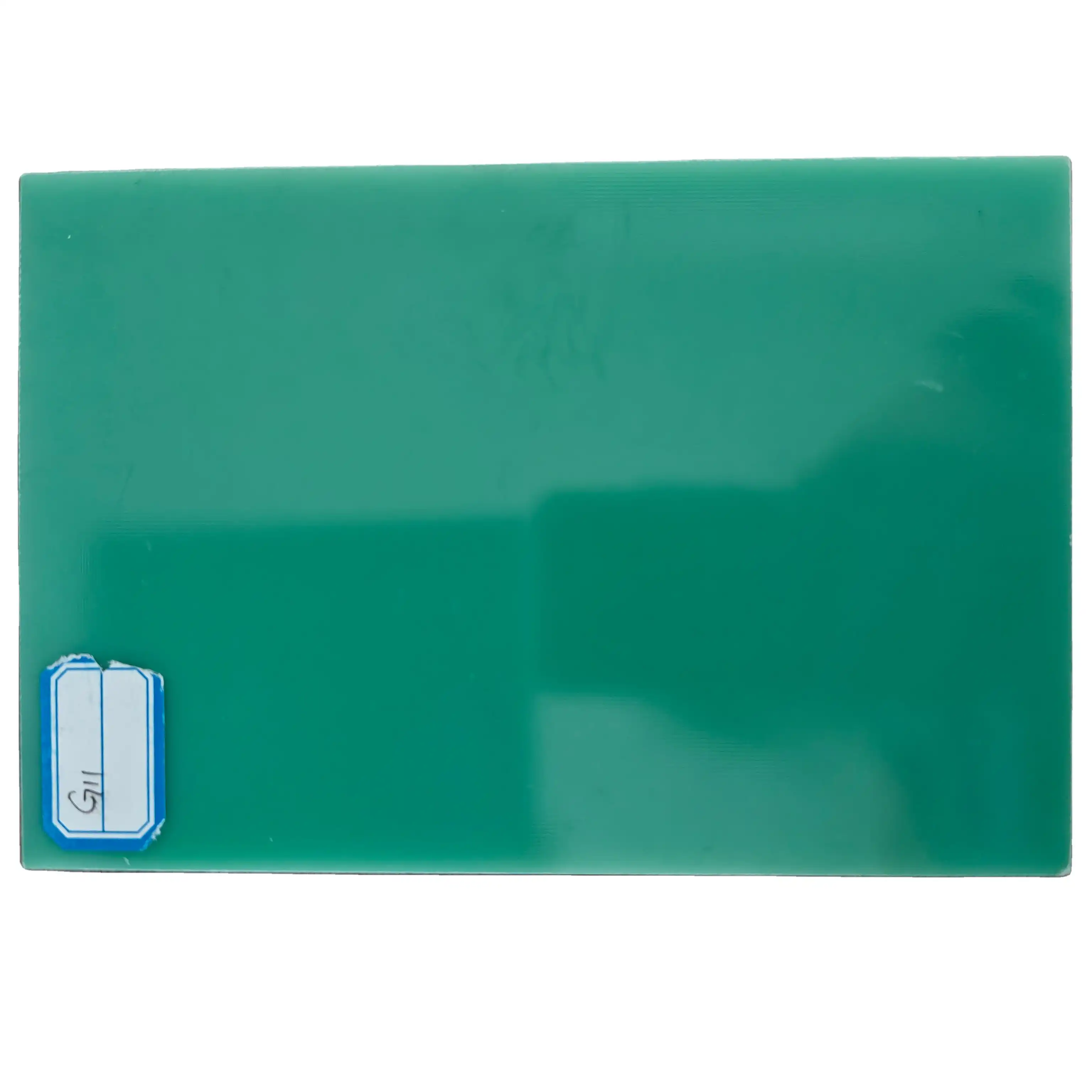

Why G11 Sheet Is Ideal for High-Voltage Applications?
Superior Dielectric Strength
G11 sheet is engineered to deliver outstanding dielectric strength, enabling it to endure high-voltage electrical fields without experiencing breakdown or arcing. This property is essential in applications such as transformers, circuit breakers, and switchgear, where insulation integrity directly impacts operational safety. Even under continuous electrical stress or transient voltage surges, G11 retains its insulation resistance, reducing the risk of short circuits or electrical failure. Its dependable dielectric performance ensures long-term reliability in demanding high-voltage systems.
Excellent Thermal Stability
A defining feature of G11 sheet is its superior thermal stability across a wide operational temperature range, typically between -70°C and 155°C. This allows it to maintain consistent mechanical strength and electrical insulation even when exposed to prolonged heat or rapid temperature fluctuations. In high-voltage systems, where heat buildup is common, G11's resistance to thermal degradation prevents material deformation and ensures consistent insulation performance. This combination of thermal endurance and mechanical integrity significantly extends the service life of electrical assemblies and equipment.
Low Moisture Absorption
G11 sheet demonstrates exceptionally low moisture absorption, a vital advantage for maintaining insulation reliability in humid or moisture-prone environments. Excess moisture can reduce dielectric strength and cause surface tracking or insulation failure. However, G11's moisture resistance ensures stable electrical performance even under fluctuating humidity levels. This makes it particularly suitable for outdoor or marine applications, as well as in power distribution systems operating across diverse climatic conditions, where consistent insulation quality is essential for long-term safety and durability.
Electrical and Thermal Performance in Switchgear
Arc Resistance and Tracking Resistance
In switchgear applications, G11 sheet demonstrates superior arc resistance and tracking resistance. Its ability to withstand electrical arcs without significant degradation enhances the safety and reliability of switchgear systems. The material's high tracking resistance prevents the formation of conductive paths on its surface, maintaining insulation integrity even under severe electrical stress and contamination.
Dimensional Stability Under Heat
G11 sheet maintains excellent dimensional stability even when exposed to high temperatures. This property is crucial in switchgear design, where precise component fit and alignment are essential for proper operation. The material's resistance to warping or deformation under heat ensures that switchgear components maintain their designed clearances and tolerances, contributing to the overall system reliability.
Thermal Management in Switchgear
The thermal conductivity of G11 sheet, while low enough to provide excellent electrical insulation, allows for effective heat dissipation in switchgear applications. This balance helps manage the thermal load within switchgear enclosures, preventing localized hot spots that could lead to premature component failure. The material's thermal properties contribute to the overall thermal management strategy in high-voltage switchgear design.
Industrial Use Cases in Motor Insulation and High-Voltage Systems
Stator and Rotor Insulation in Large Motors
G11 sheet finds extensive use in the insulation systems of large industrial motors. It serves as a primary insulation material for stator windings, providing a robust barrier against high voltages. In rotor applications, G11 sheet is used to insulate rotor bars and end rings in squirrel-cage induction motors. Its mechanical strength and thermal stability ensure that the insulation system maintains its integrity under the high centrifugal forces and temperatures experienced in motor operation.
Bushings and Insulators in Transmission Systems
High-voltage transmission systems rely on G11 sheet for manufacturing critical components such as bushings and insulators. The material's exceptional dielectric strength and low moisture absorption make it ideal for these applications, where reliable insulation is crucial for system safety and efficiency. G11 sheet-based bushings and insulators provide consistent performance in outdoor environments, resisting degradation from UV exposure and environmental pollutants.
Transformer Components and Supports
In power transformers, G11 sheet is utilized for various insulating components and structural supports. It serves as an excellent material for spacers, barriers, and end insulation in transformer windings. The material's combination of electrical insulation properties and mechanical strength allows it to withstand the electromagnetic forces present in transformer operation while maintaining critical clearances between conductors.
Conclusion
G11 sheet has proven to be an invaluable material in high-voltage switchgear and motors, offering a unique combination of electrical, thermal, and mechanical properties. Its superior dielectric strength, thermal stability, and low moisture absorption make it ideally suited for the demanding environments found in these applications. As the power industry continues to evolve, with increasing voltage levels and more compact designs, the role of G11 sheet in ensuring reliable and efficient operation of electrical systems becomes ever more critical. Its versatility and performance characteristics position G11 sheet as a key enabler in the advancement of high-voltage electrical technology.
FAQs
What makes G11 sheet different from other insulating materials?
G11 sheet stands out due to its exceptional combination of high dielectric strength, thermal stability, and low moisture absorption. It outperforms many other materials in high-voltage applications.
Can G11 sheet be used in outdoor electrical equipment?
Yes, G11 sheet's low moisture absorption and resistance to environmental factors make it suitable for outdoor use in electrical equipment.
Is G11 sheet flame-retardant?
G11 sheet typically has good flame-retardant properties, meeting various industry standards for fire safety in electrical applications.
