CE Phenolic Sheet Properties and Electrical Strength Explained

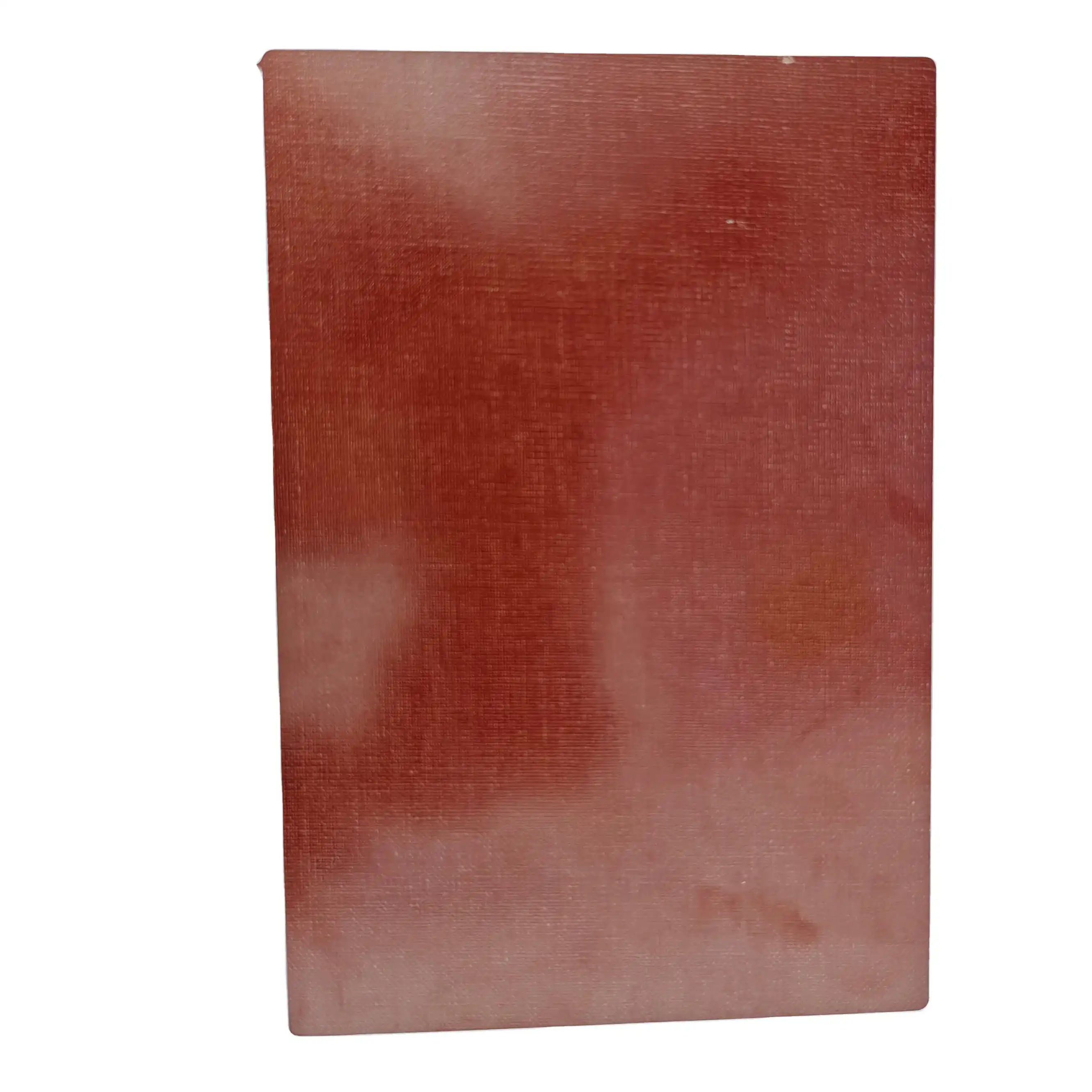

CE phenolic sheet is a high-performance material renowned for its exceptional electrical and mechanical properties. This versatile laminate combines cotton fabric with phenolic resin, resulting in a robust composite that excels in electrical insulation and structural applications. CE grade phenolic offers superior dielectric strength, thermal resistance, and dimensional stability, making it an ideal choice for demanding industrial environments. Its unique combination of properties, including high compressive strength, low moisture absorption, and excellent machinability, positions CE phenolic sheet as a go-to material for engineers and manufacturers across various sectors.

What Are the Key Properties of CE Phenolic Sheet?

Mechanical Strength and Durability

CE phenolic sheet demonstrates exceptional mechanical strength, making it a reliable choice for demanding industrial applications. With a compressive strength of 10,000 psi (68 MPa) and tensile strength of 36,000 psi, it withstands significant loads without permanent deformation. Its Rockwell M-scale hardness of 100 ensures superior wear resistance, while a flexural strength of 17,000 psi (117 MPa) allows it to resist bending under stress. These properties combine to provide long-lasting durability, ensuring components maintain structural integrity under mechanical strain in harsh operating environments.

Electrical Insulation Capabilities

A key advantage of CE phenolic sheet is its outstanding electrical insulation performance. The material's high dielectric strength allows it to resist electrical breakdown under high-voltage stress, making it suitable for switchgear, transformers, and other critical electrical applications. Additionally, its low moisture absorption rate of 2.00% over 24 hours enhances insulation reliability in humid conditions, minimizing the risk of leakage or short circuits. This combination of electrical stability and moisture resistance ensures consistent performance in both standard and challenging environments.

Thermal and Chemical Resistance

CE phenolic sheet offers excellent thermal stability, with a maximum operating temperature of 125°C (257°F), enabling reliable use in elevated temperature applications. Its flammability rating of 94HB further enhances safety in environments prone to heat exposure. The material also exhibits robust chemical resistance, protecting it from degradation by solvents, oils, and other harsh substances. These thermal and chemical resilience properties make CE phenolic sheet highly versatile, suitable for industrial, electrical, and mechanical applications where heat, fire, and chemical exposure are key considerations.

Dielectric Strength and Thermal Performance Analysis

Understanding Dielectric Strength

The dielectric strength of CE phenolic sheet is a critical factor in its performance as an electrical insulator. This property measures the maximum electric field the material can withstand without breaking down and allowing current to flow. CE grade phenolic typically exhibits a dielectric strength in the range of 300-500 volts per mil, depending on thickness and specific formulation. This high dielectric strength ensures reliable insulation in high-voltage applications, preventing arcing and maintaining electrical system integrity.

Thermal Conductivity and Heat Dissipation

While CE phenolic sheet is primarily valued for its electrical insulation properties, its thermal characteristics also play a crucial role in many applications. The material's relatively low thermal conductivity helps maintain temperature differentials and protect sensitive components from heat. However, this property also means that heat dissipation must be carefully considered in designs involving CE phenolic, particularly in applications where electrical components may generate significant heat.

Temperature-Dependent Electrical Properties

The electrical properties of CE phenolic sheet can vary with temperature, a factor that must be considered in design and application. While the material maintains its insulating capabilities across a wide temperature range, extreme heat or cold can affect its dielectric strength and other electrical characteristics. Engineers must account for these temperature-dependent variations to ensure consistent performance and safety in electrical systems operating under diverse environmental conditions.

Industrial Applications Requiring High Electrical Strength

Electrical and Power Distribution Equipment

CE phenolic sheet finds extensive use in the manufacture of electrical switchgear, circuit breakers, and transformer components. Its high dielectric strength and dimensional stability make it an excellent choice for insulating barriers, arc chutes, and terminal boards in power distribution systems. The material's ability to maintain its electrical properties under varying environmental conditions ensures reliable performance in both indoor and outdoor electrical installations.

Aerospace and Defense Technologies

The aerospace and defense industries leverage CE phenolic sheet's combination of electrical insulation and mechanical strength in various applications. From aircraft electrical systems to radar components, the material's low weight, high strength-to-weight ratio, and excellent electrical properties make it invaluable. CE phenolic sheet's compliance with military specifications, such as MIL-I-24768/16, further cements its position in these demanding sectors.

Industrial Machinery and Equipment

In industrial machinery, CE phenolic sheet serves multiple purposes where electrical insulation and mechanical durability are paramount. It is commonly used in the fabrication of gears, bearings, and wear pads for equipment operating in electrically sensitive environments. The material's resistance to chemicals and moisture also makes it suitable for use in processing equipment handling corrosive substances or operating in high-humidity conditions.

Conclusion

CE phenolic sheet stands out as a versatile and reliable material for applications demanding high electrical strength and robust mechanical properties. Its exceptional dielectric strength, coupled with thermal stability and chemical resistance, makes it an invaluable asset in electrical, aerospace, and industrial sectors. As engineers and manufacturers continue to push the boundaries of electrical and mechanical systems, CE phenolic sheet remains a cornerstone material, offering a unique blend of properties that address complex design challenges and ensure long-term performance and safety in critical applications.

FAQs

What makes CE phenolic sheet suitable for electrical applications?

CE phenolic sheet excels in electrical applications due to its high dielectric strength, low moisture absorption, and excellent dimensional stability. These properties ensure reliable insulation and performance in various electrical environments.

Can CE phenolic sheet withstand high temperatures?

Yes, CE phenolic sheet has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature environments.

Is CE phenolic sheet easy to machine?

CE phenolic sheet offers good machinability, allowing for easy cutting, drilling, and shaping with standard tools, which simplifies the manufacturing process.
