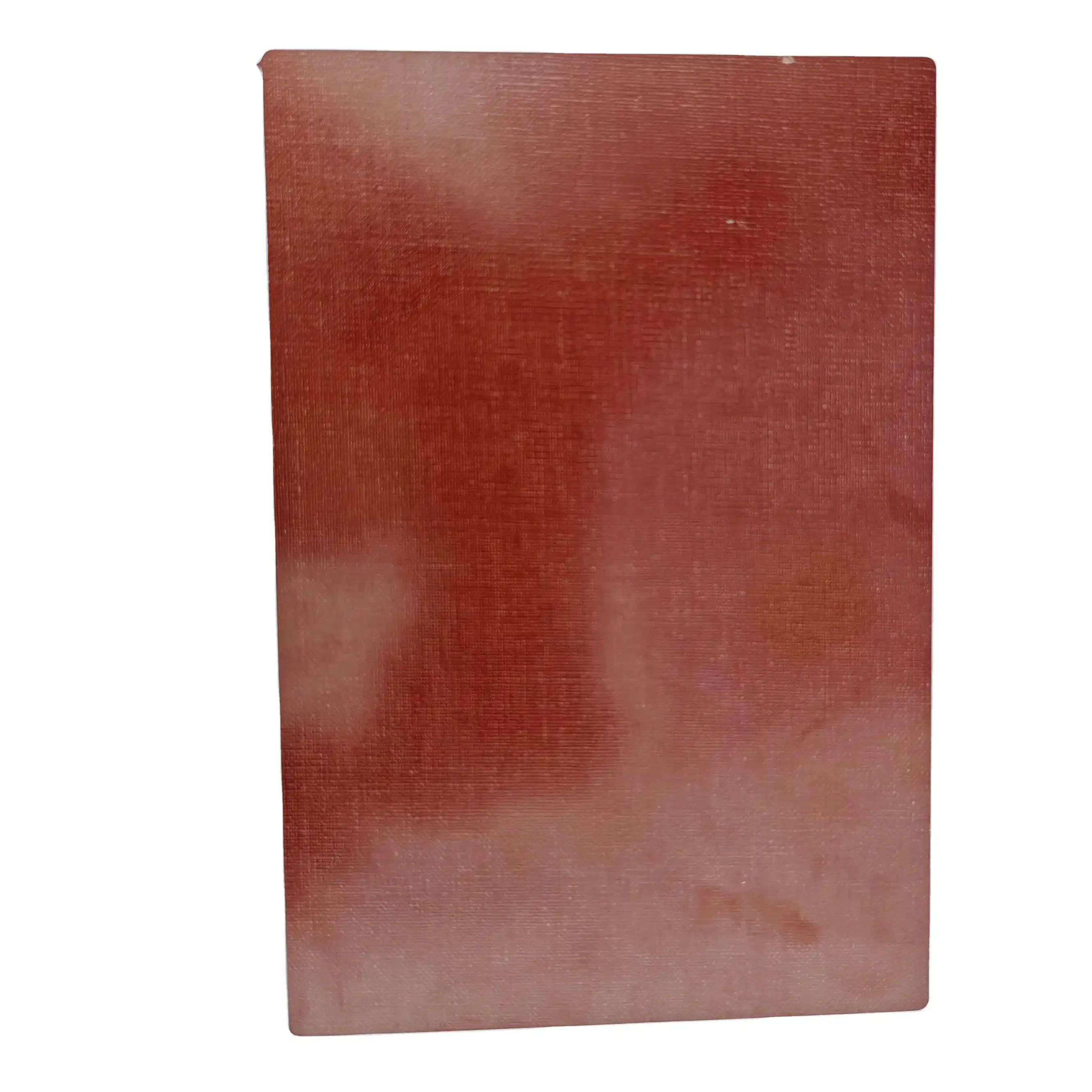

Why CE Phenolic Sheets Are Ideal for Electrical Insulation?

CE phenolic sheets have emerged as the premier choice for electrical insulation applications due to their exceptional dielectric properties and robust thermal resistance. These composite materials combine phenolic resin with reinforcing layers to deliver outstanding electrical performance while maintaining mechanical strength under demanding conditions. Their unique molecular structure provides excellent arc resistance and flame retardancy, making them indispensable in high-voltage equipment and power distribution systems. The material's low moisture absorption prevents conductivity degradation over time, ensuring consistent insulation performance across varied environmental conditions. Engineering professionals increasingly specify CE phenolic sheet solutions for critical electrical applications where reliability cannot be compromised, from transformer components to switchgear installations.

Superior Electrical Properties of CE Phenolic Materials

The electrical characteristics of CE phenolic sheets surpass conventional insulating materials through engineered molecular structures that optimize dielectric performance. These properties make them essential for modern electrical applications requiring dependable insulation.

Exceptional Dielectric Strength Performance

CE phenolic sheets exhibit remarkable dielectric strength values exceeding 20 kV/mm, significantly outperforming traditional insulating materials like paper or rubber composites. This high breakdown voltage tolerance enables their use in high-voltage applications where electrical stress concentrations occur frequently. The material's uniform density eliminates weak points that could lead to premature electrical failure under sustained voltage loads.

The laminated structure distributes electrical stress evenly throughout the material thickness, preventing localized heating that degrades insulation properties. Advanced manufacturing processes ensure consistent dielectric performance across large sheet dimensions, eliminating variations that compromise system reliability. This uniformity proves crucial in transformer cores and high-voltage bushings where dimensional consistency directly impacts electrical performance.

Outstanding Volume and Surface Resistivity

Volume resistivity measurements for CE phenolic sheets typically exceed 10^12 ohm-cm, providing exceptional resistance to current leakage across material thickness. Surface resistivity values maintain similar performance levels, preventing tracking and flashover phenomena that compromise insulation integrity. These resistivity characteristics remain stable across wide temperature ranges, unlike thermoplastic alternatives that degrade rapidly under thermal stress.

The material's low ionic content minimizes conductivity pathways that develop in conventional insulating materials over time. Chemical cross-linking during manufacturing creates a three-dimensional network that resists moisture penetration and ion migration. This molecular structure maintains electrical isolation even when exposed to contaminated environments or aggressive chemical atmospheres.

Arc Resistance and Tracking Performance

CE phenolic sheets demonstrate superior arc resistance properties, withstanding electrical arcing for extended periods without carbonization or material degradation. The phenolic matrix decomposes into non-conductive char layers that self-extinguish arcing phenomena, preventing catastrophic failure propagation. This characteristic proves invaluable in switchgear applications where arcing events occur during normal operation cycles.

Tracking resistance measurements exceed industry standards for outdoor electrical equipment, maintaining surface integrity despite contamination exposure. The material's hydrophobic surface characteristics shed moisture effectively, preventing the conductive water films that enable tracking formation on conventional insulators. Ultraviolet radiation resistance preserves these surface properties throughout extended outdoor service life.

Thermal and Mechanical Advantages for Electrical Applications

The thermal-mechanical properties of CE phenolic sheets provide essential support for electrical insulation performance while ensuring structural integrity under operating conditions. These characteristics enable reliable long-term performance in demanding electrical environments.

Exceptional Thermal Stability Characteristics

CE phenolic sheets maintain electrical properties across temperature ranges from -40°C to +150°C, accommodating the thermal cycling experienced in electrical equipment operation. The material's glass transition temperature exceeds normal operating conditions by significant margins, preventing softening that compromises insulation geometry. Thermal conductivity values remain low enough to prevent heat transfer that could affect adjacent electrical components.

Coefficient of thermal expansion matches common electrical metals like copper and aluminum, minimizing thermal stress at material interfaces during temperature cycling. This compatibility prevents crack formation and delamination that create electrical failure pathways. The material's thermal mass provides beneficial thermal buffering in applications where rapid temperature changes occur during switching operations.

Superior Mechanical Strength Properties

Flexural strength measurements for CE phenolic sheets typically exceed 150 MPa, providing structural support for electrical components while maintaining insulation function. Compressive strength values enable the material to support mechanical loads without deformation that compromises electrical clearances. Impact resistance characteristics prevent brittle failure during installation or service conditions.

The reinforced laminate structure distributes mechanical stress across multiple layers, preventing localized failure that propagates through the insulation system. Fatigue resistance enables repeated mechanical loading without degradation, important in applications where vibration or thermal cycling creates mechanical stress. Machinability characteristics allow precise fabrication of complex shapes required for specialized electrical applications.

Long-term Dimensional Stability

Moisture absorption rates below 1% by weight prevent dimensional changes that affect electrical clearances and mechanical fit tolerances. Chemical resistance to oils, solvents, and cleaning compounds maintains material integrity throughout service life without dimensional drift. UV resistance prevents polymer degradation that leads to embrittlement and dimensional instability in outdoor applications.

Aging studies demonstrate stable dimensional characteristics over decades of service life under normal electrical operating conditions. Creep resistance prevents gradual deformation under sustained mechanical loads that could compromise electrical spacing requirements. These stability characteristics eliminate the maintenance requirements associated with materials that dimensionally degrade over time.

Practical Applications and Manufacturing Benefits

CE phenolic sheets offer distinct advantages in manufacturing processes and end-use applications that make them the preferred choice for electrical insulation systems. Their versatility and processability enable cost-effective solutions across diverse electrical applications.

Versatile Application Range

Power transformer applications utilize CE phenolic sheets for core insulation, barrier plates, and structural supports where combined electrical and mechanical performance requirements exist. The material's compatibility with transformer oils and cooling fluids ensures long-term stability without chemical degradation. High-voltage switchgear components rely on CE phenolic sheets for arc barriers, operating mechanism insulation, and structural partitions.

Motor and generator applications employ these materials for slot liners, end turn insulation, and commutator segments where thermal cycling and mechanical stress occur simultaneously. Railway and automotive electrical systems specify CE phenolic sheets for traction motor insulation and power distribution components exposed to vibration and temperature extremes. Marine electrical applications benefit from the material's moisture resistance and dimensional stability in humid environments.

Manufacturing Process Advantages

Precision machining capabilities enable complex shapes and tight tolerances required for specialized electrical components without specialized tooling or extensive secondary operations. Standard woodworking and metalworking tools effectively process CE phenolic sheets, reducing manufacturing costs compared to exotic insulating materials requiring specialized equipment. Drilling, routing, and cutting operations produce clean edges without delamination or chipping that compromises electrical performance.

Thermoforming processes allow shaped components for curved insulation applications while maintaining electrical properties throughout formed sections. Adhesive bonding creates large assemblies from standard sheet sizes, enabling cost-effective production of oversized insulation systems. Surface treatments and coatings adhere readily to CE phenolic substrates, allowing customized electrical and environmental protection characteristics.

Cost-effectiveness and Availability

Raw material costs for CE phenolic sheets remain competitive with alternative insulating materials while providing superior performance characteristics that reduce overall system costs. Standardized sheet dimensions and thicknesses enable inventory efficiency and reduced lead times compared to custom-manufactured insulating materials. Volume pricing advantages make CE phenolic sheets economical for both prototype development and production applications.

Shipping characteristics allow efficient transportation without special handling requirements, reducing logistics costs compared to fragile insulating materials requiring protective packaging. Shelf life stability eliminates inventory loss due to aging, unlike some insulating materials with limited storage life. Global availability through established supply chains ensures consistent material sources for international electrical equipment manufacturers.

Conclusion

CE phenolic sheets represent the optimal solution for electrical insulation applications demanding superior performance, reliability, and cost-effectiveness. Their exceptional electrical properties, combined with outstanding thermal-mechanical characteristics, provide unmatched value in modern electrical systems. The material's versatility enables diverse applications while manufacturing advantages reduce production costs and complexity. Long-term stability characteristics minimize maintenance requirements and ensure consistent performance throughout extended service life. Engineers seeking dependable insulation solutions find CE phenolic sheets deliver the comprehensive performance profile required for today's demanding electrical applications.
