The Enduring Legacy of Bakelite in Electrical Insulation
A Brief History of Bakelite
Bakelite, invented by Belgian-American chemist Leo Baekeland in 1907, marked a turning point in material science and industrial manufacturing. As the first fully synthetic plastic, it quickly became essential to the electrical industry due to its non-conductive and heat-resistant nature. Its adoption in early radio casings, telephone housings, and electrical insulators demonstrated its practical value and set the stage for the development of modern polymer materials. Bakelite's legacy endures as a pioneering innovation that shaped the course of 20th-century electrical engineering.
Chemical Composition and Properties

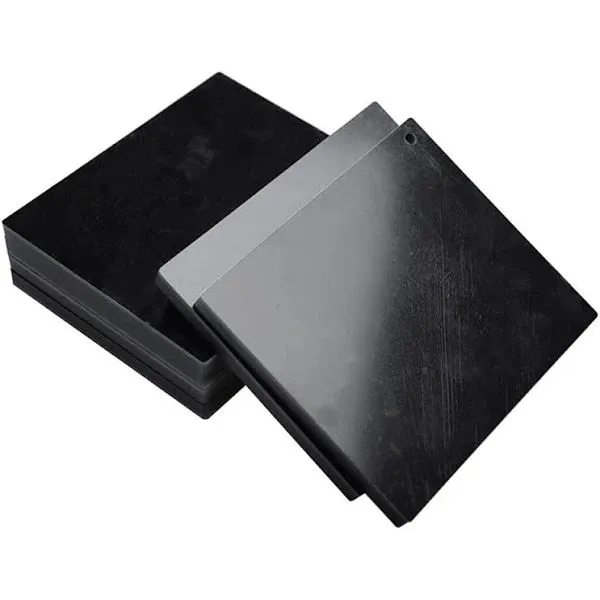

Bakelite board is composed of phenol and formaldehyde, which undergo a condensation reaction to form a dense, three-dimensional cross-linked polymer network. This thermosetting resin structure prevents it from melting or deforming under heat, making it extremely stable in high-temperature environments. Its inherent rigidity, low conductivity, and chemical inertness give it outstanding insulating capabilities. These characteristics enable Bakelite to perform reliably in demanding applications, such as circuit breakers, switchboards, and transformer parts, where both thermal endurance and electrical insulation are critical.
Advantages Over Traditional Materials
Before Bakelite, materials like wood, rubber, and mica were commonly used for electrical insulation but had limitations in durability, moisture resistance, and thermal tolerance. Bakelite overcame these drawbacks with its robust mechanical strength, flame resistance, and non-conductivity. Unlike rubber, it does not degrade over time, and unlike wood, it resists warping and combustion. Additionally, its ease of molding into complex shapes made mass production of electrical components more efficient. These advantages made Bakelite a preferred choice and a standard-setting material in early and mid-century electrical manufacturing.
Applications and Uses of Bakelite Sheets in Modern Electrical Systems
Switchgear and Circuit Breakers
Bakelite sheets are fundamental to the safe operation of switchgear and circuit breakers in modern power distribution networks. Their excellent dielectric strength allows them to withstand high voltages, while their arc resistance prevents electrical discharges that could lead to equipment failure or fire hazards. Bakelite boards are commonly used as internal partitions and insulating barriers between conductive components. This ensures electrical isolation and mechanical stability, significantly enhancing the safety, reliability, and longevity of equipment operating under load-switching and fault-current conditions.
Transformer Insulation
In transformer manufacturing, Bakelite sheets provide reliable insulation between primary and secondary windings, as well as between windings and the iron core. Their ability to resist thermal degradation ensures they maintain structural integrity and insulating performance under continuous high-temperature conditions. Additionally, Bakelite’s dimensional stability and resistance to moisture make it an ideal material for use in both dry-type and oil-immersed transformers. Its use contributes to improved dielectric performance and helps prevent short circuits or partial discharges within the transformer assembly.
Electrical Panel Boards
Bakelite sheets are widely applied in the fabrication of electrical panel boards due to their strength, versatility, and excellent insulating capabilities. Their high machinability enables precision cutting, slotting, and drilling, allowing engineers to create custom layouts for mounting breakers, switches, relays, and wiring. The material's high surface resistivity minimizes the risk of current leakage and surface tracking, promoting safe operation in both residential and industrial control systems. Moreover, Bakelite’s fire-retardant nature adds an extra layer of safety in high-voltage environments.
The Future of Bakelite in Electrical Insulation
Innovations in Bakelite Formulations
Although the core chemistry of Bakelite board has remained consistent since its invention, modern innovations have significantly expanded its performance capabilities. Today’s Bakelite sheets are engineered with advanced additives, such as flame retardants, anti-static agents, and fiber reinforcements, to enhance their fire resistance, thermal stability, and mechanical durability. These enhancements allow Bakelite to meet stricter safety standards and performance requirements in high-voltage and high-temperature environments. As electrical systems grow more demanding, these formulation improvements ensure Bakelite remains a competitive and reliable insulation material.
Sustainability and Environmental Considerations
In an era of heightened environmental awareness, the sustainability of industrial materials is under increasing scrutiny. Although Bakelite is not biodegradable, its exceptional longevity and resistance to degradation contribute to reduced material turnover and waste. Researchers and manufacturers are working toward greener production processes, such as developing phenol resins derived from renewable bio-based sources. These efforts aim to decrease the environmental footprint of Bakelite without compromising its core performance characteristics, supporting its continued relevance in sustainable electrical and industrial applications.
Integration with Smart Grid Technologies
The rapid evolution of smart grid infrastructure has created new demand for insulation materials that can withstand fluctuating electrical loads, extreme weather, and high data communication requirements. Bakelite sheets, known for their thermal and electrical reliability, are being considered for use in smart meters, communication relays, and automated distribution modules. Their ability to deliver long-term stability and mechanical strength in compact, high-performance devices makes them well-suited for next-generation smart grid components. This integration positions Bakelite as a key player in future-proofing modern energy networks.
Conclusion
Bakelite sheets have maintained their status as a trusted choice in electrical insulation due to their unparalleled combination of properties. Their excellent heat resistance, superior electrical insulation, and remarkable durability continue to make them indispensable in modern electrical systems. As the electrical industry evolves, Bakelite adapts through innovations in formulation and manufacturing processes. Its enduring legacy, coupled with ongoing advancements, ensures that Bakelite sheets will remain a reliable and versatile solution for electrical insulation needs well into the future.
