Understanding G10 and FR4 Materials
Composition and Manufacturing Process
G10 and FR4 sheets are composite materials primarily composed of woven glass fiber reinforcement embedded within an epoxy resin matrix. The manufacturing process starts by layering multiple sheets of glass cloth, which are then thoroughly saturated with epoxy resin to ensure full impregnation. This layered assembly is subjected to controlled heat and pressure, causing the resin to cure and harden into a dense, durable laminate. The key difference is that FR4 includes specific flame-retardant additives, enhancing its fire resistance, while G10 lacks these modifications. This process results in materials with consistent thickness, strength, and electrical insulation properties, suitable for demanding electronic applications.
Key Properties of G10 and FR4 Sheets
Both G10 sheet and FR4 sheets exhibit a strong combination of properties that make them highly valued in the electronics and electrical industries. They provide excellent electrical insulation, which prevents current leakage and protects components. Their mechanical strength allows them to withstand physical stresses during manufacturing and operation. Low moisture absorption ensures stable performance in humid or variable environmental conditions, and dimensional stability guarantees minimal warping or shrinkage with temperature fluctuations. Notably, FR4 stands out for its enhanced flame retardancy, making it safer in environments where fire hazards are a concern, a critical feature for many commercial and industrial electronic products.
Differences Between G10 and FR4
While G10 and FR4 share many base characteristics, their differences cater to specific application needs. FR4 contains flame-retardant additives that make it compliant with stringent UL94 V-0 safety standards, allowing it to resist ignition and reduce flame propagation effectively. This added fire safety comes at a minor compromise in some mechanical properties, such as slightly lower flexural strength compared to G10. Conversely, G10 may offer superior mechanical robustness and electrical performance in certain contexts where flame resistance is less critical. Understanding these trade-offs allows engineers to select the ideal material based on the priorities of safety, strength, and performance.
Applications of G10 and FR4 in Electronics
Printed Circuit Boards (PCBs)
FR4 sheets are predominantly used in the fabrication of printed circuit boards, which are essential in virtually all electronic devices. Their exceptional dielectric strength ensures reliable electrical insulation between conductive layers, while their thermal stability allows PCBs to endure soldering and operational heat. The flame-retardant nature of FR4 enhances safety in consumer and industrial electronics. This combination of properties has enabled the development of complex multilayer PCBs essential for high-performance computing, mobile devices, and communication technologies, supporting ever-increasing circuit density and miniaturization.
Electrical Insulation Components
G10 and FR4 sheets are widely employed as electrical insulation materials in many industrial and commercial applications. They serve as critical barriers in transformers, motors, and generators, preventing short circuits and electrical failures. Due to their excellent mechanical strength and thermal resistance, these materials maintain their shape and insulating capabilities even in harsh operating environments. Furthermore, their ease of machining allows manufacturers to produce custom insulation shapes that fit unique designs, meeting precise functional requirements across various electrical systems.
Structural Components in Electronics

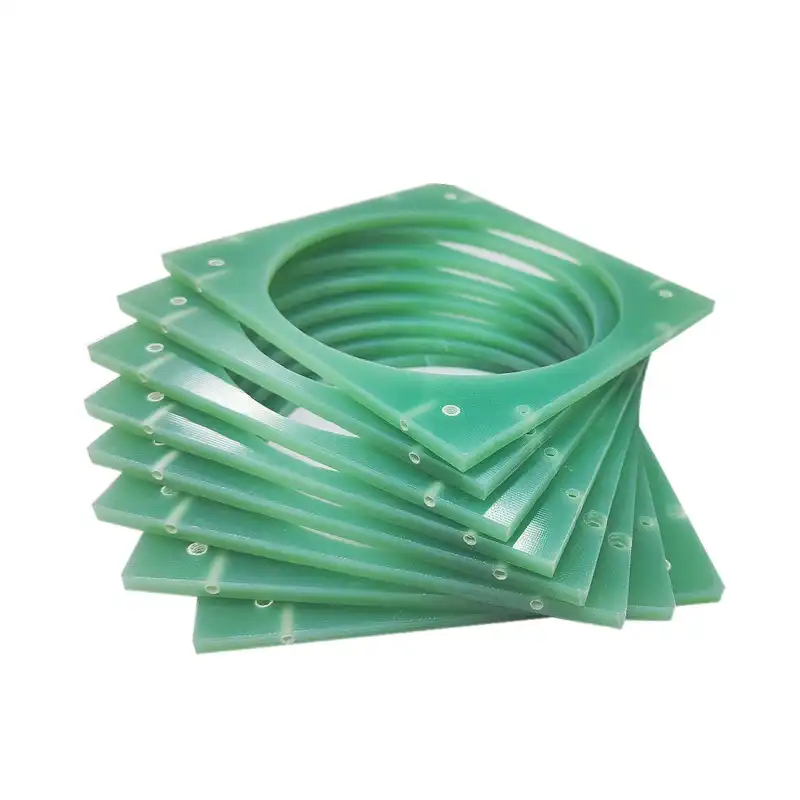

The robust mechanical properties of G10 and FR4 make them ideal for structural use within electronic assemblies. These materials are frequently utilized to fabricate chassis, mounting brackets, and spacers, providing essential support while minimizing weight. Their dimensional stability ensures that components remain securely positioned, even under thermal cycling and mechanical stress. Additionally, the high heat resistance of these composites allows them to maintain integrity in environments subject to elevated temperatures, making them indispensable in advanced electronic equipment requiring durable and reliable insulation combined with mechanical support.
Advanced Uses and Emerging Trends
High-Frequency Applications
With the rapid advancement of communication technologies, electronic devices increasingly operate at higher frequencies, necessitating materials like G10 sheet and modified FR4 sheets that maintain stable electrical properties across these ranges. Modified FR4 sheets with precisely controlled dielectric constants and minimal loss tangents are engineered to meet these demands. These specialized laminates enable reliable signal transmission and reduced interference, making them essential for emerging technologies such as 5G networks, millimeter-wave applications, and next-generation wireless communication systems, where performance at microwave frequencies is critical for efficiency and speed.
Thermal Management Solutions
Effective thermal management remains a key challenge as electronic devices become smaller and more powerful. To address this, thermally enhanced versions of G10 and FR4 sheets have been developed by incorporating thermally conductive fillers or optimizing resin formulations. These advanced composites improve heat dissipation capabilities while maintaining excellent electrical insulation. They are increasingly used in applications like LED lighting modules, power electronics, electric vehicles, and automotive electronics, where managing heat is vital to device longevity, performance, and safety in demanding operational environments.
Sustainable and Eco-Friendly Alternatives
In response to growing environmental concerns, the electronics industry is actively pursuing greener alternatives to conventional G10 and FR4 materials. Research efforts focus on developing bio-based epoxy resins derived from renewable resources and halogen-free flame retardants to minimize toxic emissions. These eco-friendly laminates aim to reduce electronic waste’s environmental footprint without sacrificing critical performance characteristics such as mechanical strength, flame resistance, and electrical insulation. The shift towards sustainable materials reflects the industry’s commitment to environmental responsibility and long-term ecological impact reduction.
Conclusion
G10 and FR4 sheets have proven to be cornerstone materials in the electronics industry, offering a unique blend of electrical, mechanical, and thermal properties. Their versatility and reliability have enabled countless innovations in electronic design and manufacturing. As technology continues to evolve, these materials are adapting to meet new challenges, from high-frequency applications to thermal management and environmental sustainability. The ongoing development and refinement of G10 and FR4 materials underscore their enduring importance in shaping the future of electronics.
