What Are the Key Quality Indicators for G10 Sheets?
Material Composition and Consistency

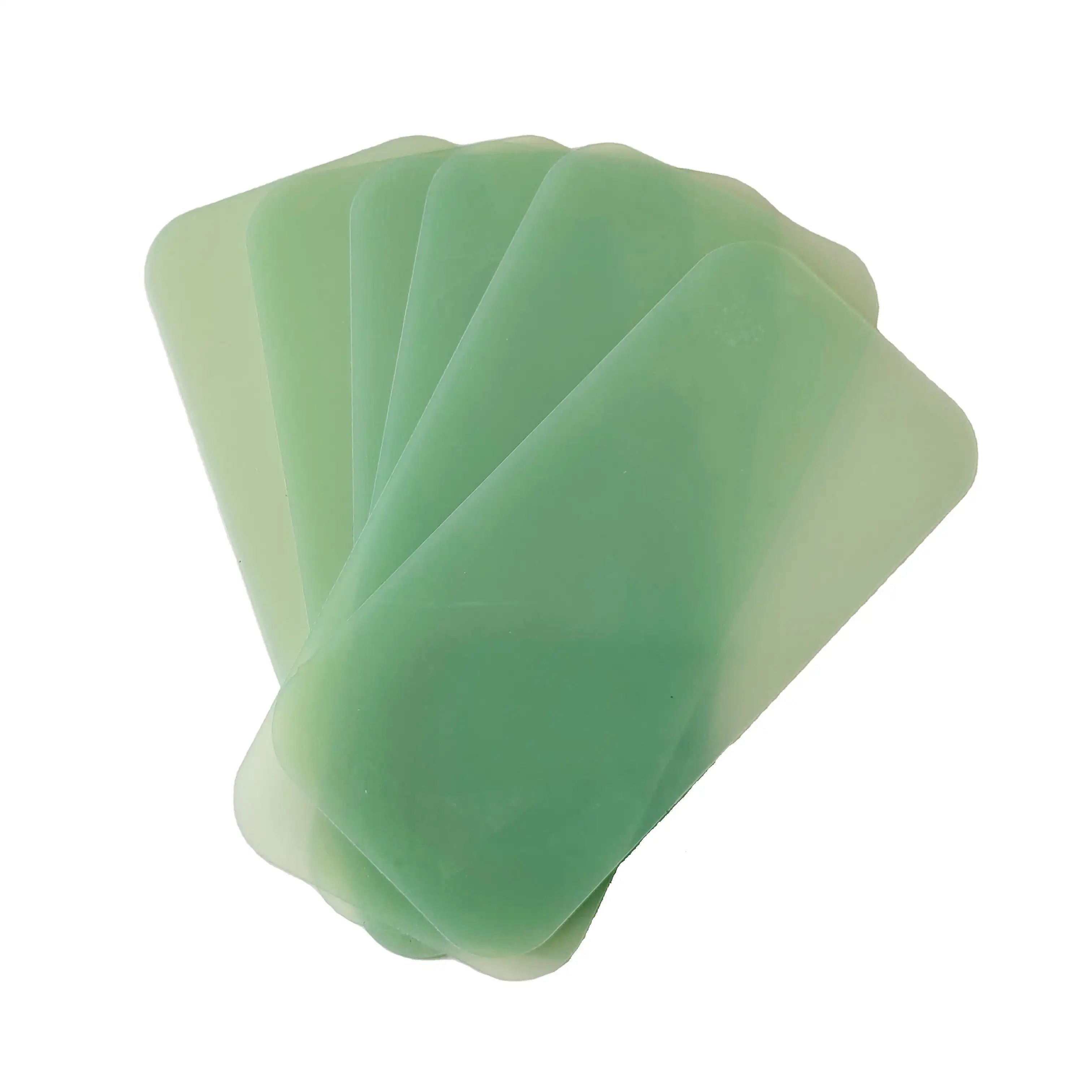

The quality of G10 insulation sheets largely depends on their material composition and consistency. High-grade G10 sheets should exhibit a uniform color throughout, indicating proper resin distribution and curing. The glass fabric reinforcement should be evenly distributed, without visible voids or irregularities. A cross-sectional examination can reveal the consistency of layers and the absence of delamination. Quality G10 sheets also maintain a consistent density across the entire sheet, which can be verified through precise weight measurements.
Surface Finish and Appearance
The surface finish of G10 insulation sheets is a critical quality indicator. Premium sheets should have a smooth, glossy surface free from blemishes, pits, or scratches. The edges should be clean-cut without fraying or delamination. Some manufacturers offer various surface finishes, such as matte or textured, depending on the application requirements. A high-quality surface finish not only enhances the sheet's aesthetic appeal but also contributes to its performance in terms of electrical insulation and moisture resistance.
Mechanical Properties and Durability
G10 insulation sheets are renowned for their exceptional mechanical properties, which serve as key quality indicators. High-quality sheets should exhibit superior flexural strength, tensile strength, and compressive strength. These properties can be verified through standardized testing procedures. The material's impact resistance and hardness are also crucial factors, particularly for applications involving mechanical stress. Durability under various environmental conditions, including resistance to thermal cycling and humidity, further attests to the quality of G10 sheets.
Thickness, Dielectric Strength, and Surface Finish Criteria
Precision in Thickness Tolerances
The thickness of G10 insulation sheets is a critical parameter that demands meticulous attention. High-quality sheets maintain tight thickness tolerances, typically within ±10% of the nominal thickness or better. This precision is crucial for applications requiring exact fit or specific electrical properties. Manufacturers employ advanced manufacturing techniques and quality control measures to ensure consistent thickness across the entire sheet. Sophisticated measurement tools, such as micrometers or thickness gauges, are used to verify thickness uniformity at multiple points.
Dielectric Strength Assessment
Dielectric strength is a fundamental property of G10 insulation sheets, indicating their ability to withstand high voltages without breakdown. Quality G10 sheets typically exhibit dielectric strength values exceeding 500 volts per mil (0.001 inch). This property is evaluated through rigorous testing procedures, where voltage is applied across the material until electrical breakdown occurs. The dielectric strength can vary depending on factors such as thickness, resin content, and environmental conditions. Reputable manufacturers provide detailed dielectric strength data, including breakdown voltage and dielectric withstand voltage, for different thicknesses and grades of their G10 sheets.
Surface Finish Evaluation
The surface finish of G10 insulation sheets plays a crucial role in their performance and application suitability. High-quality sheets offer a range of surface finishes, from glossy to matte, each tailored for specific uses. The surface roughness is quantified using parameters such as Ra (average roughness) or Rz (mean roughness depth). For electrical applications, a smooth surface with low roughness is often preferred to minimize electrical tracking and enhance insulation properties. Conversely, some mechanical applications may benefit from a slightly textured surface for improved adhesion. Advanced surface analysis techniques, including profilometry or atomic force microscopy, can provide detailed characterization of the surface finish.
Verifying Certifications and Supplier Reliability
Industry-Standard Certifications
When sourcing G10 insulation sheets, it's imperative to verify the manufacturer's adherence to industry-standard certifications. Look for certifications such as ISO 9001 for quality management systems, which ensures consistent production processes and quality control measures. For electrical applications, certifications like UL 94 for flammability ratings are crucial. Environmental certifications, such as RoHS compliance, demonstrate the material's eco-friendliness and suitability for use in various industries. Reputable suppliers readily provide documentation of these certifications, often including test reports from accredited third-party laboratories.
Supplier Track Record and Reputation
The reliability of the G10 insulation sheet supplier is as important as the product quality itself. Investigate the supplier's track record in the industry, looking for longevity and consistent performance. Customer reviews and testimonials can provide valuable insights into the supplier's reliability, product quality, and customer service. Industry recognition, such as awards or partnerships with renowned companies, can further attest to a supplier's credibility. Additionally, consider the supplier's technical expertise and their ability to provide comprehensive support, including material selection guidance and customization options.
Quality Control and Traceability
A dependable supplier of G10 insulation sheets implements robust quality control measures throughout their production process. This includes incoming raw material inspection, in-process quality checks, and final product testing. Inquire about the supplier's quality control procedures and ask for documentation of their quality assurance processes. Traceability is another critical aspect – reputable suppliers maintain detailed records of material batches, production dates, and test results. This traceability ensures that in the event of any quality issues, the root cause can be quickly identified and addressed. Some suppliers even offer lot-specific test reports, providing customers with detailed information about the exact batch of material they receive.
Conclusion
Selecting the right G10 insulation sheets requires a comprehensive evaluation of various factors. By focusing on material quality indicators, precise thickness and dielectric strength specifications, and surface finish criteria, you can ensure the sheets meet your application requirements. Equally important is verifying supplier certifications and reliability. Remember, the ideal G10 sheet combines exceptional physical properties with consistent manufacturing quality and reliable supplier support. Armed with this knowledge, you're well-equipped to make an informed decision that balances performance, quality, and value in your G10 insulation sheet purchase.
