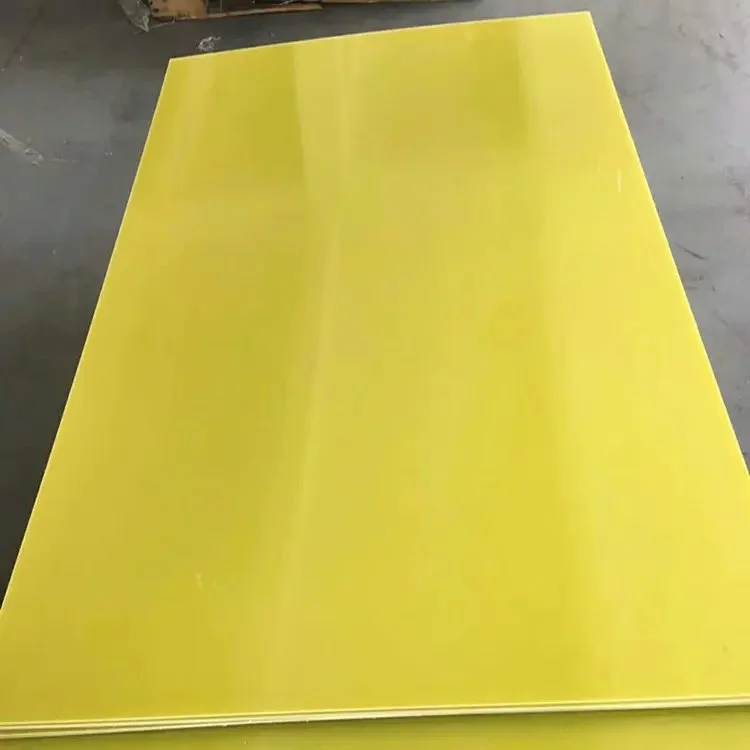

How to Evaluate the Insulation Strength of 3240 Epoxy Boards?

Evaluating the insulation strength of 3240 epoxy boards is crucial for ensuring the reliability and safety of electrical equipment. This process involves a combination of standardized testing methods and analytical techniques. The primary focus is on measuring dielectric strength, volume resistivity, and thermal aging characteristics. Industry-standard tests such as ASTM D149 for dielectric breakdown and ASTM D257 for volume resistivity are commonly employed. Additionally, thermal aging tests assess the board's ability to maintain its insulative properties over time under various temperature conditions. By comparing results to established benchmarks and industry standards, engineers can accurately determine the insulation strength and overall performance of 3240 epoxy boards for specific applications.

Testing Methods for Electrical Insulation

Dielectric Strength Testing

Dielectric strength testing is a fundamental method for evaluating the insulation capabilities of 3240 epoxy boards. This test measures the maximum electric field that the material can withstand without breaking down. The procedure involves applying an increasing voltage across the sample until electrical breakdown occurs. The voltage at which this breakdown happens is recorded as the dielectric strength, typically expressed in volts per unit thickness.

For 3240 epoxy boards, dielectric strength testing is particularly important due to their widespread use in high-voltage applications. The test not only determines the board's ability to resist electrical breakdown but also provides insights into its overall quality and consistency. Variations in dielectric strength can indicate manufacturing defects or material inconsistencies, making this test a valuable quality control tool.

Volume Resistivity Measurement

Volume resistivity is another critical parameter in assessing the insulation strength of 3240 epoxy boards. This property measures the material's ability to resist the flow of electric current through its volume. The test involves applying a known voltage across the sample and measuring the resulting current flow. The higher the volume resistivity, the better the material's insulation properties.

For 3240 epoxy boards, high volume resistivity is essential to prevent current leakage and ensure effective insulation in electrical systems. This measurement is particularly relevant in applications where the board may be exposed to moisture or other conductive contaminants, as it indicates the material's ability to maintain its insulative properties under various environmental conditions.

Surface Resistivity Analysis

While often overlooked, surface resistivity is an important aspect of evaluating 3240 epoxy boards' insulation strength. This property measures the resistance to current flow across the surface of the material. Surface resistivity testing is crucial because it assesses the board's ability to prevent current tracking along its surface, which can lead to electrical failures or short circuits.

In 3240 epoxy boards, a high surface resistivity is desirable to prevent surface current leakage, especially in high-humidity environments or when the board is exposed to contaminants. This test complements volume resistivity measurements, providing a comprehensive understanding of the board's insulative properties both through its bulk and along its surface.

Advanced Evaluation Techniques

Dielectric Breakdown Analysis

Dielectric breakdown analysis goes beyond simple strength testing to provide a deeper understanding of 3240 epoxy boards' insulation capabilities. This technique involves not just determining the point of breakdown but also analyzing the nature and characteristics of the breakdown event. Advanced imaging and spectroscopic methods can be employed to examine the breakdown path and identify any material weaknesses or defects that may have contributed to the failure.

For 3240 epoxy boards, this detailed analysis is invaluable in optimizing material composition and manufacturing processes. By understanding the mechanisms of dielectric breakdown, manufacturers can enhance the boards' insulation strength and reliability, particularly for applications in extreme electrical environments.

Volume Resistivity Under Stress

Evaluating volume resistivity under various stresses is a sophisticated approach to assessing 3240 epoxy boards' insulation strength. This method involves measuring resistivity while subjecting the material to different environmental conditions such as elevated temperatures, high humidity, or mechanical stress. The goal is to simulate real-world operating conditions and assess how the board's insulative properties change under these stresses.

This type of testing is particularly relevant for 3240 epoxy boards used in demanding applications. It helps predict the long-term performance and reliability of the boards in diverse operational environments, ensuring that they maintain their insulation strength under the most challenging conditions they may face in practical use.

Thermal Aging Assessment

Thermal aging assessment is a critical component in evaluating the long-term insulation strength of 3240 epoxy boards. This technique involves exposing the material to elevated temperatures for extended periods and then measuring its electrical properties. The process simulates the effects of prolonged use in high-temperature environments, which can gradually degrade insulation performance.

For 3240 epoxy boards, thermal aging tests are essential in predicting their lifespan and performance in applications where they may be subjected to continuous high temperatures. These assessments help in determining the board's ability to maintain its insulative properties over time, ensuring reliable long-term performance in electrical systems.

Industry Standards and Comparative Analysis

Adherence to International Standards

Evaluating 3240 epoxy boards against international standards is crucial for ensuring their quality and reliability. Organizations such as the International Electrotechnical Commission (IEC) and the American Society for Testing and Materials (ASTM) provide comprehensive guidelines for testing insulation materials. These standards cover various aspects, including test methodologies, sample preparation, and result interpretation.

For 3240 epoxy boards, compliance with these standards not only validates their insulation strength but also facilitates global acceptance and interoperability. Manufacturers and users can rely on these standardized tests to ensure consistent quality and performance across different batches and suppliers of 3240 epoxy boards.

Benchmark Comparison

Benchmark comparison involves evaluating the insulation strength of 3240 epoxy boards against established industry benchmarks. This process includes comparing test results with those of similar materials or previous versions of the same product. Such comparisons provide valuable context for interpreting test results and assessing the relative performance of 3240 epoxy boards.

This comparative analysis is particularly useful for manufacturers and end-users in understanding how 3240 epoxy boards stack up against alternatives or previous iterations. It aids in decision-making processes, helping to determine if a particular board meets or exceeds the required insulation strength for specific applications.

Application-Specific Testing

Application-specific testing tailors the evaluation of 3240 epoxy boards' insulation strength to their intended use. This approach recognizes that different applications may have unique requirements or stress factors that standard tests might not fully address. For instance, boards intended for use in aerospace applications might undergo additional tests for resistance to vibration or extreme temperature cycling.

For 3240 epoxy boards, this customized testing ensures that their insulation strength is adequate for the specific demands of their intended application. It provides a more accurate assessment of how the boards will perform in real-world conditions, offering greater confidence in their suitability and reliability for specialized uses.

Conclusion

Evaluating the insulation strength of 3240 epoxy boards is a multifaceted process that combines standardized testing, advanced analytical techniques, and application-specific assessments. By thoroughly examining dielectric strength, volume and surface resistivity, thermal aging characteristics, and adherence to industry standards, manufacturers and users can ensure the reliability and performance of these crucial components in electrical systems. This comprehensive approach to evaluation not only guarantees the quality of 3240 epoxy boards but also drives continuous improvement in their design and production, ultimately enhancing the safety and efficiency of electrical equipment across various industries.
