Understanding FR4 Epoxy Sheet in Power Electronics
Composition and Properties of FR4

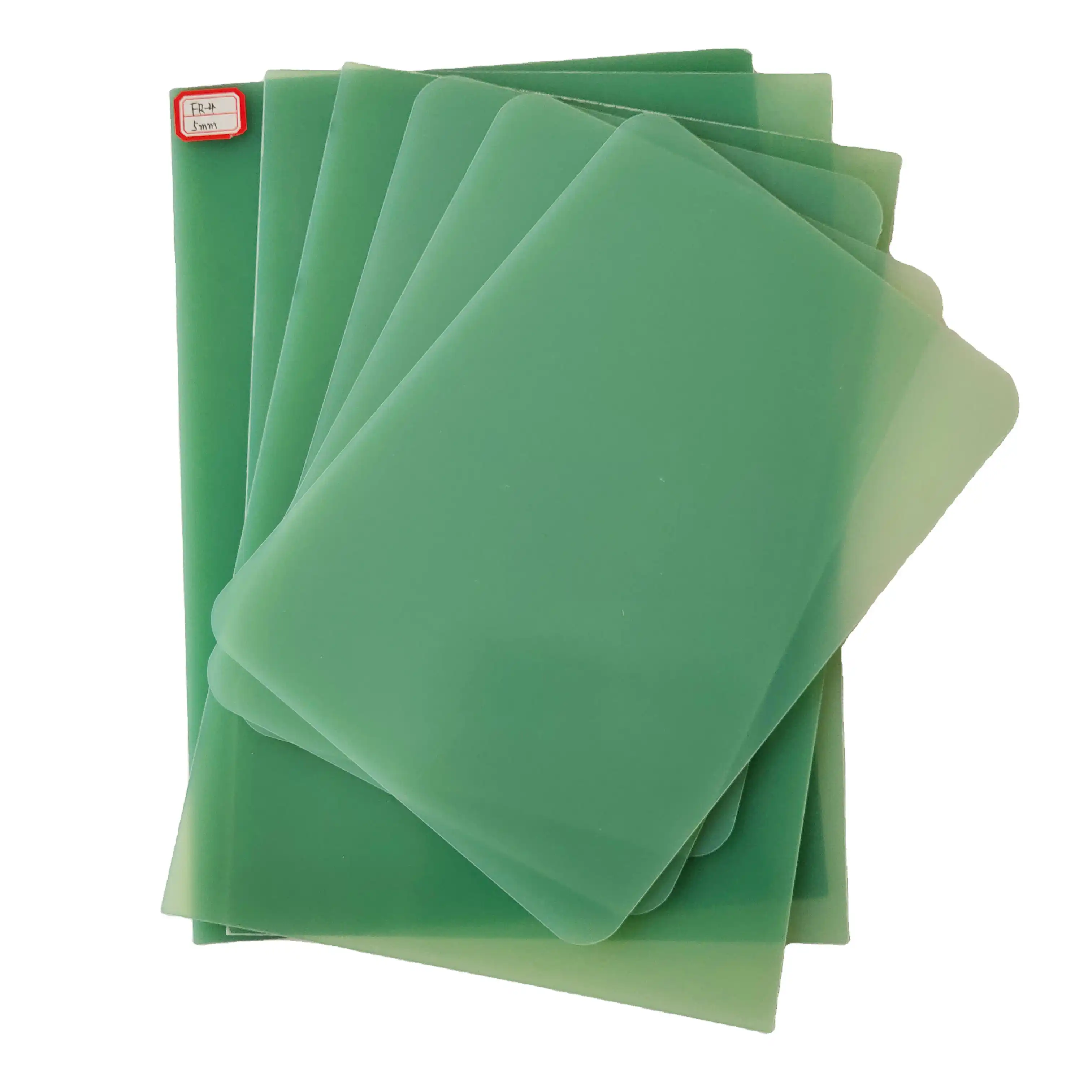

FR4 epoxy sheet is a composite material widely used in power electronics due to its exceptional electrical and mechanical properties. It consists of woven fiberglass cloth impregnated with an epoxy resin system. This unique composition results in a material that exhibits high strength, low moisture absorption, and excellent electrical insulation characteristics.
The "FR" in FR4 stands for "Flame Retardant," indicating its ability to self-extinguish when exposed to fire. This property is crucial in power electronics applications where safety is paramount. The epoxy resin used in FR4 sheets is typically a diglycidyl ether of bisphenol-A (DGEBA) type, which provides excellent adhesion to copper foils and contributes to the material's overall durability.
FR4 epoxy sheets boast a high glass transition temperature (Tg), typically ranging from 130°C to 180°C, depending on the specific formulation. This high Tg allows FR4 to maintain its mechanical and electrical properties even at elevated temperatures, making it suitable for use in power electronics where heat generation is a significant concern.
Importance of Thickness in FR4 Applications
The thickness of FR4 epoxy sheet plays a crucial role in determining its performance in power electronics applications. It directly affects several key parameters, including:
- Dielectric strength: Thicker FR4 sheets generally offer higher dielectric strength, allowing them to withstand higher voltages without breakdown.
- Thermal management: Thicker FR4 can provide better heat dissipation, which is essential in high-power applications.
- Mechanical strength: Increased thickness contributes to greater rigidity and structural integrity of the PCB.
- Signal integrity: In high-frequency applications, the thickness can affect signal propagation and impedance control.
Choosing the appropriate thickness of FR4 epoxy sheet is a critical design consideration that balances electrical performance, thermal management, and mechanical requirements.
Standard Thicknesses Available in the Market
FR4 epoxy sheets are available in a range of standard thicknesses to cater to diverse application needs. The most common thicknesses include:
- 0.4mm (1/64 inch)
- 0.8mm (1/32 inch)
- 1.0mm
- 1.2mm
- 1.6mm (1/16 inch)
- 2.0mm
- 2.4mm (3/32 inch)
- 3.2mm (1/8 inch)
While these are standard options, custom thicknesses can often be manufactured to meet specific project requirements. The availability of various thicknesses allows engineers to optimize their designs for performance, cost, and manufacturability.
Factors Influencing FR4 Thickness Selection in Power Electronics
Voltage Requirements and Insulation Needs
One of the primary considerations in selecting the appropriate thickness of FR4 epoxy sheet for power electronics is the voltage requirement of the application. Higher voltages necessitate thicker FR4 layers to provide adequate insulation and prevent electrical breakdown.
The dielectric strength of FR4 typically ranges from 20 to 30 kV/mm. However, it's crucial to apply a safety factor when designing for high-voltage applications. For instance, a 1.6mm thick FR4 sheet might be suitable for applications up to 1000V, while a 3.2mm sheet could be used for voltages up to 2000V or higher, depending on other design factors and safety margins.
In multi-layer PCB designs for power electronics, the thickness of individual FR4 layers also affects the overall insulation between different voltage planes. Thicker FR4 layers between copper planes can provide better isolation and reduce the risk of voltage breakdown between layers.
Thermal Management Considerations
Heat dissipation is a critical aspect of power electronics design, and the thickness of FR4 epoxy sheet plays a significant role in thermal management. While FR4 is not an excellent thermal conductor (its thermal conductivity is typically around 0.3 W/mK), thicker FR4 layers can still contribute to better heat distribution and dissipation.
In high-power applications, thicker FR4 sheets can provide a larger thermal mass, which helps in absorbing and distributing heat more effectively. This can be particularly beneficial in applications with intermittent high-power loads, where the FR4 can act as a temporary heat sink.
However, it's important to note that relying solely on FR4 for heat management is often insufficient in high-power designs. Additional thermal management strategies, such as the use of thermal vias, copper planes, and external heat sinks, are typically employed in conjunction with appropriate FR4 thickness selection.
Mechanical Strength and Reliability
The mechanical properties of FR4 epoxy sheet are crucial in ensuring the reliability and durability of power electronics assemblies. Thicker FR4 sheets generally provide better mechanical strength, which is essential in applications subject to vibration, thermal cycling, or mechanical stress.
In power electronics, where components can be relatively heavy (e.g., large capacitors, inductors, or transformers), a thicker FR4 substrate can provide better support and reduce the risk of board flexing or component stress. This is particularly important in applications such as automotive or industrial power systems, where harsh environmental conditions are common.
The flexural strength of FR4 increases with thickness, improving the overall rigidity of the PCB. This can be crucial in preventing issues such as solder joint fatigue, component cracking, or trace breakage under thermal or mechanical stress.
Optimal FR4 Thicknesses for Different Power Electronics Applications
Low-Power Electronics (< 100W)
In low-power electronics applications, such as small consumer devices or IoT gadgets, thinner FR4 epoxy sheets are often sufficient. These applications typically operate at lower voltages and generate less heat, allowing for more compact designs.
For low-power applications, FR4 thicknesses in the range of 0.8mm to 1.6mm are commonly used. A 1.0mm or 1.2mm thick FR4 sheet often provides a good balance between mechanical strength and cost-effectiveness for many low-power designs.
However, even in low-power applications, considerations such as signal integrity in high-frequency circuits or mechanical robustness in portable devices may necessitate the use of slightly thicker FR4 sheets. For instance, a 1.6mm thick FR4 might be preferred in a rugged, portable low-power device to enhance durability.
Medium-Power Electronics (100W - 1kW)
Medium-power electronics, which include applications such as computer power supplies, small motor drives, or solar inverters, often require a careful balance between thermal management, voltage isolation, and mechanical strength.
In this power range, FR4 thicknesses of 1.6mm to 2.4mm are commonly employed. The 1.6mm thickness is particularly popular as it provides a good compromise between performance and cost for many medium-power applications.
For designs approaching the higher end of this power range or those with particularly demanding thermal or voltage requirements, a 2.0mm or 2.4mm thick FR4 sheet may be more appropriate. These thicker substrates can provide enhanced heat spreading and better voltage isolation, which can be crucial in applications such as 600V-class power converters.
High-Power Electronics (> 1kW)
High-power electronics applications, including industrial motor drives, renewable energy converters, and electric vehicle power systems, often push the limits of FR4 epoxy sheet capabilities. In these applications, thicker FR4 sheets are typically necessary to meet the stringent electrical, thermal, and mechanical requirements.
For high-power electronics, FR4 thicknesses of 2.4mm to 3.2mm are commonly used. The 3.2mm thickness is particularly favored in applications dealing with voltages above 1000V or power levels exceeding several kilowatts.
The use of thick FR4 sheets in high-power applications provides several benefits:
- Enhanced voltage isolation, crucial for high-voltage power electronics
- Improved heat spreading, aiding in thermal management
- Greater mechanical strength to support heavy components and withstand thermal stresses
- Better resistance to warpage under high-temperature operating conditions
It's worth noting that in extreme high-power applications, FR4 may be supplemented or replaced by other materials such as aluminum-backed PCBs or ceramic substrates to meet the demanding thermal and electrical requirements.
Conclusion
The selection of FR4 epoxy sheet thickness in power electronics is a critical design decision that impacts performance, reliability, and safety. While thicknesses ranging from 0.8mm to 3.2mm are commonly used, the optimal choice depends on the specific application requirements. Low-power applications may suffice with thinner FR4 sheets, while high-power systems often demand thicker substrates. Factors such as voltage levels, thermal management needs, and mechanical stresses must be carefully considered. As power electronics continue to evolve, the judicious selection of FR4 thickness remains crucial in achieving optimal performance and reliability across a wide spectrum of applications.
