Understanding FR4 Epoxy Sheet and Its Dielectric Properties
Composition and Manufacturing of FR4 Epoxy Sheet
FR4 epoxy sheet is a composite material consisting of woven fiberglass cloth impregnated with epoxy resin. The manufacturing process involves layering multiple sheets of fiberglass fabric and saturating them with epoxy resin. This combination is then subjected to heat and pressure, resulting in a rigid, flame-resistant material with excellent electrical insulation properties.
The "FR" in FR4 stands for "flame retardant," indicating its ability to resist combustion. The "4" denotes the specific formulation of the epoxy resin used. This unique composition gives FR4 its characteristic strength, durability, and electrical insulation capabilities.
Dielectric Properties of FR4 Epoxy Sheet
The dielectric properties of FR4 epoxy sheet are crucial for its performance as an insulator. These properties include dielectric constant, dissipation factor, and dielectric strength. The dielectric constant, typically around 4.2-4.8 for FR4, measures the material's ability to store electrical energy. The dissipation factor, usually between 0.01 and 0.02, indicates the energy loss in the material when subjected to an alternating electric field.
Dielectric strength, our primary focus, is the maximum electric field a material can withstand before electrical breakdown occurs. FR4's high dielectric strength is a result of its dense, uniform structure and the inherent insulating properties of both the epoxy resin and fiberglass components.
Factors Affecting Dielectric Strength of FR4 Epoxy Sheet
Several factors can influence the dielectric strength of FR4 epoxy sheet:
- Thickness: Generally, thicker sheets exhibit higher dielectric strength.
- Temperature: Elevated temperatures can reduce dielectric strength.
- Humidity: High moisture content can degrade insulating properties.
- Surface contaminants: Impurities on the surface can create weak points for electrical breakdown.
- Frequency of applied voltage: Higher frequencies typically result in lower dielectric strength.
Understanding these factors is crucial for selecting the appropriate FR4 epoxy sheet for specific applications and ensuring optimal performance in diverse operating conditions.
Applications and Importance of FR4 Epoxy Sheet's Dielectric Strength
Printed Circuit Board (PCB) Manufacturing
The high dielectric strength of FR4 epoxy sheet makes it an ideal substrate material for printed circuit boards (PCBs). In PCB manufacturing, FR4 serves as the foundation upon which conductive tracks, pads, and other features are etched or printed. The material's ability to withstand high voltages without breakdown ensures the integrity of the circuit design and prevents short circuits between closely spaced conductive elements.
Multi-layer PCBs, which are common in complex electronic devices, particularly benefit from FR4's dielectric properties. These boards stack multiple layers of circuitry, separated by FR4 layers acting as insulators. The high dielectric strength of FR4 allows for thinner insulating layers, enabling the production of more compact and densely packed circuit boards without compromising electrical isolation.
Electrical and Electronic Insulation

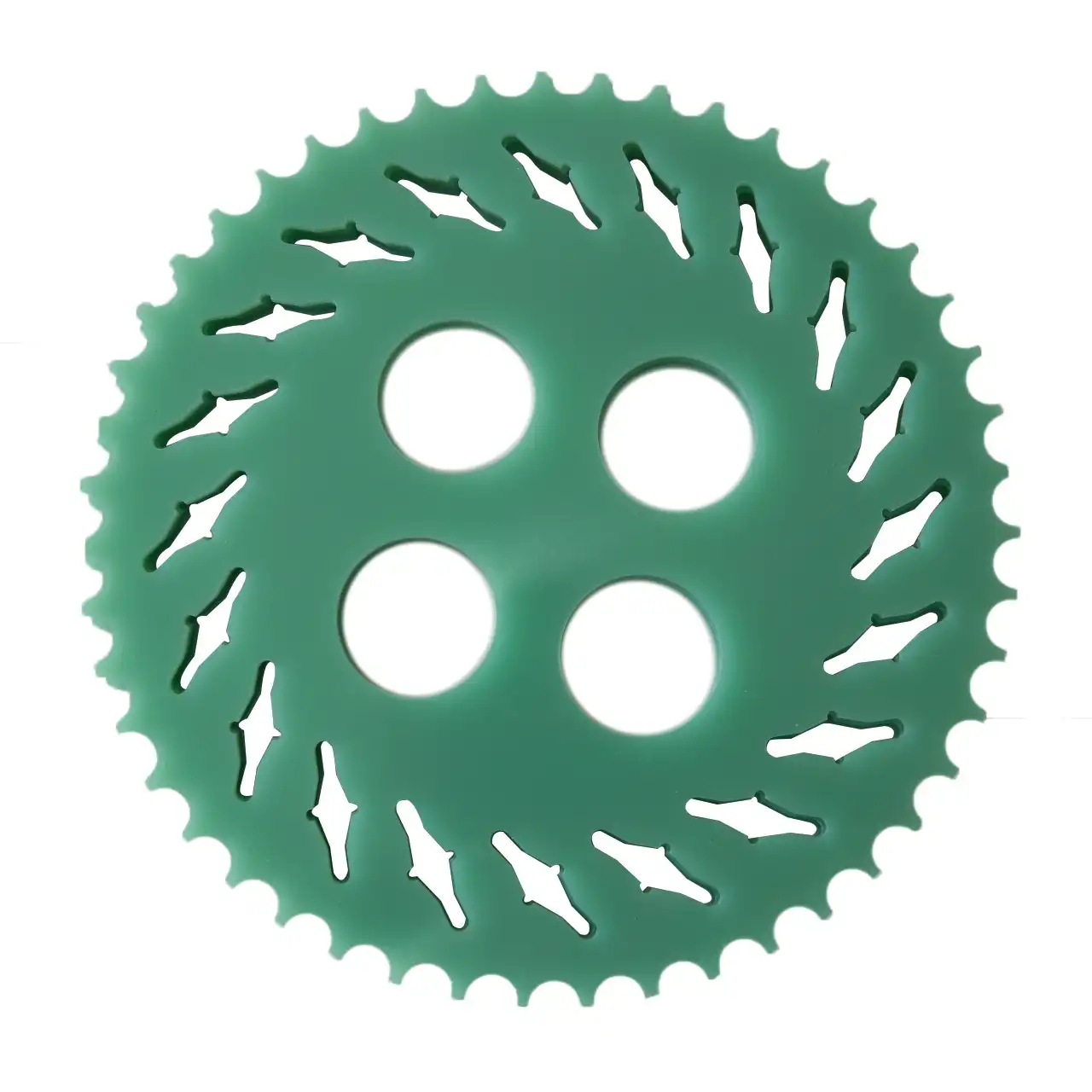

Beyond PCBs, FR4 epoxy sheet finds extensive use in various electrical and electronic insulation applications. Its high dielectric strength makes it suitable for creating barriers between high-voltage components in power supplies, transformers, and switchgear. FR4 sheets can be machined into custom shapes to fit specific insulation needs, providing reliable protection against electrical arcing and breakdown in compact spaces.
In the aerospace and automotive industries, FR4 is utilized for insulating components in harsh environments where temperature fluctuations and vibrations are common. Its ability to maintain dielectric properties under challenging conditions ensures the safety and reliability of critical electrical systems.
Safety and Reliability in High-Voltage Applications
The dielectric strength of FR4 epoxy sheet plays a crucial role in ensuring safety and reliability in high-voltage applications. In power distribution equipment, FR4 components help prevent electrical accidents by providing robust insulation between conductive parts. This is particularly important in switchgear and circuit breakers, where FR4's high dielectric strength allows for compact design without compromising safety margins.
In the realm of renewable energy, FR4 is used in solar inverters and wind turbine control systems. Its dielectric properties contribute to the longevity and reliability of these systems, which often operate in challenging outdoor conditions. By maintaining effective insulation, FR4 helps protect sensitive electronic components from high-voltage transients and environmental stresses.
Testing and Measuring Dielectric Strength of FR4 Epoxy Sheet
Standard Test Methods for Dielectric Strength
The dielectric strength of FR4 epoxy sheet is typically measured using standardized test methods. One common approach is the ASTM D149 standard, which outlines procedures for testing the dielectric breakdown voltage of solid electrical insulating materials. This method involves applying an increasing voltage across the material sample until electrical breakdown occurs.
Another relevant standard is IEC 60243, which provides guidelines for determining electric strength of insulating materials. These tests usually involve placing the FR4 sample between two electrodes and gradually increasing the applied voltage until breakdown is observed. The voltage at which breakdown occurs, divided by the sample thickness, gives the dielectric strength in volts per unit thickness.
Interpreting Test Results and Quality Control
Interpreting dielectric strength test results requires consideration of various factors. The breakdown voltage can be influenced by electrode geometry, rate of voltage increase, and environmental conditions during testing. Manufacturers often perform multiple tests and use statistical analysis to determine a reliable dielectric strength value for their FR4 products.
Quality control in FR4 production involves regular testing of dielectric strength to ensure consistency across batches. This may include both destructive testing on sample pieces and non-destructive methods for in-line quality assurance. Advanced techniques like partial discharge detection can be employed to identify potential weak points in the insulation before complete breakdown occurs.
Advances in Dielectric Strength Enhancement
Ongoing research and development efforts aim to enhance the dielectric strength of FR4 and similar materials. Some approaches include:
- Nanocomposite additives: Incorporating nanoparticles into the epoxy matrix can improve dielectric properties.
- Surface treatments: Modifying the surface characteristics of FR4 can increase its resistance to electrical breakdown.
- Layering techniques: Alternating layers of different materials can create synergistic effects, enhancing overall dielectric strength.
- Novel resin formulations: Developing new epoxy compositions with improved electrical insulation properties.
These advancements aim to push the boundaries of FR4's capabilities, enabling its use in even more demanding applications and contributing to the miniaturization and efficiency of electronic devices.
Conclusion
The dielectric strength of FR4 epoxy sheet is a critical property that underpins its widespread use in electrical and electronic applications. With values typically ranging from 20 to 80 kV/mm, FR4 provides robust insulation capabilities essential for PCB manufacturing, electrical safety, and high-voltage equipment. Understanding the factors affecting dielectric strength and employing proper testing methods ensures the reliable performance of FR4 in diverse applications. As technology advances, ongoing improvements in FR4's dielectric properties continue to expand its potential uses, solidifying its position as a cornerstone material in the electronics industry.
