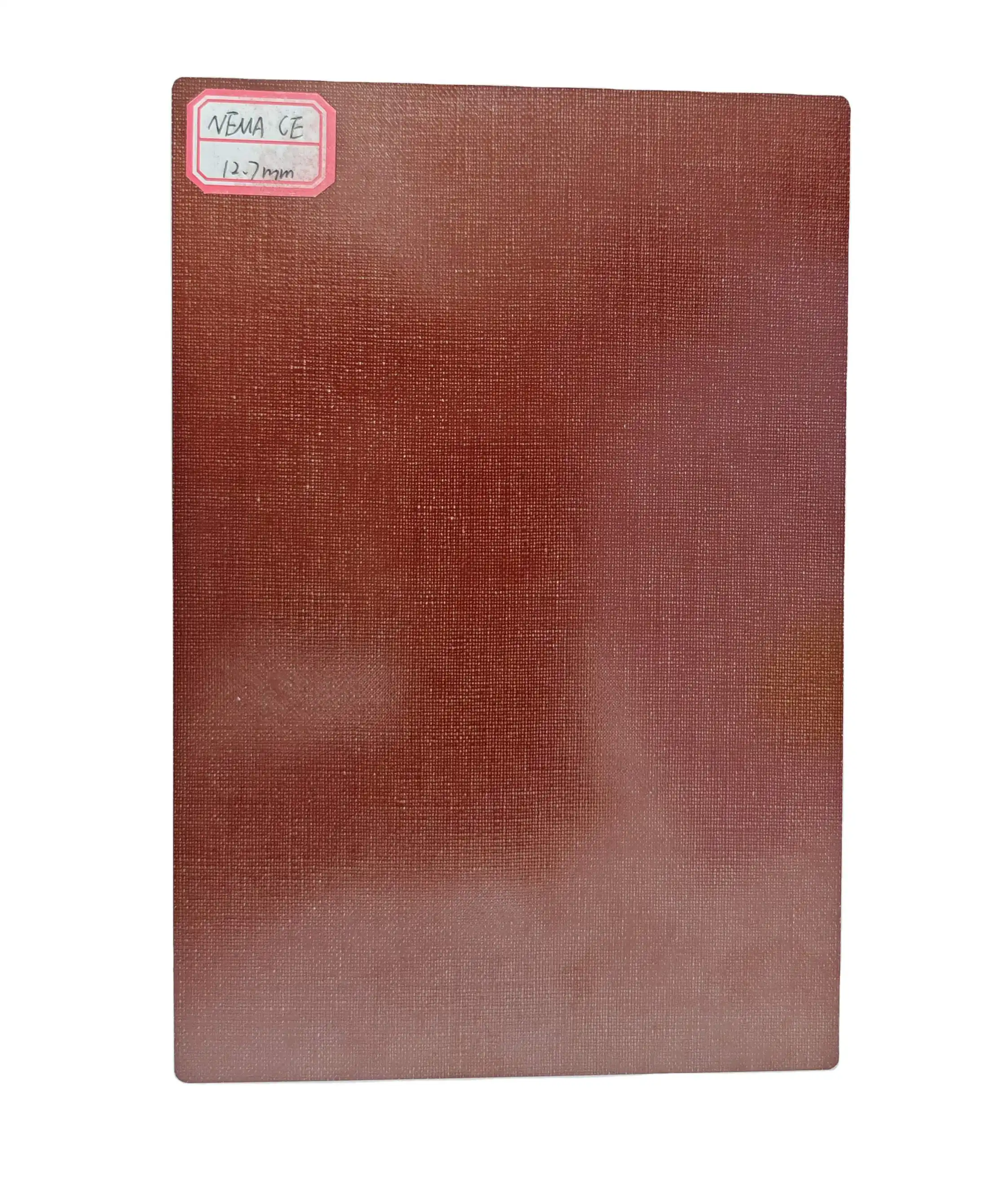

What Are the Key Features of NEMA CE Sheet?
Superior Mechanical Properties
NEMA CE sheets demonstrate outstanding mechanical strength, making them superior to many other phenolic laminates. The cotton fabric reinforcement contributes to high impact resistance and enhanced flexural strength, allowing components to withstand significant stresses without deformation or failure. This mechanical robustness makes CE sheets suitable for demanding industrial applications, such as structural supports, wear-resistant parts, and load-bearing components. Their ability to endure repeated mechanical stress while maintaining integrity ensures long-term reliability and durability in both standard and high-stress operating environments.
Excellent Electrical Insulation
One of the most important attributes of NEMA CE sheets is their exceptional electrical insulation capability. The combination of phenolic resin and cotton fabric produces a laminate with high dielectric strength and very low electrical conductivity. This makes CE sheets ideal for manufacturing insulating components in electrical systems, transformers, switchgear, and other power-related applications. Their reliable insulating properties under varying environmental conditions help prevent electrical breakdown, enhance safety, and ensure consistent performance in both low- and medium-voltage industrial and commercial electrical systems.
Dimensional Stability
NEMA CE sheets exhibit remarkable dimensional stability, maintaining precise shape and size even when exposed to fluctuating temperatures and humidity. This reliability is crucial for applications requiring tight tolerances, such as precision mechanical components, electrical insulators, and high-performance industrial assemblies. The consistent dimensional stability minimizes warping, expansion, or contraction, ensuring proper assembly and long-term functionality. By maintaining predictable geometry across various environmental conditions, CE sheets provide engineers and manufacturers with a dependable material for precision applications where consistency and accuracy are essential.
Composition, Properties, and Industrial Uses
Material Composition
NEMA CE sheets are fabricated using a carefully engineered process that combines cotton fabric layers with phenolic resin. The cotton fabric serves as the reinforcement, providing strength and structure to the material. The phenolic resin, when cured under heat and pressure, creates a cross-linked polymer matrix that binds the fabric layers together and imparts the sheet with its characteristic properties.
Key Properties
NEMA CE sheets possess a unique combination of properties that make them suitable for a wide range of applications. These properties include:
- High flexural and tensile strength
- Low moisture absorption
- Excellent machinability
- Good heat resistance
- Chemical resistance to many common solvents and oils
- Low thermal expansion coefficient
- High creep resistance
Industrial Applications
The versatility of NEMA CE sheets has led to their adoption in numerous industries. Some common applications include:
- Electrical switchgear components
- Transformer parts
- Motor insulation
- Gears and bearings
- Automotive components
- Industrial rollers and pulleys
- Packaging machinery parts
- Wear plates and bushings
Differences Between NEMA CE Sheet and Other Laminates
CE vs. XX Grade
Although both CE and XX grades are phenolic-based laminates, CE sheets provide superior mechanical performance. CE utilizes a cotton fabric reinforcement, whereas XX grade is reinforced with paper, giving CE sheets higher impact strength and better dimensional stability. Additionally, CE sheets offer improved machinability, allowing for precise fabrication of components with less wear on cutting tools. These characteristics make CE sheets more suitable for applications requiring durability, mechanical resilience, and long-term performance, particularly in demanding industrial and structural uses where XX grade may fall short.
CE vs. G10/FR4 Grade
G10 and FR4 are epoxy-based laminates reinforced with glass fiber, designed to deliver high strength and excellent electrical properties, especially at high frequencies. NEMA CE sheet, by contrast, employs phenolic resin with cotton fabric reinforcement, making them more cost-effective and easier to machine. While G10/FR4 excels in high-voltage or precision electronic applications, NEMA CE sheet is often preferred in mechanical and low-frequency electrical systems. Their balanced performance and economical advantage make NEMA CE sheet ideal for general-purpose engineering applications where extreme electrical performance is not the primary requirement.
CE vs. LE Grade
Both CE and LE grades are phenolic laminates, but LE sheets are reinforced with a finer linen fabric, providing a smoother surface finish. This makes LE grade suitable for applications that demand tight tolerances or enhanced cosmetic appearance. In contrast, CE sheets focus on mechanical strength and cost-effectiveness, offering higher impact resistance and overall durability for general-purpose industrial applications. Engineers often select CE sheets when structural performance and economic efficiency outweigh the need for surface smoothness or cosmetic precision, making CE an excellent all-around choice for versatile use.
Conclusion
NEMA CE sheets represent a versatile and reliable material solution for a wide range of industrial applications. Their unique combination of mechanical strength, electrical insulation properties, and dimensional stability makes them an invaluable resource in various sectors. As industries continue to evolve and demand more from their materials, NEMA CE sheets remain a trusted choice for engineers and manufacturers seeking high-performance, cost-effective solutions. By understanding the key features, composition, and comparative advantages of CE sheets, professionals can make informed decisions when selecting materials for their specific applications.
