Can FR4 Withstand High Voltage Environments?
Voltage Tolerance Capabilities

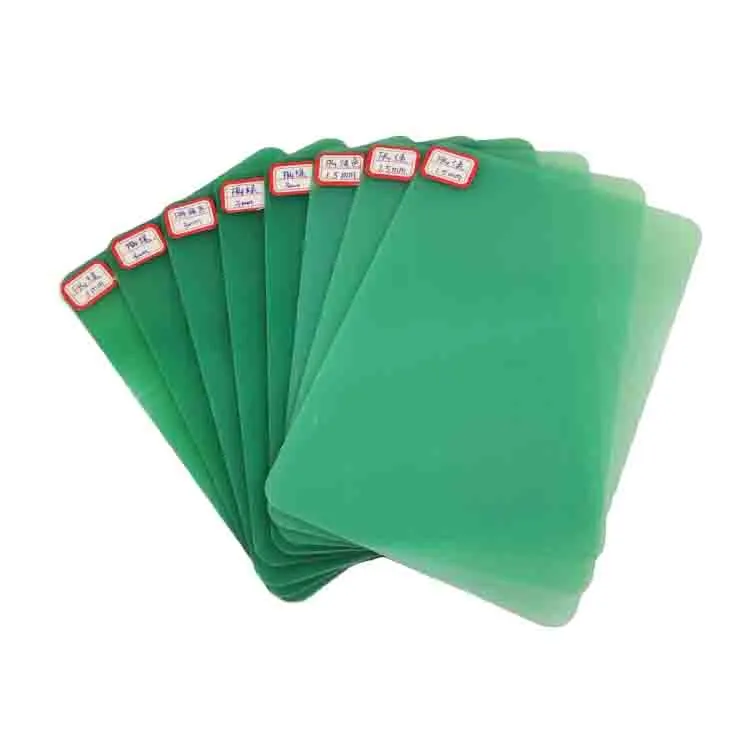

FR4 epoxy sheet demonstrates impressive voltage tolerance capabilities, making it suitable for a wide range of high-voltage applications. Its ability to withstand elevated electrical potentials stems from its unique composition and manufacturing process. The glass fiber reinforcement provides mechanical strength, while the epoxy resin offers excellent electrical insulation properties. This synergistic combination results in a material capable of enduring substantial voltage stresses without compromising its structural or electrical integrity.
Factors Affecting Voltage Withstand
Several factors can influence the voltage withstand capabilities of FR4 epoxy sheet. Environmental conditions play a crucial role, with temperature and humidity being primary concerns. Elevated temperatures can soften the epoxy matrix, potentially reducing its dielectric strength. High humidity levels may lead to moisture absorption, which can degrade the material's insulating properties over time. Additionally, the thickness of the FR4 sheet significantly impacts its voltage tolerance, with thicker sheets generally offering higher breakdown voltages. Surface conditions, including contaminants or irregularities, can also affect the material's performance under high voltage stress.
Long-term Reliability Under High Voltage
The long-term reliability of FR4 epoxy sheet under high voltage conditions is a critical consideration for engineers and designers. While FR4 exhibits excellent initial performance, prolonged exposure to high voltage can lead to gradual degradation of its electrical properties. This phenomenon, known as electrical treeing, involves the formation of microscopic conductive paths within the material over time. However, FR4's inherent resistance to this process, coupled with proper design and maintenance practices, ensures its continued reliability in many high-voltage applications. Regular monitoring and periodic replacement schedules can further enhance the long-term performance of FR4 components in high-voltage environments.
Dielectric Strength and Electrical Breakdown Properties
Understanding Dielectric Strength
Dielectric strength is a fundamental property that defines the maximum electric field an insulating material can withstand without experiencing electrical breakdown. For FR4 epoxy sheet, this characteristic is pivotal in determining its suitability for high-voltage applications. The dielectric strength is typically measured in volts per unit thickness (e.g., kV/mm) and represents the point at which the material transitions from an insulator to a conductor. FR4's high dielectric strength is attributed to its dense molecular structure and the presence of glass fibers, which impede the formation of conductive paths under electrical stress.
Mechanisms of Electrical Breakdown
Electrical breakdown in FR4 epoxy sheet can occur through various mechanisms, each influenced by different factors. Thermal breakdown results from excessive heat generation due to dielectric losses, leading to material degradation and eventual failure. Electromechanical breakdown occurs when the electrostatic forces between electrodes become strong enough to cause physical deformation of the material. Partial discharge, a localized electrical breakdown in small voids or imperfections within the material, can gradually erode the insulation over time. Understanding these mechanisms is crucial for designing systems that maximize the performance and longevity of FR4 components in high-voltage environments.
Comparative Analysis with Other Materials
When comparing FR4 epoxy sheet to other insulating materials, its balanced performance across various electrical and mechanical properties becomes evident. While ceramic materials may offer higher dielectric strengths, they lack the flexibility and machinability of FR4. Polyimide films provide excellent thermal stability but may not match FR4's overall mechanical robustness. PTFE (Teflon) exhibits superior dielectric properties at high frequencies but is more expensive and challenging to process. FR4's unique combination of good dielectric strength, mechanical durability, and cost-effectiveness positions it as a versatile solution for many high-voltage applications, striking a balance between performance and practicality.
Safety Considerations in High-Voltage Applications
Design Practices for High-Voltage Safety
Implementing robust design practices is paramount when utilizing FR4 epoxy sheet in high-voltage applications. Adequate creepage and clearance distances must be maintained to prevent surface flashover and air breakdown. Edge rounding and smooth contouring of FR4 components can mitigate electric field concentrations that might otherwise lead to localized breakdown. Proper selection of FR4 grade and thickness based on the specific voltage requirements ensures an appropriate safety margin. Incorporating stress-grading techniques, such as the use of semi-conductive coatings or controlled impedance layers, can help distribute electric fields more evenly across the FR4 surface, enhancing overall system reliability.
Handling and Installation Precautions
Safe handling and installation of FR4 epoxy sheet components in high-voltage systems demand meticulous attention to detail. Personnel must be adequately trained in high-voltage safety protocols and equipped with appropriate personal protective equipment. During installation, care must be taken to avoid contamination of the FR4 surface, as even minor impurities can significantly reduce its dielectric strength. Proper cleaning procedures using compatible solvents should be employed to maintain the material's integrity. Careful consideration of mounting methods and hardware selection is essential to prevent unintended stress concentrations or sharp edges that could compromise the FR4's insulating properties.
Maintenance and Inspection Protocols
Regular maintenance and inspection are crucial for ensuring the continued safe operation of FR4 components in high-voltage applications. Visual inspections can reveal surface degradation, discoloration, or tracking that may indicate incipient failure. Non-destructive testing techniques, such as partial discharge measurements or infrared thermography, can detect internal defects or hotspots before they lead to catastrophic breakdown. Periodic dielectric testing may be necessary to verify the ongoing insulation integrity of critical FR4 components. Establishing a comprehensive maintenance schedule, tailored to the specific application and environmental conditions, is essential for maximizing the safety and longevity of FR4-based high-voltage systems.
Conclusion
FR4 epoxy sheet demonstrates exceptional performance under high voltage conditions, making it a versatile and reliable choice for numerous electrical and electronic applications. Its high dielectric strength, coupled with excellent mechanical properties, enables it to withstand substantial electrical stresses while maintaining structural integrity. However, optimal utilization in high-voltage environments requires careful consideration of design factors, environmental conditions, and proper maintenance protocols. By understanding FR4's capabilities and limitations, engineers can leverage its unique properties to create safe, efficient, and durable high-voltage systems across various industries.
