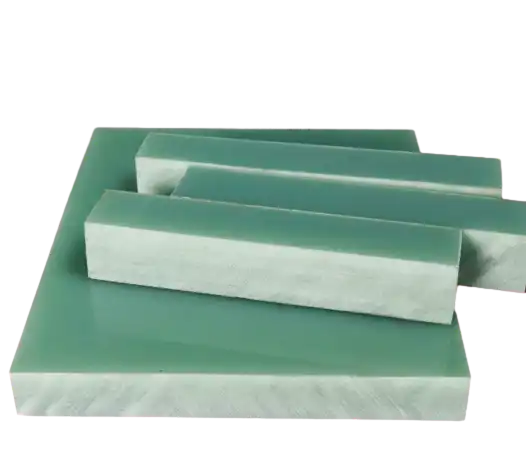

Composition and Manufacturing of FR4 Epoxy Sheet
Raw Materials and Their Properties
The foundation of FR4 epoxy sheet lies in its carefully selected raw materials. The primary components include fiberglass cloth and epoxy resin. The fiberglass cloth, typically made from electrical grade glass, provides the structural integrity and dimensional stability necessary for PCBs. This glass fabric is woven into a tight, uniform mesh that serves as the reinforcement for the composite.
Epoxy resin, the matrix that binds the fiberglass cloth, is a thermoset polymer known for its excellent adhesion, chemical resistance, and electrical insulation properties. The epoxy used in FR4 sheets is specially formulated to include flame-retardant additives, usually brominated compounds, which impart the crucial fire-resistant characteristics to the final product.
Manufacturing Process
The production of FR4 epoxy sheet is a meticulous process that requires precision and quality control at every step. It begins with the impregnation of the fiberglass cloth with liquid epoxy resin. This resin-soaked fabric is then partially cured or "B-staged" to create a pliable, tacky prepreg material.
Multiple layers of this prepreg are stacked together, along with copper foils if required for the final PCB application. The layered stack is then subjected to heat and pressure in a lamination press. This process fully cures the epoxy resin, transforming the layers into a single, solid laminate. The resulting FR4 epoxy sheet exhibits a uniform thickness and consistent properties throughout its structure.
Quality Control Measures
To ensure the highest standards of FR4 epoxy sheet production, manufacturers implement rigorous quality control measures. These include:
- Precise control of resin content and distribution
- Monitoring of curing temperatures and pressures
- Dimensional stability checks
- Electrical property testing
- Flame resistance verification
These stringent controls guarantee that each FR4 epoxy board meets the exacting requirements of the electronics industry, providing a reliable foundation for PCB fabrication.Properties and Advantages of FR4 Epoxy Sheet
Electrical Insulation Characteristics
One of the paramount qualities of FR4 epoxy sheet is its exceptional electrical insulation. The material boasts a high dielectric strength, typically ranging from 20 to 80 kV/mm, depending on the specific grade and thickness. This property ensures that electrical signals remain isolated within their intended pathways on the PCB, preventing short circuits and maintaining signal integrity.
Moreover, FR4 epoxy board exhibits low dielectric loss, which is crucial for high-frequency applications. Its dielectric constant, usually around 4.2 to 4.8 at 1 MHz, remains relatively stable across a wide range of frequencies, making it suitable for various electronic devices, from simple consumer gadgets to sophisticated telecommunications equipment.
Mechanical Strength and Durability
The combination of fiberglass reinforcement and epoxy resin endows FR4 epoxy sheet with remarkable mechanical properties. It possesses high flexural and tensile strength, allowing PCBs to withstand the rigors of assembly processes and operational stresses. The material's resistance to warping and dimensional stability under varying environmental conditions ensure that circuit traces maintain their alignment and connections remain intact throughout the product's lifecycle.
Furthermore, FR4 epoxy board demonstrates excellent machinability, facilitating easy drilling, cutting, and routing during PCB fabrication. This attribute contributes to the material's versatility and wide-ranging applicability in diverse electronic designs.
Thermal Performance and Flame Retardancy
FR4 epoxy sheet shines in its thermal characteristics, a critical factor in electronic applications where heat dissipation is paramount. The material maintains its structural integrity and electrical properties across a broad temperature range, typically from -50°C to 130°C. This thermal stability ensures reliable performance in diverse operating environments, from arctic conditions to sweltering industrial settings.
The flame-retardant nature of FR4 epoxy board, as mandated by its UL94 V-0 rating, provides an additional layer of safety. When exposed to flame, the material self-extinguishes, minimizing the risk of fire propagation in electronic devices. This feature is indispensable in industries where safety standards are stringent, such as aerospace, automotive, and medical equipment manufacturing.
Applications and Future Trends of FR4 Epoxy Sheet
Current Applications in Electronics Industry
FR4 epoxy sheet has found its way into a myriad of electronic applications, cementing its status as the industry standard for PCB substrates. Its versatility is evident in its widespread use across various sectors:
- Consumer Electronics: From smartphones and laptops to home appliances, FR4 epoxy board forms the foundation of circuit boards in countless devices we use daily.
- Telecommunications: The material's excellent high-frequency performance makes it ideal for network routers, switches, and cellular base stations.
- Automotive Electronics: FR4 epoxy sheet is crucial in vehicle control systems, infotainment units, and advanced driver-assistance systems (ADAS).
- Aerospace and Defense: Its reliability under extreme conditions makes FR4 epoxy board indispensable in avionics and military communication equipment.
- Industrial Control Systems: Factory automation, process control, and power distribution systems rely heavily on PCBs made from FR4 epoxy sheet.
The material's adaptability to various manufacturing processes, including multilayer PCB fabrication, has further expanded its applications in complex electronic designs.Emerging Technologies and FR4 Advancements
As the electronics industry continues to evolve, FR4 epoxy sheet is adapting to meet new challenges. Recent advancements include:
- High-Speed FR4: Modified formulations with lower dielectric constants and loss tangents for high-frequency and high-speed digital applications.
- Halogen-Free FR4: Environmentally friendly variants that maintain flame retardancy without using brominated compounds, aligning with global sustainability initiatives.
- Thermally Enhanced FR4: Sheets with improved thermal conductivity to address the increasing heat dissipation requirements of modern electronics.
- Ultra-Thin FR4: Developments in manufacturing techniques allowing for thinner FR4 epoxy boards, supporting the trend towards miniaturization in portable devices.
These innovations ensure that FR4 epoxy sheet remains relevant in emerging technologies such as 5G communications, Internet of Things (IoT) devices, and wearable electronics.Future Prospects and Industry Trends
The future of FR4 epoxy sheet looks promising, with several trends shaping its evolution:
- Integration with Flexible Electronics: Research into hybrid rigid-flex PCBs that combine the strength of FR4 with the flexibility of newer materials.
- Enhanced Thermal Management: Ongoing development of FR4 variants with superior heat dissipation properties to support high-power density applications.
- Eco-Friendly Formulations: Continued focus on developing sustainable FR4 epoxy boards that meet stringent environmental regulations without compromising performance.
- Customization for Specific Applications: Tailored FR4 formulations for niche markets, such as high-reliability aerospace or medical implant technologies.
- Smart Manufacturing: Integration of Industry 4.0 principles in FR4 epoxy sheet production, enhancing quality control and customization capabilities.
As electronic devices become more integrated into our daily lives, the demand for reliable, high-performance PCB materials like FR4 epoxy sheet is expected to grow, driving further innovation in this foundational material.Conclusion
FR4 epoxy sheet stands as a testament to the ingenuity of materials science in the electronics industry. Its unique blend of electrical, mechanical, and thermal properties has made it the cornerstone of PCB manufacturing for decades. As we've explored its composition, manufacturing process, and myriad applications, it's clear that FR4 epoxy board continues to evolve, meeting the ever-increasing demands of modern electronics. From consumer gadgets to critical infrastructure, FR4 epoxy sheet remains an indispensable material, silently supporting the technological advancements that shape our world. Its ongoing development promises to keep pace with future innovations, ensuring its relevance in the electronics landscape for years to come.
