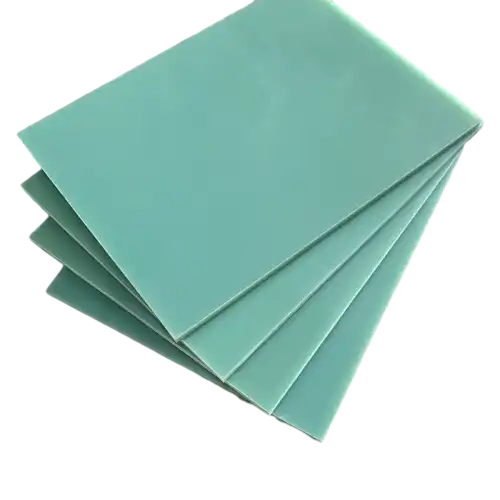

The Composition and Manufacturing Process of FR4 Epoxy Sheet
Raw Materials and Their Roles
FR4 epoxy sheets are crafted from a meticulous blend of components, each playing a crucial role in the final product's performance. The primary constituents include:
- Fiberglass cloth: This serves as the reinforcement, providing mechanical strength and dimensional stability.
- Epoxy resin: The matrix material that binds the fiberglass and imparts electrical insulation properties.
- Flame retardants: Additives that enhance the material's fire resistance, crucial for safety in electronic applications.
- Catalysts and hardeners: These components facilitate the curing process, ensuring optimal cross-linking of the epoxy resin.
Manufacturing Techniques
The production of FR4 epoxy boards involves a sophisticated manufacturing process:
- Impregnation: Fiberglass cloth is passed through a bath of liquid epoxy resin, ensuring thorough saturation.
- B-staging: The impregnated cloth undergoes partial curing to achieve a semi-solid state, ideal for handling and storage.
- Lamination: Multiple layers of B-staged material are stacked and pressed under heat and pressure.
- Final curing: The laminated stack is subjected to elevated temperatures, completing the cross-linking reaction and solidifying the composite.
Quality Control Measures
Rigorous quality control is essential in FR4 epoxy sheet production:
- Raw material testing: Incoming materials are scrutinized for purity and consistency.
- In-process monitoring: Parameters such as resin content, gel time, and thickness are continuously evaluated.
- Final product inspection: Finished sheets undergo electrical, mechanical, and thermal testing to ensure compliance with industry standards.
- Traceability: Each batch is meticulously documented, allowing for comprehensive quality assurance throughout the supply chain.
Electrical and Mechanical Properties of FR4 Epoxy Sheet
Dielectric Strength and Insulation Resistance
FR4 epoxy sheets exhibit exceptional electrical properties:
- High dielectric strength: Typically ranging from 20 to 85 kV/mm, ensuring reliable insulation in high-voltage applications.
- Low dielectric constant: Values between 4.0 and 4.8 at 1 MHz, facilitating signal integrity in high-frequency circuits.
- Excellent insulation resistance: Maintains resistivity even under harsh environmental conditions.
- Low dissipation factor: Minimizes energy loss in alternating current applications.
Mechanical Robustness and Dimensional Stability
The mechanical characteristics of FR4 epoxy boards are equally impressive:
- High flexural strength: Ranging from 340 to 560 MPa, providing excellent resistance to bending and warping.
- Superior tensile strength: Typically between 250 and 490 MPa, ensuring durability under stress.
- Low thermal expansion: Coefficient of thermal expansion (CTE) values of 50-70 ppm/°C in the x-y plane, minimizing dimensional changes with temperature fluctuations.
- Excellent machinability: Allows for precise cutting, drilling, and shaping without compromising structural integrity.
Thermal and Chemical Resistance
FR4 epoxy sheets demonstrate remarkable resilience:
- High glass transition temperature (Tg): Ranging from 130°C to 180°C, maintaining properties at elevated temperatures.
- Flame retardancy: Meets UL94 V-0 standards, providing crucial fire safety in electronic devices.
- Low moisture absorption: Typically less than 0.5% by weight, preserving electrical properties in humid environments.
- Resistance to various chemicals: Withstands exposure to solvents, oils, and mild acids, ensuring longevity in diverse applications.
Applications and Future Trends in FR4 Epoxy Sheet Technology
Current Industry Applications
FR4 epoxy sheets find widespread use across multiple sectors:
- Printed Circuit Boards (PCBs): The primary application, serving as the foundation for electronic circuits in countless devices.
- Aerospace and defense: Used in radar systems, avionics, and satellite components due to its reliability in extreme conditions.
- Industrial automation: Employed in control panels, switchgear, and insulating components for industrial machinery.
- Medical devices: Utilized in diagnostic equipment and implantable devices, capitalizing on its biocompatibility and insulation properties.
Emerging Technologies and FR4 Adaptations
The evolution of FR4 epoxy boards continues to meet new technological demands:
- High-frequency applications: Development of low-loss FR4 variants for 5G and IoT devices.
- Miniaturization: Ultra-thin FR4 sheets for flexible and wearable electronics.
- Thermal management: Integration of thermally conductive fillers to enhance heat dissipation in power electronics.
- Environmental sustainability: Research into halogen-free flame retardants and bio-based epoxy resins.
Future Prospects and Research Directions
The future of FR4 epoxy sheet technology looks promising:
- Nanotechnology integration: Incorporation of nanoparticles to enhance electrical and mechanical properties.
- Smart materials: Development of FR4 composites with self-healing or self-diagnostic capabilities.
- Additive manufacturing: Exploration of 3D-printable FR4-like materials for rapid prototyping and custom electronic enclosures.
- Recycling and circular economy: Innovations in FR4 recycling technologies to address end-of-life management and sustainability concerns.
Conclusion
FR4 epoxy sheets have firmly established themselves as a cornerstone in the realm of electrical insulation and circuit board fabrication. Their unparalleled combination of electrical performance, mechanical strength, and versatility continues to drive innovation across multiple industries. As technology advances, FR4 materials evolve, adapting to meet the demands of emerging applications while maintaining their core advantages. The ongoing research and development in FR4 technology promise even more exciting possibilities, ensuring that this remarkable material will remain at the forefront of electronic manufacturing for years to come.
