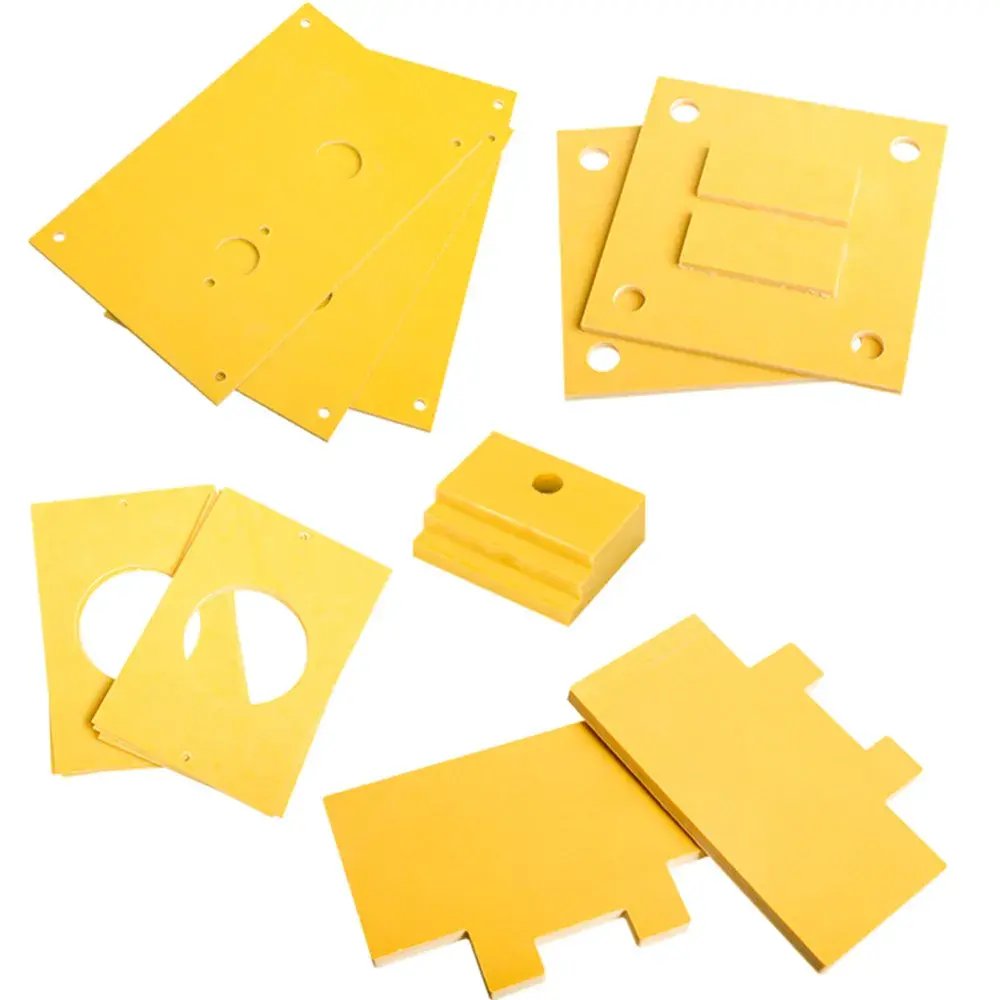

What Is 3240 Epoxy Sheet? A Complete Guide to Its Properties and Applications

3240 epoxy sheet is a high-performance composite material widely used in electrical insulation and mechanical applications. This versatile product combines epoxy resin with glass fiber reinforcement, resulting in a robust, durable, and heat-resistant sheet. Known for its excellent electrical insulation properties, mechanical strength, and thermal stability, 3240 epoxy sheet has become a go-to material in various industries. From electrical components to aerospace parts, this guide will explore the unique characteristics and diverse applications of 3240 epoxy sheet, helping you understand why it's a preferred choice for many engineering and manufacturing projects.

Properties and Characteristics of 3240 Epoxy Sheet

Electrical Insulation Properties

The electrical protection properties of 3240 epoxy sheet are very good, which makes it a great choice for many electrical uses. Its low dielectric constant keeps energy loss to a minimum in high-frequency uses, and its high dielectric strength makes it resistant to electrical breakdown. The material's volume resistivity and surface resistivity both work together to stop current flow, which makes it a better insulator. Because of these features, 3240 epoxy sheet is a great choice for making circuit boards, insulating bushings, and other electrical parts that need to be insulated well.

Mechanical Strength and Durability

The mechanical qualities of 3240 epoxy sheet are greatly improved by adding glass fiber reinforcement to it. Because this composite material is strong in all three ways - tensile, compressive, and bending - it can hold up under stress and big loads without breaking. Its resistance to force and stability in dimensions make it even more durable, making sure it lasts for a long time in tough situations. Because the material can keep its mechanical qualities over a wide range of temperatures, it can be used in harsh conditions and places where temperatures change quickly.

Thermal and Chemical Resistance

The 3240 epoxy sheetis very thermally stable, meaning that it keeps its qualities even at high temperatures. Its low thermal expansion coefficient keeps its size from changing too much when the temperature changes, so it works the same way in all kinds of situations. Due to its resistance to heat, the material can be used successfully in hot places without breaking down. The 3240 epoxy sheet is also very resistant to chemicals; it can be exposed to many oils, acids, and chemicals without breaking down much. Because it is resistant to both heat and chemicals, it is a useful material in fields where hard conditions are common.

Applications of 3240 Epoxy Sheet

Electrical and Electronics Industry

3240 epoxy sheet is widely used in the electrical and electronics industries because it is a good insulator. In the making of printed circuit boards (PCBs), it is the main material used because it provides a stable base for electronic parts and electrical paths. Because it has a high insulating strength and low losses, the sheet is perfect for making high-frequency circuit boards that are used in radar and phone systems. 3240 epoxy sheet is also used to make insulating parts for transformers, switches, and other electrical equipment. These parts keep power distribution systems safe and working well.

Aerospace and Aviation

The aerospace business uses 3240 epoxy sheet's special properties in a number of different ways. For panels and floors inside airplanes, this material is great because it is strong, doesn't weigh much, and can keep its temperature fixed. The fire-resistant qualities of the material help make aircraft design safer. Due to its low dielectric constant and ability to survive harsh environmental conditions, 3240 epoxy sheet is also used to make radomes, which are protective housings for radar antennas. Because the sheet doesn't change size or shape when heated and cooled, it can be used for satellite parts and other space applications that need to be reliable in harsh circumstances.

Industrial and Mechanical Applications

3240 epoxy sheet is used in many different ways in mechanical and industrial areas. Because it is very strong and doesn't wear down easily, it can be used to make gears, bearings, and other parts that will be subject to pressure and heavy loads. Because the material is resistant to chemicals, it can be used to make pump parts, valve seats, and seals for tools used in chemical processing. 3240 epoxy sheetis used to make parts for under the hood, electrical insulators, and structural parts in the automotive business. Its durability makes it useful in harsh environments. For example, it is used to insulate parts of drilling tools and offshore platforms for the oil and gas industry.

Processing and Fabrication Techniques

Machining and Cutting

3240 epoxy sheet can be machined using conventional woodworking and metalworking tools, allowing for precise shaping and sizing. Computer Numerical Control (CNC) machining is often employed for complex geometries and high-precision parts. When cutting 3240 epoxy sheet, it's crucial to use sharp tools and appropriate cutting speeds to prevent delamination or overheating. Water jet cutting and laser cutting are advanced techniques that can produce intricate shapes with minimal material waste. Proper dust collection and personal protective equipment are essential during machining operations to ensure worker safety.

Molding and Forming

While 3240 epoxy sheetis typically supplied in flat sheets, it can be thermoformed or cold-formed to create curved or shaped components. Thermoforming involves heating the sheet to its softening point and then shaping it using molds or vacuum forming techniques. Cold forming can be used for gentle curves and bends, taking advantage of the material's flexibility at room temperature. For more complex shapes, compression molding of 3240 epoxy prepreg materials can be employed, allowing for the creation of intricate parts with excellent mechanical properties.

Bonding and Assembly

3240 epoxy sheet can be bonded to itself or other materials using various adhesive systems. Epoxy-based adhesives often provide the strongest bonds, offering excellent chemical and thermal resistance. Mechanical fastening methods, such as bolting or riveting, can also be used, although care must be taken to avoid stress concentration points. When joining 3240 epoxy sheet to metals or other materials with different thermal expansion coefficients, it's important to consider potential thermal stresses and design joints accordingly. Surface preparation, including cleaning and possible abrasion, is crucial for ensuring strong and durable bonds.

Conclusion

3240 epoxy sheet stands out as a versatile and high-performance material, offering a unique combination of electrical insulation, mechanical strength, and thermal stability. Its wide-ranging applications across industries underscore its importance in modern engineering and manufacturing. From electrical components to aerospace parts, 3240 epoxy sheet continues to play a crucial role in advancing technology and improving product performance. As industries evolve and demand more from their materials, 3240 epoxy sheet remains at the forefront, adapting to new challenges and enabling innovative solutions in various fields.
