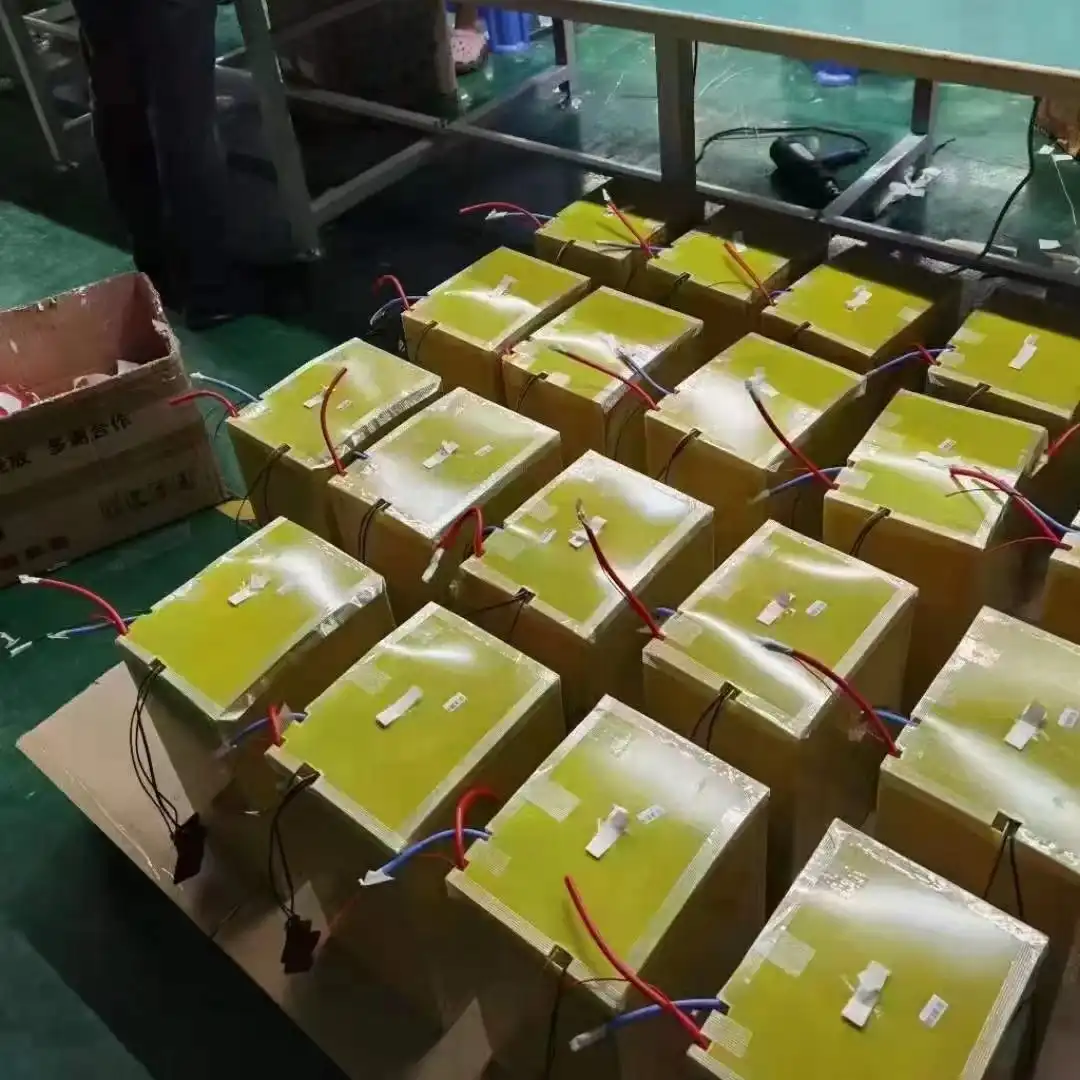

Advanced Manufacturing Techniques for 3240 Epoxy Sheets
Precision Layering Process
The precision layering process for 3240 epoxy sheets has seen remarkable advancements through the use of cutting-edge machinery and automated controls. Modern equipment allows for meticulous control over the thickness of each individual glass cloth and resin layer, ensuring uniform distribution and consistency throughout the sheet. This precise layering minimizes internal stresses and potential weak points, significantly improving the mechanical strength and electrical performance of the final product. As a result, 3240 epoxy boards are highly reliable and well-suited for demanding electronic and industrial applications.
Enhanced Resin Formulations
Recent progress in epoxy resin chemistry has produced advanced formulations specifically tailored for 3240 epoxy sheets. These enhanced resins offer greater thermal resistance, allowing the boards to perform reliably at higher temperatures. Improved flame retardant additives increase safety in critical applications. Additionally, the resin’s improved adhesion qualities enhance the bond between glass fabric layers, preventing delamination and improving durability. This combination of enhanced properties ensures that 3240 epoxy boards meet rigorous standards for electrical insulation and mechanical resilience.
Automated Quality Control
Automated quality control has become integral to the manufacture of 3240 epoxy sheets, employing technologies such as machine vision, infrared scanning, and ultrasonic testing. These advanced systems continuously monitor parameters like layer thickness, resin saturation, and surface finish during production. By detecting microscopic defects and inconsistencies in real time, manufacturers can immediately address issues before sheets leave the production line. This rigorous quality assurance guarantees that every 3240 epoxy board delivers consistent performance, longevity, and safety in its end-use environments.
Innovations in FR4 Epoxy Board Fabrication
High-Precision Cutting Techniques
Cutting techniques for FR4 epoxy boards have advanced significantly with the integration of laser cutting and water jet technologies. These cutting-edge methods enable manufacturers to achieve intricate and highly detailed shapes with remarkable precision, essential for the miniaturization of electronic components and complex circuit layouts. The ability to produce fine patterns without damaging the board material enhances design flexibility and reduces material waste. This precision cutting capability broadens the application scope of FR4 epoxy boards in cutting-edge electronics manufacturing.
Advanced Drilling Technologies
Drilling technology for 3240 epoxy sheet and FR4 epoxy boards has progressed to include computer-controlled micro-drilling systems capable of producing holes as tiny as 0.1mm in diameter. This level of precision is critical for fabricating high-density interconnect (HDI) circuit boards, which are fundamental in compact and highly functional modern electronics. These advanced drilling processes ensure accurate hole placement and consistent quality, enabling efficient electrical connections and reducing signal interference in multilayer boards, thereby improving the overall reliability and performance of electronic devices.
Surface Treatment Innovations
Surface treatment of 3240 epoxy boards has evolved through innovative techniques such as plasma treatment and advanced chemical processing. These methods modify the surface energy and texture of the FR4 material, significantly enhancing its adhesion properties. Improved surface treatment leads to stronger bonding between the epoxy board and electronic components or solder masks, which minimizes defects and failures in assembled circuits. These innovations contribute to increased durability, electrical reliability, and long-term stability of electronic assemblies using FR4 epoxy boards.
Environmental and Safety Considerations in FR4 Processing
Eco-Friendly Production Methods
The FR4 epoxy board industry has made significant strides in adopting environmentally friendly production techniques. Many manufacturers now utilize water-based epoxy resins that substantially reduce the emission of harmful volatile organic compounds (VOCs). Additionally, closed-loop recycling systems are implemented to capture and reuse waste materials, minimizing both solid waste and environmental pollution. These green manufacturing approaches not only lower the carbon footprint of 3240 epoxy sheet production but also align with global sustainability goals and increasingly strict environmental regulations.
Halogen-Free Formulations
Addressing mounting environmental and health concerns, the industry has innovated halogen-free formulations of 3240 epoxy boards. These alternatives eliminate halogenated flame retardants, which are known to produce toxic gases during combustion and disposal. Despite the absence of halogens, these boards retain the excellent mechanical strength, thermal stability, and electrical insulation properties characteristic of traditional FR4 materials. This advancement paves the way for safer, more eco-conscious electronics that meet modern regulatory and consumer demands for sustainability.
Enhanced Worker Safety Protocols
Worker safety in FR4 epoxy board processing has been greatly improved through a combination of technological and procedural enhancements. Facilities now feature advanced ventilation and air filtration systems that effectively reduce airborne dust and chemical vapors. Mandatory use of personal protective equipment (PPE), including respirators and gloves, along with automated material handling, further limits worker exposure to hazardous substances. These protocols ensure a safer workplace environment, promote regulatory compliance, and enhance overall production efficiency by reducing health-related disruptions.
Conclusion
The FR4 epoxy board processing industry has made remarkable strides in recent years, with advancements in manufacturing techniques, fabrication processes, and environmental considerations. The precision and quality of 3240 epoxy sheets and boards have reached new heights, enabling the production of more reliable and sophisticated electronic components. As the industry continues to innovate, we can expect further improvements in FR4 epoxy board processing, driving the evolution of electronic devices and technologies across various sectors.
