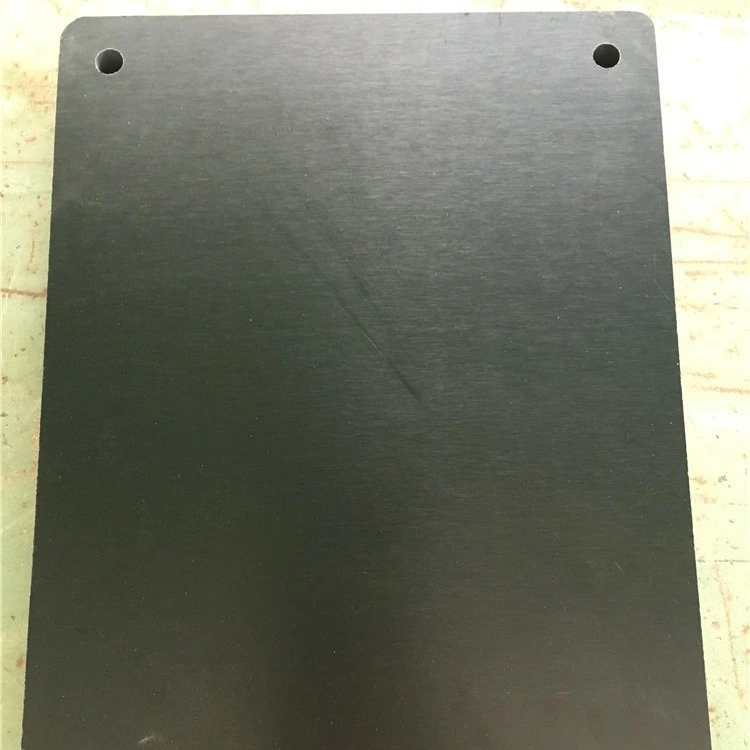

What Are Common Manufacturing Techniques for Bakelite Sheets in Electronics?

Common manufacturing techniques for Bakelite sheets in electronics include compression molding, transfer molding, and lamination processes. These methods involve combining phenol-formaldehyde resin with fillers under heat and pressure to create dense, durable sheets. Compression molding presses the material into heated molds, while transfer molding injects the resin into closed cavities. Lamination layers resin-impregnated papers or fabrics. Precise temperature control and curing cycles are crucial for achieving optimal electrical and mechanical properties. Post-production machining and surface finishing enhance the sheets for specific electronic applications.

Molding And Pressing Processes For Bakelite Fabrication

Compression Molding: The Foundation of Bakelite Sheet Production

Compression molding stands as the cornerstone of Bakelite sheet manufacturing. This process involves placing a precise amount of phenol-formaldehyde resin, combined with appropriate fillers, into a heated mold cavity. Hydraulic presses then apply immense pressure, typically ranging from 1,000 to 2,000 psi, while simultaneously heating the material to temperatures between 300°F and 350°F. This combination of heat and pressure initiates the polymerization reaction, transforming the raw materials into a dense, uniform sheet with excellent electrical insulation properties.

Transfer Molding: Enhancing Precision and Complexity

Transfer molding elevates Bakelite sheet production by allowing for more intricate designs and tighter tolerances. In this technique, the phenolic compound is preheated in a separate chamber before being forcibly injected into a closed mold cavity. This method excels at producing complex shapes and incorporating inserts or reinforcements within the Bakelite structure. The controlled injection process minimizes air entrapment, resulting in sheets with superior consistency and reduced internal stresses.

Lamination: Building Robust, Multi-Layer Sheets

Lamination processes create Bakelite sheets with enhanced strength and customizable properties. This technique involves stacking multiple layers of resin-impregnated materials, such as paper, cotton, or glass fabric. The layered assembly is then subjected to heat and pressure in a hydraulic press, causing the layers to fuse into a single, cohesive sheet. By varying the type and orientation of the reinforcing materials, manufacturers can tailor the electrical, thermal, and mechanical characteristics of the final product to meet specific electronic application requirements.

Curing Cycles And Temperature Control During Production

Optimizing Cure Time for Maximum Cross-Linking

The curing process is pivotal in determining the final properties of Bakelite sheets. Precise control over cure time ensures optimal cross-linking of the phenol-formaldehyde polymer chains. Typical curing cycles range from 3 to 15 minutes, depending on sheet thickness and desired characteristics. Longer cure times generally result in higher degrees of cross-linking, enhancing heat resistance and electrical insulation properties. However, over-curing can lead to brittleness, necessitating a delicate balance in production parameters.

Temperature Ramping Strategies for Uniform Curing

Implementing strategic temperature ramping during the curing process is essential for achieving uniform properties throughout the Bakelite sheet. Gradual temperature increases, often in multiple stages, allow for even heat distribution and prevent thermal shock. Initial heating stages may range from 250°F to 300°F, followed by a final curing stage at temperatures up to 350°F. This approach minimizes internal stresses and ensures consistent polymerization across the entire sheet, crucial for maintaining dimensional stability in electronic components.

Post-Cure Heat Treatment for Enhanced Performance

Many Bakelite sheet manufacturers employ post-cure heat treatments to further improve material properties. This process involves subjecting the cured sheets to elevated temperatures, typically between 300°F and 400°F, for extended periods ranging from several hours to days. Post-curing drives out residual volatiles, completes any remaining cross-linking reactions, and relieves internal stresses. The result is a Bakelite sheet with superior heat resistance, improved electrical insulation, and enhanced dimensional stability – all critical factors for reliable performance in electronic applications.

Surface Finishing And Machining For Electronic Applications

Precision Grinding for Dimensional Accuracy

Achieving tight tolerances and smooth surfaces on Bakelite sheets often requires precision grinding techniques. Surface grinders equipped with diamond or silicon carbide abrasive wheels can remove material with accuracies up to ±0.0005 inches. This process not only ensures dimensional consistency but also improves flatness and parallelism – critical factors for Bakelite sheets used in multi-layer printed circuit boards or as insulating barriers in high-voltage applications. Controlled material removal rates and proper cooling during grinding prevent heat-induced distortion, maintaining the sheet's inherent electrical properties.

Chemical Etching for Enhanced Surface Properties

Chemical etching processes can modify the surface characteristics of Bakelite sheets to improve adhesion, increase surface area, or create intricate patterns. Controlled exposure to alkaline or acidic solutions selectively removes material from the sheet surface, creating microscopic pores or textures. This treatment enhances bonding with conductive coatings, improves moisture resistance, and can even be used to create fine conductive traces directly on the Bakelite surface. The etching process must be carefully monitored to prevent over-etching, which could compromise the sheet's electrical insulation properties.

CNC Machining for Complex Electronic Components

Computer Numerical Control (CNC) machining enables the production of complex Bakelite components for specialized electronic applications. High-speed CNC routers and mills can create precise cutouts, channels, and three-dimensional features with tolerances as tight as ±0.001 inches. This capability is particularly valuable for fabricating custom terminal boards, switch housings, or intricate insulating spacers. The machining parameters, including spindle speed and feed rate, must be optimized to prevent heat buildup and maintain the Bakelite's structural integrity. Dust extraction systems are crucial during CNC operations to manage the fine, potentially harmful particles generated when cutting Bakelite.

Conclusion

The manufacturing techniques for Bakelite sheets in electronics have evolved to meet the demanding requirements of modern electronic devices. From compression molding to precision CNC machining, each process plays a crucial role in creating high-quality, reliable insulating components. By mastering these techniques and understanding the intricacies of curing cycles and surface finishing, manufacturers can produce Bakelite sheets that excel in electrical insulation, heat resistance, and dimensional stability. As electronics continue to advance, these time-tested methods will undoubtedly adapt, ensuring Bakelite remains a valuable material in the industry.

FAQs

What are the key advantages of using Bakelite sheets in electronics?

Bakelite sheets offer excellent electrical insulation, heat resistance, and dimensional stability, making them ideal for various electronic applications.

Can Bakelite sheets be recycled?

Due to their thermoset nature, Bakelite sheets are challenging to recycle conventionally. However, some specialized processes can repurpose Bakelite waste.

Are there any health concerns associated with Bakelite manufacturing?

Proper safety measures are essential during Bakelite production due to the use of formaldehyde. Modern manufacturing facilities implement stringent controls to minimize exposure risks.
