What Are the Key Steps in Phenolic Sheet Lamination?
Resin Preparation and Impregnation

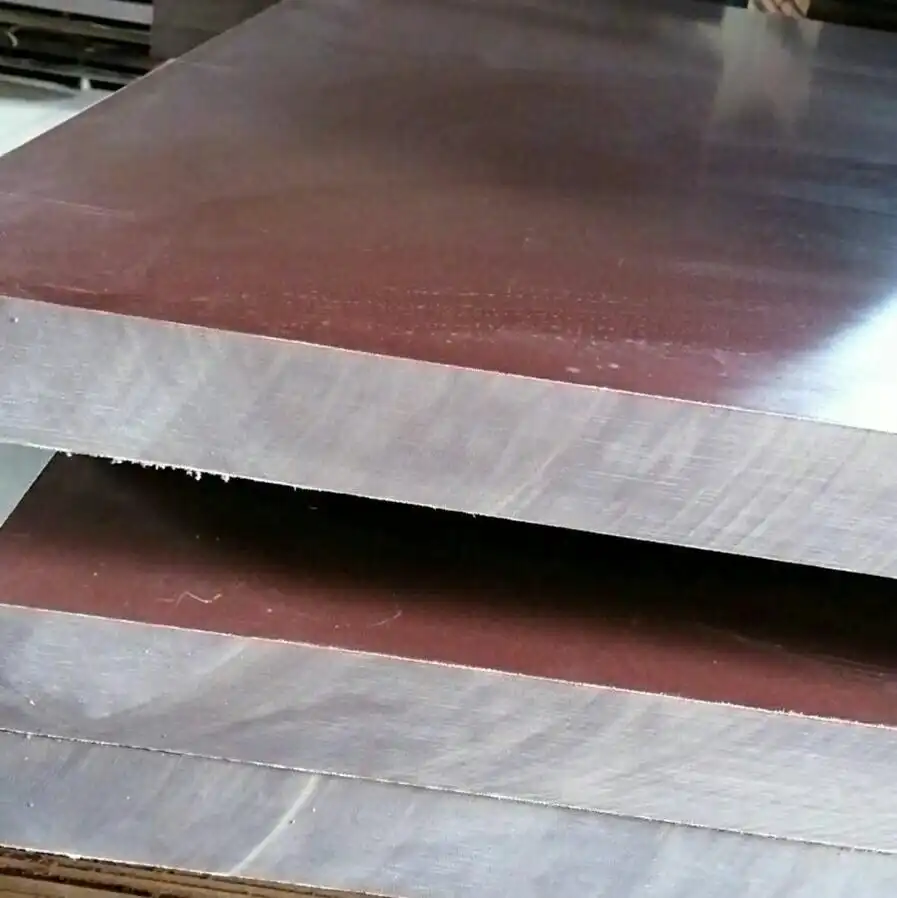

The journey of creating phenolic resin sheets begins with the meticulous preparation of the phenolic resin. This synthetic polymer, derived from the reaction between phenol and formaldehyde, forms the backbone of the laminate's structure. The resin is carefully formulated to achieve the desired properties, such as heat resistance, electrical insulation, and mechanical strength. Once prepared, the resin is used to impregnate the base material, which is typically paper or fabric. This impregnation process ensures that every fiber of the base material is thoroughly coated with resin, setting the stage for the subsequent lamination steps.
Layering and Stacking
After impregnation, the phenolic resin sheet-coated materials are carefully layered and stacked. This step requires precision and attention to detail, as the orientation and number of layers directly influence the final product's characteristics. Technicians meticulously arrange the layers, ensuring uniform thickness and alignment. The stacking process may involve alternating layers of different materials or orientations to achieve specific properties in the finished sheet. This layering technique allows manufacturers to customize the laminate's strength, flexibility, and other attributes to meet diverse application requirements.
Pre-pressing and Degassing
Before the main pressing operation, the stacked layers undergo a pre-pressing phase. This initial compression helps to remove air pockets and excess resin, promoting better bonding between layers. The pre-pressing step is often accompanied by a degassing process, where any trapped air or volatile compounds are expelled from the laminate stack. This crucial step prevents the formation of voids or bubbles in the final product, which could compromise its structural integrity and performance. The pre-pressing and degassing stages set the foundation for the subsequent high-pressure lamination process.
Pressure, Temperature, and Curing Time in Sheet Formation
Application of High Pressure
The heart of the lamination process lies in the application of high pressure to the stacked layers. Industrial hydraulic presses exert immense force, typically ranging from 1000 to 1500 psi, depending on the specific requirements of the phenolic resin sheet being produced. This pressure serves multiple purposes: it ensures intimate contact between the layers, eliminates any remaining air pockets, and facilitates the flow of resin throughout the stack. The uniform distribution of pressure is critical in achieving consistent density and properties across the entire sheet. Advanced press systems may employ programmed pressure cycles to optimize the lamination process for different sheet thicknesses and compositions.
Temperature Control and Heat Distribution
Concurrent with pressure application, precise temperature control plays a pivotal role in the formation of phenolic resin sheets. The laminate stack is heated to temperatures typically ranging from 150°C to 180°C (302°F to 356°F). This heat triggers the cross-linking of the phenolic resin, transforming it from a thermoplastic state to a thermoset structure. The heating process must be carefully managed to ensure uniform temperature distribution throughout the stack. Uneven heating can lead to warping, internal stresses, or incomplete curing. Modern lamination equipment often utilizes advanced heating systems with multiple temperature zones to achieve optimal heat distribution and control.
Curing Time and Cooling Process
The curing time for phenolic resin sheets is a critical parameter that significantly influences the final product's properties. Depending on the thickness of the laminate and the specific resin formulation, curing times can range from 30 minutes to several hours. During this period, the resin undergoes complex chemical reactions, forming a tightly cross-linked structure that imparts the characteristic strength and durability of phenolic laminates. After the curing phase, a controlled cooling process is initiated. This gradual cooling helps prevent thermal shock and ensures dimensional stability in the finished sheet. The cooling rate is often carefully regulated to optimize the internal stress distribution and prevent warping or distortion in the final product.
Quality Control Parameters for Industrial-Grade Laminates
Physical Property Testing
Ensuring the quality of industrial-grade phenolic resin sheets involves rigorous physical property testing. These tests evaluate crucial attributes such as tensile strength, flexural strength, and impact resistance. Technicians employ specialized equipment to subject sample sheets to controlled stress and strain, measuring their response and comparing the results against established standards. Dimensional stability tests assess the laminate's ability to maintain its shape under varying environmental conditions. Additionally, hardness tests, typically using the Rockwell or Barcol scales, provide insights into the sheet's surface durability and resistance to wear. These comprehensive physical property evaluations help manufacturers guarantee that their phenolic laminates meet the demanding requirements of industrial applications.
Electrical Insulation Assessment
Given the widespread use of phenolic resin sheets in electrical applications, thorough electrical insulation testing is paramount. Quality control laboratories conduct a battery of tests to evaluate the laminate's dielectric strength, volume resistivity, and surface resistivity. These parameters indicate the material's ability to resist electrical breakdown and current flow. Arc resistance tests simulate extreme electrical conditions to assess the sheet's performance under high-voltage stress. Additionally, technicians measure the dissipation factor and permittivity to understand the laminate's behavior in alternating electric fields. These electrical property assessments ensure that phenolic resin sheets meet the stringent safety and performance standards required in electrical and electronic industries.
Chemical Resistance and Environmental Durability
The chemical resistance and environmental durability of phenolic resin sheets are critical factors in many industrial applications. Quality control protocols include exposing sample laminates to various chemicals, solvents, and environmental conditions to evaluate their resistance and longevity. Water absorption tests assess the material's susceptibility to moisture ingress, which can affect electrical and mechanical properties. Accelerated aging tests simulate long-term exposure to heat, humidity, and UV radiation, providing insights into the laminate's performance over time. Chemical resistance tests involve immersing samples in various industrial chemicals and measuring any changes in weight, appearance, or mechanical properties. These comprehensive environmental and chemical assessments ensure that phenolic resin sheets maintain their integrity and performance in diverse and challenging industrial environments.
Conclusion
The lamination process of phenolic resin sheets is a sophisticated blend of chemistry, engineering, and precision manufacturing. From the initial resin preparation to the final quality control tests, each stage contributes to the creation of a versatile, durable material that has become indispensable in numerous industries. As technology advances, the processes continue to evolve, offering improved efficiency and even greater control over the final product's properties. Understanding this intricate process not only appreciation for the material but also informs better decision-making in its application and use across various sectors.
