The Mechanism of High Dielectric Strength and Arc Resistance
Molecular Structure and Electrical Resistance

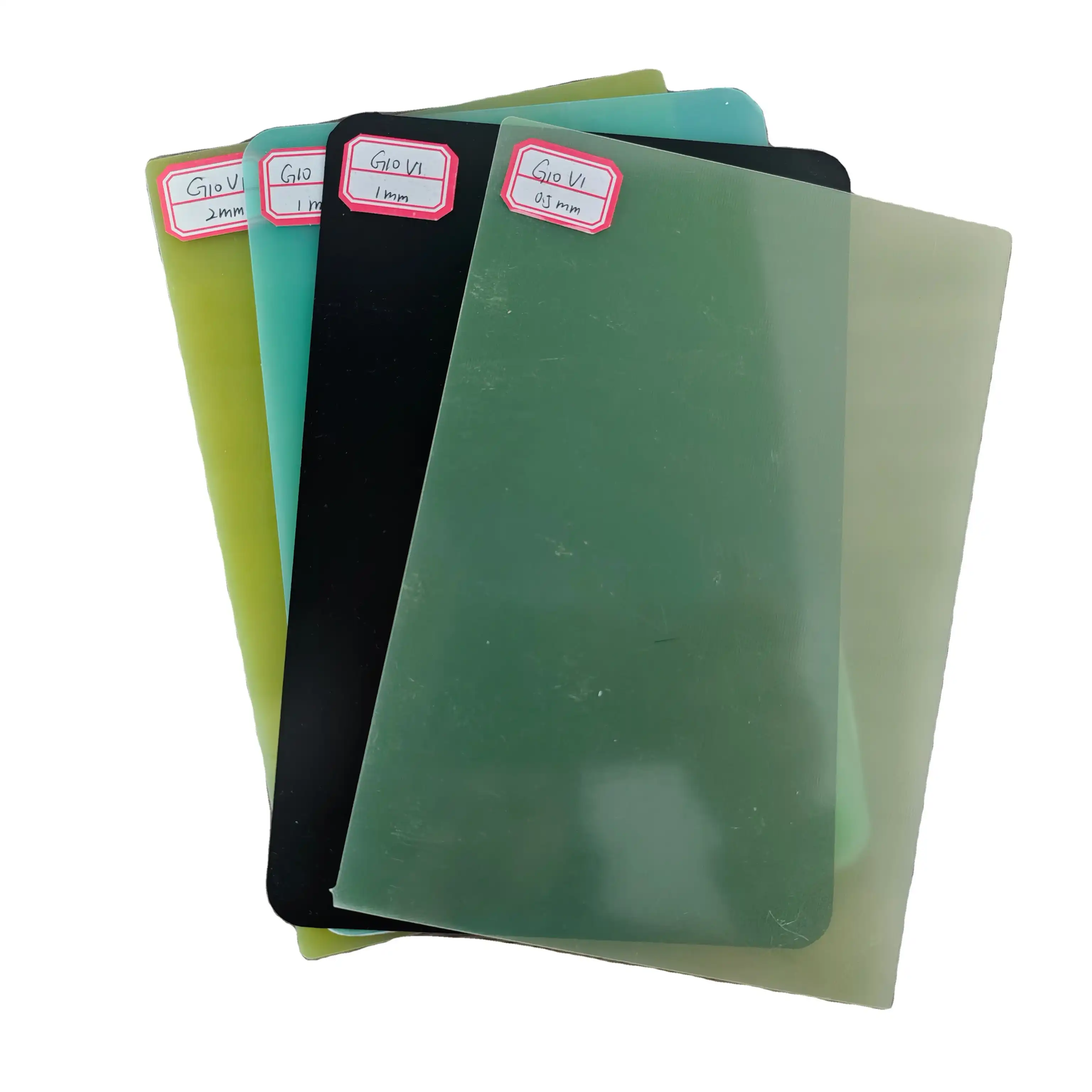

G10 sheet owes its outstanding dielectric strength to its highly organized molecular structure. The epoxy resin matrix, reinforced with glass fibers, forms a tightly-packed network that resists the movement of electrical charges. This arrangement creates a material with inherently high electrical resistance, enabling it to withstand significant voltage differences without electrical breakdown. The synergy between the resin and the glass reinforcement ensures consistent insulation performance, making G10 suitable for demanding applications that require reliable long-term electrical resistance under stress.
Surface Properties and Arc Resistance
The surface characteristics of G10 sheet are integral to its arc resistance performance. Its smooth, non-conductive surface reduces the likelihood of electrical tracking and surface flashover, which can occur under high-voltage conditions. This property helps prevent localized electrical discharge that could compromise insulation integrity. By minimizing the risk of arc formation, G10 ensures safer operation in high-voltage environments, protecting both equipment and personnel from potential electrical hazards, and maintaining the reliability of critical systems.
Comparative Analysis with Other Insulating Materials
G10 sheet demonstrates superior performance in dielectric strength and arc resistance when compared to many alternative insulating materials. Unlike phenolic or polyester-based composites, G10 retains its electrical and mechanical properties across a wide range of environmental conditions, including heat, humidity, and mechanical stress. This combination of resilience and reliability makes G10 a preferred choice for critical electrical insulation applications, where consistent performance and long-term durability are essential for the safe operation of high-voltage equipment.
Why is Low Water Absorption Critical for Insulation?
Impact of Moisture on Electrical Properties
Water absorption can significantly degrade the insulating properties of materials. G10 sheet's low water absorption rate is crucial in maintaining its electrical insulation integrity. Moisture intrusion can create conductive pathways within the material, potentially leading to electrical leakage or breakdown. The hydrophobic nature of G10 sheet helps preserve its insulating capabilities even in humid environments.
Long-term Performance and Reliability
The low water absorption characteristic of G10 sheet contributes to its long-term performance and reliability. By resisting moisture ingress, the material maintains its electrical and mechanical properties over extended periods, ensuring consistent insulation performance throughout its service life. This durability is particularly valuable in applications where replacement or maintenance is challenging or costly.
Dimensional Stability in Varying Humidity
G10 sheet's resistance to water absorption also contributes to its dimensional stability. Unlike some materials that may swell or warp with moisture uptake, G10 sheet maintains its shape and dimensions even in fluctuating humidity conditions. This stability is crucial for applications requiring precise fitting and consistent performance, such as in electrical switchgear or aerospace components.
Maintaining Consistent Performance in Humid Environments
Humidity Resistance Mechanisms
G10 sheet maintains reliable performance in humid conditions due to its specialized composition and manufacturing techniques. The epoxy resin matrix creates a tightly cross-linked network that effectively resists water penetration, preventing moisture from compromising electrical insulation. Additionally, the embedded glass fiber reinforcement acts as a physical barrier against water ingress, further enhancing the sheet's humidity resistance. This combination of chemical and structural protections ensures that G10 retains its dielectric properties and mechanical integrity even in consistently damp or high-moisture environments.
Temperature and Humidity Interplay
Environmental fluctuations involving temperature and humidity can influence the electrical properties of insulating materials. G10 sheet demonstrates exceptional stability under varying thermal and moisture conditions, maintaining consistent dielectric strength and volume resistivity. This capability is particularly important in applications such as outdoor electrical installations, marine equipment, or industrial settings, where both heat and moisture can fluctuate unpredictably. The material's resilience ensures that performance is not compromised, supporting reliable operation and long-term system integrity in environments with dynamic conditions.
Long-term Exposure Effects and Mitigation
Although G10 sheet offers strong resistance to humidity, extended exposure to extreme conditions may slowly affect its performance over time. Factors such as prolonged high humidity combined with elevated temperatures could slightly alter mechanical or electrical properties. Understanding these potential long-term effects is essential for selecting the appropriate material for critical applications. Additional protective measures, including surface coatings, encapsulation, or proper sealing, can be employed to further enhance G10's durability and ensure sustained reliability in challenging environmental conditions.
Conclusion
G10 sheet's exceptional electrical insulation properties make it an invaluable material in various industries. Its high dielectric strength, coupled with low water absorption and consistent performance in humid environments, ensures reliable and long-lasting insulation. The material's unique combination of electrical, mechanical, and environmental resistance properties positions it as a superior choice for demanding applications. As technology advances, G10 sheet continues to prove its worth, adapting to new challenges and maintaining its status as a go-to solution for electrical insulation needs.
FAQs
What makes G10 sheet an ideal choice for electrical insulation?
G10 sheet's high dielectric strength, low water absorption, and excellent dimensional stability make it ideal for electrical insulation applications.
How does G10 sheet perform in humid environments?
G10 sheet maintains consistent performance in humid environments due to its low water absorption rate and stable dielectric properties.
Can G10 sheet be used in high-temperature applications?
Yes, G10 sheet offers good thermal stability and can withstand temperatures up to 140°C (284°F), making it suitable for many high-temperature applications.
Choose J&Q for Your G10 Sheet Insulation Needs
As a leading G10 sheet supplier and manufacturer, J&Q brings over 20 years of experience in producing and selling high-quality insulating sheets. Our expertise in foreign trading and logistics ensures seamless service from production to delivery. For premium G10 sheets that meet your electrical insulation requirements, contact us at info@jhd-material.com. Trust J&Q for reliable, high-performance insulation solutions.
