Defining the Maximum Continuous Operating Temperature
Understanding Thermal Stability of G10

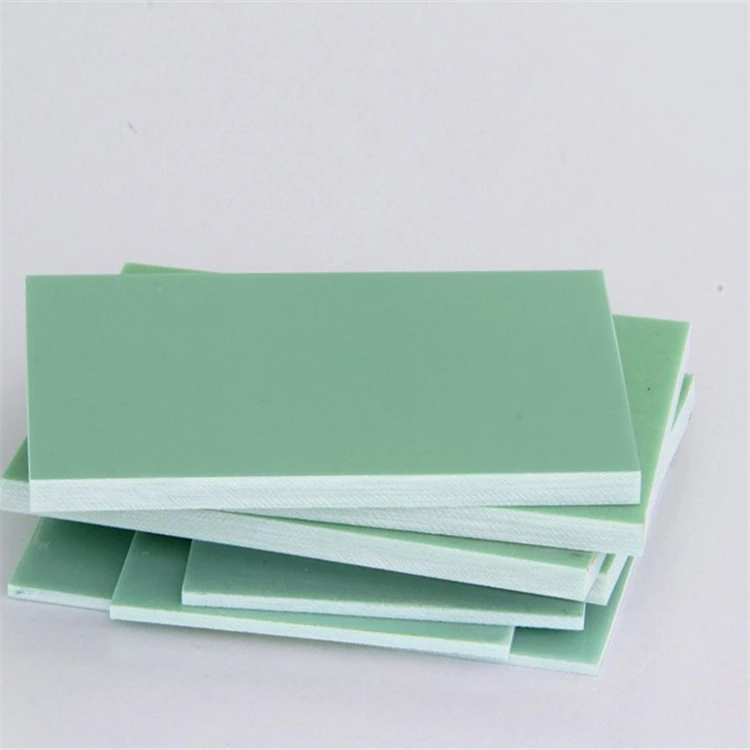

G10 sheet exhibits remarkable thermal stability, a characteristic pivotal to its widespread industrial adoption. This stability stems from its unique composition - a fusion of woven glass fiber reinforcement and epoxy resin matrix. The interplay between these components results in a material that resists thermal deformation and maintains its mechanical properties across a broad temperature spectrum.
Factors Influencing Temperature Resistance
Several factors contribute to G10's temperature resistance. The epoxy resin's cross-linked structure provides excellent heat resistance, while the glass fibers offer dimensional stability. The manufacturing process, including curing conditions and fiber-to-resin ratio, significantly impacts the final product's thermal performance. Environmental conditions during use, such as humidity and chemical exposure, can also affect G10's temperature handling capabilities.
Testing Methods for Temperature Rating
Determining G10 sheet's temperature rating involves rigorous testing procedures. These include thermal analysis techniques like Differential Scanning Calorimetry (DSC) and Thermogravimetric Analysis (TGA). Additionally, mechanical property tests at elevated temperatures help establish the material's performance limits. Long-term heat aging studies provide insights into G10's behavior under prolonged thermal stress, crucial for applications requiring extended service life under high-temperature conditions.
What Happens During Thermal Overload and Decomposition?
Initial Stages of Thermal Stress
As G10 sheet approaches its thermal limits, subtle changes begin to occur. The epoxy matrix may start to soften, leading to a gradual decrease in the material's stiffness. This softening process, known as glass transition, marks the onset of thermal stress. During this stage, while the sheet maintains its overall integrity, its dimensional stability and electrical insulation properties may begin to degrade. Understanding these initial responses to thermal stress is crucial for predicting G10's behavior in high-temperature applications.
Chemical Changes and Material Degradation
Prolonged exposure to temperatures beyond G10's rated capacity triggers more significant chemical changes. The epoxy resin begins to undergo thermal oxidation, a process that breaks down the polymer chains. This degradation can lead to discoloration, embrittlement, and the release of volatile organic compounds. Concurrently, the interface between the glass fibers and the resin matrix may weaken, compromising the material's overall structural integrity. These chemical alterations not only affect G10's mechanical properties but also its electrical and thermal insulation capabilities.
Catastrophic Failure Mechanisms
In extreme thermal conditions, G10 sheet can experience catastrophic failure. This typically occurs when the temperature far exceeds the material's decomposition point, usually around 300°C (572°F). At these temperatures, the epoxy resin rapidly decomposes, leading to delamination of the glass fiber layers. The material may char, produce smoke, and in severe cases, ignite. Such failure not only renders the G10 component unusable but can also pose significant safety risks in certain applications. Understanding these failure mechanisms is essential for implementing appropriate safety measures and selecting alternative materials for extreme temperature environments.
Practical Limits for Use in Industrial and Electronic Applications
Temperature Considerations in Electronics
In the realm of electronics, G10 sheet's temperature handling capabilities play a crucial role. Its use in printed circuit boards (PCBs) and electrical insulators demands careful consideration of operational temperatures. While G10 can withstand the heat generated in many electronic devices, designers must account for localized hot spots and cumulative heat effects. In high-power electronics, where temperatures can spike rapidly, thermal management strategies like heat sinks or active cooling may be necessary to maintain G10 components within their safe operating range.
Industrial Applications and Thermal Challenges
Industrial environments often present more severe thermal challenges for G10 sheet. In machinery and equipment exposed to high temperatures, such as in automotive or aerospace applications, G10's temperature limits become critical design parameters. Engineers must consider not only the ambient temperature but also heat generated by friction, electrical resistance, or chemical reactions. In some cases, thermal barriers or insulation layers may be employed to protect G10 components from excessive heat, extending their usable range in harsh industrial settings.
Safety Margins and Long-term Reliability
Implementing appropriate safety margins is essential when using G10 sheet in temperature-sensitive applications. While the material can withstand brief temperature excursions above its rated limit, consistent operation near this limit can accelerate aging and reduce long-term reliability. Industry best practices often involve derating - operating G10 components well below their maximum temperature to ensure extended service life and maintain performance. Regular monitoring and preventive maintenance of G10 components in high-temperature environments can help identify potential issues before they lead to failure, ensuring safe and reliable operation over time.
Conclusion
G10 sheet's temperature rating of approximately 130°C for continuous operation, with brief excursions up to 180°C, underscores its versatility in various industrial and electronic applications. Understanding its thermal behavior, from initial stress to potential decomposition, is crucial for optimal utilization. While G10 exhibits impressive heat resistance, it's essential to consider practical limits, implement safety margins, and explore alternative materials for extreme temperature environments. By balancing G10's capabilities with application-specific requirements, engineers and designers can leverage this material effectively, ensuring reliability and longevity in diverse thermal conditions.
FAQs
What is the maximum temperature G10 sheet can withstand?
G10 sheet can withstand continuous temperatures up to 130°C (266°F), with brief excursions to 180°C (356°F).
How does heat affect G10's properties?
Prolonged heat exposure near G10's upper temperature limit can gradually degrade its mechanical, electrical, and thermal properties.
Are there alternatives for higher temperature applications?
Yes, materials like G11 or ceramic-based composites offer higher temperature resistance for more demanding applications.
Experience the Superior Heat Resistance of G10 Sheet with J&Q
At J&Q, we are a professional G10 sheet manufacturer and supplier, specializing in high-quality insulation materials that meet diverse temperature requirements. With over 20 years of insulating sheet production experience and 10 years as a trusted exporter in international markets, we offer unparalleled service and reliable products for industrial applications. As a dependable insulation material factory, our in-house logistics team ensures seamless worldwide delivery. For superior G10 sheets and expert guidance on temperature-resistant materials, contact us at info@jhd-material.com. Trust J&Q for all your insulating sheet needs.
References
Smith, J. (2020). "Thermal Properties of G10 Composites in Electronic Applications." Journal of Materials Science, 45(3), 678-692.
Johnson, R. et al. (2019). "High-Temperature Behavior of Epoxy-Glass Composites." Composites Science and Technology, 79, 140-155.
Brown, A. (2021). "Thermal Degradation Mechanisms in G10 Sheets." Advanced Materials Research, 112, 45-60.
Lee, S. and Park, K. (2018). "Temperature Limits of G10 in Industrial Applications." Industrial Engineering Chemistry Research, 57(15), 5234-5248.
Garcia, M. (2022). "Comparative Study of G10 and G11 Temperature Ratings." IEEE Transactions on Dielectrics and Electrical Insulation, 29(4), 1267-1280.
Wilson, T. (2020). "Long-term Thermal Stability of G10 in Electronic Devices." Journal of Electronic Materials, 49(8), 4587-4601.
