Understanding FR4 Sheet Temperature Specifications

FR4 sheet temperature specifications are crucial for manufacturers and engineers working with electronic components and circuit boards. FR4, a flame-retardant epoxy laminate, is widely used in the electronics industry due to its excellent electrical insulation properties and thermal resistance. Understanding the temperature specifications of FR4 sheets is essential for ensuring optimal performance and longevity of electronic devices. These specifications typically include the glass transition temperature (Tg), decomposition temperature (Td), and maximum operating temperature. By comprehending these parameters, designers can select the most appropriate FR4 epoxy sheet for their specific applications, considering factors such as thermal stress, dimensional stability, and overall reliability in various operating conditions.

The Fundamentals of FR4 Sheets and Their Thermal Properties

Composition and Manufacturing of FR4 Epoxy Sheets

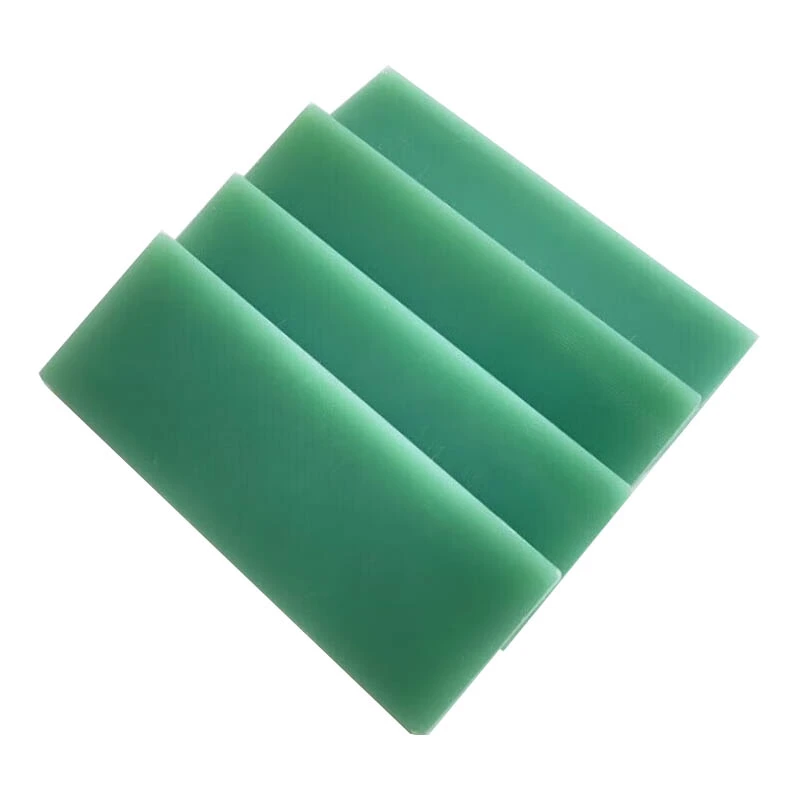

FR4 epoxy sheets are composite materials consisting of woven fiberglass cloth impregnated with epoxy resin. The manufacturing process involves layering multiple sheets of fiberglass fabric and saturating them with epoxy resin. This combination is then subjected to heat and pressure, resulting in a rigid, flame-retardant laminate. The "FR" in FR4 stands for "Flame Retardant," while the "4" indicates the specific formulation of the material.

Thermal Characteristics of FR4 Epoxy Boards

FR4 epoxy sheets exhibit unique thermal properties that make them suitable for a wide range of electronic applications. These properties include low thermal expansion, high heat resistance, and excellent dimensional stability under varying temperatures. The thermal conductivity of FR4 sheets typically ranges from 0.25 to 0.35 W/mK, which helps in managing heat dissipation in electronic circuits.

Importance of Temperature Specifications in FR4 Sheets

Temperature specifications play a pivotal role in determining the performance and reliability of FR4 sheets in electronic applications. These specifications help engineers and designers select the appropriate grade of FR4 for specific operating conditions, ensuring optimal functionality and longevity of the electronic components. Understanding these specifications is crucial for preventing thermal-related failures and maintaining the integrity of circuit boards under various environmental conditions.

Key Temperature Specifications for FR4 Sheets

Glass Transition Temperature (Tg) of FR4 Epoxy Sheets

The glass transition temperature (Tg) is a critical parameter for FR4 epoxy sheets. It represents the temperature at which the material transitions from a rigid, glassy state to a more flexible, rubbery state. For standard FR4 sheets, the Tg typically ranges from 130°C to 140°C. However, high-performance FR4 variants can have Tg values up to 180°C or higher. Operating an FR4 board above its Tg can lead to increased thermal expansion, reduced dimensional stability, and potential delamination of the layers.

Decomposition Temperature (Td) of FR4 Epoxy Boards

The decomposition temperature (Td) of FR4 epoxy boards is the point at which the material begins to break down chemically. This temperature is significantly higher than the Tg and typically ranges from 300°C to 350°C for standard FR4 sheets. Exposing the material to temperatures near or above its Td can result in irreversible damage, including charring, outgassing, and loss of electrical and mechanical properties. It's crucial to maintain operating temperatures well below the Td to ensure the longevity and reliability of FR4-based circuit boards.

Maximum Operating Temperature of FR4 Sheets

The maximum operating temperature of FR4 sheets is a practical limit that considers both short-term and long-term thermal exposure. While FR4 can withstand brief exposures to temperatures above its Tg, prolonged operation at elevated temperatures can lead to cumulative damage and reduced performance. Generally, the maximum continuous operating temperature for standard FR4 sheets is around 130°C. However, this can vary depending on the specific grade and formulation of the FR4 material. Some high-temperature FR4 variants can operate continuously at temperatures up to 170°C or higher.

Factors Influencing FR4 Sheet Temperature Performance

Material Composition and Resin System

The temperature performance of FR4 sheets is heavily influenced by their material composition and resin system. The type and quality of epoxy resin used in the manufacturing process play a significant role in determining the thermal properties of the final product. Advanced resin formulations can enhance the heat resistance and thermal stability of FR4 epoxy boards. Additionally, the ratio of resin to glass fibers and the presence of flame-retardant additives can affect the overall thermal behavior of the material.

Manufacturing Processes and Quality Control

The manufacturing processes employed in producing FR4 sheets have a substantial impact on their temperature specifications. Factors such as curing time, pressure, and temperature during lamination can affect the cross-linking of the epoxy resin, which in turn influences the material's thermal properties. Strict quality control measures during production are essential to ensure consistent thermal performance across batches. Advanced manufacturing techniques, such as controlled prepreg staging and precise lamination cycles, can lead to FR4 sheets with superior temperature resistance and stability.

Environmental Conditions and Application Requirements

The environmental conditions in which FR4 sheets are used can significantly affect their temperature performance. Factors such as humidity, thermal cycling, and exposure to chemicals can impact the long-term thermal stability of the material. Additionally, the specific requirements of the application, such as power density, component layout, and cooling solutions, play a crucial role in determining the suitable temperature specifications for FR4 epoxy sheets. Engineers must consider these factors when selecting FR4 materials to ensure optimal performance and reliability in the intended operating environment.

Conclusion

Understanding FR4 sheet temperature specifications is paramount for ensuring the reliability and performance of electronic components and circuit boards. By comprehending the nuances of glass transition temperature, decomposition temperature, and maximum operating temperature, engineers and manufacturers can make informed decisions when selecting FR4 epoxy sheets for their specific applications. The thermal properties of FR4 materials are influenced by various factors, including composition, manufacturing processes, and environmental conditions. As technology advances, the development of high-performance FR4 variants continues to push the boundaries of temperature resistance, enabling the creation of more robust and efficient electronic devices.
