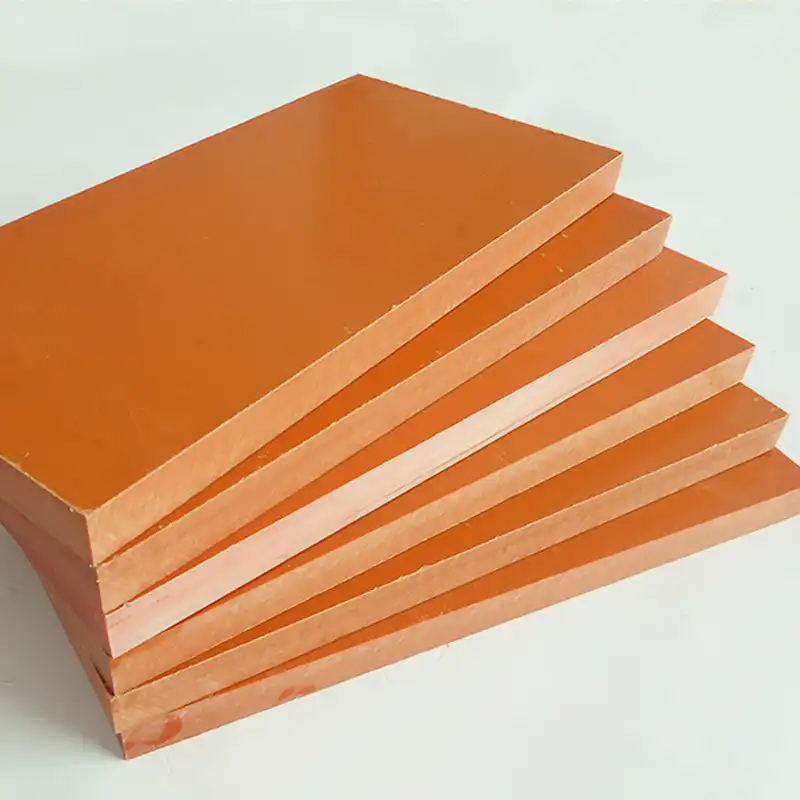

What Are the Standard Thickness Ranges for Bakelite Sheets?
Thin Bakelite Sheets
Thin Bakelite sheets, typically ranging from 0.5mm to 3mm, are extensively used in applications where minimal space, low weight, and precise insulation are critical. These sheets are particularly suitable for compact electronic devices, printed circuit boards, and insulating layers within transformers. Their slim profile enables intricate designs, tight tolerances, and space-saving configurations without sacrificing the material’s inherent electrical insulation and thermal stability. Additionally, thin Bakelite sheets provide sufficient mechanical support for small components while maintaining the high dielectric strength required for safe and reliable operation in sensitive electronic applications.
Medium-Thickness Bakelite Sheets
Medium-thickness Bakelite sheets, generally between 3mm and 10mm, offer an ideal balance between mechanical strength and flexibility. They are commonly utilized in switchgear components, electrical enclosures, and automotive parts where moderate load-bearing capacity is necessary. These sheets provide robust insulation properties while accommodating mechanical stress, making them versatile across multiple industrial applications. Medium-thickness Bakelite sheets are also preferred for components requiring precise machining, drilled holes, or custom shaping, ensuring consistent performance under normal operational temperatures and electrical loads. Their adaptability makes them a go-to choice in many standard electrical and mechanical applications.
Thick Bakelite Sheets
Thick Bakelite sheets, measuring from 10mm to 50mm, are engineered for heavy-duty industrial applications requiring maximum mechanical strength and durability. These robust sheets are frequently employed in high-voltage insulation systems, industrial machinery, and load-bearing structural components. Their substantial thickness enhances resistance to warping, environmental stresses, and long-term wear, ensuring reliable performance in demanding conditions. Thick Bakelite sheets provide exceptional electrical insulation, mechanical integrity, and thermal stability, making them essential in applications where safety, durability, and long-term reliability are paramount. They are particularly valuable in environments with high mechanical or thermal stress.
Manufacturing Tolerances and Dimensional Accuracy of Bakelite
Thickness Tolerances
The manufacturing tolerances for Bakelite sheets are crucial in ensuring consistent performance across various applications. For sheets less than 3mm thick, the industry-standard tolerance is typically ±10%. This allowance accounts for slight variations in the manufacturing process while maintaining the sheet's overall functionality. For thicker sheets, 3mm and above, the tolerance tightens to ±5%, reflecting the need for greater precision in more substantial components.
Dimensional Stability
Bakelite's inherent dimensional stability contributes to its reliability in manufacturing processes. The material's resistance to warping and shrinkage ensures that the sheets maintain their shape and size over time, even when exposed to varying environmental conditions. This stability is particularly valuable in applications where precise fit and alignment are critical, such as in electrical connectors and switchgear components.
Surface Finish Considerations
The surface finish of Bakelite sheets is another important aspect of their manufacturing tolerances. Standard sheets typically have a smooth, glossy finish, but specialized surface textures can be produced to meet specific requirements. The surface roughness is usually measured in micrometers (µm) and can be controlled to achieve the desired level of smoothness or grip, depending on the intended application.
Thickness Selection Guidelines for Electrical and Mechanical Applications
Electrical Insulation Requirements
When selecting Bakelite sheets for electrical applications, the thickness is often determined by the voltage rating and dielectric strength requirements. Thicker sheets generally provide higher insulation values and are suitable for high-voltage applications. For example, a 6mm thick Bakelite sheet might be appropriate for insulating components in a 1000V system, while a 12mm sheet could be necessary for 5000V applications. It's crucial to consult industry standards and perform thorough electrical testing to ensure the chosen thickness meets safety and performance criteria.
Mechanical Strength Considerations
For mechanical applications, the thickness of Bakelite sheets is selected based on the load-bearing requirements and structural integrity needed. Thicker sheets offer greater resistance to bending and impact, making them suitable for applications such as machine guards or load-bearing components. The flexural strength of Bakelite increases with thickness, allowing engineers to optimize the material usage while meeting the mechanical demands of the application.
Thermal Management Factors
In applications where heat dissipation is a concern, the thickness of Bakelite sheets plays a role in thermal management. While Bakelite is known for its heat resistance, thicker sheets can act as better insulators, potentially trapping heat in certain designs. Conversely, thinner sheets may allow for better heat dissipation in some scenarios. Engineers must carefully consider the thermal characteristics of Bakelite in relation to the sheet thickness to ensure optimal performance in heat-sensitive applications.
Conclusion
Understanding the typical tolerances and thicknesses available for Bakelite sheets is essential for engineers and designers working with this versatile material. The wide range of thicknesses, from thin sheets suitable for compact electronics to thick, robust sheets for heavy industrial applications, demonstrates Bakelite's adaptability across various sectors. By carefully considering the electrical, mechanical, and thermal requirements of each application, professionals can select the optimal Bakelite sheet thickness to ensure performance, reliability, and longevity in their designs.
FAQs
What is the maximum thickness available for Bakelite sheets?
Bakelite sheets are typically available up to 50mm thick, suitable for heavy-duty industrial applications.
How does the thickness of a Bakelite sheet affect its electrical insulation properties?
Generally, thicker Bakelite sheets provide better electrical insulation, with higher dielectric strength suitable for high-voltage applications.
Can custom thicknesses be manufactured for specific applications?
Yes, many manufacturers offer custom thickness options to meet specific project requirements, subject to minimum order quantities.
