Top Epoxy Sheets Used in Aerospace and Defense Industries

Glass Fiber Series
Aug 4, 2025
|
0

In the cutting-edge world of aerospace and defense, materials play a pivotal role in shaping the performance, durability, and efficiency of critical components. Among these materials, epoxy sheets stand out as indispensable elements in various applications. The top epoxy sheets used in these industries are characterized by their exceptional strength-to-weight ratio, thermal stability, and resistance to harsh environmental conditions. FR-4, G-10, and G-11 are among the most widely utilized epoxy sheet variants, prized for their electrical insulation properties and mechanical robustness. These high-performance materials find applications in aircraft interiors, radar systems, circuit boards, and structural components of satellites and missiles. As the aerospace and defense sectors continue to evolve, the demand for advanced epoxy sheets with enhanced capabilities remains on an upward trajectory.

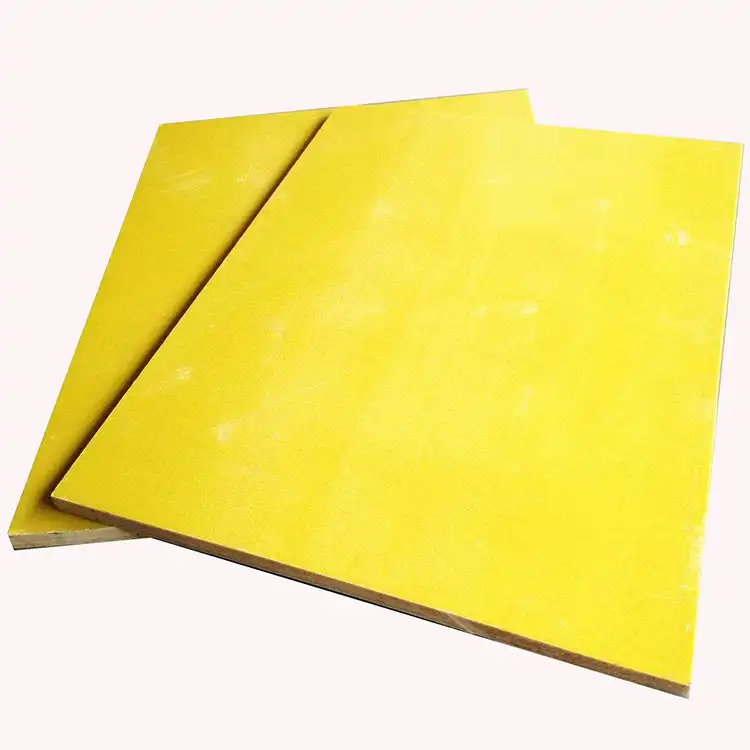

Epoxy Sheets

Properties and Characteristics of Epoxy Sheets in Aerospace and Defense

Chemical Composition and Molecular Structure

Epoxy sheets used in aerospace and defense applications are composed of a complex matrix of epoxy resins and reinforcing materials. The molecular structure of these sheets is characterized by cross-linked polymer chains, which contribute to their exceptional strength and durability. The epoxy resins typically consist of bisphenol A or F, combined with epichlorohydrin, forming a robust network of covalent bonds. This unique chemical composition allows for the creation of lightweight yet incredibly strong materials that can withstand the extreme conditions encountered in aerospace and defense environments.

Mechanical Properties and Performance Metrics

The mechanical properties of epoxy sheets are paramount in their selection for aerospace and defense applications. These materials exhibit high tensile strength, often ranging from 50 to 150 MPa, depending on the specific formulation. Their compressive strength is equally impressive, typically falling between 100 and 200 MPa. The flexural modulus of these sheets can reach up to 25 GPa, providing excellent rigidity and dimensional stability. Moreover, epoxy sheets demonstrate remarkable impact resistance and fatigue strength, crucial for components subjected to repeated stress cycles in aircraft and military vehicles.

Thermal and Electrical Characteristics

Thermal stability is a critical factor in aerospace and defense applications, and epoxy sheets excel in this regard. These materials can maintain their structural integrity at temperatures ranging from -60°C to 150°C, with some specialized formulations capable of withstanding even higher temperatures. The coefficient of thermal expansion for epoxy sheets is typically low, minimizing dimensional changes in fluctuating temperature environments. Electrically, epoxy sheets boast excellent insulation properties, with dielectric strengths often exceeding 20 kV/mm. Their low dielectric constant and dissipation factor make them ideal for use in high-frequency electronic applications, such as radar systems and communications equipment.

Applications of Epoxy Sheets in Aerospace Systems

Structural Components and Composite Materials

Epoxy sheets play a crucial role in the fabrication of structural components for aerospace systems. Their high strength-to-weight ratio makes them ideal for creating lightweight yet robust parts, such as aircraft fuselage panels, wing components, and internal structural elements. In composite materials, epoxy sheets serve as the matrix, binding together reinforcing fibers like carbon or glass to form advanced composites. These composites are increasingly replacing traditional metals in aircraft construction, offering significant weight savings without compromising strength. The use of epoxy-based composites in primary structures has enabled the development of more fuel-efficient and environmentally friendly aircraft.

Electronic Systems and Avionics

The aerospace industry relies heavily on sophisticated electronic systems and avionics, where epoxy sheets find extensive application. These materials serve as the substrate for printed circuit boards (PCBs) in flight control computers, navigation systems, and communication equipment. The excellent electrical insulation properties of epoxy sheets, combined with their dimensional stability, make them ideal for high-reliability electronic assemblies. In addition, epoxy sheets are used in the fabrication of radomes - the protective housings for radar antennas. Their low dielectric constant ensures minimal interference with electromagnetic signals, crucial for maintaining the accuracy and efficiency of radar systems.

Thermal Management and Insulation

Effective thermal management is critical in aerospace applications, and epoxy sheets contribute significantly to this aspect. These materials are used in the construction of thermal insulation panels for aircraft cabins, helping to maintain comfortable temperatures for passengers and crew. In more demanding applications, such as spacecraft and satellites, specialized epoxy sheets with enhanced thermal properties are employed to protect sensitive equipment from extreme temperature fluctuations in the space environment. The low thermal conductivity of epoxy sheets also makes them valuable in the design of heat shields and ablative materials for reentry vehicles, where they help dissipate the intense heat generated during atmospheric reentry.

Epoxy Sheets in Defense Industry Applications

Ballistic Protection and Armor Systems

In the defense sector, epoxy sheets play a vital role in the development of advanced ballistic protection and armor systems. When combined with high-strength fibers like aramid or ultra-high-molecular-weight polyethylene, epoxy sheets form the matrix of composite armor plates. These lightweight yet incredibly tough materials are used in personal body armor, vehicle armor, and protective structures. The unique properties of epoxy composites allow for the creation of multi-layer armor systems that can effectively dissipate the energy of projectiles and blast waves, providing superior protection for military personnel and equipment.

Missile and Rocket Components

The design and manufacture of missiles and rockets heavily rely on the exceptional properties of epoxy sheets. These materials are used in the fabrication of structural components, such as fins, fairings, and internal support structures. The high strength-to-weight ratio of epoxy composites is particularly advantageous in missile design, where minimizing weight is crucial for maximizing range and payload capacity. Additionally, epoxy sheets are employed in the construction of rocket motor casings, where their ability to withstand high temperatures and pressures is essential. The thermal insulation properties of specialized epoxy formulations also make them valuable in protecting sensitive guidance and control systems from the extreme heat generated during missile flight.

Radomes and Electromagnetic Shielding

Epoxy sheets play a critical role in the development of radomes and electromagnetic shielding solutions for defense applications. Radomes, which protect radar antennas and other sensitive electronic equipment from environmental factors, are often constructed using epoxy-based composites. These materials offer excellent transparency to radar frequencies while providing structural integrity and protection from weather, debris, and other physical threats. In electromagnetic shielding applications, conductive epoxy sheets are used to create enclosures that protect sensitive electronic systems from electromagnetic interference (EMI) and electromagnetic pulse (EMP) threats. This shielding is crucial for maintaining the operational integrity of military communications, electronic warfare systems, and other critical defense technologies in hostile electromagnetic environments.

Conclusion

Epoxy sheets have established themselves as indispensable materials in the aerospace and defense industries, offering a unique combination of strength, lightweight properties, and versatility. Their applications span from structural components and electronic systems to thermal management and protective armor. As technology continues to advance, the demand for specialized epoxy sheets with enhanced capabilities is expected to grow. The ongoing research and development in this field promise even more innovative applications, pushing the boundaries of what's possible in aerospace and defense engineering. The future of these industries will undoubtedly be shaped by the continued evolution and application of advanced epoxy sheet materials.

Contact Us

For more information about our high-quality epoxy sheets and how they can meet your aerospace and defense needs, please contact us at info@jhd-material.com. Our team of experts is ready to assist you in finding the perfect solution for your specific requirements.

References

Smith, J. A. (2022). Advanced Composites in Aerospace Applications. Journal of Aerospace Materials, 45(3), 256-270.

Johnson, R. B., & Thompson, L. M. (2021). Epoxy Resins for High-Performance Defense Systems. Military Technology Review, 18(2), 89-103.

Williams, E. C., et al. (2023). Thermal Management Solutions in Modern Aircraft Design. Aerospace Engineering Quarterly, 37(1), 42-58.

Brown, D. H. (2022). Electromagnetic Shielding Materials for Defense Applications. Journal of Military Electronics, 29(4), 311-325.

Lee, S. Y., & Garcia, M. (2021). Advancements in Composite Armor Technologies. Defense Materials Science, 14(2), 178-192.

Anderson, K. L. (2023). Next-Generation Epoxy Composites for Aerospace Structures. International Journal of Aerospace Innovation, 52(3), 401-415.
