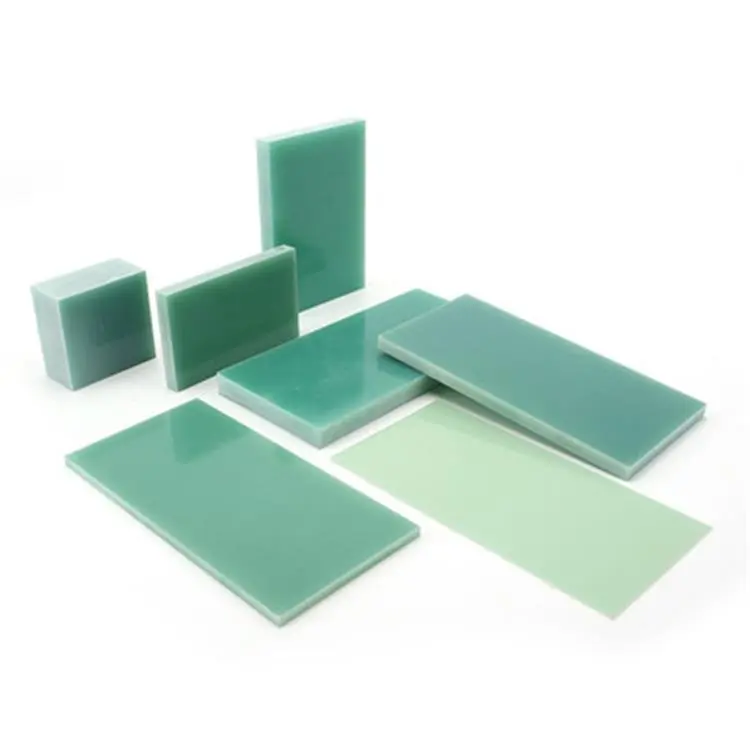

How G10 Fiberglass Plate Enhances Electrical Integrity in Motors?
Superior Dielectric Strength for Motor Insulation
G10 fiberglass plate boasts exceptional dielectric strength, a critical property for motor insulation. This characteristic enables the material to effectively resist electrical breakdown under high voltage stress, preventing current from flowing through the insulation. In motor applications, G10 plates are strategically placed between conductive components, such as windings and the motor housing, creating a robust barrier against electrical leakage. The plate's ability to maintain its insulating properties under extreme conditions ensures the motor's electrical integrity remains intact, even during periods of peak load or temperature fluctuations.
Mitigating Electromagnetic Interference in Motor Systems
Another significant advantage of G10 fiberglass plate in motor applications is its capacity to mitigate electromagnetic interference (EMI). Motors, particularly those in industrial settings, often operate in environments with high levels of electromagnetic noise. G10 plates, when strategically incorporated into motor design, act as effective EMI shields. They help to contain the electromagnetic fields generated by the motor's operation, preventing interference with nearby electronic equipment. This shielding effect not only enhances the motor's performance but also contributes to the overall electromagnetic compatibility of the system in which it operates.
Enhancing Motor Efficiency through Precision Insulation
The dimensional stability of G10 fiberglass plate contributes significantly to motor efficiency. In motor construction, precise spacing between components is crucial for optimal performance. G10 plates, with their excellent dimensional stability across a wide range of temperatures, maintain their shape and size consistently. This property allows for the creation of precise air gaps and insulation layers within the motor, contributing to improved magnetic flux distribution and reduced energy losses. The result is a more efficient motor that operates with lower heat generation and higher overall performance.
Thermal and Mechanical Durability of G10 Fiberglass Plate in Transformers
Heat Dissipation and Thermal Management in Transformer Design
In transformer applications, G10 fiberglass plate excels in thermal management. Transformers generate significant heat during operation, and effective heat dissipation is crucial for maintaining performance and longevity. G10 plates, strategically placed within the transformer structure, aid in heat distribution and dissipation. The material's low thermal conductivity helps to isolate hot spots, while its thermal stability ensures that it maintains its structural integrity and insulating properties even under prolonged exposure to high temperatures. This thermal management capability contributes to the overall efficiency and reliability of the transformer, reducing the risk of premature failure due to thermal stress.
Mechanical Strength for Transformer Core Support
The exceptional mechanical strength of G10 fiberglass plate makes it an ideal material for transformer core support structures. In large power transformers, the core and windings exert significant mechanical forces, especially during power surges or short circuits. G10 plates, used as support elements, provide the necessary rigidity and strength to maintain the transformer's internal geometry. This structural support is crucial in preventing deformation of the core and windings, which could lead to reduced efficiency or even failure. The high compressive and tensile strength of G10 ensures that the transformer's internal components remain securely in place, even under extreme operational conditions.
Chemical Resistance in Oil-Filled Transformers
Many transformers, particularly those in high-voltage applications, use oil as a coolant and insulating medium. G10 fiberglass plate's excellent chemical resistance makes it particularly suitable for use in oil-filled transformers. The material remains stable and does not degrade when in constant contact with transformer oil, maintaining its insulating and structural properties over extended periods. This chemical stability is crucial for the long-term reliability of the transformer, as it prevents the breakdown of insulation components that could lead to electrical failures or oil contamination. The use of G10 plates in oil-immersed environments ensures consistent performance and extends the service life of the transformer.
G10 Fiberglass Plate for Long-Term Reliability in Power Equipment
Aging Resistance and Longevity in Electrical Systems
One of the most significant advantages of G10 fiberglass plate in power equipment is its exceptional aging resistance. Unlike many organic insulating materials that degrade over time due to thermal stress and electrical aging, G10 maintains its properties for extended periods. This longevity is crucial in power equipment, where replacement or maintenance can be costly and disruptive. The material's resistance to thermal degradation, electrical tracking, and partial discharge ensures that motors and transformers insulated with G10 plates maintain their performance characteristics over many years of operation. This durability translates to reduced maintenance requirements and lower lifecycle costs for electrical systems.
Environmental Adaptability in Diverse Operating Conditions
G10 fiberglass plate demonstrates remarkable adaptability to diverse environmental conditions, making it suitable for power equipment in various settings. Its low moisture absorption rate ensures that the material maintains its insulating properties even in humid environments, preventing issues like moisture-induced degradation or electrical tracking. Additionally, G10's resistance to a wide range of chemicals makes it suitable for use in industrial environments where exposure to corrosive substances is common. This environmental versatility allows motors and transformers insulated with G10 to operate reliably in challenging conditions, from offshore installations to chemical processing plants.
Safety Enhancement through Flame Retardancy
Safety is a paramount concern in electrical systems, and G10 fiberglass plate contributes significantly to enhancing the safety profile of motors and transformers. The material's inherent flame retardancy is a crucial feature in preventing the spread of fire in the event of an electrical fault. G10 plates have self-extinguishing properties and do not support combustion, reducing the risk of fire propagation within electrical equipment. This flame-retardant characteristic is particularly valuable in high-risk environments or in applications where fire safety is a critical consideration. The use of G10 in motor and transformer insulation not only protects the equipment itself but also contributes to the overall safety of the facility in which it operates.
Conclusion
G10 fiberglass plate stands as a cornerstone in motor and transformer insulation, offering a unique combination of electrical, thermal, and mechanical properties. Its role in enhancing electrical integrity, thermal management, and long-term reliability makes it an indispensable material in power equipment design. As the demand for more efficient and reliable electrical systems continues to grow, the importance of G10 fiberglass plate in motor and transformer applications is likely to increase. Its ability to meet stringent performance requirements while ensuring safety and longevity positions G10 as a key enabler in the advancement of electrical power systems across various industries.
FAQs
What makes G10 fiberglass plate ideal for motor and transformer insulation?
G10 fiberglass plate is ideal due to its excellent electrical insulation properties, high mechanical strength, thermal stability, and chemical resistance. It effectively isolates conductive components, withstands high temperatures, and maintains its integrity under stress.
Can G10 fiberglass plate withstand oil immersion in transformers?
Yes, G10 fiberglass plate exhibits excellent chemical resistance, making it suitable for use in oil-filled transformers. It remains stable and does not degrade when in constant contact with transformer oil.
How does G10 fiberglass plate contribute to the safety of electrical equipment?
G10 fiberglass plate enhances safety through its inherent flame retardancy. It has self-extinguishing properties and does not support combustion, reducing the risk of fire propagation in electrical equipment.
Experience the Superior Insulation of G10 Fiberglass Plate with J&Q
At J&Q, we specialize in manufacturing high-quality G10 fiberglass plates for motor and transformer insulation. With over 20 years of production experience and 10 years in international trade, we offer unparalleled expertise and service. Our in-house logistics ensure seamless delivery worldwide. For premium G10 fiberglass plates and expert advice, contact us at info@jhd-material.com.
