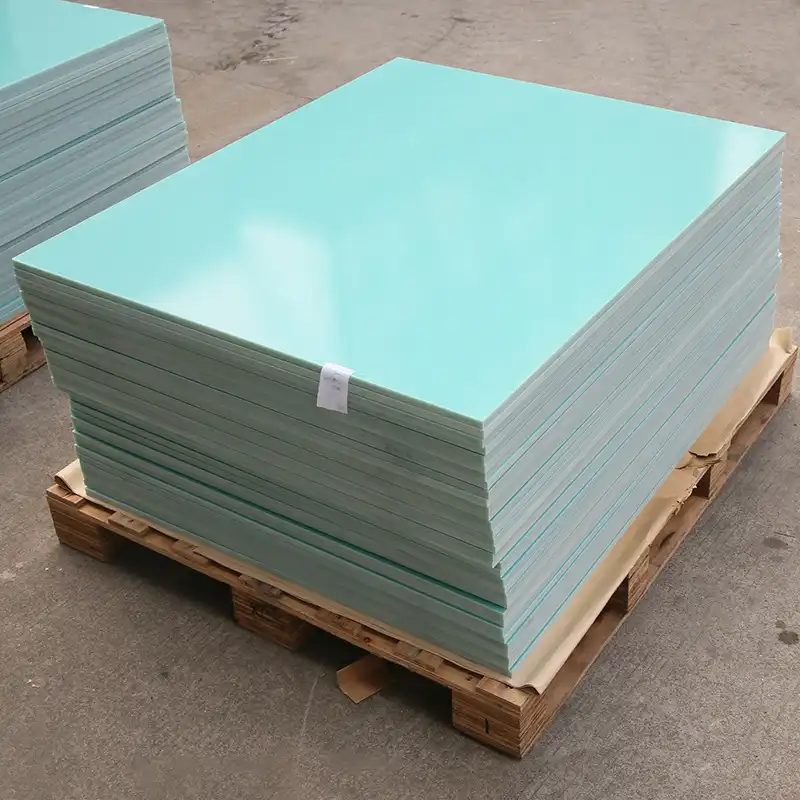

How G10 Epoxy Fiberglass Sheet Improves Switchgear Reliability?
Enhanced Insulation Performance
G10 epoxy fiberglass sheets excel in providing superior insulation for switchgear components. Their high dielectric strength ensures effective isolation between conductive parts, preventing electrical breakdown and arcing. This enhanced insulation performance contributes to the overall reliability of switchgear systems, reducing the risk of equipment failure and enhancing operational safety. The material's low moisture absorption properties further reinforce its insulating capabilities, maintaining consistent performance even in humid environments.
Thermal Stability and Arc Resistance
Switchgear often operates in high-temperature environments and may be exposed to electrical arcs. G10 epoxy fiberglass sheets exhibit excellent thermal stability, retaining their mechanical and electrical properties across a wide temperature range. This characteristic is crucial for maintaining the integrity of switchgear components during normal operation and fault conditions. Additionally, the material's inherent arc resistance helps contain and extinguish electrical arcs, minimizing damage to surrounding equipment and enhancing personnel safety.
Dimensional Stability for Precision Components
The dimensional stability of G10 epoxy fiberglass sheets is paramount in switchgear applications where precise tolerances are required. Unlike some materials that may warp or deform under stress or temperature fluctuations, G10 maintains its shape and dimensions. This stability ensures that critical components such as busbars, insulators, and support structures remain aligned and functional throughout the switchgear's operational life. The material's resistance to creep and long-term deformation contributes to the longevity and reliability of switchgear assemblies.
Insulation and Mechanical Strength in Power Distribution Systems
High Voltage Insulation Capabilities
In power distribution systems, G10 epoxy fiberglass sheets serve as excellent insulators for high voltage applications. Their high dielectric strength allows for effective insulation between conductors carrying different potentials, preventing current leakage and electrical failures. The material's ability to maintain its insulating properties under various environmental conditions, including exposure to oils and chemicals commonly found in electrical equipment, makes it an ideal choice for power distribution components such as transformer bushings, switchgear panels, and insulating barriers.
Mechanical Robustness for Structural Support
Beyond its insulating properties, G10 epoxy fiberglass sheet provides exceptional mechanical strength, making it suitable for structural applications within power distribution systems. Its high compressive and flexural strength allows it to withstand the physical stresses encountered in electrical equipment. This mechanical robustness is crucial for components such as busbar supports, insulator standoffs, and structural members in switchgear enclosures. The material's ability to maintain its mechanical properties over time contributes to the long-term reliability and safety of power distribution infrastructure.
Resistance to Environmental Factors
Power distribution systems are often exposed to harsh environmental conditions, including moisture, temperature extremes, and corrosive agents. G10 epoxy fiberglass sheets exhibit excellent resistance to these environmental factors, ensuring the longevity of insulating and structural components. Their low water absorption rate prevents degradation of electrical properties in humid conditions, while their chemical resistance protects against corrosion and deterioration. This durability translates to reduced maintenance requirements and improved reliability of power distribution equipment over its operational lifespan.
G10 Epoxy Fiberglass Sheet for High-Voltage and Industrial Switchgear
Customization for Specific Switchgear Designs
G10 epoxy fiberglass sheets offer a high degree of customization, allowing manufacturers to tailor the material properties to specific switchgear requirements. This flexibility enables the production of components with optimized electrical, mechanical, and thermal characteristics for high-voltage and industrial applications. Custom formulations can enhance specific properties such as tracking resistance, flame retardancy, or UV stability, addressing the unique challenges of different switchgear environments. The ability to machine and fabricate G10 sheets into complex shapes further expands their applicability in innovative switchgear designs.
Integration with Smart Grid Technologies
As power systems evolve towards smart grid technologies, G10 epoxy fiberglass sheets play a crucial role in supporting advanced switchgear functionalities. Their excellent insulating properties and dimensional stability make them suitable for housing sensitive electronic components and sensors within switchgear assemblies. This integration enables features such as real-time monitoring, fault detection, and remote operation capabilities in modern switchgear systems. The material's compatibility with various manufacturing processes also facilitates the incorporation of embedded sensors and communication modules, enhancing the intelligence and connectivity of switchgear equipment.
Longevity and Lifecycle Cost Reduction
The use of G10 epoxy fiberglass sheets in high-voltage and industrial switchgear contributes significantly to equipment longevity and lifecycle cost reduction. Their resistance to aging, electrical stress, and environmental factors results in extended service life for switchgear components. This durability translates to reduced maintenance frequency, lower replacement costs, and improved reliability of electrical infrastructure. Additionally, the material's fire-retardant properties enhance safety and reduce the risk of catastrophic failures, further contributing to the overall cost-effectiveness of switchgear installations over their operational lifetime.
Conclusion
G10 epoxy fiberglass sheets have become an indispensable material in power distribution and switchgear applications, offering a unique combination of electrical insulation, mechanical strength, and environmental resistance. Their ability to enhance reliability, support advanced functionalities, and contribute to long-term cost-effectiveness makes them a preferred choice for manufacturers and utilities alike. As the demands on electrical infrastructure continue to evolve, the versatility and performance of G10 epoxy fiberglass sheets position them as a key enabler of innovation and efficiency in power systems technology.
FAQs
What are the key advantages of using G10 epoxy fiberglass sheets in switchgear applications?
G10 epoxy fiberglass sheets offer excellent electrical insulation, high mechanical strength, dimensional stability, and resistance to environmental factors, making them ideal for switchgear components.
Can G10 epoxy fiberglass sheets withstand high temperatures in electrical equipment?
Yes, G10 sheets have good thermal stability and can maintain their properties at elevated temperatures typically encountered in electrical applications.
Are G10 epoxy fiberglass sheets suitable for outdoor switchgear installations?
Absolutely. Their low moisture absorption and resistance to UV degradation make them suitable for both indoor and outdoor switchgear applications.
