The Benefits of Outsourcing FR4 CNC Machining Directly to the Material Manufacturer

When engineering managers and procurement specialists need to find precision-machined parts, working directly with a manufacturer of FR4 sheet for CNC machining services has clear benefits over using multiple vendors. This streamlined model gets rid of middlemen, making it possible to track materials from the production of raw epoxy laminates to the finished machined parts. Working directly with material suppliers lets you combine in-depth knowledge of the substrate with advanced fabrication skills. This leads to tighter tolerances, faster turnaround times, and cost structures that reflect the true costs of manufacturing rather than layered markups. This method works especially well for electrical insulation parts, PCB support structures, and thermal barriers, where the integrity of the material has a direct effect on safety and performance.

Understanding FR4 Material in PCB Manufacturing

What Makes FR4 the Industry Standard

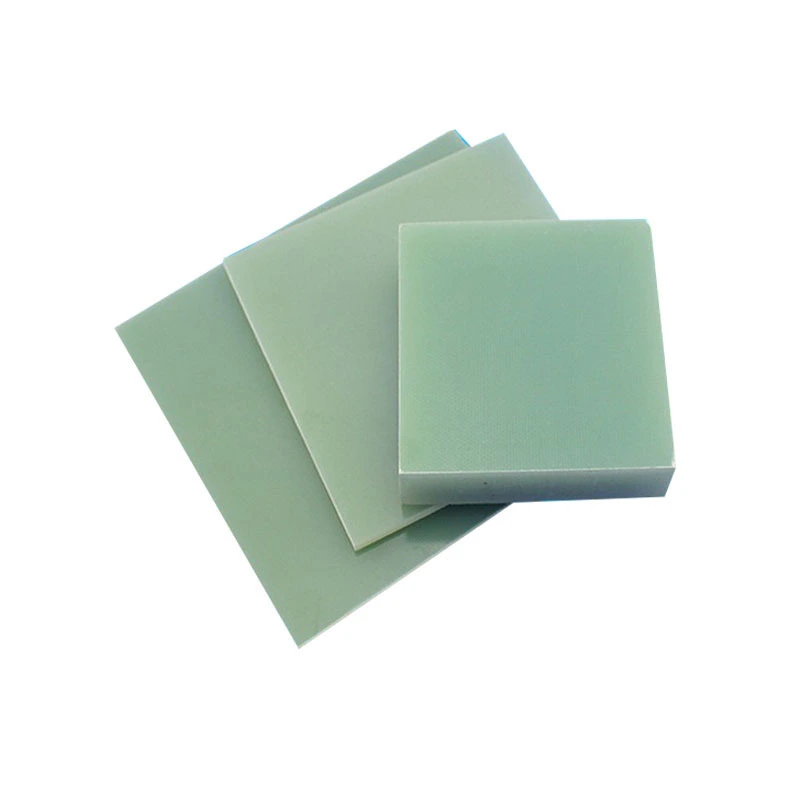

FR4 sheet is a composite material made of woven fiberglass cloth that has been mixed with epoxy resin that doesn't catch fire. The letter "FR" means that the material is flame retardant and meets UL94 V-0 standards. The number "4" tells you the specific grade in NEMA classification systems. This thermosetting laminate has carefully designed resin chemistry that makes it self-extinguishing. This stops fires from spreading in electrical assemblies. The architecture of the material makes a balanced structure. The glass reinforcement gives it mechanical strength, and the epoxy matrices keep it stable in size across a range of temperatures.

Critical Properties Driving Application Selection

The dielectric strength of FR4 sheet, which is usually between 20 and 30 kV/mm, is one of its best qualities. It lets it work reliably in high-voltage environments that are common in switchgear and power distribution equipment. At 1 MHz, the material keeps its dielectric constant stable between 4.2 and 4.8, which helps with predictable impedance control that is needed for circuit boards to keep signals safe. Thermal performance lets it work continuously at temperatures up to 130°C, and the glass transition temperature of around 170°C gives it room for soldering processes and tough industrial conditions.

FR4 sheet has mechanical properties like flexural strength above 415 MPa and compressive strength above 415 MPa. This means they can be used for load-bearing tasks in addition to their primary function as insulation. In humid places, water absorption rates below 0.1% keep the dimensions stable and the electrical properties the same. Because of these qualities, FR4 sheet is used in a lot of different areas, from consumer electronics to industrial machinery, where dependability under stress is key to a product's success.

Comparing FR4 Against Alternative Substrates

Other materials fill specific needs, but they aren't as versatile as FR4 sheet. Paper-based phenolic laminates like FR1 are cheaper, but they can't resist water or heat, so they can only be used on consumer goods that will be kept at room temperature. CEM-3 composites have a paper core and fiberglass surfaces. They combine cost and performance, but they introduce imperfections that make precision machining harder. High-frequency laminates made with PTFE or ceramic-filled systems work better electrically for RF applications, but they cost more and need special processing skills.

FR4 sheet is the market leader because it has a good balance of electrical, thermal, and mechanical performance at a price that allows for mass production. Because of this balance, it is usually used for electrical insulation in motors, structural parts in industrial equipment, and thermal barriers in car systems where the cost of more specialized materials is too high.

Challenges in FR4 CNC Machining and Why Outsourcing Helps

Technical Complexities of In-House Machining

Machining FR4 sheet requires special tools and optimizing parameters that are very different from cutting metal. Because glass reinforcement is rough, tools wear out faster. This means that carbide or diamond tools need to be replaced often, which puts a strain on maintenance budgets. Fine particles and dust are made when you cut, so you need extraction systems to keep both the workers and the machinery safe. Calibration of the feed rate and spindle speed depends on the thickness, fiber orientation, and resin content in order to get consistent edge quality without delamination.

Keeping an eye on the temperature during machining stops the resin from breaking down and the dimensions from changing. Too much heat from bad cutting parameters softens the resin, which leads to a bad surface finish and tolerance drift. Fixturing skills and gentle clamping methods are needed to hold fragile or thin-walled parts without causing stress cracks. When different thicknesses or tight geometric tolerances are used in production, these variables become even more important. This leads to quality problems that make it harder to put the parts together later.

How Direct Manufacturer Partnerships Solve Core Problems

Material producers with integrated machining facilities have a lot of experience with substrates, which cuts down on the amount of trial-and-error needed to learn. Because their engineers know how the resin formulation, glass weave patterns, and curing profiles affect machinability, they can change how they cut based on the properties of each lot. This information stops common problems like layer separation or corner chipping that happen when fabricators use material as a commodity input.

Handoff delays and documentation gaps that happen in multi-vendor supply chains are taken care of by process integration. When raw laminate and machining happen in the same building, inspection data flows smoothly, and material certifications connect directly to finished parts with no extra work for the office. Advanced CNC centers that are only used for composite machining can do things that regular machine shops can't afford to do, like micro-drilling for ventilation holes or precise contouring for complicated insulator shapes.

A transformer maker that used to get its raw FR4 sheet from machining services separately had rejection rates of about 8% because of critical edge delamination. When you switch to a direct manufacturer relationship, defects drop to less than 1% and lead times drop from six weeks to three. The integrated supplier knew that their specific resin grade needed different tool geometry and coolant application, which the third-party fabricator did not know. Material cost transparency also showed that the "low-cost" raw material used before made total costs go up because it caused more work and lost yield.

Key Advantages of Outsourcing FR4 CNC Machining to Material Manufacturers

Quality Assurance and Compliance Certainty

Manufacturers with vertically integrated operations use quality systems that check everything from the raw materials that come in to the final part that is made. Documentation for UL recognition, ISO 9001 certification, and RoHS compliance comes from a single source rather than being put together from different vendors with different standards. This makes it possible to show the full history of a piece of material during customer audits or regulatory reviews.

Manufacturing facilities with testing capabilities can quickly confirm electrical properties, dimensional accuracy, and mechanical strength without having to send samples to outside labs. When specifications call for proof of dielectric strength or flame resistance, testing on-site speeds up the approval process and lets you know right away if any changes need to be made. Consistency from batch to batch is better because the same quality engineers oversee both making the laminates and the machines, making sure that the same standards are used throughout the whole process.

Cost Efficiency Through Consolidated Services

When you combine machining with supplying FR4 sheet, you get rid of the markup layers that build up along the supply chain. Instead of adding up the margins from distributors, brokers, and fabrication subcontractors, transparent pricing models show how much it costs to actually make something. When you commit to buying a lot of raw materials or machining services, you can get better prices than when you buy from different vendors separately.

When manufacturers manage their stock against planned machining schedules, inventory optimization is good for everyone. This coordination cuts down on the need for safety stock and the risk of products becoming obsolete when specifications change, which saves money on working capital. When compared to managing multiple supplier relationships, consolidated billing and single-point payment terms make accounting easier and cut down on administrative costs.

When material experts help with design-for-manufacturability reviews, engineering works better. Their knowledge of the best thicknesses, allowable tolerances, and cost-effective geometries keeps costly redesigns from having to be done. This collaboration at the front end often finds ways to standardize dimensions across part families, which saves even more money by cutting down on setup time and reusing tools.

Accelerated Timelines and Flexible Scalability

Cutting out steps in between raw materials and finished parts greatly speeds up the process. With traditional sourcing models, there are delays at every handoff, including ordering materials, moving them to a warehouse, waiting in line at the fabricator, and shipping them back. With direct manufacturer integration, these steps are combined into one continuous flow, so the material doesn't have to leave the facility to go from being cut to being machined.

The change from prototype to production happens faster because the same tools and people who work on development samples also work on large orders. Translation mistakes and process drift happen a lot when prototypes are being made in one place while production moves to a different supplier. This continuity stops those problems. Changes in engineering are made more quickly because technical discussions happen with teams that control both the material specifications and the machining parameters.

Capacity flexibility makes it easier for integrated operations to handle changes in demand. Manufacturers can move resources between making raw sheets and machining without having to negotiate with outside vendors about capacity during busy times of the year or when a new product comes out. This flexibility is especially helpful for companies that make parts for cars and appliances that have to deal with model-year changes or big sales.

Customization and Technical Support Depth

Material companies have applications engineering teams that know about both the properties of the substrate and the needs of different industries for its final use. With this knowledge, they can suggest the best grades, thicknesses, and ways to machine the metal for different uses, like arc barriers in transformer assemblies or insulation frames in motor housings. They can make better design suggestions than fabricators who only use generic material specs because they know more about problems with thermal management, mechanical stress patterns, and electrical field distributions.

When there is enough demand, custom material development can be done. Changing the resin content to make it easier to machine, changing flame retardant packages to meet specific compliance needs, or making custom thickness tolerances are all examples of things that can be done together rather than special requests that can't be met. This feature is important for R&D teams working on next-generation products because standard materials make it hard to be creative.

Conclusion

Directly outsourcing CNC machining to companies that make FR4 sheet is a smart way to buy things that gives you measurable benefits in quality, cost, timeliness, and technical ability. This unified model takes advantage of in-depth knowledge of the substrate, gets rid of bottlenecks in the supply chain, and gives you options for both small and large production runs. As performance standards rise, rules get more complicated, and the supply chain is uncertain, working with vertically integrated producers can provide stability and access to new ideas that traditional approaches with many vendors can't match. When engineering managers and procurement specialists look at different sourcing strategies, they should think about how direct manufacturer relationships fit with both short-term needs and long-term competitive positioning.

FAQ

What quality certifications should FR4 material manufacturers hold?

Reputable manufacturers keep their ISO 9001 quality management system certification, which shows that they are serious about their processes. UL recognition for certain grades of FR4 sheet makes sure that they meet electrical safety standards by inspecting and testing the products on a regular basis. Documentation that shows compliance with RoHS and REACH rules about dangerous substances makes sure that rules are followed. Industry-specific certifications, such as IATF 16949 for suppliers to the auto industry or AS9100 for use in aerospace, show that a quality system is mature in that area. Ask for copies of current certificates and check the registration numbers with the organizations that issued them to make sure they are real and still valid.

How does integrated manufacturing affect lead times compared to traditional sourcing?

When compared to sequential sourcing models, consolidated operations usually cut down on timelines by 40 to 60%. With traditional methods, there are delays at every handoff, such as ordering raw materials, storing them for distributors, waiting in line for fabricators, and planning how to send them back. Integrated facilities process materials from cutting to machining all at once, so there are no delays in between steps. Prototype development is especially helpful because the same people and tools that work on samples also work on production orders. This keeps translation mistakes and setup mistakes from happening more than once. Instead of negotiating with outside vendors about priorities, manufacturers now control scheduling across all process steps, which makes it easier to meet tight deadlines.

Can material manufacturers accommodate small prototype quantities?

Most integrated producers can make prototypes in quantities ranging from one piece to several dozen parts. This is because they know that development projects today will turn into production programs tomorrow. Different suppliers have different minimum order requirements, but competition and the economics of CNC automation have lowered many of the barriers. To get long-term production business, some companies offer dedicated prototype services with faster processing and engineering help. Talking about volume roadmaps during the first meetings helps suppliers justify investing in prototypes and often gets them better prices as quantities rise.

Partner With J&Q for Integrated FR4 Sheet Manufacturing and Precision Machining

J&Q has been making FR4 sheet for more than 20 years and has advanced CNC capabilities that allow them to provide complete solutions for electrical, industrial, automotive, and appliance needs. From making the epoxy resin to precision machining, we do everything in-house. This gives us control over the material's properties and tight tolerances that broken supply chains can't match. UL-approved materials, full-service testing labs, and applications engineering specialists help you develop your product from the idea stage to mass production. We offer a true one-stop service that streamlines your procurement processes by managing logistics in-house. Get in touch with our technical team at info@jhd-material.com to talk about how our FR4 sheet manufacturing and machining services can help you find the best parts faster and make your products better.
