Superior Mechanical Rigidity and Moisture Resistance
Enhanced Structural Integrity

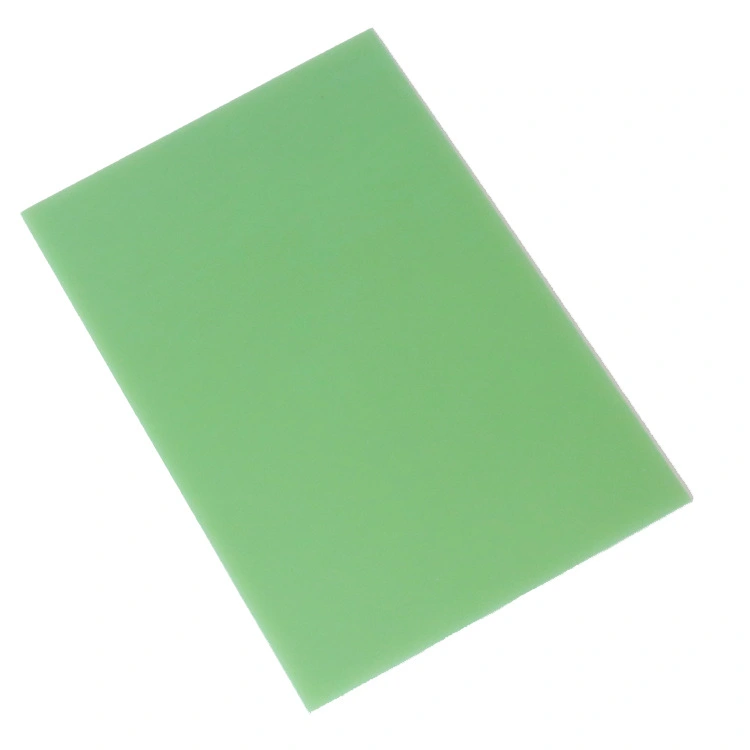

FR4 epoxy board boasts remarkable mechanical strength, surpassing phenolic and Bakelite materials in rigidity and durability. The fiberglass reinforcement within FR4 creates a robust matrix that resists warping and flexing, even under significant stress. This structural integrity ensures that PCBs and other components maintain their shape and functionality throughout their operational life, reducing the risk of cracks or breaks that could compromise electrical connections.
Exceptional Moisture Resistance
Unlike phenolic boards, which can absorb moisture and swell, FR4 epoxy board exhibits superior hydrophobic properties. Its low water absorption rate minimizes the risk of delamination and electrical shorts caused by moisture ingress. This characteristic is particularly valuable in high-humidity environments or applications exposed to condensation, where maintaining insulation integrity is crucial for long-term reliability.
Dimensional Stability Across Temperature Ranges
FR4's composition allows it to maintain consistent dimensions across a wide range of temperatures. This thermal stability is a significant advantage over phenolic and Bakelite boards, which may expand or contract more dramatically with temperature fluctuations. The dimensional consistency of FR4 ensures that circuit traces and component placements remain accurate, preserving the intended electrical characteristics of the design even in challenging thermal conditions.
How Does FR4 Offer Better Electrical Properties and Lifespan?
Superior Dielectric Strength
FR4 epoxy board exhibits exceptional dielectric strength, significantly outperforming phenolic and Bakelite alternatives. This superior insulation capability allows for higher voltage applications and tighter circuit designs without the risk of electrical breakdown. The consistent dielectric properties of FR4 across frequencies make it an ideal choice for high-speed digital circuits and RF applications where signal integrity is paramount.
Lower Dissipation Factor
The dissipation factor of FR4 is notably lower than that of phenolic or Bakelite materials, resulting in reduced signal loss and heat generation within the board. This characteristic is particularly beneficial in high-frequency applications, where minimizing power loss is crucial for maintaining signal quality and overall system efficiency. The improved performance at higher frequencies extends the usable range of FR4-based circuits, enabling more advanced and compact electronic designs.
Extended Operational Lifespan
FR4 epoxy board's resistance to degradation from environmental factors such as heat, humidity, and chemical exposure contributes to a significantly longer operational lifespan compared to phenolic or Bakelite boards. The material's stability ensures that electrical and mechanical properties remain consistent over time, reducing the need for frequent replacements and improving the overall reliability of electronic systems. This longevity translates to reduced maintenance costs and increased equipment uptime in industrial and commercial applications.
Meeting Modern Demands for Performance and Regulatory Compliance
Adherence to Stringent Safety Standards
FR4 epoxy board is engineered to meet and exceed modern safety standards, particularly in terms of flame retardancy. Unlike some phenolic and Bakelite formulations, FR4 is inherently flame-resistant, achieving UL94 V-0 ratings without compromising its electrical or mechanical properties. This built-in safety feature is crucial for compliance with international regulations and standards in various industries, from consumer electronics to automotive and aerospace applications.
Compatibility with Advanced Manufacturing Processes
The versatility of FR4 epoxy board extends to its compatibility with cutting-edge manufacturing techniques. Its stable composition allows for precise machining, laser drilling, and multi-layer lamination processes that are challenging or impossible with phenolic or Bakelite boards. This adaptability enables the production of complex, high-density interconnect (HDI) PCBs and 3D electronic structures, pushing the boundaries of what's possible in electronic design and miniaturization.
Environmental Considerations and Sustainability
While all electronic materials have environmental impacts, FR4 epoxy board offers several advantages in terms of sustainability. Its durability and long lifespan reduce the frequency of replacements, minimizing waste generation. Additionally, many FR4 formulations are now available with halogen-free and low-VOC options, aligning with global initiatives for greener electronics. The recyclability of FR4 is also improving, with new technologies emerging to recover and reuse its components, contributing to a more circular economy in the electronics industry.
Conclusion
FR4 epoxy board represents a significant leap forward in material technology for electronic applications, offering clear advantages over phenolic and Bakelite boards. Its superior mechanical properties, excellent electrical characteristics, and ability to meet modern performance and regulatory demands make it the material of choice for a wide range of industries. As electronic systems continue to evolve, requiring higher performance and reliability, FR4 epoxy board stands ready to meet these challenges, ensuring the continued advancement of technology in an increasingly connected world.
FAQs
What makes FR4 epoxy board superior to phenolic or Bakelite boards?
FR4 epoxy board offers higher mechanical strength, better electrical insulation, improved thermal stability, and greater moisture resistance. It also meets stricter safety standards and is more compatible with advanced manufacturing processes.
Can FR4 epoxy board withstand high temperatures?
Yes, FR4 has excellent thermal stability and can maintain its properties at higher temperatures compared to phenolic or Bakelite boards.
Is FR4 epoxy board environmentally friendly?
While all electronic materials have some environmental impact, FR4 is more durable and often available in halogen-free formulations, contributing to sustainability efforts in the electronics industry.
Experience the Superior Performance of FR4 Epoxy Board with J&Q
At J&Q, we leverage over two decades of expertise in insulating sheet production to deliver top-quality FR4 epoxy boards. Our global presence and in-house logistics ensure seamless service from order to delivery. Experience the difference with our FR4 epoxy fiberglass boards, offering unmatched mechanical strength, excellent insulation, and thermal stability. For inquiries or to place an order, contact us at info@jhd-material.com.
