Testing Standards for FR4 Epoxy Sheet Quality Control

Testing standards for FR4 epoxy sheet quality control are crucial in ensuring the reliability and performance of electronic components. These standards encompass a range of physical, electrical, and thermal tests designed to evaluate the material's properties. Organizations like IPC, ASTM, and ISO have established comprehensive guidelines for FR4 testing, including measurements of dielectric strength, glass transition temperature, and flame resistance. By adhering to these rigorous standards, manufacturers can guarantee consistent quality, meet industry requirements, and provide dependable FR4 sheets for various electronic applications, from printed circuit boards to aerospace components.

International Standards Governing FR4 Testing

IPC Standards for FR4 Materials

IPC, a global trade association for the electronics industry, has developed several standards specifically for FR4 materials. The IPC-4101 standard, "Specification for Base Materials for Rigid and Multilayer Printed Boards," outlines the requirements for FR4 laminates used in PCB manufacturing. This standard covers physical, electrical, and thermal properties, ensuring consistency across different manufacturers.

ASTM Standards for FR4 Testing

ASTM International provides numerous test methods applicable to FR4 epoxy sheets. For instance, ASTM D149 measures dielectric breakdown voltage, while ASTM D570 evaluates water absorption. These standards ensure that FR4 materials meet specific performance criteria crucial for their intended applications.

ISO Standards Relevant to FR4 Quality Control

The International Organization for Standardization (ISO) has established several standards that apply to FR4 testing. ISO 11359, for example, specifies methods for determining the coefficient of thermal expansion, an essential property for FR4 materials used in high-temperature environments. These ISO standards contribute to global consistency in FR4 quality assessment.

ASTM, IPC, and ISO Test Methods for FR4 Materials

Physical Property Tests

Physical property tests for FR4 epoxy sheets evaluate key mechanical characteristics essential for reliable PCB performance. Measurements such as tensile strength, flexural strength, and dimensional stability help determine the material’s ability to resist deformation under stress. ASTM D638 provides standardized procedures for tensile testing, while ASTM D790 covers flexural properties. By performing these tests consistently, manufacturers can ensure that FR4 sheets withstand mechanical forces during fabrication, assembly, and operational use, guaranteeing long-term durability and structural integrity in electronic devices.

Electrical Property Tests

Electrical property tests are critical to verify the insulating performance of FR4 epoxy sheets in electronic applications. These tests measure dielectric constant, dissipation factor, and volume resistivity to ensure the material maintains signal integrity and prevents electrical breakdown. IPC-TM-650 offers detailed procedures for evaluating electrical characteristics, while ASTM D150 defines methods for dielectric testing. Consistent assessment of these properties ensures FR4 sheets meet the stringent requirements of high-frequency, high-voltage, and precision electronic circuits, supporting the reliability and safety of finished devices.

Thermal Property Tests

Thermal property tests assess how FR4 epoxy sheets perform under temperature variations, a key factor for applications in automotive, aerospace, and industrial electronics. ASTM E1356 determines the glass transition temperature (Tg), indicating the point at which the material transitions from rigid to more flexible behavior, while ISO 11359 measures the coefficient of thermal expansion, showing dimensional changes with temperature. Conducting these tests ensures that FR4 sheets maintain structural stability, electrical performance, and mechanical integrity in environments with thermal cycling or elevated operating temperatures, preventing failures and extending service life.

Why Consistent Testing Ensures Reliable Electronics

Quality Assurance in Manufacturing

Consistent testing of FR4 epoxy sheets is essential to maintain high-quality standards in PCB and electronics manufacturing. By evaluating material properties such as dielectric strength, moisture absorption, and thermal resistance against established benchmarks, manufacturers can detect deviations early in the production process. Prompt identification and correction of any inconsistencies ensure that every batch meets rigorous quality criteria. This systematic quality assurance minimizes the risk of defective products, enhances overall reliability, and reinforces customer confidence in electronic components.

Performance Prediction and Design Optimization

Regular testing of FR4 epoxy sheets provides engineers with accurate data to predict component performance under a wide range of operating conditions. By understanding how the material behaves under thermal cycling, mechanical stress, and electrical load, designers can optimize PCB layouts and circuit configurations. This predictive insight reduces the likelihood of failures, improves signal integrity, and enhances the long-term reliability of electronic devices. Additionally, consistent testing results support accurate computer simulations and modeling, further streamlining the design and validation process.

Compliance with Industry Regulations

Many industries, including aerospace, medical devices, and automotive electronics, enforce strict regulations regarding material performance and reliability. Consistent testing of FR4 epoxy sheets ensures that manufactured components meet these regulatory standards, minimizing the risk of non-compliance, recalls, or legal issues. Documented test results also facilitate certification processes, providing traceable evidence that materials and components adhere to international and industry-specific safety requirements. This compliance underscores the dependability of FR4-based electronics in highly regulated applications.

Conclusion

The importance of adhering to testing standards for FR4 epoxy sheet quality control cannot be overstated. These standards, established by reputable organizations like IPC, ASTM, and ISO, provide a framework for ensuring consistent material properties and performance across the electronics industry. By implementing rigorous testing protocols, manufacturers can guarantee the reliability of their FR4 materials, leading to improved electronic products and reduced failure rates. As technology continues to advance, the role of these testing standards in maintaining quality and driving innovation in the electronics sector will only grow in significance.

FAQs

What is FR4 epoxy sheet?

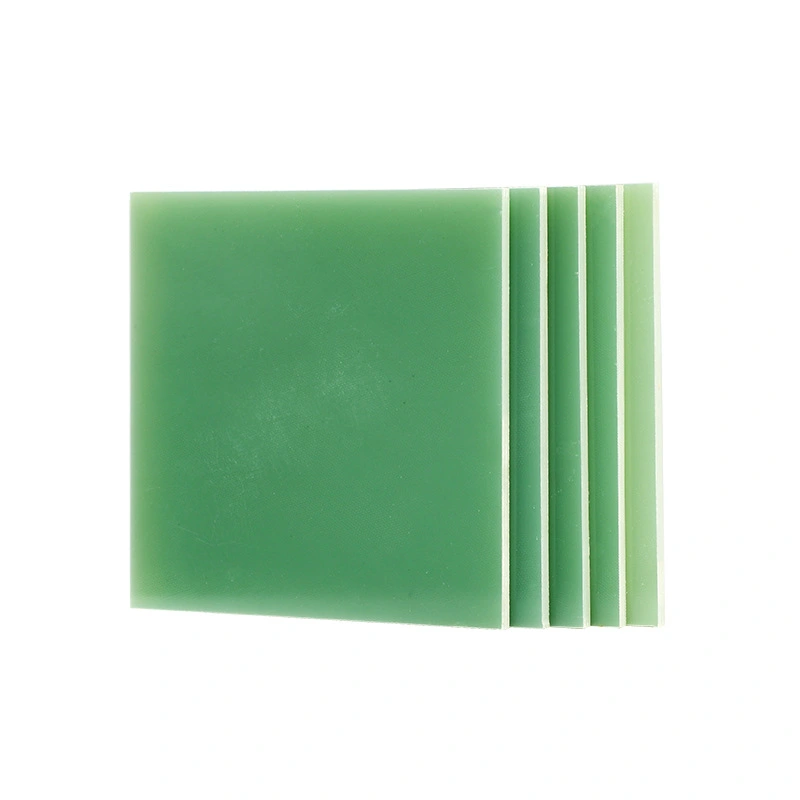

FR4 epoxy sheet is a flame-retardant, glass-reinforced epoxy laminate commonly used in printed circuit board manufacturing. It offers excellent electrical insulation properties, mechanical strength, and thermal resistance.

Why is quality control important for FR4 sheets?

Quality control ensures consistent performance, reliability, and safety of electronic components made with FR4 materials. It helps meet industry standards and regulatory requirements while minimizing the risk of product failures.

How often should FR4 sheets be tested?

Testing frequency depends on production volume and specific industry requirements. Generally, manufacturers perform regular batch testing and may conduct more frequent tests during new product development or process changes.

Choose J&Q for Premium FR4 Epoxy Sheets

J&Q, with over 20 years of experience in producing and selling insulating sheets, offers high-quality FR4 epoxy sheets that meet rigorous testing standards. Our global presence and in-house logistics company enable us to provide seamless, one-stop services to customers worldwide. For premium FR4 epoxy sheets and expert guidance, contact us at info@jhd-material.com.

References

IPC. (2018). IPC-4101D: Specification for Base Materials for Rigid and Multilayer Printed Boards. Bannockburn, IL: IPC.

ASTM International. (2020). ASTM D149-20: Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies. West Conshohocken, PA: ASTM International.

International Organization for Standardization. (2019). ISO 11359-2:2019: Plastics - Thermomechanical analysis (TMA) - Part 2: Determination of coefficient of linear thermal expansion and glass transition temperature. Geneva: ISO.

IPC. (2019). IPC-TM-650: Test Methods Manual. Bannockburn, IL: IPC.

ASTM International. (2017). ASTM E1356-08(2017): Standard Test Method for Assignment of the Glass Transition Temperatures by Differential Scanning Calorimetry. West Conshohocken, PA: ASTM International.

Coombs, C. F. (2008). Printed Circuits Handbook (6th ed.). New York: McGraw-Hill Education.
