Why Is FR4 Classified as Flame Retardant?
Chemical Composition and Fire-Resistant Properties

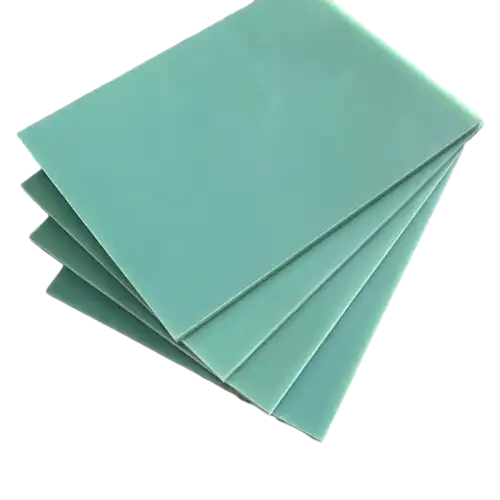

The flame-retardant classification of FR4 epoxy sheet is primarily attributed to its carefully engineered chemical composition. The epoxy resin matrix is modified with halogenated flame-resistant additives, most commonly brominated compounds, which act as active fire suppressants. When exposed to elevated temperatures, these additives release bromine radicals that disrupt the chain reactions of combustion, effectively slowing down flame growth. This mechanism prevents uncontrolled burning and provides valuable time for intervention, making FR4 a reliable material in environments where fire safety is crucial.
Fiberglass Reinforcement and Its Role
In addition to the epoxy resin, the woven fiberglass reinforcement within FR4 contributes significantly to its fire-resistant qualities. Fiberglass is naturally non-combustible, meaning it does not ignite or sustain flames under typical fire conditions. More importantly, it provides excellent structural stability, allowing FR4 epoxy sheets to retain their mechanical strength even at high temperatures. This synergy between flame-retardant epoxy resin and incombustible fiberglass ensures that the material resists deformation and maintains integrity, which is essential in safety-critical applications across electrical, industrial, and aerospace fields.
Heat Dissipation and Thermal Stability
Another key factor behind FR4’s flame resistance lies in its superior thermal stability and ability to dissipate heat effectively. The material is designed to endure elevated operating temperatures without losing its flame-retardant performance or undergoing rapid degradation. Its capacity to spread and release heat evenly minimizes the occurrence of localized hotspots, which are common ignition points in electronic and industrial systems. By combining thermal endurance with efficient heat management, FR4 reduces fire risks and enhances the overall safety of devices and installations.
UL94 V-0 Rating and Fire Safety Compliance of FR4
Understanding the UL94 V-0 Standard
The UL94 V-0 rating is a crucial benchmark for flame retardancy in materials used in electronic applications. This standard, developed by Underwriters Laboratories, evaluates a material's ability to self-extinguish after ignition. FR4 epoxy sheets consistently meet or exceed the requirements for the V-0 rating, which is the highest level of flame retardancy under this classification system.
Testing Procedures and Criteria
To achieve the UL94 V-0 rating, FR4 epoxy sheets undergo rigorous testing procedures. These tests involve exposing the material to direct flame contact and observing its behavior. The material must self-extinguish within a specified time frame and must not produce flaming drips that could ignite other materials. FR4's consistent performance in these tests underscores its reliability in fire-prone environments.
Global Recognition and Industry Adoption
The UL94 V-0 rating of FR4 epoxy sheets is recognized globally, making it a preferred choice for manufacturers worldwide. This universal acceptance facilitates international trade and ensures consistent safety standards across different regions. The widespread adoption of FR4 in the electronics industry is a testament to its effectiveness in meeting stringent fire safety requirements.
How Flame Retardancy Improves Electrical Product Safety?
Preventing Fire Propagation in Circuit Boards
The flame-retardant properties of FR4 epoxy sheets play a crucial role in preventing fire propagation within electronic devices. In the event of a component failure or short circuit that generates excessive heat, the FR4 substrate acts as a barrier, limiting the spread of flames to other parts of the circuit board. This containment significantly reduces the risk of catastrophic failure and enhances the overall safety of the electronic product.
Enhancing Device Longevity and Reliability
By resisting combustion and maintaining structural integrity under high temperatures, FR4 epoxy sheets contribute to the longevity and reliability of electronic devices. The material's ability to withstand thermal stress without degrading ensures that circuit boards remain functional even under challenging operating conditions. This durability translates to safer, longer-lasting products that can withstand the rigors of daily use.
Compliance with Safety Regulations
The use of FR4 epoxy sheets in electronic products helps manufacturers comply with various safety regulations and standards. Many industries, such as aerospace, automotive, and consumer electronics, have stringent requirements for fire safety. By incorporating FR4 materials, manufacturers can more easily meet these regulatory demands, ensuring their products are safe for use in diverse applications and environments.
Conclusion
FR4 epoxy sheets stand as a testament to the critical importance of flame retardancy in electronic safety. Their unique composition and properties not only meet but often exceed industry safety standards, particularly the UL94 V-0 rating. By effectively preventing fire propagation, enhancing product reliability, and ensuring compliance with global safety regulations, FR4 epoxy sheets play an indispensable role in safeguarding electronic devices and their users. As technology continues to evolve, the flame-retardant properties of FR4 will undoubtedly remain a cornerstone of electrical product safety, driving innovation and setting new benchmarks in the industry.
FAQs
What makes FR4 epoxy sheets flame retardant?
FR4 epoxy sheets are flame retardant due to their chemical composition, which includes fire-resistant additives in the epoxy resin and non-combustible fiberglass reinforcement.
How does FR4 compare to other materials in terms of flame retardancy?
FR4 is superior to many materials due to its ability to meet the UL94 V-0 rating, the highest standard for flame retardancy in electronic applications.
Can FR4 epoxy sheets be used in high-temperature environments?
Yes, FR4 exhibits excellent thermal stability and can withstand high temperatures without losing its flame-retardant properties.
Experience the Superior Flame Retardancy of J&Q's FR4 Epoxy Sheets
At J&Q, we pride ourselves on delivering top-quality FR4 epoxy sheets that meet the highest safety standards. With over 20 years of experience in producing and selling insulating sheets, we understand the critical importance of flame retardancy in electronic applications. Our FR4 epoxy sheets not only meet but exceed industry requirements, ensuring optimal safety and performance for your products. For more information about our FR4 epoxy sheets and how they can enhance your electrical product safety, contact us at info@jhd-material.com.
