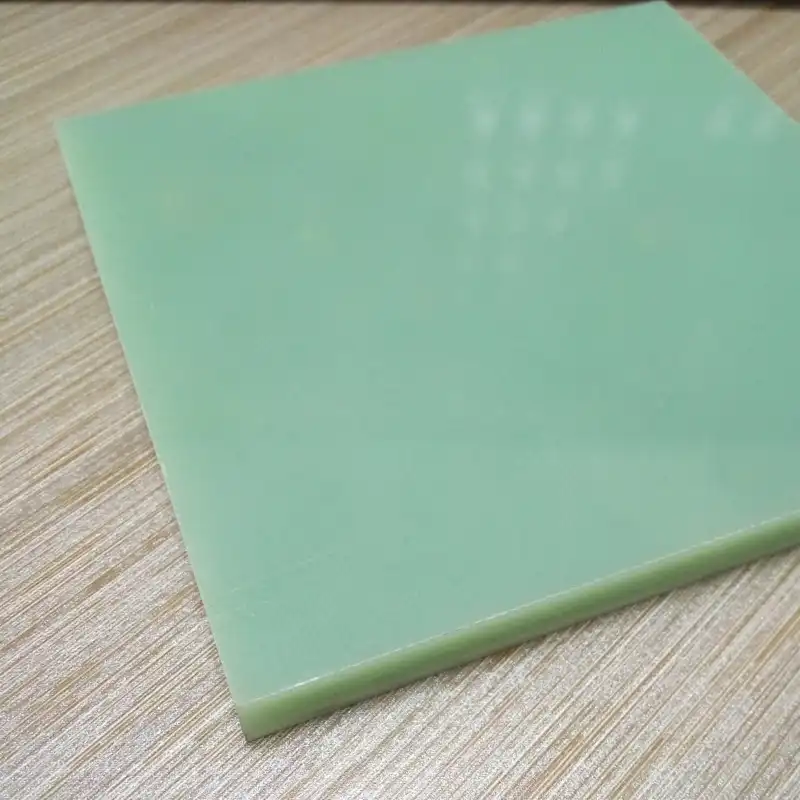

How Is G10 Epoxy Sheet Strength Measured?
Tensile Strength Testing
Tensile strength testing is a crucial method for evaluating the mechanical properties of G10 epoxy sheets. This process involves subjecting a sample of the material to controlled tension until it fails. The test measures the maximum stress the material can withstand before breaking, providing valuable data on its load-bearing capacity. Specialized equipment, such as universal testing machines, is utilized to apply precise forces and record the material's response. The results are typically expressed in units of pressure, such as pounds per square inch (psi) or megapascals (MPa).
Flexural Strength Analysis
Flexural strength analysis, also known as the three-point bending test, assesses the G10 epoxy sheet's ability to resist deformation under load. This test simulates real-world scenarios where the material might experience bending forces. A rectangular specimen is supported at two points and a load is applied at the center point until the sample fractures. The flexural strength is calculated based on the maximum stress at the moment of failure. This test provides insights into the material's stiffness and its performance in applications where bending loads are common.
Compressive Strength Evaluation
Compressive strength evaluation determines the G10 epoxy sheet's ability to withstand loads that reduce its size. In this test, a sample is placed between two plates and subjected to a compressive force until failure occurs. The maximum stress the material can endure before crushing or deforming is recorded. This test is particularly relevant for applications where the G10 epoxy sheet might be used in load-bearing structures or components subject to compressive forces. The results help engineers and designers select appropriate thicknesses and configurations for specific use cases.
Mechanical and Thermal Testing Procedures
Impact Resistance Testing
Impact resistance testing assesses the G10 epoxy sheet's ability to absorb energy during sudden, high-force impacts without fracturing. The Izod impact test is commonly used, where a notched specimen is struck by a pendulum hammer. The energy absorbed during the impact is measured, providing insights into the material's toughness and its performance in applications where sudden impacts are likely. This test is crucial for evaluating the material's suitability in environments prone to shocks or collisions.
Thermal Conductivity Measurement
Thermal conductivity measurement is essential for understanding how well G10 epoxy sheets conduct or insulate heat. The guarded hot plate method is often employed, where a sample is placed between hot and cold plates, and the heat flow through the material is measured. This test helps determine the material's effectiveness as a thermal insulator, which is critical in applications where temperature control is crucial. The results are typically expressed in watts per meter-kelvin (W/(m·K)), allowing for comparison with other materials and selection for specific thermal management requirements.
Coefficient of Thermal Expansion (CTE) Analysis
Coefficient of Thermal Expansion (CTE) analysis measures how much the G10 epoxy sheet expands or contracts with temperature changes. This property is crucial for applications where dimensional stability under varying temperatures is essential. The test typically involves heating the material over a specified temperature range and precisely measuring its dimensional changes. The CTE is usually expressed in units of strain per degree of temperature change. Understanding the CTE helps predict how the material will behave in environments with temperature fluctuations, ensuring proper design considerations in critical applications.
Interpreting Performance Test Results
Analyzing Mechanical Property Data
Interpreting mechanical property data from G10 epoxy sheet tests requires a nuanced understanding of material science. When analyzing tensile strength results, it's crucial to consider both the ultimate tensile strength and the yield strength, which indicates the point at which the material begins to deform plastically. Flexural strength data should be examined in conjunction with the flexural modulus, which provides information about the material's stiffness. Compressive strength results are often compared to tensile strength to assess the material's overall load-bearing capabilities. It's important to note that these properties can vary depending on the orientation of the glass fibers within the epoxy matrix, necessitating careful consideration of directionality in design applications.
Evaluating Thermal Performance Metrics
Thermal performance metrics for G10 epoxy sheets provide critical insights into the material's behavior under various temperature conditions. When interpreting thermal conductivity data, lower values indicate better insulating properties, which is often desirable in electrical applications. The Coefficient of Thermal Expansion (CTE) results should be carefully considered, especially in applications where the G10 sheet interfaces with materials having different CTEs, as mismatches can lead to stress and potential failure. Additionally, the glass transition temperature (Tg) is a crucial parameter that indicates the point at which the material transitions from a rigid to a more flexible state, impacting its mechanical properties at elevated temperatures.
Assessing Long-term Durability Indicators
Long-term durability indicators are essential for predicting the G10 epoxy sheet's performance over extended periods. Water absorption test results, typically expressed as a percentage of weight gain, provide insights into the material's resistance to moisture ingress, which can affect electrical and mechanical properties over time. Chemical resistance test data should be carefully evaluated to ensure compatibility with expected environmental exposures. Fatigue test results, often presented as S-N curves (stress vs. number of cycles to failure), are crucial for applications involving cyclic loading. Interpreting these results requires consideration of the intended service life and operating conditions to ensure the material's long-term reliability and safety in its intended application.
Conclusion
The comprehensive testing methods for G10 epoxy sheet performance provide crucial insights into this versatile material's capabilities. By thoroughly evaluating mechanical strength, thermal properties, and long-term durability, manufacturers and engineers can make informed decisions about its application in various industries. These rigorous testing procedures ensure that G10 epoxy sheets meet the demanding requirements of electrical insulation, structural components, and high-performance applications. As technology advances, continued refinement of these testing methods will further enhance our understanding and utilization of G10 epoxy sheets, driving innovation in material science and engineering.
FAQs
What is the typical tensile strength of G10 epoxy sheets?
G10 epoxy sheets typically have a tensile strength of around 40,000 psi (275 MPa).
How does G10 perform in high-temperature environments?
G10 has a maximum operating temperature of approximately 140°C (284°F), making it suitable for many high-temperature applications.
Is G10 epoxy sheet electrically conductive?
No, G10 is an excellent electrical insulator with high dielectric strength.
What industries commonly use G10 epoxy sheets?
G10 is widely used in electronics, aerospace, marine, and electrical power industries.
How does G10 compare to FR4 in terms of performance?
While similar, G10 generally offers higher mechanical strength and better performance in extreme temperatures compared to FR4.
Experience Reliable G10 Epoxy Sheet Performance with J&Q
At J&Q, we leverage over 20 years of experience in producing and selling insulating sheets to deliver top-quality G10 epoxy sheets. Our rigorous testing methods ensure that every sheet meets the highest standards of performance and reliability. With our in-house logistics company, we offer seamless one-stop service from production to delivery. For more information about our G10 epoxy sheets and how they can benefit your projects, contact us at info@jhd-material.com.
