Epoxy resin coats, polyurethane sealers, polyimide tape wrapping, thermal spray coatings, and UV-curable finishes are some ways to seal the edges of G10 CNC made parts. These methods keep fiberglass laminates safe from getting wet, wearing down, and damage from the environment. Proper edge sealing keeps the electrical insulation qualities, stops delamination, and makes parts last longer. When G10 sheet is cut, there needs to be extra security along the sides where the layered structure is visible during CNC machining. The choice is based on the needs of the product, the environment, and the performance standards for industrial parts.
Understanding the Need for Edge Sealing in G10 CNC Machined Parts
The mechanical strength and electrical shielding of fiberglass epoxy laminates are very high, which makes them perfect for tough industrial uses. These materials are made up of layers that are made up of woven glass cloth and epoxy resin systems. This makes parts that can handle heat, chemicals, and electrical stress. However, CNC machining processes leave the internal structure exposed along the cut edges. This leaves areas that are open to damage from the surroundings.
Vulnerability of Exposed Edges
The ends that have been machined show where the glass fibers and resin matrix meet. This is where moisture can get in and make the material perform much worse. When water is absorbed, the size changes, the dielectric strength goes down, and the potential between layers delaminates. These problems are made worse by thermal cycling, which causes expansion forces that spread cracks along the fiber-resin borders. Chemicals can attack the epoxy matrix through edges that aren't sealed, weakening the bond and putting the structure at risk.
Impact on Performance and Reliability
Unsealed sides have a direct effect on the reliability of a component in important situations. When moisture lowers the breakdown voltage across the laminate layer, electrical shielding fails. As water breaks the bond between fibers and matrix, mechanical qualities like flexural strength and impact resistance decrease. When absorbed moisture creates internal pressure during heat exposure, temperature stability drops. This causes microcracks to form and aging to speed up.
Overview of Recommended Edge-Sealing Methods for G10 CNC Machined Parts
There are several sealing methods that can be used to protect made fiberglass laminates, such as G10 sheet, and each has its own benefits for different types of operations. Environmental exposure, mechanical stress, electrical needs, and production limitations must all be carefully considered during the decision process. By knowing about these choices, buying teams can choose the best ways to protect components so they work well and last as long as possible.
Epoxy Resin Coating Systems
Because they chemically connect with the substrate material, two-component epoxy solutions cover all edges. These coats go just a little deeper into the visible fiber structure, locking the fibers together in a way that doesn't let them peel or delaminate. As the reaction cures, cross-linked polymer networks are made that fit the base laminate's thermal expansion properties. Chemical resistance traits keep things safe from acids, bases, solvents, and hydraulic fluids that are common in industry settings.
Polyurethane Sealing Solutions
It is possible for flexible polyurethane formulations to handle both temperature growth and mechanical stress without breaking or coming loose from the base. These materials stay flexible over a wide range of temperatures, which means they can be used in situations where they will be exposed to temperature changes or vibrations. Impact strength is higher than that of hard coating systems. This keeps edges from getting damaged by touching and putting them together. The rates of moisture vapor transmission stay low, but there is some freedom for stress release.
Polyimide Tape Applications
Electrical uses can easily protect the edges with high-temperature polyimide films that have pressure-sensitive glue on them. These tapes keep their insulating properties even when they are heated up, and they also protect against wetness and other contaminants. Installation doesn't need to be mixed or cured, so it can be done in the field and replacements can be made easily during repair rounds. Multiple thicknesses of tape make protection levels that can be changed based on the amount of exposure and performance needs.
Comparing Edge-Sealing Methods: Performance and Suitability
To rate performance for materials like G10 sheet, sealing methods must be systematically compared using a number of factors that are important to industrial uses. Mechanical resilience includes resistance to wear and tear, shock, and stretching when under stress. Environmental defense includes being able to keep out water, being compatible with chemicals, and keeping the right temperature. Things to think about when manufacturing include how hard the application is, how long it needs to cure, and how to check the quality.
Durability and Environmental Resistance
Epoxy surfaces are very good at resisting chemicals and staying stable over time, but they can break easily when heated. When it comes to flexibility and shock protection, polyurethane systems are the best. They also do a good job of keeping moisture out. Polyimide tapes are great at keeping out electricity and keeping temperatures from rising or falling, but they may need to be replaced every so often in tough mechanical settings. Thermal spray coats last a very long time, but they need to be applied with special tools and on surfaces that have already been prepared.
Cost-Effectiveness and Manufacturing Integration
The prices of materials used for different binding methods are very different. Polyimide tapes are the most expensive per unit, but they are easier to use. Epoxy systems need mixing tools and weather controls, but they cover large amounts of work at a low cost. The skills needed for tape application are very different from those needed for spray painting, which requires skilled workers and special facilities.
Practical Application Cases of Edge Sealing in G10 CNC Machined Parts
Industry-specific needs drive the choice of suitable edge sealing techniques based on usage situations and efficiency standards. Knowing about these uses helps people who work in procurement choose sealing methods that work in real-world service situations and meet quality standards and legal requirements.
Electrical and Electronics Manufacturing
Electrical insulators and support structures for circuit boards, such as those made from G10 sheet, need to be edge sealed in a way that keeps the dielectric strength and stops failures caused by moisture. For circuit parts that are used in industrial settings, epoxy finishes are great at keeping electricity from flowing and resisting chemicals. UV-curable coatings work well on PCB boards because they dry quickly and don't change the dimensions or surface finishes needed for fitting components.
Power and Energy Applications
Power distribution equipment and transformer parts are subject to high electrical stress and high temperatures. This means that they need to be sealed in a way that keeps them working well for decades. For outdoor installs, thermal spray coats make arc shields and coil supports last a very long time. Polyimide tape systems reliably protect internal parts while still letting inspection and repair workers get to sealed areas without damaging them permanently.
Automotive and Transportation Components
Edge protection for battery pack insulation and heat shields must be able to handle vibration, temperature cycles, and exposure to vehicle fluids. Polyurethane systems that are flexible can handle mounting pressures and heat expansion while still providing long-lasting barrier protection. Custom formulations are made to meet the needs of the car industry, such as low outgassing, flame protection, and compatibility with assembly adhesives.
Enterprise Introduction & Product and Service Information
J&Q has been making and selling high-performance insulation materials for commercial markets around the world for more than twenty years. Because we know a lot about how fiberglass laminates are used, we can give you expert advice on edge sealing solutions that make parts work better and last longer. Working together with major plastic suppliers to make sure that the quality of the materials is always the same and that they meet international standards like UL recognition and RoHS compliance.
Comprehensive Material Solutions

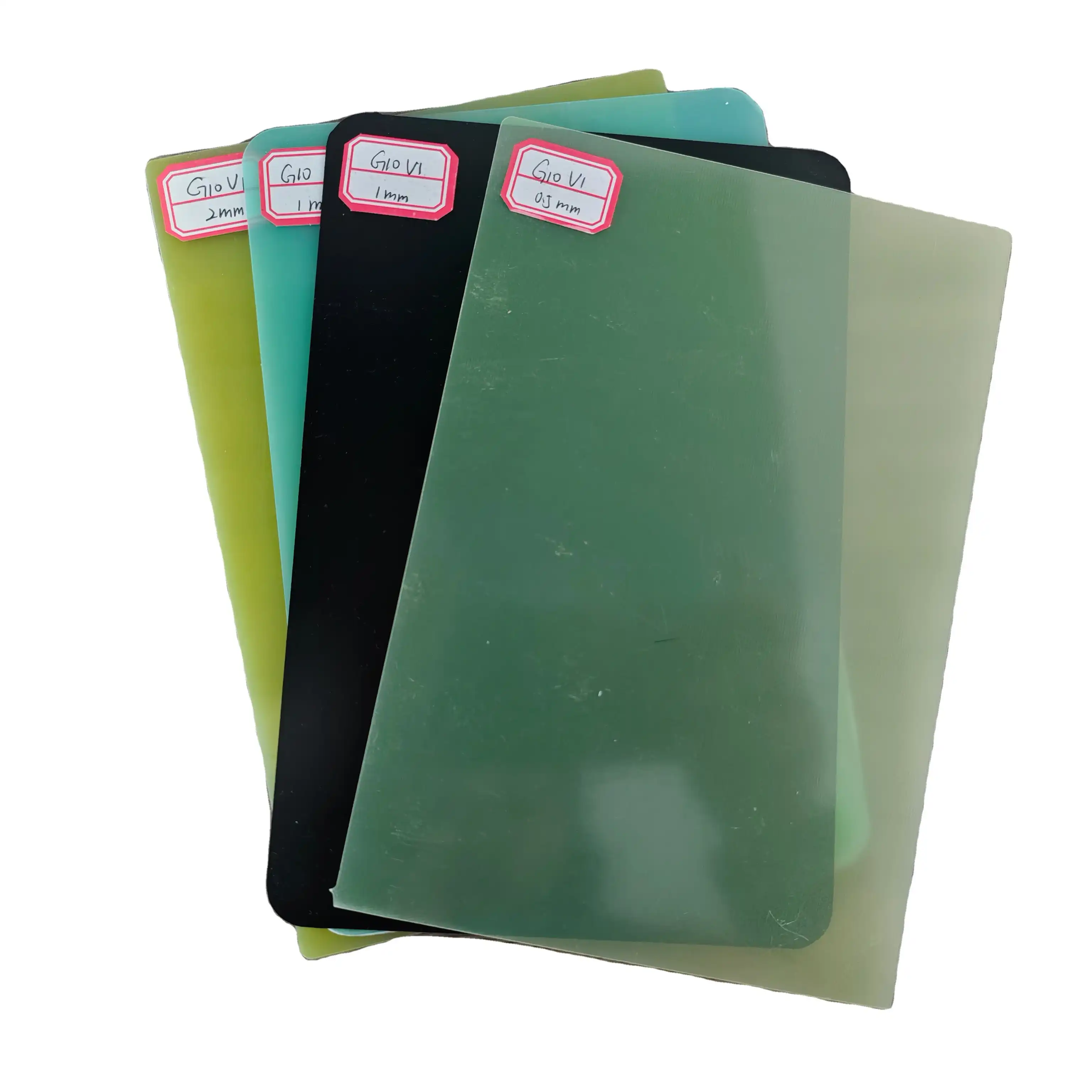

We have a huge selection of different types of fiberglass laminates that are best for different uses, ranging from general-purpose electrical insulation like G10 sheet to high-temperature aircraft parts. Custom cutting services can handle the complicated shapes and close tolerances that are needed for precision parts. For each package, quality control checks the accuracy of the dimensions, the finish on the surface, and the material's features. This makes sure that the performance is the same from one production run to the next.
Technical Support and Consultation
Engineering consulting services help customers choose the best edge sealing methods for materials like G10 sheet based on their needs and the situations where they will be used. Technical paperwork includes information about the properties of the materials, how to place them, and suggestions for quality control to get the best results. Training programs for customer service staff make sure that the right methods of application and quality control are used to keep the safety working for a long time.
Conclusion
Edge sealing that works well keeps G10 CNC made parts from breaking down in the environment and keeps important performance features throughout their service life. To choose the right sealing method, you need to carefully look at the working conditions, performance requirements, and production limitations. Polyurethane systems are flexible and can handle impacts, while epoxy coats are chemically resistant and last a long time. Polyimide tapes work great in electrical uses that need to work well at high temperatures and be easy to maintain. When procurement teams know about these choices, they can choose protection ways that make parts more reliable and cost-effective for a wide range of business uses.
FAQs
Why is it important to seal the edges of G10 made parts used in electrical applications?
Edge sealing stops water from getting in, which can lower the dielectric strength and lead to electrical problems. When electrical stress is put on exposed fiberglass edges, water can soak in and cause tracking, flashover, and insulation to break down. Sealing correctly keeps the material's electrical properties and makes sure that power systems and computer parts will work for a long time.
What effect does applying edge sealing have on the size limits of precise machined parts?
Modern edge sealing methods only add a small amount of thickness to the parts, usually between 0.002 and 0.010 inches, based on how they are applied. UV-curable coatings have the smallest profiles, while tape treatments might need to be adjusted for tolerances. If you plan well during the design phase, you can account for the width of the seal without changing how the system fits together or how it works.
How long does it usually take to get special edge-sealed parts, and how many do I need to order?
Lead times for edge-sealed G10 parts are usually between two and four weeks, but this depends on how complicated the sealing method is and how many parts are ordered. The minimum order amounts depend on the way of application. For example, for tape sealing, the minimums are lower than for spray coating. There are fees for faster handling of rush orders, and blanket orders help cut down on lead times for needs that happen over and over again.
Partner with J&Q for Superior G10 Sheet Solutions
Partnering with J&Q for complete G10 sheet options and edge sealing knowledge will help your parts work better and last longer. Our technical team gives you application-specific advice based on your individual working conditions and performance needs. We've been serving the electrical, industrial, and automobile markets for more than twenty years, so we know how important it is to protect the edges of components properly for long-term reliability. We are a reliable source for G10 sheets, so we keep a large quantity and can machine them to your exact specs.
Our combined logistics skills make sure that deliveries happen on time, and our quality testing programs make sure that materials always have the same properties and protect effectively. Please email us at info@jhd-material.com to talk about your edge sealing needs and get specific technical advice. Let our knowledge help you get the best performance out of your parts while lowering their failure rates and long-term care costs.
