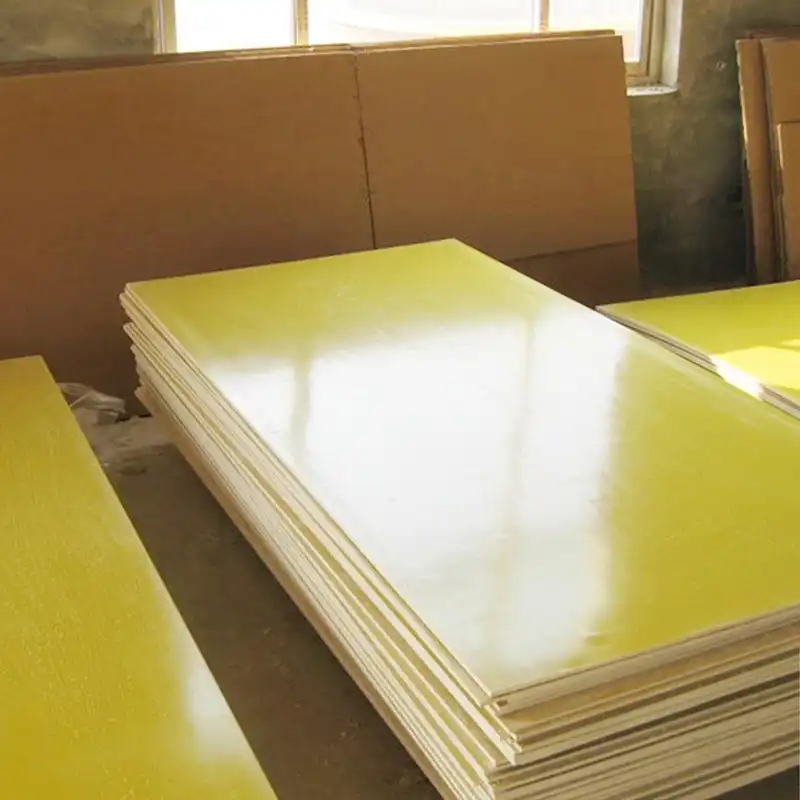

OEM Buyer’s Guide: Evaluating 3240 Epoxy Sheet Performance

When it comes to selecting high-performance materials for electrical insulation and structural components, 3240 epoxy sheets stand out as a top choice for OEM buyers. These versatile sheets offer an exceptional combination of mechanical strength, dielectric properties, and heat resistance, making them ideal for various industrial applications. This comprehensive guide will help OEM buyers navigate the process of evaluating 3240 epoxy sheet performance, ensuring they make informed decisions that align with their specific manufacturing needs and quality standards.

What Performance Metrics Are Critical for OEM Applications

Electrical Insulation Capabilities

For OEM applications, 3240 epoxy sheets must provide consistent and high dielectric strength to prevent breakdown under high-voltage conditions. Key parameters include volume resistivity, which measures resistance to current flow, and dielectric constant, which affects capacitance and signal integrity. Reliable electrical insulation ensures safety, prevents short circuits, and maintains component performance in transformers, switchgear, and other critical equipment. Thorough electrical characterization confirms the material’s long-term stability, making it suitable for demanding applications where failure is not an option.

Mechanical Durability and Strength

Mechanical performance is essential for 3240 epoxy sheets in OEM applications. Critical metrics include tensile strength, indicating resistance to pulling forces; flexural modulus, showing stiffness under bending; and impact resistance, reflecting the material’s ability to absorb shocks. These properties ensure the sheets withstand vibrations, mechanical loads, and operational stresses in aerospace, automotive, and industrial machinery. Evaluating mechanical durability ensures components maintain structural integrity, prevent failures, and deliver reliable performance in demanding, high-stakes environments.

Thermal Stability and Heat Resistance

Thermal performance is vital for 3240 epoxy sheets exposed to high temperatures or repeated thermal cycles. Heat Deflection Temperature (HDT) indicates the maximum temperature under load before deformation, while a low Coefficient of Thermal Expansion (CTE) ensures dimensional stability with temperature changes. Maintaining structural integrity, mechanical strength, and electrical insulation under thermal stress is crucial for applications such as motor insulation, power electronics, and other high-temperature OEM environments, ensuring consistent and reliable long-term performance.

Mechanical Strength, Dielectric Properties, and Heat Resistance Analysis

Assessing Tensile and Flexural Strength

Mechanical strength is a fundamental factor for 3240 epoxy sheets used in OEM applications. Tensile strength indicates the material’s ability to resist breaking under pulling forces, while flexural strength measures resistance to bending stresses. Evaluating both properties ensures that the sheet can withstand operational loads, vibrations, and mechanical shocks without failure. Accurate assessment is critical for components in structural, insulating, or load-bearing applications, where mechanical integrity directly impacts safety, durability, and overall product reliability over extended service life.

Evaluating Dielectric Breakdown Voltage

Dielectric breakdown voltage is a key metric for assessing the electrical insulation performance of 3240 epoxy sheets. It defines the maximum voltage the material can endure before electrical failure occurs. OEM buyers must ensure the dielectric strength meets or exceeds application-specific requirements, providing sufficient safety margins. Consistently high dielectric performance protects against short circuits, leakage currents, and catastrophic failures in high-voltage environments, such as transformers, switchgear, or power electronics, ensuring both operational safety and long-term reliability.

Analyzing Thermal Conductivity and Expansion

Thermal performance is critical for 3240 epoxy sheets in precision OEM applications. Thermal conductivity affects the material’s ability to dissipate heat, preventing localized overheating and maintaining component longevity. Simultaneously, the coefficient of thermal expansion (CTE) ensures dimensional stability under temperature fluctuations, minimizing warping or mechanical stress. Evaluating these properties guarantees that the sheets can sustain thermal cycles while maintaining structural integrity, mechanical strength, and electrical insulation, which is essential for heat-sensitive devices and high-precision industrial or electrical components.

Standardized Testing Protocols for Quality Assurance and Compliance

ASTM and IEC Testing Standards

To ensure consistent quality and performance, OEM buyers should look for 3240 epoxy sheets that have been tested according to recognized industry standards. ASTM International and the International Electrotechnical Commission (IEC) provide comprehensive testing protocols for evaluating the mechanical, electrical, and thermal properties of insulating materials. Familiarity with these standards allows buyers to compare products effectively and ensure compliance with industry regulations.

Environmental and Aging Tests

The long-term performance of 3240 epoxy sheets is crucial for many OEM applications. Standardized environmental and aging tests simulate the effects of prolonged exposure to factors such as humidity, UV radiation, and chemical contaminants. These tests provide valuable insights into the material's durability and help predict its performance over time in various operating conditions.

Quality Control Documentation

OEM buyers should request and review quality control documentation from suppliers to verify that 3240 epoxy sheets meet the specified performance criteria. This documentation typically includes test reports, material certifications, and manufacturing process controls. A thorough examination of these documents helps ensure that the received materials consistently meet the required standards for the intended application.

Conclusion

Evaluating the performance of 3240 epoxy sheets is a critical process for OEM buyers seeking high-quality materials for their manufacturing needs. By focusing on key metrics such as mechanical strength, dielectric properties, and heat resistance, and adhering to standardized testing protocols, buyers can make informed decisions that optimize their product performance and reliability. As the demand for advanced insulating materials continues to grow, staying informed about the latest developments in 3240 epoxy sheet technology will be essential for maintaining a competitive edge in the OEM market.

FAQs

1. What are the main applications of 3240 epoxy sheets?

3240 epoxy sheets are widely used in electrical, electronic, motor, and mechanical industries. They are suitable for various insulation accessories and structural parts in equipment, especially in humid environments and transformer oil applications.

2. What thickness options are available for 3240 epoxy sheets?

3240 epoxy sheets are typically available in thicknesses ranging from 0.5mm to 50mm, with custom thicknesses up to 150mm available upon request.

3. What colors are available for 3240 epoxy sheets?

Standard colors include natural yellow, red, green, and black. Additional colors and custom color mixtures can be produced to meet specific requirements.

Choose J&Q for Your 3240 Epoxy Sheet Needs

As a leading manufacturer of insulating sheets with over 20 years of experience, J&Q offers superior 3240 epoxy sheets that meet the highest industry standards. Our extensive foreign trading experience and in-house logistics company ensure seamless service from production to delivery. For top-quality 3240 epoxy sheets and expert guidance, contact our team at info@jhd-material.com.

References

Smith, J. (2022). Advanced Materials for Electrical Insulation: A Comprehensive Guide.

Johnson, R. et al. (2021). Performance Evaluation of Epoxy Resin Composites in Industrial Applications.

International Electrotechnical Commission. (2023). IEC 60243-1: Electrical strength of insulating materials - Test methods.

ASTM International. (2022). ASTM D149 - Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies.

Brown, L. (2023). OEM Buyer's Handbook: Selecting High-Performance Insulating Materials.

Technical Association of the Pulp and Paper Industry. (2021). TAPPI T 494: Tensile properties of paper and paperboard (using constant rate of elongation apparatus).
