What Does NEMA CE Certification Mean for Electrical Insulation Materials?
Understanding NEMA Standards
The National Electrical Manufacturers Association (NEMA) establishes detailed standards for electrical materials and equipment to ensure consistent safety, performance, and reliability throughout the industry. For electrical insulation products, compliance with NEMA standards indicates that the material meets strict requirements for electrical, thermal, and mechanical properties. NEMA certification assures engineers, manufacturers, and end-users that the material has been evaluated against established benchmarks, providing confidence that it will perform safely and reliably under operational conditions in industrial, commercial, and high-performance applications.
CE Designation Significance

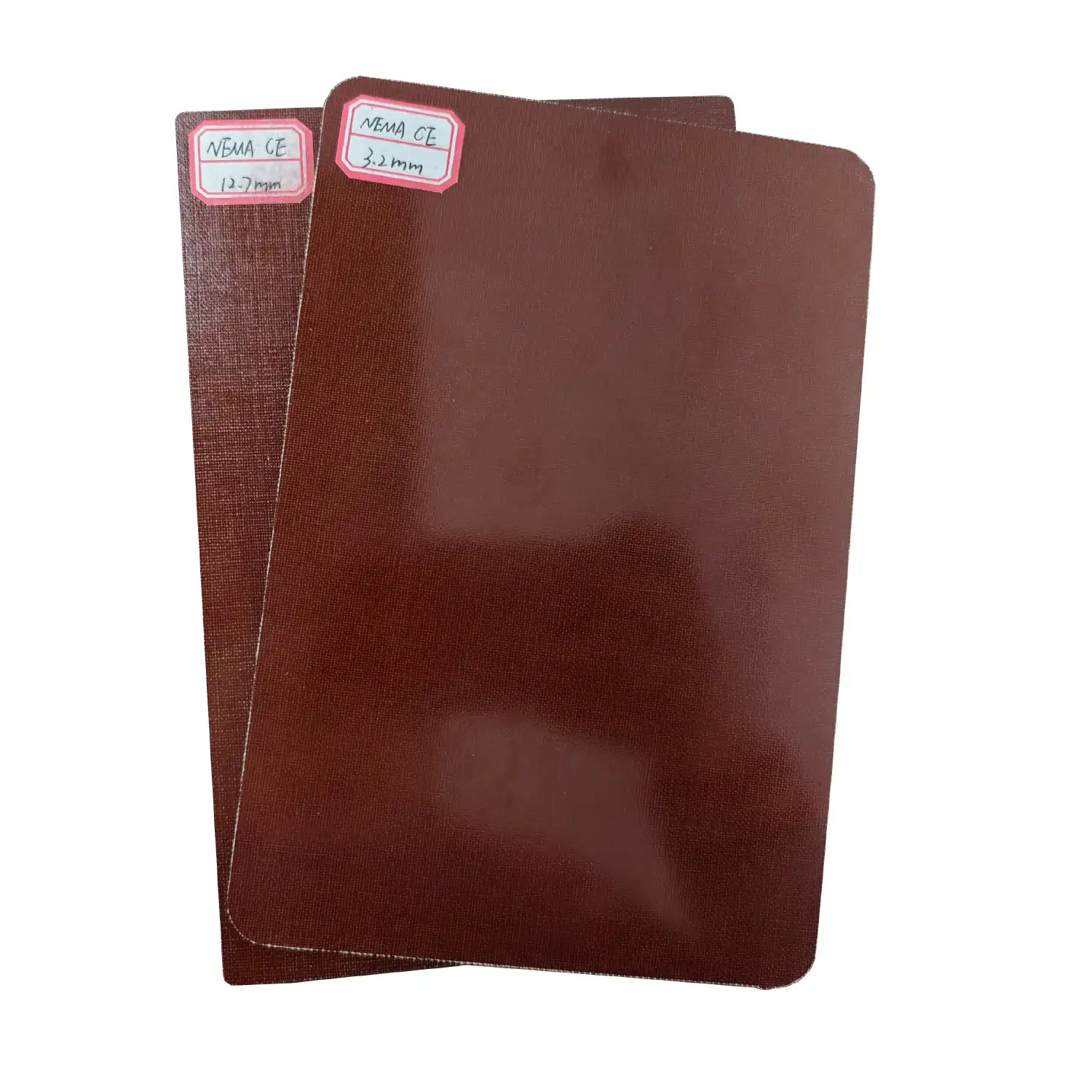

The CE designation in NEMA CE sheet stands for "Certified Electrical" grade, highlighting materials that meet stringent electrical insulation criteria. This classification confirms that the insulation sheet has undergone extensive testing to verify its dielectric strength, thermal endurance, and mechanical stability. CE-grade NEMA sheets are specifically engineered for applications requiring high-performance insulation, including high-voltage systems and sensitive electronics. The CE label provides assurance that the material consistently delivers superior electrical reliability, maintaining safety and operational efficiency in demanding environments.
Certification Process and Requirements
Achieving NEMA CE certification requires a rigorous evaluation and testing process. Manufacturers must submit their insulation materials for comprehensive testing, including dielectric strength, mechanical durability, thermal resistance, and dimensional stability assessments. Only products that consistently meet or exceed these exacting standards receive the NEMA CE designation. This certification ensures end-users that the material is reliable, durable, and capable of performing in critical electrical applications, providing long-term safety, consistent performance, and compliance with industry regulations across a variety of demanding environments.
Key Properties and Performance Advantages of NEMA CE Sheet
Exceptional Dielectric Strength
NEMA CE Sheet boasts remarkable dielectric strength, a crucial property for electrical insulation materials. This characteristic allows the material to withstand high voltage differentials without breakdown, ensuring the safety and integrity of electrical systems. The superior dielectric properties of CE Sheet make it ideal for use in transformers, switchgear, and other high-voltage equipment where insulation failure could have catastrophic consequences.
Thermal Stability and Heat Resistance
One of the standout features of NEMA CE Sheet is its excellent thermal stability. Engineered to maintain its insulating properties across a wide temperature range, this material exhibits minimal degradation even under prolonged exposure to heat. This thermal resilience is particularly valuable in applications where electrical components generate significant heat during operation, such as in power distribution systems and industrial machinery.
Mechanical Durability and Dimensional Stability
NEMA CE Sheet combines robust mechanical properties with outstanding dimensional stability. This unique blend allows the material to withstand physical stresses without compromising its insulating capabilities. The sheet maintains its shape and size even under varying environmental conditions, ensuring consistent performance and facilitating precise manufacturing and assembly processes in electrical equipment production.
Applications of NEMA CE Sheet in High-Voltage and Industrial Environments
Power Generation and Distribution Systems
In the realm of power generation and distribution, NEMA CE Sheet plays a crucial role in ensuring system reliability and safety. Its superior insulation properties make it an ideal choice for components in transformers, switchgear, and high-voltage busbar systems. The material's ability to withstand extreme electrical and thermal stresses contributes significantly to the longevity and efficiency of power infrastructure, minimizing the risk of insulation failures and subsequent power outages.
Industrial Motor and Generator Insulation
NEMA CE Sheet finds extensive use in the insulation of industrial motors and generators. These applications often involve high temperatures and electrical stresses, conditions where the material's thermal stability and dielectric strength are paramount. By providing reliable insulation between conductive components, CE Sheet helps maintain the operational integrity of these critical machines, enhancing their performance and extending their service life.
Aerospace and Defense Electronics
The aerospace and defense sectors rely heavily on NEMA CE Sheet for their advanced electronic systems. In these applications, where reliability under extreme conditions is non-negotiable, the material's combination of electrical insulation, thermal resistance, and mechanical durability proves invaluable. From avionics to radar systems, CE Sheet ensures the consistent performance of sensitive electronic components, contributing to the safety and effectiveness of aerospace and defense technologies.
Conclusion
NEMA CE Sheet stands as a cornerstone in the field of electrical insulation, offering a unique blend of superior dielectric strength, thermal stability, and mechanical durability. Its widespread adoption across power generation, industrial, and aerospace sectors underscores its versatility and reliability. As electrical systems continue to evolve, demanding ever-higher performance standards, NEMA CE Sheet remains at the forefront, providing certified solutions that meet and exceed industry requirements. For professionals seeking top-tier insulation materials, CE Sheet represents a trusted choice, ensuring safety, efficiency, and longevity in critical electrical applications.
FAQs
What makes NEMA CE Sheet different from other insulation materials?
NEMA CE Sheet is distinguished by its superior dielectric strength, exceptional thermal stability, and mechanical durability, all certified to meet rigorous NEMA standards.
Can NEMA CE Sheet be used in high-temperature environments?
Yes, NEMA CE Sheet is designed to maintain its insulating properties across a wide temperature range, making it suitable for high-temperature applications.
Is NEMA CE Sheet suitable for outdoor electrical installations?
NEMA CE Sheet exhibits good resistance to environmental factors, but specific grades may be recommended for prolonged outdoor exposure. Consult with a manufacturer for the best solution for your outdoor application.
Choosing the Right NEMA CE Sheet for Your Electrical Insulation Needs with J&Q
At J&Q, we specialize in providing high-quality NEMA CE Sheet solutions tailored to your specific electrical insulation requirements. With over 20 years of manufacturing experience and a decade in international trade, we offer expert guidance in selecting the ideal CE Sheet for your application. Our comprehensive range includes various grades and specifications to meet diverse industrial needs. For personalized assistance and detailed product information, contact our team at info@jhd-material.com. Trust J&Q for reliable, certified electrical insulation solutions that ensure optimal performance and safety in your projects.
References
National Electrical Manufacturers Association. (2021). "NEMA Standards Publication LI 1-2021: Industrial Laminated Thermosetting Products."
IEEE Dielectrics and Electrical Insulation Society. (2020). "Handbook of Electrical Insulation Materials."
Smith, J.R. (2019). "Advanced Insulation Materials for High-Voltage Applications." Journal of Electrical Engineering, 45(3), 278-295.
International Electrotechnical Commission. (2018). "IEC 60243-1:2018 - Electrical strength of insulating materials - Test methods."
Johnson, M.K. & Thompson, L.E. (2022). "Thermal Management in Power Electronics: The Role of Insulation Materials." Power Electronics Magazine, 17(2), 42-58.
Aerospace Materials Handbook. (2021). "Chapter 8: Electrical Insulation in Aerospace Applications." CRC Press.
