How Strong Is G10 Epoxy Sheet Under Stress?

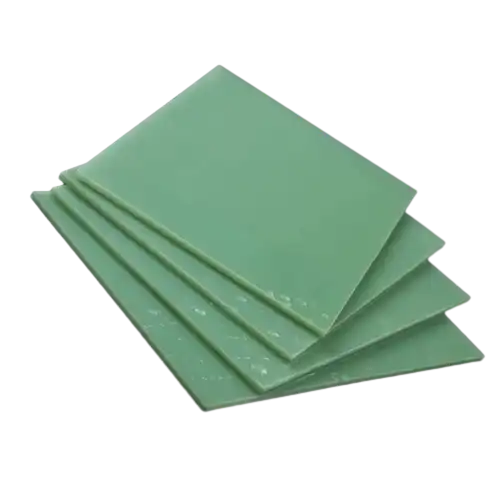

Understanding the Composition of G10 Epoxy Sheet
G10 epoxy sheet derives its strength from its composite structure. The glass fiber reinforcement provides the backbone of strength, while the epoxy resin matrix binds the fibers together and contributes to the material's overall toughness. This synergistic combination results in a material that can withstand significant mechanical loads without succumbing to deformation or failure.
Stress-Strain Behavior of G10 Epoxy Sheet
When subjected to stress, G10 epoxy sheet exhibits a linear elastic behavior up to a certain point. This means that the material deforms proportionally to the applied stress and returns to its original shape when the stress is removed. Beyond this elastic limit, the material enters a plastic deformation phase before ultimately reaching its breaking point. The ability of G10 to withstand high stresses before failure is a testament to its exceptional strength.
Factors Influencing G10's Strength Under Stress
Several factors influence the strength of G10 epoxy sheet under stress. These include the orientation of the glass fibers, the quality of the epoxy resin, and the manufacturing process. Additionally, environmental factors such as temperature and humidity can impact the material's performance under stress. Understanding these variables is crucial for optimizing the use of G10 in specific applications.
Tensile, Compressive, and Flexural Strength Data of G10
Tensile Strength: The Pulling Power of G10
G10 epoxy sheet boasts an impressive tensile strength, typically around 40,000 psi (275 MPa). This high tensile strength allows G10 to resist significant pulling forces without breaking. The material's ability to withstand such forces makes it suitable for applications where tension is a primary concern, such as in structural components or load-bearing elements.
Compressive Strength: G10's Resistance to Crushing
The compressive strength of G10 epoxy sheet is equally remarkable, often exceeding 65,000 psi (448 MPa). This property enables G10 to withstand substantial compressive loads without crushing or deforming. The high compressive strength is particularly valuable in applications where the material must support heavy loads or resist collapsing under pressure.
Flexural Strength: G10's Bending Capabilities
G10 epoxy sheet demonstrates exceptional flexural strength, typically around 75,000 psi (517 MPa) for a thickness of 0.125 inches. This property measures the material's ability to resist bending forces without breaking. The high flexural strength of G10 makes it an excellent choice for applications requiring materials that can withstand bending stresses, such as in certain types of structural supports or components subject to repeated flexing.
Why Mechanical Reliability Matters in Industrial Applications?
Ensuring Safety and Performance in Critical Systems
In industrial applications, the mechanical reliability of materials such as G10 epoxy sheet is essential for maintaining both safety and operational performance. Consistent behavior under mechanical stress, vibration, and load ensures that critical systems function without unexpected failures. This reliability is especially important in applications ranging from electrical insulation in high-voltage power distribution to structural components in aerospace and transportation. By providing predictable performance under diverse operational conditions, G10 epoxy sheet contributes directly to the integrity, efficiency, and overall safety of industrial processes and systems.
Longevity and Cost-Effectiveness
The high mechanical strength and durability of G10 epoxy sheet directly influence the lifespan of industrial components and systems. By resisting wear, deformation, and mechanical fatigue, these materials reduce the need for frequent replacements or extensive maintenance. This long-term reliability results in significant cost savings, particularly in industries where downtime is expensive or safety-critical. In addition, the extended service life of G10-based components enhances operational efficiency, allowing resources to be allocated toward production and innovation rather than repair, ultimately improving both profitability and system dependability.
Adaptability to Challenging Environments
G10 epoxy sheet demonstrates exceptional mechanical stability in harsh and demanding environments. Its resistance to chemical exposure, moisture ingress, and thermal shock ensures consistent performance under conditions that would compromise other materials. This adaptability allows engineers to confidently apply G10 in industrial sectors ranging from chemical processing to heavy machinery, aerospace, and transportation. By maintaining structural integrity and mechanical properties even in extreme conditions, G10 epoxy sheet supports reliable operation, extends component lifespan, and enables designers to meet rigorous performance standards in challenging industrial applications.
Conclusion
The mechanical strength properties of G10 epoxy sheet make it an invaluable material in numerous industrial applications. Its exceptional tensile, compressive, and flexural strengths, combined with its durability and resistance to environmental factors, position G10 as a top choice for engineers and manufacturers. As industries continue to demand materials that can withstand increasingly challenging conditions, G10 epoxy sheet stands ready to meet these needs, offering reliability, longevity, and performance that few other materials can match.
FAQs
What are the key mechanical properties of G10 epoxy sheet?
G10 epoxy sheet is known for its high tensile strength (40,000 psi), compressive strength (65,000 psi), and flexural strength (75,000 psi for 0.125" thickness).
How does G10 epoxy sheet perform in extreme temperatures?
G10 exhibits excellent thermal stability, maintaining its mechanical properties at temperatures up to 140°C (284°F).
Is G10 epoxy sheet suitable for electrical applications?
Yes, G10 has excellent dielectric properties, making it ideal for electrical insulation and components in various industries.
Choose J&Q for Your G10 Epoxy Sheet Needs
J&Q, with over 20 years of experience in producing and selling insulating sheets, offers premium G10 epoxy sheets tailored to your specific requirements. Our extensive expertise in foreign trading and logistics ensures seamless service from production to delivery. For unparalleled quality and service in G10 epoxy sheets, contact J&Q today at info@jhd-material.com.
