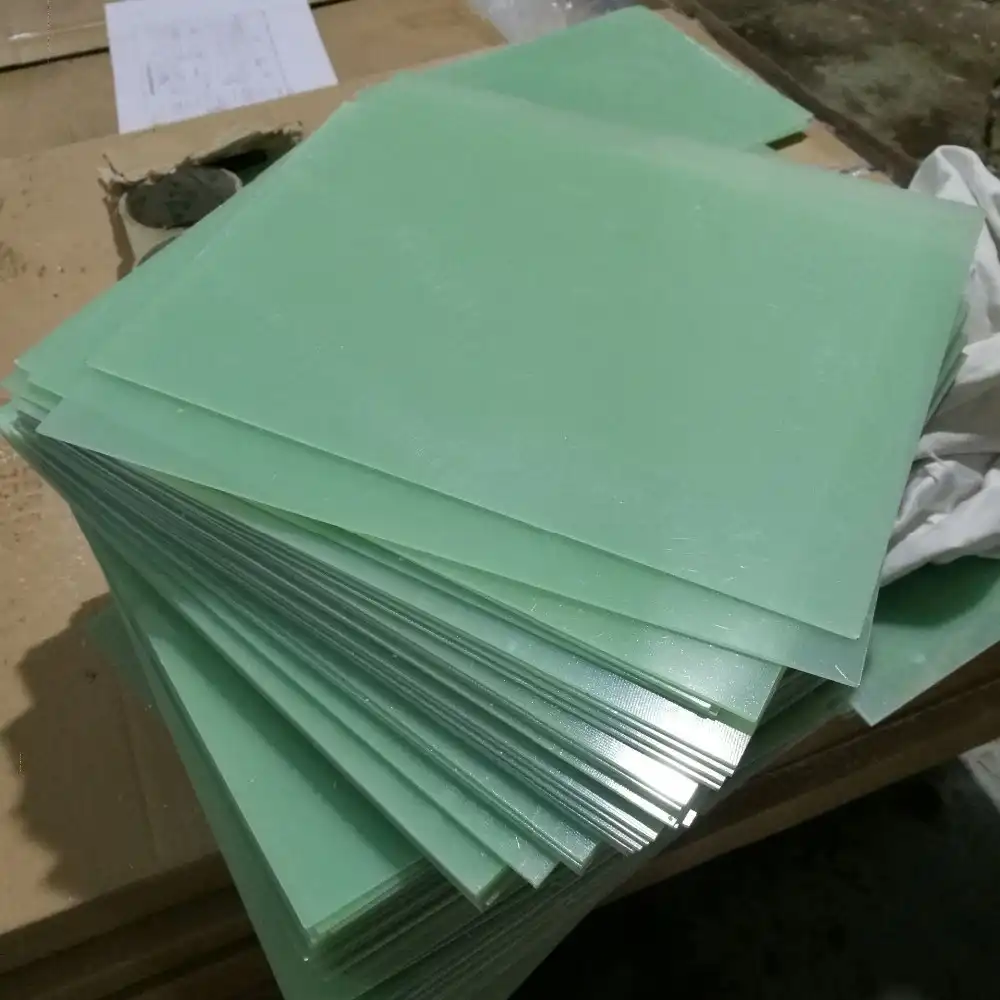

How Does G10 Epoxy Sheet Perform at High Temperatures?
Thermal Conductivity and Insulation Properties
G10 epoxy sheet boasts low thermal conductivity, making it an excellent insulator. This property allows it to maintain temperature differentials effectively, protecting sensitive components from heat transfer. The material's ability to resist heat flow contributes to its efficacy in thermal management applications, where controlling temperature is crucial for system reliability and performance.
Dimensional Stability Under Thermal Stress
One of the hallmarks of G10 is its dimensional stability when exposed to heat. Unlike many polymers that may warp or deform, G10 maintains its shape and dimensions remarkably well under thermal stress. This stability is attributable to the glass fiber reinforcement, which provides a rigid structure that resists expansion and contraction, ensuring that components made from G10 remain true to their design specifications even in fluctuating temperature environments.
Retention of Mechanical Properties at Elevated Temperatures
G10 epoxy sheet demonstrates impressive retention of its mechanical properties at high temperatures. While many materials experience a significant decline in strength and stiffness as temperatures rise, G10 maintains a substantial portion of its room temperature properties well into its operating range. This characteristic is particularly valuable in applications where structural integrity must be preserved under thermal loads, such as in aerospace components or industrial machinery operating in hot environments.
Thermal Decomposition Limits and Stability Factors of G10
Onset of Thermal Degradation
The thermal decomposition of G10 epoxy sheet begins at temperatures significantly above its maximum continuous operating temperature. The onset of degradation typically occurs around 300-350°C, depending on specific formulations and environmental conditions. At these extreme temperatures, the epoxy matrix begins to break down, leading to a gradual loss of mechanical and electrical properties. Understanding this threshold is crucial for designing safety margins in high-temperature applications.
Factors Influencing Thermal Stability
Several factors contribute to the thermal stability of G10 epoxy sheet. The quality and type of epoxy resin used, the glass fiber content and orientation, and the manufacturing process all play roles in determining the material's heat resistance. Additionally, the presence of fillers or additives can enhance thermal stability, with some specialized formulations pushing the limits of temperature resistance even further. Environmental factors such as humidity and the presence of oxidizing agents can also impact the long-term thermal stability of G10 components.
Long-term Effects of Thermal Cycling
While G10 epoxy sheet exhibits excellent resistance to thermal shock, repeated thermal cycling can have cumulative effects on its properties. Over time, microscopic changes in the material's structure may occur, potentially leading to subtle alterations in its performance characteristics. However, G10's robust composition ensures that these effects are minimal compared to many alternative materials, contributing to its reputation for longevity in demanding thermal environments.
Why Heat Resistance Ensures Reliability in Critical Systems?
Maintaining Electrical Insulation at High Temperatures
The heat resistance of G10 epoxy sheet is paramount in maintaining its exceptional electrical insulation properties under thermal stress. In critical electrical systems, where insulation failure could lead to catastrophic consequences, G10's ability to preserve its dielectric strength at elevated temperatures is invaluable. This characteristic ensures that electrical components remain isolated and functional, even when subjected to the heat generated by high-current applications or external thermal sources.
Preventing Thermal Runaway in Power Electronics
In power electronics applications, thermal management is crucial to prevent thermal runaway—a situation where increasing temperature leads to further heat generation, potentially causing system failure or even fire. G10's heat resistance and thermal stability play a vital role in mitigating this risk. By maintaining its insulative properties and structural integrity under heat stress, G10 components help dissipate heat effectively and maintain safe operating temperatures in critical power systems.
Ensuring Structural Integrity in Aerospace Applications
The aerospace industry relies heavily on materials that can withstand extreme temperature fluctuations while maintaining their structural properties. G10 epoxy sheet meets these demanding requirements, offering reliable performance in aircraft components exposed to both the heat of engine proximity and the cold of high altitudes. Its heat resistance ensures that structural elements and electrical systems remain intact and functional throughout the range of temperatures encountered in flight operations.
Conclusion
G10 epoxy sheet stands out as a remarkably heat-resistant and thermally stable material, making it indispensable in a wide array of critical applications. Its ability to maintain mechanical and electrical properties at high temperatures, coupled with excellent dimensional stability, positions G10 as a top choice for engineers tackling thermal challenges. As industries continue to push the boundaries of performance and reliability, the thermal characteristics of G10 epoxy sheet will undoubtedly play a crucial role in enabling next-generation technologies and ensuring the safety and efficiency of critical systems across various sectors.
FAQs
What is the maximum temperature G10 epoxy sheet can withstand?
G10 epoxy sheet has a maximum continuous operating temperature of about 155°C (311°F).
How does G10 compare to other materials in terms of heat resistance?
G10 offers superior heat resistance compared to many plastics and is comparable to some metals, making it ideal for high-temperature applications.
Can G10 epoxy sheet be used in cryogenic environments?
Yes, G10 maintains its properties at temperatures as low as -269°C, making it suitable for cryogenic applications.
Experience the Superior Thermal Performance of G10 Epoxy Sheet with J&Q
At J&Q, we leverage over 20 years of expertise in producing high-quality insulating sheets, including G10 epoxy sheet. Our advanced manufacturing processes and rigorous quality control ensure that our G10 products meet the highest standards of thermal stability and heat resistance. With our global shipping capabilities and comprehensive customer support, we're ready to meet your G10 epoxy sheet needs. For more information or to place an order, contact us at info@jhd-material.com.
