Understanding Phenolic Cotton Sheet Properties
Composition and Structure

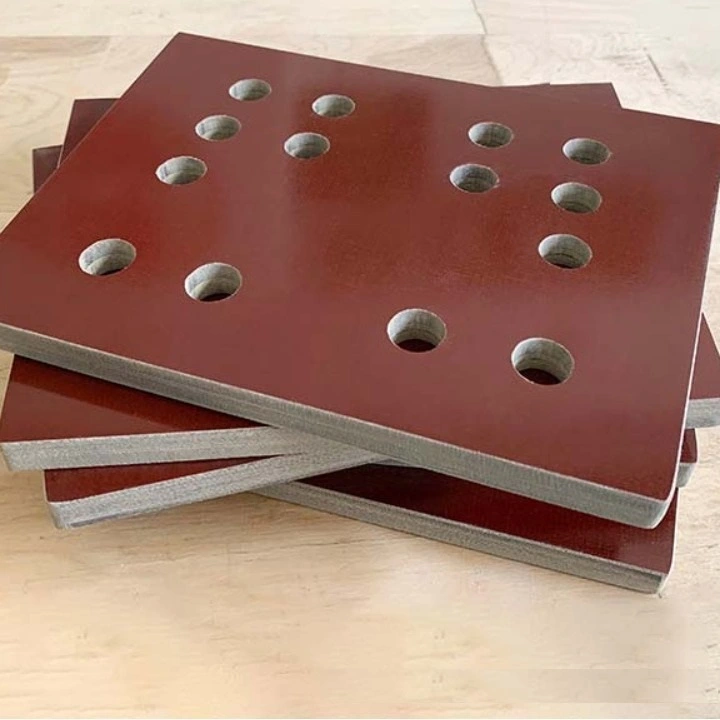

Phenolic cotton sheet is an engineered composite material formed by impregnating multiple layers of woven cotton fabric with phenolic resin under heat and pressure. This lamination process produces a dense, rigid sheet with strong adhesion between layers. The cotton fabric provides structural reinforcement, while the phenolic resin imparts thermal stability, electrical insulation, and chemical resistance. Due to its layered construction, phenolic cotton sheet exhibits anisotropic properties, meaning its strength, stiffness, and machinability differ based on the cutting or loading direction, influencing fabrication and end-use performance.
Mechanical Characteristics
The mechanical characteristics of phenolic cotton sheet, also known as phenolic cotton cloth board, make it highly valued for structural and insulating applications. It possesses high compressive and tensile strength, enabling it to withstand mechanical loads and impact forces without cracking or deforming. Its excellent dimensional stability ensures minimal expansion or contraction under temperature and humidity variations. However, the material’s abrasive fibers and resin matrix can lead to rapid tool wear during machining, requiring carbide or diamond tooling for precision work. Understanding these mechanical attributes ensures optimal material processing and part performance in final applications.
Thermal and Electrical Properties
Phenolic cotton sheet offers superior thermal and electrical properties, making it indispensable in electrical, electronic, and mechanical industries. Its low thermal conductivity provides effective heat insulation, while high dielectric strength ensures reliable electrical insulation, preventing current leakage or short circuits. These thermal characteristics also impact machining, as excessive heat during cutting can soften the resin, leading to poor surface finishes or dimensional inaccuracies. Therefore, appropriate cooling, feed rates, and cutting speeds must be maintained during fabrication to preserve the material’s integrity and performance capabilities.
Essential Tools and Equipment for Machining
Cutting Tools
Selecting appropriate cutting tools is critical for achieving high-quality finishes when machining phenolic cotton sheet. Due to its abrasive nature, high-speed steel (HSS) tools may wear quickly, so carbide-tipped tools are generally preferred for durability and consistent cutting performance. For precision cutting, fine-toothed saw blades designed for composite laminates minimize chipping and edge fraying. Diamond-coated cutting wheels provide excellent results for intricate shapes or thin sections. Ensuring sharp tool edges and proper tool geometry enhances machining efficiency while extending tool life in continuous production settings.
Drilling Equipment
Drilling phenolic cotton sheet requires sharp, durable drill bits capable of handling the material’s abrasive fibers and resin matrix. Carbide-tipped drill bits are ideal, maintaining cutting efficiency and dimensional accuracy over extended use. For creating larger holes, step drills or hole saws equipped with appropriate backing supports help reduce exit burrs and ensure clean hole edges. Adequate chip removal, controlled feed rates, and gradual drilling pressure are crucial to prevent overheating, delamination, or cracking during the drilling process, ensuring optimal hole quality and dimensional precision.
CNC Machining Centers
For complex geometries or high-volume production, Computer Numerical Control (CNC) machining centers provide exceptional precision, repeatability, and processing speed. CNC routers or milling machines equipped with carbide or diamond tooling efficiently cut, contour, and slot phenolic cotton sheets with minimal manual intervention. Programming correct feed rates, spindle speeds, and tool paths is essential to avoid excessive heat buildup or tool wear, which could degrade material properties or surface finishes. Using vacuum tables or specialized fixtures ensures secure material holding, enhancing machining accuracy and safety.
Advanced Machining Techniques
Optimizing Cutting Parameters
Achieving optimal machining performance with phenolic cotton sheet, also known as phenolic cotton cloth board, requires precise adjustment of cutting parameters. Feed rates, cutting speeds, and depth of cut should be tailored to the material’s abrasive and thermoset characteristics. Generally, moderate cutting speeds combined with lower feed rates minimize heat buildup and reduce the risk of delamination or edge chipping. Depth of cut should be shallow enough to maintain stability yet efficient for production. Conducting small-scale trials with varying parameter combinations helps determine the most effective settings for each specific machining setup and part geometry.
Managing Heat Generation
Effective heat management is vital when machining phenolic cotton sheet to preserve material integrity and extend tool life. Excessive heat can soften the resin matrix, leading to poor surface finishes, dimensional inaccuracies, and rapid tool wear. Utilizing compressed air or appropriate cutting fluids assists in dissipating heat during machining operations, although coolant compatibility with phenolic materials should be verified to prevent contamination. Additionally, incorporating intermittent cutting cycles or programmed pauses in CNC operations allows heat to disperse naturally, maintaining consistent material properties and improving overall machining quality.
Finishing Techniques
Achieving a high-quality surface finish on phenolic cotton sheet requires careful attention to detail. After initial machining, consider employing secondary finishing techniques such as sanding or polishing to smooth out any rough edges or surface imperfections. For critical applications, precision grinding can be used to achieve tight tolerances and superior surface quality. When applying these finishing techniques, it's important to use appropriate abrasives and maintain consistent pressure to avoid damaging the material's structure.
Conclusion
Mastering the art of machining phenolic cotton sheet requires a deep understanding of the material's properties and the application of specialized techniques. By employing the right tools, optimizing cutting parameters, and implementing effective heat management strategies, you can achieve outstanding results in your machining projects. Remember that practice and experimentation are key to refining your skills and producing high-quality components. As you continue to work with this versatile material, you'll discover new ways to enhance your machining processes and unlock its full potential in your applications.
