Understanding Epoxy Resin Board Properties and Their Impact on Insulation Grades
Chemical Composition and Its Influence on Insulation Performance

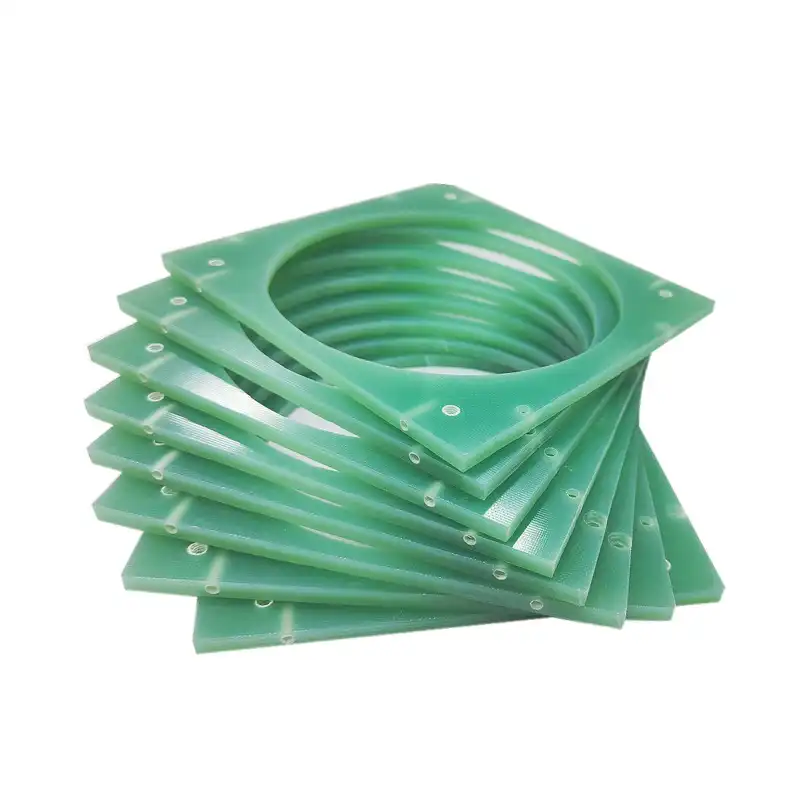

Epoxy resin boards are composite materials consisting of epoxy resin and reinforcing fibers, typically glass or aramid. The chemical composition of the epoxy matrix plays a pivotal role in determining the insulation properties of the board. High-quality epoxy resins incorporate advanced cross-linking agents and additives that enhance dielectric strength and thermal stability. These chemical enhancements contribute to superior insulation grades by minimizing electrical conductivity and improving resistance to thermal degradation.
The molecular structure of epoxy resins, characterized by their epoxide groups, provides excellent adhesion to reinforcing fibers and fillers. This strong interfacial bonding reduces the likelihood of voids or microcracks that could compromise insulation integrity. Moreover, the chemical composition can be tailored to include flame-retardant additives, further improving the board's safety profile and potentially elevating its insulation grade classification.
Physical Characteristics and Their Correlation with Insulation Grades
The physical characteristics of epoxy resin boards significantly influence their insulation grades. Factors such as density, porosity, and surface finish are intrinsically linked to the board's ability to resist electrical breakdown and maintain insulation efficacy. Higher density boards generally exhibit superior insulation properties due to reduced void content and increased material homogeneity. This translates to higher dielectric strength and improved insulation grades.
Surface finish quality is another critical physical attribute affecting insulation performance. Smooth, uniform surfaces minimize electrical stress concentrations and reduce the risk of partial discharges, which can degrade insulation over time. Advanced manufacturing techniques, such as hot-pressing and precision molding, can yield epoxy resin boards with exceptional surface characteristics, contributing to higher insulation grade ratings.
Thermal Conductivity and Its Role in Insulation Grade Determination
Thermal conductivity is a key parameter in assessing the insulation grade of epoxy resin boards. While electrical insulation is the primary focus, the ability to dissipate heat effectively is crucial for maintaining long-term insulation integrity. Epoxy resin boards with optimized thermal conductivity can operate at higher temperatures without compromising their insulation properties, potentially qualifying for higher insulation grade classifications.
Manufacturers often incorporate thermally conductive fillers, such as boron nitride or aluminum oxide, to enhance heat dissipation without significantly affecting electrical insulation. This delicate balance between thermal management and electrical resistance is a hallmark of high-grade epoxy resin boards. The thermal conductivity profile of these boards is carefully engineered to meet the demanding requirements of advanced insulation grade standards.
Testing Methodologies for Assessing Insulation Grades of Epoxy Resin Boards
Dielectric Strength Testing Procedures and Standards
Dielectric strength testing is a cornerstone in evaluating the insulation grade of epoxy resin boards. This test measures the maximum electric field the material can withstand before electrical breakdown occurs. The procedure typically involves applying an increasing voltage across the board sample until failure. Standard test methods, such as ASTM D149 or IEC 60243, provide detailed guidelines for conducting these tests.
The testing environment is meticulously controlled to ensure accuracy and repeatability. Factors such as temperature, humidity, and electrode configuration are standardized. Advanced testing equipment, including high-voltage power supplies and precision measurement instruments, is employed to capture even subtle variations in dielectric performance. The results of these tests are crucial in determining the insulation grade classification of epoxy resin boards.
Volume and Surface Resistivity Measurement Techniques
Volume and surface resistivity measurements are essential for comprehensively assessing the insulation properties of epoxy resin boards. Volume resistivity quantifies the material's ability to resist current flow through its bulk, while surface resistivity measures resistance to current flow across the surface. These parameters are typically measured using specialized test fixtures and high-precision electrometers.
The ASTM D257 standard outlines the procedures for measuring both volume and surface resistivity. These tests often involve applying a known voltage and measuring the resulting current flow after a specified electrification time. The data obtained from these measurements provide valuable insights into the long-term insulation performance of epoxy resin boards under various environmental conditions, contributing significantly to their insulation grade classification.
Thermal Classification and Aging Tests for Insulation Grade Verification
Thermal classification and aging tests are critical in determining the long-term reliability and insulation grade of epoxy resin boards. These tests simulate the effects of prolonged exposure to elevated temperatures, which can degrade insulation properties over time. The IEC 60216 series of standards provides comprehensive guidelines for conducting thermal endurance tests and establishing thermal classifications.
Accelerated aging tests subject epoxy resin board samples to temperatures exceeding their intended operating range for extended periods. The samples are periodically evaluated for changes in electrical and mechanical properties. The results of these tests are used to extrapolate the expected service life of the material at its rated temperature. This information is crucial for assigning appropriate insulation grades and ensuring that epoxy resin boards meet the stringent requirements of various applications in the electrical and electronics industries.
Applications and Industry-Specific Requirements for Epoxy Resin Board Insulation Grades
High-Voltage Power Distribution and Insulation Grade Demands
In high-voltage power distribution systems, epoxy resin boards face some of the most demanding insulation requirements. These applications necessitate exceptional dielectric strength and long-term reliability under extreme electrical stress. Insulation grades for epoxy resin boards used in switchgear, transformers, and busbar systems often exceed standard classifications, with custom specifications developed to meet the unique challenges of high-voltage environments.
The insulation grade requirements in this sector are driven by factors such as operating voltage, surge protection needs, and environmental conditions. Epoxy resin boards must maintain their insulation integrity under various scenarios, including transient overvoltages and partial discharge events. Manufacturers often collaborate closely with power distribution companies to develop specialized epoxy resin formulations that meet or exceed these rigorous insulation grade standards.
Aerospace and Defense: Specialized Insulation Grade Requirements
The aerospace and defense industries impose unique and stringent insulation grade requirements on epoxy resin boards. These applications demand materials that can withstand extreme temperature fluctuations, vibration, and potentially corrosive environments while maintaining reliable electrical insulation. Insulation grades for aerospace applications often incorporate additional parameters beyond standard classifications, such as outgassing characteristics and resistance to cosmic radiation.
Epoxy resin boards used in avionics, satellite systems, and military equipment must meet specialized standards like MIL-I-24768 or ESA ECSS-Q-70-71A. These standards encompass not only electrical insulation properties but also factors like dimensional stability and resistance to thermal cycling. The insulation grade requirements in this sector push the boundaries of epoxy resin technology, driving innovations in material composition and manufacturing processes.
Consumer Electronics and Evolving Insulation Grade Standards
The consumer electronics industry presents a dynamic landscape for epoxy resin board insulation grades. As devices become smaller, more powerful, and increasingly integrated, the demands on insulation materials evolve rapidly. Insulation grade standards for consumer electronics applications focus on balancing electrical performance with thermal management, fire safety, and environmental considerations.
Epoxy resin boards used in smartphones, tablets, and wearable devices must meet stringent insulation grade requirements while also addressing concerns about recyclability and eco-friendliness. Standards like IEC 62368-1 for audio/video and information technology equipment incorporate these multifaceted requirements. The trend towards higher processing speeds and increased power density in consumer electronics continues to drive the development of advanced epoxy resin formulations with enhanced insulation grades, catering to the industry's ever-increasing performance and safety demands.
Conclusion
Insulation grade standards for epoxy resin boards are integral to ensuring the safety, reliability, and performance of electrical and electronic systems across various industries. These standards encompass a complex interplay of chemical, physical, and thermal properties, rigorously tested through established methodologies. As technology advances and application requirements evolve, the standards for insulation grades continue to adapt, driving innovation in epoxy resin formulations and manufacturing processes. Understanding and adhering to these standards is crucial for manufacturers, engineers, and end-users alike, ensuring that epoxy resin boards meet the exacting demands of modern electrical and electronic applications.
